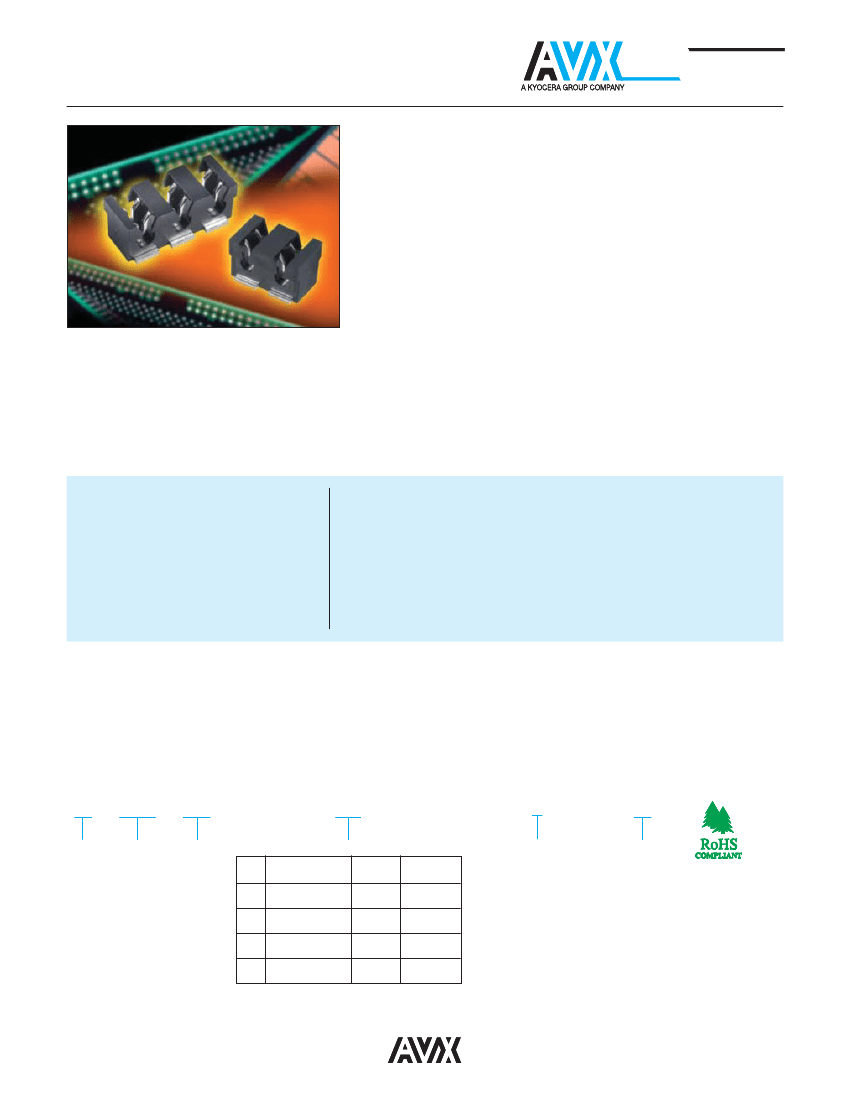

Standard IDC 18-24 AWG: WTB
00-9176
INTER
CONNECT
The 917X series of surface mount Insulation Displacement Connectors (IDC)
were developed to meet the harsh automotive and industrial market
applications for connecting individual wires directly to a PCB ranging from 14
AWG to 28 AWG. This industry proven contact system has been tested to
automotive levels of shock, vibration, and temperature cycling to prove their
reliability and robustness. The simplicity of inserting a wire into the connector
with a small tool allows a wide range of devices to be connected to the PCB
without soldering. In SSL applications specifically, these connectors are used
to bring power and signal onto the PCB or are used to daisy chain multiple
boards together in a long string. While the IDC contact provides a gas-tight
connection to conductor of the wire, the housing has been designed to grab
the insulation of the wire to provide a positive strain relief even in the harshest
conditions. In case of repair, the wires can be removed and replace up to three
times.
The 9176 series accepts 18 AWG to 24 AWG wires with an insulation diameter
ranging from 1.1mm to 2.1mm. These dual contact connectors support a 10
amp current rating with two large SMT solder tails per wire to provide maximum
stability on the PCB. Available in 1p-3p configuration, these connectors can be
end stackable for higher pin counts. The 9176 series also comes with optional
locking strain relief caps that act as the termination tool for severe vibration
applications.
APPLICATIONS
• Connecting discrete wire components
directly to the PCB
• Bringing power and signals onto a PCB
• Daisy chaining PCB’s together to create
a continuous string of boards
• Application Notes: refer to 201-01-124
FEATURES AND BENEFITS
• IDC contact provides a gas-tight connection to the PCB for long term reliability
• Connector housing captures the wire insulation for positive strain relief
• Tested to automotive levels on shock, vibration and temperature cycling for
reliability
• Low and high volume assembly tools to match production volumes
• Reduced total applied cost versus solder or crimp processes
• Optional thru and end caps lock in place to provide maximum strain relief
• High temperature insulator capable to 260ºC reflow soldering processes
ELECTRICAL
• Current Rating: 10 Amp / Contact
• Voltage Rating: 300 VAC
ENVIRONMENTAL
• Operating Temperature:
-40ºC to +125ºC
MECHANICAL
•
•
•
•
Insulator Material: Nylon 46: UL94V0
Contact Material: Phosphor Bronze
Plating: Tin over Nickel
Durability: 3 Cycles
HOW TO ORDER
00
Prefix
9176
Series
00X
Number
of Ways
001 = 1
002 = 2
003 = 3
0XX
Wire Gauge Size
Code
001
011
022
032
Accepted
Wire
Cap Code
Wire Gauge
Insulation
Pages 21-22
18 Gauge
Ø 1.6-2.1
021
Stranded
20 Gauge
Ø 1.6-2.1
021
Solid or Stranded
22 Gauge
Ø 1.1-1.6
016
Solid or Stranded
24 Gauge
Ø 1.1-1.6
016
Solid or Stranded
X
Insulator Color
All Sizes
9 = UL White (Standard)
8 = UL Black (Special Order)
One Way Only (Special Order)
2 = UL Brown
3 = UL Blue
4 = UL Yellow
5 = UL Red
6 = UL Green
7 = UL Orange
06
Plating
Option
06 = Pure Tin
all over
Certification: UL File #E90723
16
031618
Standard IDC 18-24 AWG: WTB
00-9176
CONNECTOR/TOOLING PART NUMBER MATRIX
AWG
18
18
18
18
18
18
20
20
20
20
20
20
22
22
22
22
22
22
24
24
24
24
24
24
24
INTER
CONNECT
SERIES 9176 IDC
HAND INSERTION TOOLING*
ACCESSORY CAPS
Wire
Plastic
Metal
Mass
Positions
Color
Part Number
Through Wire
Wire Stop
Insulation
(medium volume)
(high volume)
Termination
Ø 1.6 - 2.1
1p
Black 009176001001806 069176701601000 069176701701000
N/A
609176001021000 609176001021099
Ø 1.6 - 2.1
1p
White 009176001001906 069176701601000 069176701701000
N/A
609176001021100 609176001021199
Ø 1.6 - 2.1
2p
Black 009176002001806 069176701601000 069176701701000 069176701701002 609176002021000 609176002021099
Ø 1.6 - 2.1
2p
White 009176002001906 069176701601000 069176701701000 069176701701002 609176002021100 609176002021199
Ø 1.6 - 2.1
3p
Black 009176003001806 069176701601000 069176701701000 069176701701003 609176003021000 609176003021099
Ø 1.6 - 2.1
3p
White 009176003001906 069176701601000 069176701701000 069176701701003 609176003021100 609176003021199
Ø 1.6 - 2.1
1p
Black 009176001011806 069176701601000 069176701701000
N/A
609176001021000 609176001021099
Ø 1.6 - 2.1
1p
White 009176001011906 069176701601000 069176701701000
N/A
609176001021100 609176001021199
Ø 1.6 - 2.1
2p
Black 009176002011806 069176701601000 069176701701000 069176701701002 609176002021000 609176002021099
Ø 1.6 - 2.1
2p
White 009176002011906 069176701601000 069176701701000 069176701701002 609176002021100 609176002021199
Ø 1.6 - 2.1
3p
Black 009176003011806 069176701601000 069176701701000 069176701701003 609176003021000 609176003021099
Ø 1.6 - 2.1
3p
White 009176003011906 069176701601000 069176701701000 069176701701003 609176003021100 609176003021199
Ø 1.1 - 1.6
1p
Black 009176001022806 069176701602000 069176701702000
N/A
609176001016000 609176001016099
Ø 1.1 - 1.6
1p
White 009176001022906 069176701602000 069176701702000
N/A
609176001016100 609176001016199
Ø 1.1 - 1.6
2p
Black 009176002022806 069176701602000 069176701702000 069176701702002 609176002016000 609176002016099
Ø 1.1 - 1.6
2p
White 009176002022906 069176701602000 069176701702000 069176701702002 609176002016100 609176002016199
Ø 1.1 - 1.6
3p
Black 009176003022806 069176701602000 069176701702000 069176701702003 609176003016000 609176003016099
Ø 1.1 - 1.6
3p
White 009176003022906 069176701602000 069176701702000 069176701702003 609176003016100 609176003016199
Ø 1.1 - 1.6
1p
White 009176001032106 069176701602000 069176701702000
N/A
609176001016100 609176001016199
Ø 1.1 - 1.6
1p
Black 009176001032806 069176701602000 069176701702000
N/A
609176001016000 609176001016099
Ø 1.1 - 1.6
1p
White 009176001032906 069176701602000 069176701702000
N/A
609176001016100 609176001016199
Ø 1.1 - 1.6
2p
Black 009176002032806 069176701602000 069176701702000 069176701702002 609176002016000 609176002016099
Ø 1.1 - 1.6
2p
White 009176002032906 069176701602000 069176701702000 069176701702002 609176002016100 609176002016199
Ø 1.1 - 1.6
3p
Black 009176003032806 069176701602000 069176701702000 069176701702003 609176003016000 609176003016099
Ø 1.1 - 1.6
3p
White 009176003032906 069176701602000 069176701702000 069176701702003 609176003016100 609176003016199
* Hand Insertion Tooling - Universal Hand Tool 067000773001000; Consult Application Notes 201-01-124
031618
17
Standard IDC 18-24 AWG: WTB
00-9176

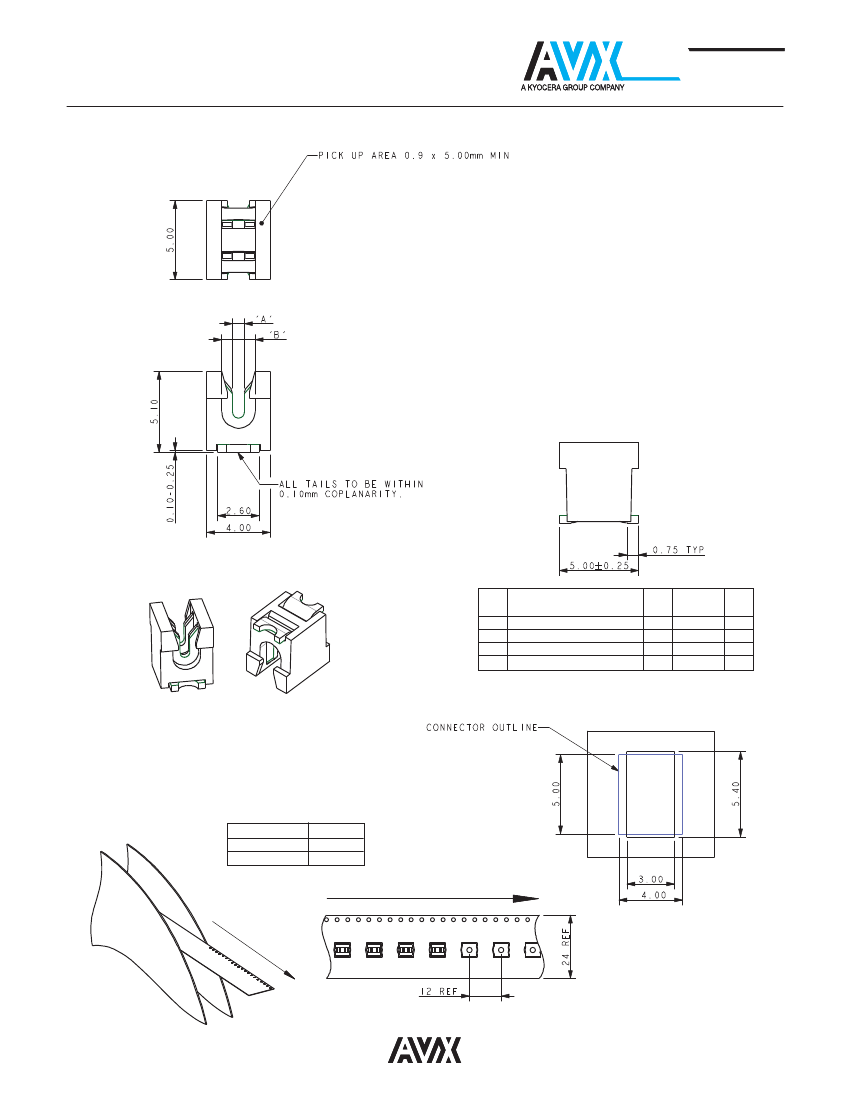

18-24 AWG 1 WAY IDC CONNECTOR
INTER
CONNECT
NOTES:
1. CONNECTOR FOR IDC WIRE TO BOARD CONNECTION.
2. CONTACT MATERIAL: PHOSPHOR BRONZE.
INSULATION MATERIAL: HIGH TEMPERATURE NYLON 46.
COLOR REFER TO PAGE 16.
3. CONTACTS DESIGNED TO ACCEPT BETWEEN 20AWG AND 24AWG SOLID AND
STRANDED WIRES. 18AWG WILL ONLY ACCEPT STRANDED WIRES,
SEE TABLE.
4. ALL DIMENSIONS FOR REFERENCE UNLESS OTHERWISE STATED.
5. FOR FULL PRODUCT SPECIFICATION ON STANDARD CONNECTORS REFER TO
ELCO SPEC 201-01-106. UL COMPONENTS REFER TO ELECO SPEC 201-01-106U.
6. APPLICATION NOTES 201-01-124.
7. FOR PCB SPACE RESTRICTED BY WIRE ASSEMBLY TOOLING REFER TO PAGE 23.
8. FOR HAND WIRE ASSEMBLY TOOLING REFER TO PAGE 23.
9. FOR UL PRODUCT CODES UL REFERENCE E90723 (US AND CANADA).
10. ALL DIMENSIONS ±0.20 TOLERANCE SPECIFIED.
Code
001
011
022
032
Accepted
Wire Gauge
18AWG Stranded
20AWG Solid and Stranded
22AWG Solid and Stranded
24AWG Solid and Stranded
A
0.72
0.60
0.47
0.37
Wire
Insulation
Ø 1.6-2.1
Ø 1.6-2.1
Ø 1.1-1.6
Ø 1.1-1.6
B
2.1
2.1
1.6
1.6
SMT PCB LAYOUT
PURE TIN PADS
PACKING DETAILS
REEL QTY
LEADER
TRAILER
1000
480MM
120MM
18
031618
Standard IDC 18-24 AWG: WTB
00-9176

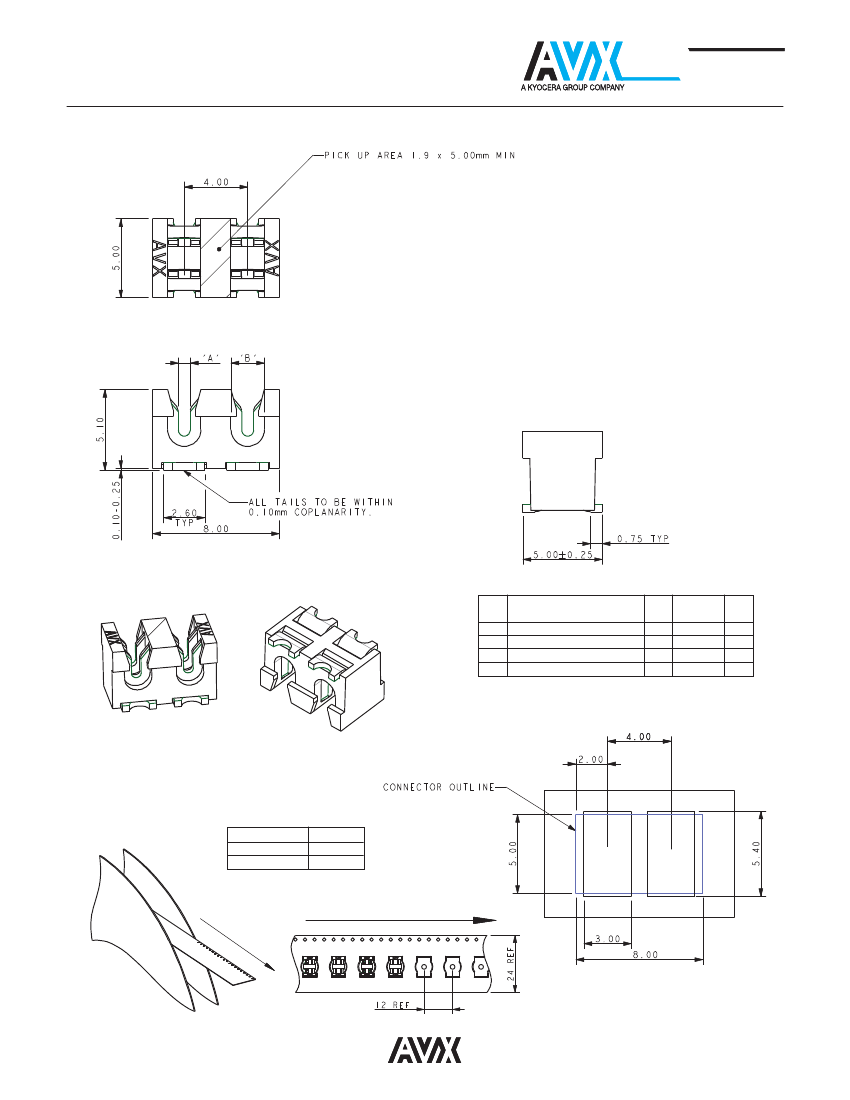

18-24 AWG 2 WAY IDC CONNECTOR
INTER
CONNECT
NOTES:
1. CONNECTOR FOR IDC WIRE TO BOARD CONNECTION.
2. CONTACT MATERIAL: PHOSPHOR BRONZE.
INSULATION MATERIAL: HIGH TEMPERATURE NYLON 46.
COLOR REFER TO PAGE 16.
3. CONTACTS DESIGNED TO ACCEPT BETWEEN 20AWG AND 24AWG SOLID AND
STRANDED WIRES. 18AWG WILL ONLY ACCEPT STRANDED WIRES,
SEE TABLE.
4. ALL DIMENSIONS FOR REFERENCE UNLESS OTHERWISE STATED.
5. FOR FULL PRODUCT SPECIFICATION ON STANDARD CONNECTORS REFER TO
ELCO SPEC 201-01-106. UL COMPONENTS REFER TO ELECO SPEC 201-01-106U.
6. APPLICATION NOTES 201-01-124.
7. FOR PCB SPACE RESTRICTED BY WIRE ASSEMBLY TOOLING REFER TO PAGE 23.
8. FOR HAND WIRE ASSEMBLY TOOLING REFER TO PAGE 23.
9. FOR UL PRODUCT CODES UL REFERENCE E90723 (US AND CANADA).
10. ALL DIMENSIONS ±0.20 TOLERANCE SPECIFIED.
Code
001
011
022
032
Accepted
Wire Gauge
18AWG Stranded
20AWG Solid and Stranded
22AWG Solid and Stranded
24AWG Solid and Stranded
A
0.72
0.60
0.47
0.37
Wire
Insulation
Ø 1.6-2.1
Ø 1.6-2.1
Ø 1.1-1.6
Ø 1.1-1.6
B
2.1
2.1
1.6
1.6
SMT PCB LAYOUT
PURE TIN PADS
PACKING DETAILS
REEL QTY
LEADER
TRAILER
1000
480MM
120MM
031618
19
Standard IDC 18-24 AWG: WTB
00-9176

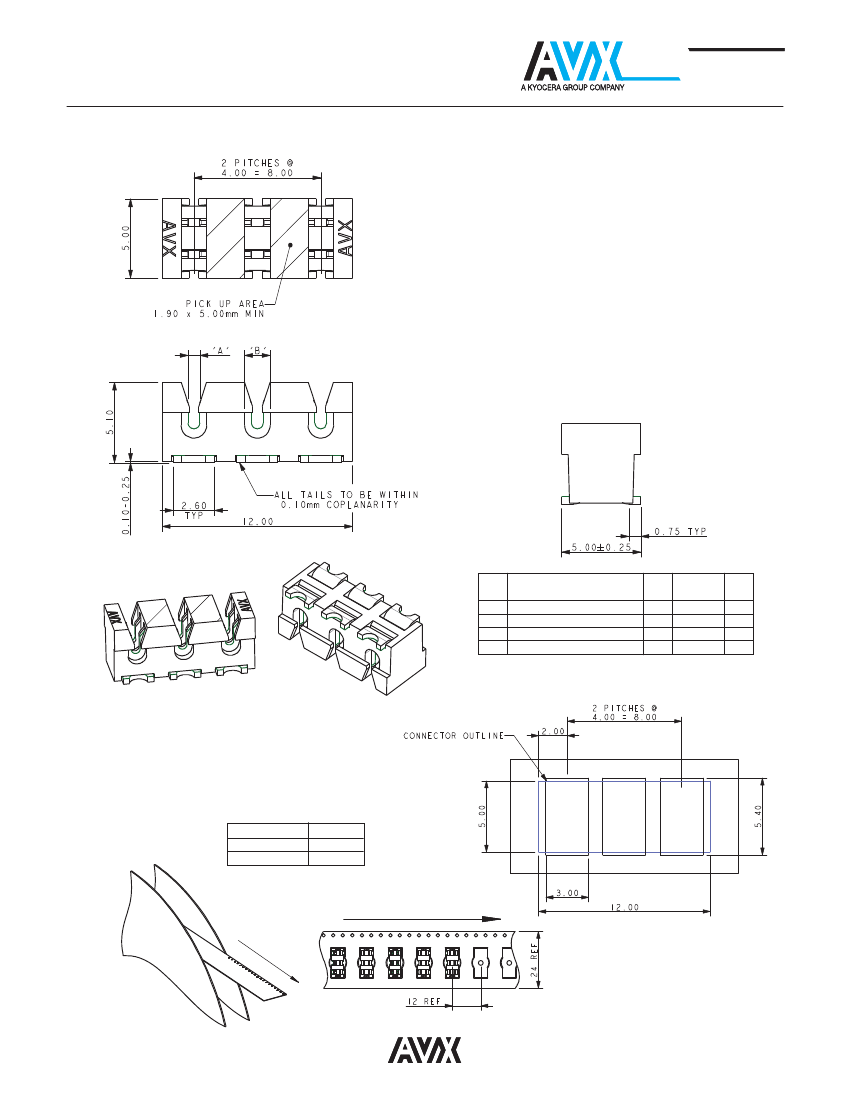

18-24 AWG 3 WAY IDC CONNECTOR
INTER
CONNECT
NOTES:
1. CONNECTOR FOR IDC WIRE TO BOARD CONNECTION.
2. CONTACT MATERIAL: PHOSPHOR BRONZE.
INSULATION MATERIAL: HIGH TEMPERATURE NYLON 46.
COLOR REFER TO PAGE 16.
3. CONTACTS DESIGNED TO ACCEPT BETWEEN 20AWG AND 24AWG SOLID AND
STRANDED WIRES. 18AWG WILL ONLY ACCEPT STRANDED WIRES,
SEE TABLE.
4. ALL DIMENSIONS FOR REFERENCE UNLESS OTHERWISE STATED.
5. FOR FULL PRODUCT SPECIFICATION ON STANDARD CONNECTORS REFER TO
ELCO SPEC 201-01-106. UL COMPONENTS REFER TO ELECO SPEC 201-01-106U.
6. APPLICATION NOTES 201-01-124.
7. FOR PCB SPACE RESTRICTED BY WIRE ASSEMBLY TOOLING REFER TO PAGE 23.
8. FOR HAND WIRE ASSEMBLY TOOLING REFER TO PAGE 23.
9. FOR UL PRODUCT CODES UL REFERENCE E90723 (US AND CANADA).
10. ALL DIMENSIONS ±0.20 TOLERANCE SPECIFIED.
Code
001
011
022
032
Accepted
Wire Gauge
18AWG Stranded
20AWG Solid and Stranded
22AWG Solid and Stranded
24AWG Solid and Stranded
A
0.72
0.60
0.47
0.37
Wire
Insulation
Ø 1.6-2.1
Ø 1.6-2.1
Ø 1.1-1.6
Ø 1.1-1.6
B
2.1
2.1
1.6
1.6
SMT PCB LAYOUT
PURE TIN PADS
PACKING DETAILS
REEL QTY
LEADER
TRAILER
1000
480MM
120MM
20
031618
