8016 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Tools and equipment> 8016

8016: DescriptionPCBs & Breadboards GP 6.0X9.0 PPH 2SIDE; CategoryTools and equipment; File Size3MB，1 Pages; ManufacturerVector

Download Datasheet Parametric Compare View All

8016 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8016	-	-	View	Buy Now

8016 Overview

PCBs & Breadboards GP 6.0X9.0 PPH 2SIDE

8016 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Vector
Product Category	PCBs & Breadboards
RoHS	In Transition
Product	Protoboards
Type	Through Hole
Description/Function	Bare printed circuit board
Length	228.6 mm
Width	152.4 mm
Height	1.57 mm
Contact Material	Epoxy, Glass Reinforced
Factory Pack Quantity	1
Unit Weight	4 oz

Preview

Download Datasheet

View All

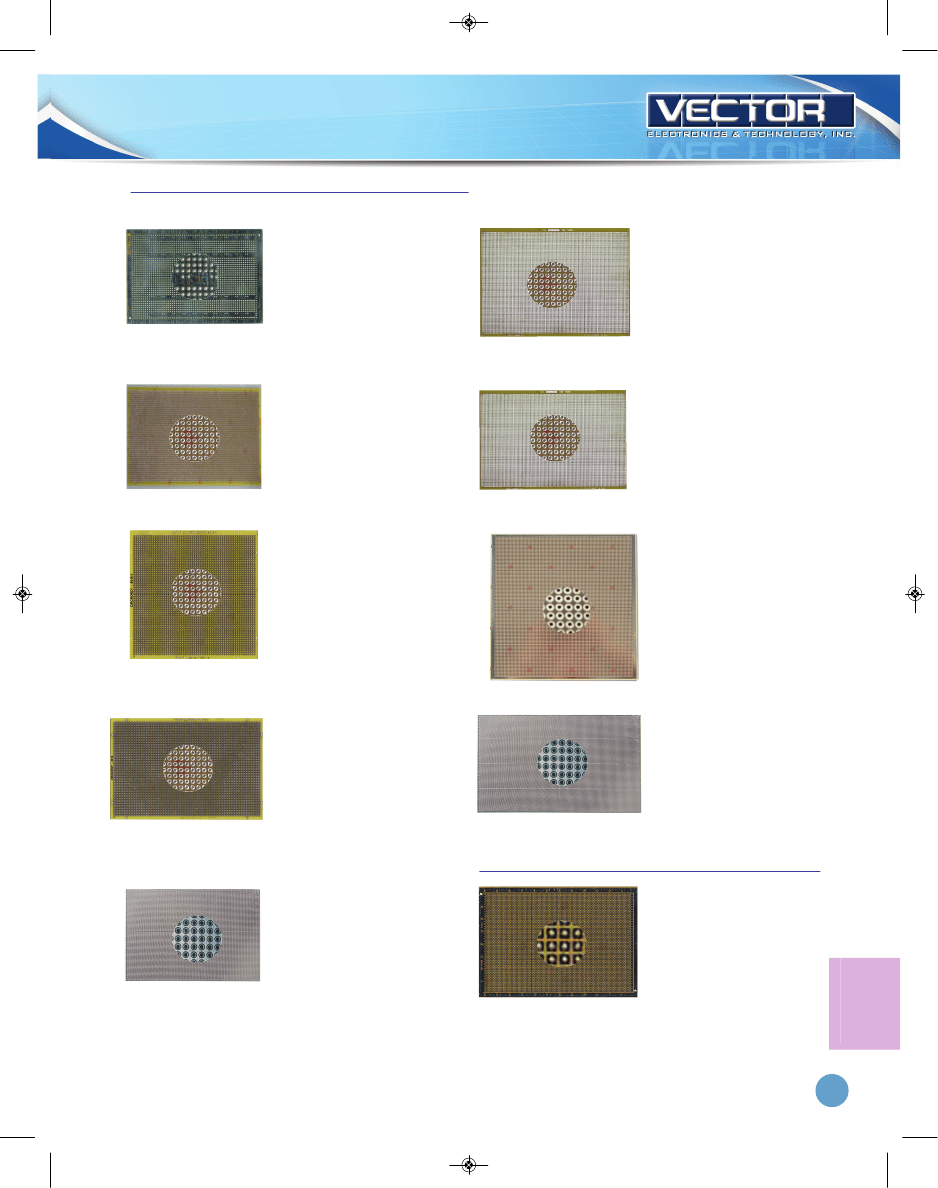

CATALOG 128_CATALOG 128.qxd 4/24/2014 10:32 AM Page 55

Vectorbord

Circbord

Round Pads-Per-Hole with 0.042” Holes, .100” Grid

8008

4.5”Hx6.5”L x .062” TH

0.100” grid, UNIQUE circuit pattern features

full voltage and ground planes on both sides

with isolated plated-thru holes. 0.080” solder

pads and Surface Mount cap positions for

discreet decoupling capacitors. Solder coat-

ed pattern.

Material: FR4

WW Terminals: T44, T46, T49, T68

Solder Terminals: T42-1

WW Socket Pin: R32

8012

9.2”Hx11.0”L x .062” TH

0.100” grid Pad-Per-Hole Pattern. .042”

holes plated thru with .080” isolated solder

pad around each hole on both sides.

16-Pin DIP= 72.

Material: FR4.

WW Terminals: T44, T46, T49, T68.

Solder Terminals: T42-1, K24C

WW Socket Pin: R32

8006

5.0”Hx13.25”L x.062” TH

0.100” grid Pad-Per-Hole Pattern copper plat-

ed-thru holes both sides .042” holes with

.080” isolated solder pad around each hole on

both sides

16-Pin DIP= 154

Material: FR4 Epoxy Glass

WW Terminals: T44, T46, T49, T68

Solder Terminals: T42-1

WW Socket Pin: R32

8013

10.5”Hx18.0”L x .062” TH

0.100” grid Pad-Per-Hole Pattern on both

sides. Isolated 0.080” pads with 0.042” holes

plated-thru copper. Unrestricted component

placement.

Solder coated pattern

16-Pin DIP= 175

Material: FR4.

WW Terminals: T44, T46, T49, T68.

Solder Terminals: T42-1

WW Socket Pin: R32

8016-1

6.0”H x 6.0”L x .062” TH

0.100” grid Pad-Per-Hole Pattern on one side

only, 0.042” holes

Small economical size.

Solder coated pattern

Material: FR4

WW Terminals: T44, T46, T49, T68

Solder Terminals: T42-1

WW Socket Pin: R32

106P106-1

10.6”Hx10.6”L .062”TH

0.100” grid Pad-Per-Hole & peripheral

Ground Plane on both sides .042” holes

not plated thru with .080” isolated solder

pad around each hole

16-Pin DIP= 275

Material: CEM-1

WW Terminals: T44, T46, T49, T68

Solder Terminals: T42-1

WW Socket Pin: R32

8016

6.0”H x 9.0”L x .062” TH

0.100” grid Pad-Per-Hole Pattern on both

sides, 0.042” holes plated-thru copper.

Unrestricted component placement.

Solder coated pattern

16-Pin DIP capacity = 165

Material: FR4

WW Terminals: T44, T46, T49, T68

Solder Terminals: T42-1

WW Socket Pin: R32

106P180-4

10.5”Hx18.0”Lx.062”TH

0.100” grid Pad-Per-Hole Pattern on both

sides. Etched ground plane surrounds 0.080”

pads on both sides. 0.042” holes plated-thru

copper. Unrestricted component placement.

Solder coated pattern.

16-Pin DIP = 175

Material: FR-4

WW Terminals: T44,T 46, T49, T68

Solder Terminals: T42-1

WW Socket Pin: R32

Square Pads-Per-Hole with 0.042” Holes, .100” Grid

106P70-4

7.0”H x 10.6”L x.062”TH

0.100” grid Pad-Per-Hole Pattern on both

sides. Etched ground plane surrounds 0.080”

pads on both sides. 0.042” holes plated-thru

copper. Solder coated pattern.

16-Pin DIP= 175

Material: FR4

WW Terminals: T44, T46, T49, T68

Solder Terminals: T42-1

WW Socket Pin: R32

8003

4.50”Hx6.50”L x.062” TH

0.100” grid Pad-Per-Hole Pattern & peripher-

al Ground Plane on one side only

Single-sided with no etch & plating on

reverse side .042” holes not plated thru

.085” square isolated solder pad

16-Pin DIP= 60

Material: CEM-1

WW Terminals: T44, T46, T49, T68

Solder Terminals: T42-1

WW Socket Pin: R32

www.vectorelect.com

800-423-5659

Circbord

8016 Related Products

	8016	8013	106P180-4
Description	PCBs & Breadboards GP 6.0X9.0 PPH 2SIDE	PCBs & Breadboards CIRCBD PPH 2 SIDE 10.5X18"	PCBs & Breadboards 10.6 X 18 X .062 042" Hole Diameter
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Vector	Vector	Vector
Product Category	PCBs & Breadboards	PCBs & Breadboards	PCBs & Breadboards
RoHS	In Transition	Details	N
Product	Protoboards	Protoboards	Protoboards
Type	Through Hole	Through Hole	Through Hole
Factory Pack Quantity	1	1	1
Length	228.6 mm	-	269.24 mm
Width	152.4 mm	-	457.2 mm
Height	1.57 mm	-	1.57 mm
Contact Material	Epoxy, Glass Reinforced	-	FR4 Epoxy Glass
Unit Weight	4 oz	13 oz	-
