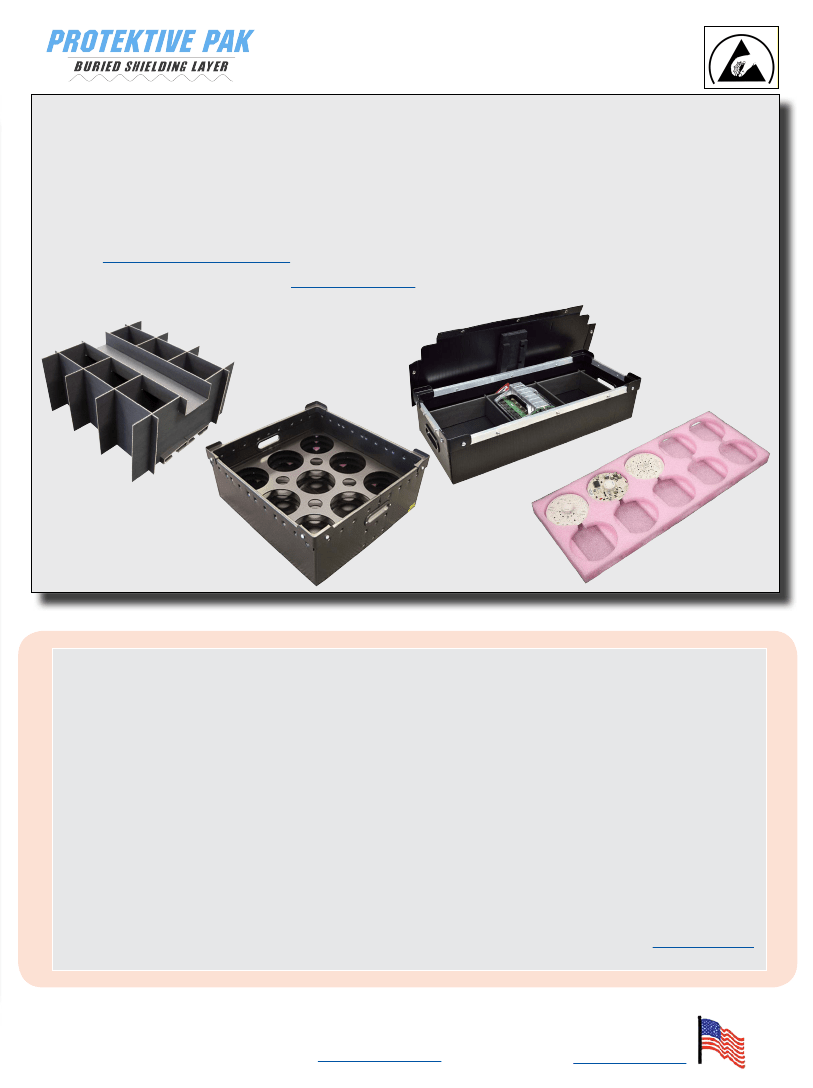

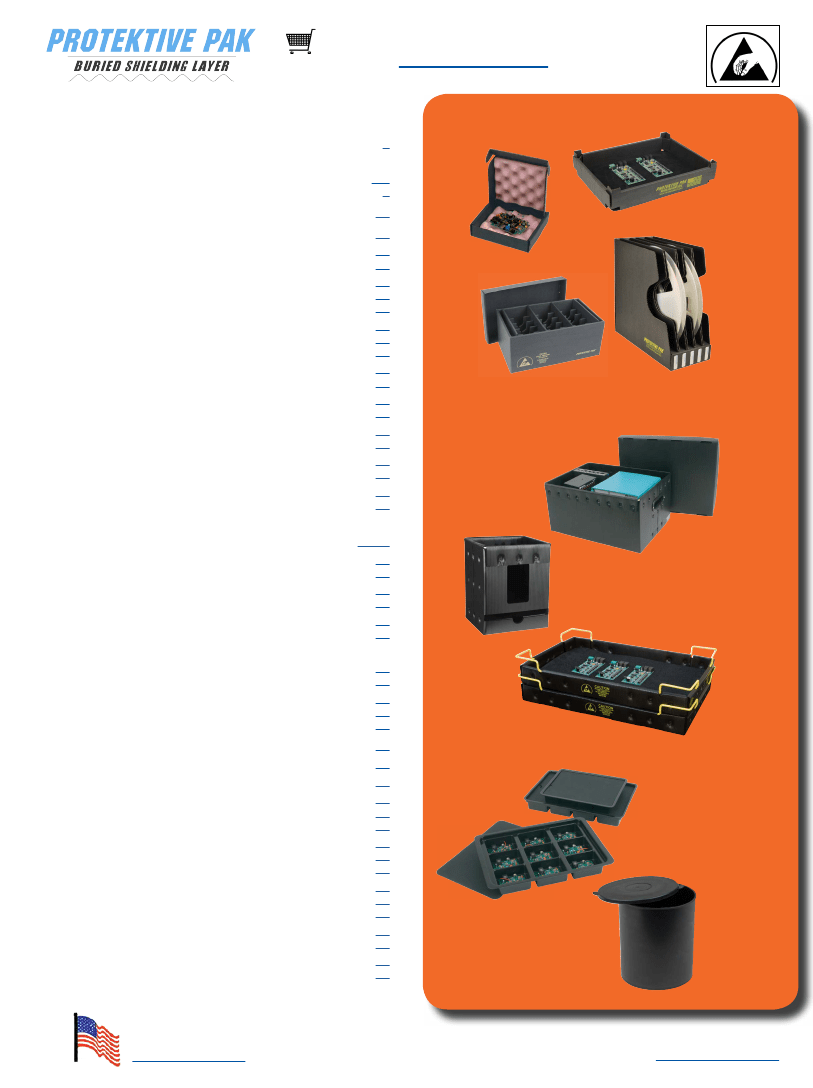

Independent ESD Tests Prove Protektive Pak
Impregnated Corrugated Material is Superior. Proven...
• Protektive Pak impregnated corrugated material has a buried shielding layer
• Protektive Pak impregnated corrugated material equals or exceeds the discharge shielding capabilities of a coated box
• Protektive Pak impregnated corrugated material has discharge shielding capabilities equal to a metal-out shielding bag
• Protektive Pak Dissipative Corrugated Material meets the ANSI/ESD S541 recommendation, avoiding rapid discharge
when contacting ESD sensitive items -
conductive boxes DO NOT!
See Test Report on our homepage at
ProtektivePak.com
Protektive Pak
Static Dissipative Surface
0.00188
*Meets ANSI/ESD S20.20 and Packaging standard ANSI/ESD S541

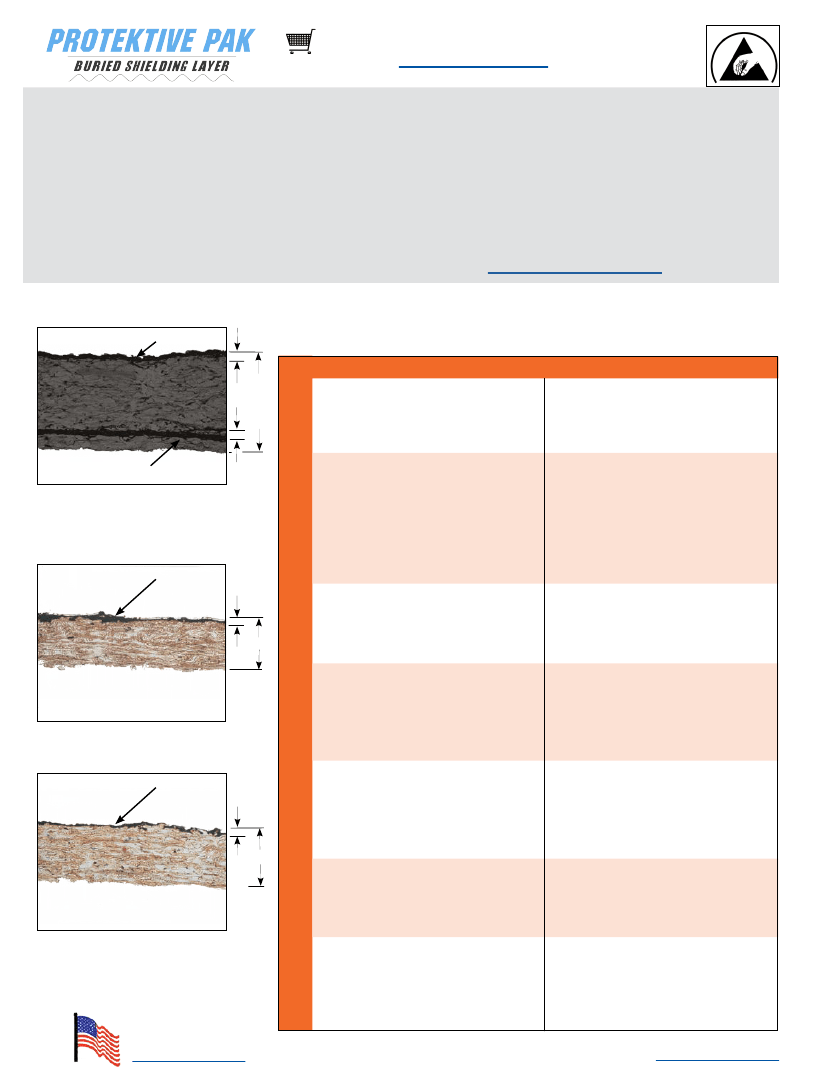

Superiority of Protektive Pak
Impregnated Corrugated* vs. Coated Material
Impregnated
vs.
Coated Material
0.011
CONSISTENT QUALITY
0.00188
1
2
Manufactured by one paper mill with
computerized control, resulting in
consistent high quality.
Manufactured without computer controls
and applied at various geographical
locations, resulting in quality variations.
Material is coated or printed with carbon
loaded black ink which is then coated
with a clear sealer to help coating stay
on. Shielding layer is very close to surface
and high carbon content can bleed
through. Result is poor and inconsistent
static dissipative effectiveness.
Manufactured from either recycled or
virgin paper or a combination of both.
Sulfur content may be low or high which
can cause corrosion to leads and circuits.
Tests have shown a 50% loss in particles
in only 10 cycles and a 100% loss in
100 cycles.
Buried Shielding Layer
STATE-OF-THE-ART TECHNOLOGY
Carbon is added during the paper making
process. The paper is a 6 layer process.
The top surface layer is static dissipative,
measuring 10E6 to 10E8 ohms. The
conductive layer is in the 5th layer from
the surface measuring <10E4 ohms.
Microscopic cross section
of Protektive Pak’s
impregnated corrugated
Other Coated Material
Shielding Layer
(Paint)
0.0001
LOWER SULFUR CONTENT
0.01
3
4
5
6
Manufactured from 100% recycled
paper with consistently low sulfur
content.
Microscopic cross section of
carbon coated linerboard
Shielding Layer
(Paint)
0.0001
Abrasion tests have shown no loss in
particles at 100 cycles, only 1% loss for
200 cycles and 60% loss for 500 cycles.
GREATER DURABILITY
1,000 Times Thicker
Burying the conductive layer under a
dissipative surface reduces the
potential for a rapid discharge when
contacted by a charged device.
SLOWS RAPID DISCHARGE
A very conductive surface that may pose
a charged device model (CDM) ESD
danger to components stored in open bin
boxes, in-plant handlers, shippers,
totes, nesting trays, etc.
Some coated products shield poorly due
to inconsistent application procedures
by some manufacturers.
0.01
BETTER SHIELDING
EFFECTIVENESS
Shielding effectiveness is equal to or
greater than coated conductive materials.
Microscopic cross section of
graphite printed linerboard
All microscopic photos are approximately
the same scale.
See our products being
Made in America
on our web site:
ProtektivePak.com/factory
BETTER VALUE
7
More durable structure, 1,000 times
thicker, which consistently shields your
product from ESD, is also safer and better
for the environment.
Simple structure which can lack
consistency of ESD shielding, durability,
and safety.
4
Web Site:
ProtektivePak.com
• Phone: (909) 627-2578 • E-mail:
Service@ProtektivePak.com
Meets ANSI/ESD S20.20 and
Packaging Standard ANSI/ESD S541
In-Plant Handlers
Lid is included for all In-Plant Handlers
Find the
optimal size
In-Plant
Handler that
you need.
ProtektivePak.com
Just enter the size of your circuit board
(length x width x thickness) and you
will be provided with a list of the most
efficient In-Plant Handlers.
See the Tek-Search
on our web site:
I
n
-p
lant
H
andler
F
eatures
• Meets ANSI/ESD S20.20 and Packaging Standard
ANSI/ESD S541
• Provides ESD and physical protection for ESD
sensitive circuit boards and components; with lid in
place, shielding creates “Faraday Cage” restricting
electrostatic charges to exterior
• To ship or store ESD sensitive items outside an ESD
protected area (Ref: ANSI/ESD S20.20)
• Impregnated corrugated material; greater durability
than coated or printed material
• Constructed with double sides, double (boxes under 6"
deep) or triple (boxes over 6" deep) ends, and single
(boxes under 6" deep) or double (boxes over 6" deep)
thickness bottom for greater durability
• Easy assembly without the need for tape, glue, or
staples
• Great container for Kanban
• Made in the United States of America
Download Drawing
37150
NOTE:
Shielding bag not required.
Features of all
Protektive Pak
Impregnated
Corrugated Material
• Static dissipative surface of 1 x 10
6
to
<1 x 10
9
ohms tested per ANSI/ESD
STM11.11 - minimizing the potential of
rapid discharge or sparking
• Buried shielding layer protects ESDS
items, minimizing the potential of
sloughing and rub-off contamination
• Made from 100% recycled material, and
is 100% recyclable
• No tooling costs
• Reusable, ensuring best value
Per ESD Association “Dissipative Material for Intimate Contact, to avoid rapid discharge to sensitive items, dissipative materials should be used as the
layer of packaging that contacts the item.” “Static Shielding Property, Electrostatic shielding materials protect packaged sensitive electronic items from
the effects of static electricity that are external to the package.” (Packaging Standard ANSI/ESD S541)
See our products being
Made in America
on our web site:
ProtektivePak.com/factory
Web Site:
ProtektivePak.com
• Phone: (909) 627-2578 • E-mail:
Service@ProtektivePak.com
5
Talking
京公网安备 11010802033920号
EEWORLD
