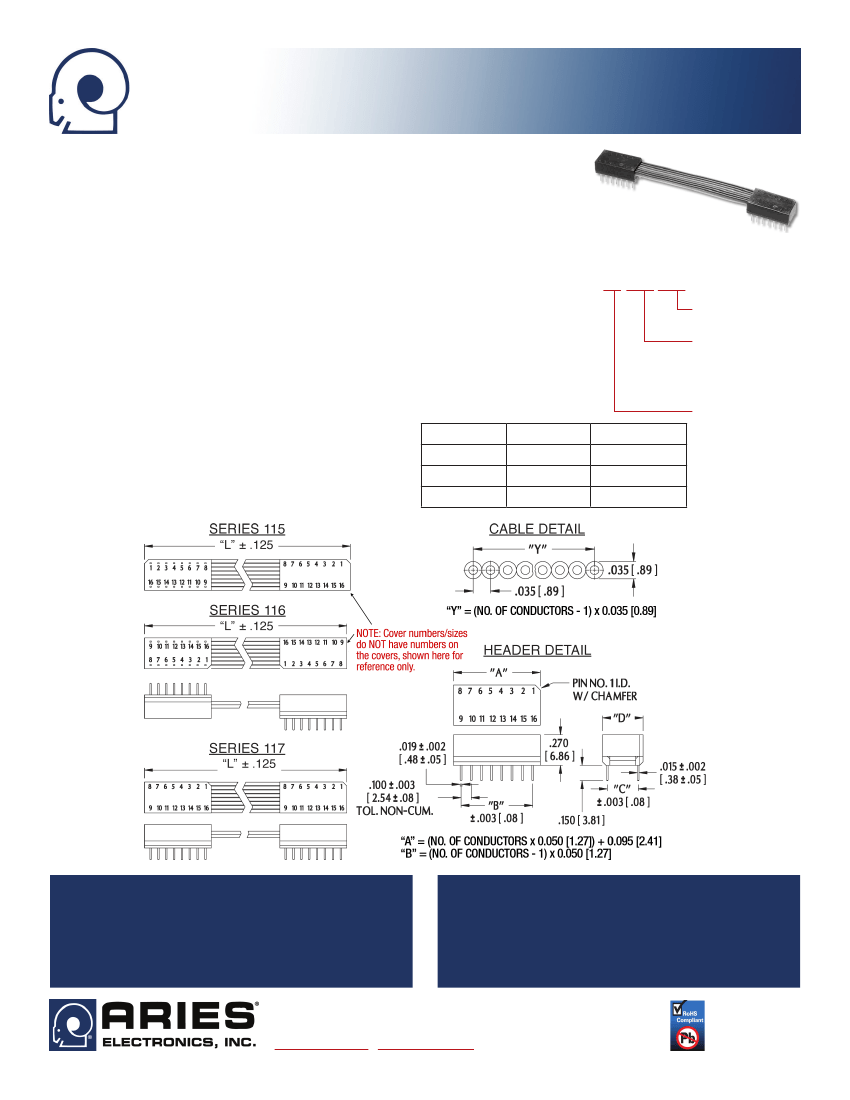

Series 115, 116, 117
DIP-ER
™
Logic Jumper
FEATURES
•
•
•
•
•
Wide Array of DIP Jumper Configurations and Wiring Possibilities
Reliable, Electronically-tested Solder Connections
Strain Relief by Ultrasonically-welded Protective Covers
Easy Identification and Tracing with 10-color Cable
Point-to-point Wiring
ORDERING INFORMATION
GENERAL SPECIFICATIONS
•
HEADER BODY:
black UL 94V-0 glass-filled 4/6 Nylon
•
HEADER PINS:
Brass, 1/2-hard
•
PIN PLATING:
10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-
290B
•
CABLE INSULATION:
UL Style 2697 flame-retardant Polyvinyl Chloride (PVC), 0.010 [0.25] nominal
thickness
•
CONDUCTORS:
28-AWG, 7/36-strand, tinned Cu per ASTM B 33
•
CABLE CURRENT RATING:
1 amp at 10°C [50°F] above ambient
•
CABLE VOLTAGE RATING:
300V
•
CABLE TEMPERATURE RATING:
176°F [80°C]
Centers “C”
Dim. “D”
•
INSULATION RESISTANCE:
1010Ω (10 ft. [3 meters] min.)
0.300 [7.62]
0.395 [10.03]
0.495 [12.57]
0.695 [17.65]
XX-XXX XXX
Series
115, 116, 117
Length “L”
(inches)
2.00" = 002 (min)
2.50" = 002.5
3.00" = 003
Etc.
Available Sizes
8, 14, 16, 18, 20
22
24, 28, 40
No. of Conductors
(See Table)
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE:
0.033 ±0.002 [0.86 ±0.05] dia.
0.400 [10.16]
0.600 [15.24]
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
11011
Rev. 5.3
1 of 1
