DMC30 WIRING SYSTEM SERVICE KIT
For the AIRBUS A300, A310, A320, A330, & A340
THE MAINTENANCE PROBLEM...
Modern aircraft have complicated electrical wiring systems containing
many different connectors, contacts and terminals, the repair of which
require precision tools.
It is not a cost effective use of the time of your technical staff to start
from scratch and try to become intimately knowledgeable about which
precision tools must be used to repair each electrical connector,
contact and terminal when DMC has already performed this task for
the Airbus A300, A310, A320, A330, & A340.
DMC30 for the Airbus A300, A310,
A320, A330, & A340
AOG TIME CONSTRAINTS. Once the aircraft becomes inoperable because of a connector failure, it is imperative
to be able to replace the connector, contact or terminal as quickly as possible to avoid revenue loss due to AOG.
The DMC30 kit supplies your staff with both the information and the tools necessary to make this type of repair to
the Airbus A300, A310, A320, A330, or A340 in the shortest time possible.
THE DMC SOLUTION...
TOOLING RESEARCH. DMC has already researched the list of connectors for the Airbus A300, A310, A320,
A330, & A340 and has identified the most common tools required to maintain the electrical connectors. DMC has
cross referenced tools to the connectors, contacts and terminals eliminating costly and time-consuming research
which would otherwise have to be performed by your local
technicians.
IMMEDIATE AVAILABILITY OF TOOLS
AND TECHNICAL INFORMATION.
The
DMC30 kit contains the tooling to connector,
contact and terminal cross reference infor-
mation which indicate the particular tool(s)
that should be selected to repair a specific
connector, contact, or terminal. In addition,
the kit also contains illustrated operating
instructions for the required tooling.
ALL IN ONE.
Since these tools, together
with their operating instructions, are
contained in a single kit, the connector
repair can be made in the shortest
time possible, thus permitting a
rapid return of your aircraft to

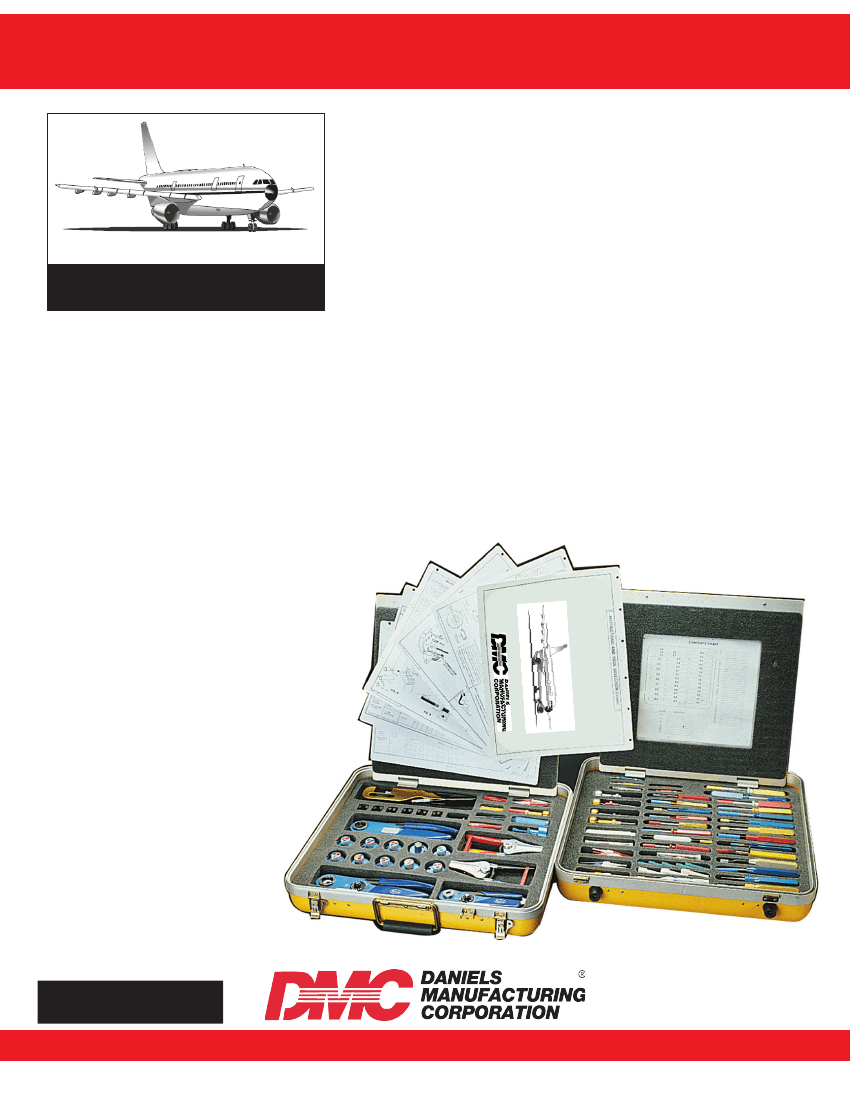

service. Tool kit supplied in
an environmentally sealed
fiberglass case and includes:
Name Plate, Foam Pads/Inserts,
Contents Charts, Instruction Charts,
and Tool Selection Charts.
Actual Kit may vary from example shown.
DMC30
DMC30
DANIELS MANUFACTURING CORP., 526 THORPE ROAD, ORLANDO, FL 32824, USA
PHONE (407) 855-6161 • FAX (407) 855-6884 • www.DMCTools.com • E-MAIL: DMC@DMCTools.com
COPYRIGHT © 2006 Daniels Manufacturing Corp. ALL RIGHTS RESERVED
Rev. B
06/06
DMC30-SL
DMC30 WIRING SYSTEM SERVICE KIT
For the AIRBUS A300, A310, A320, A330, & A340

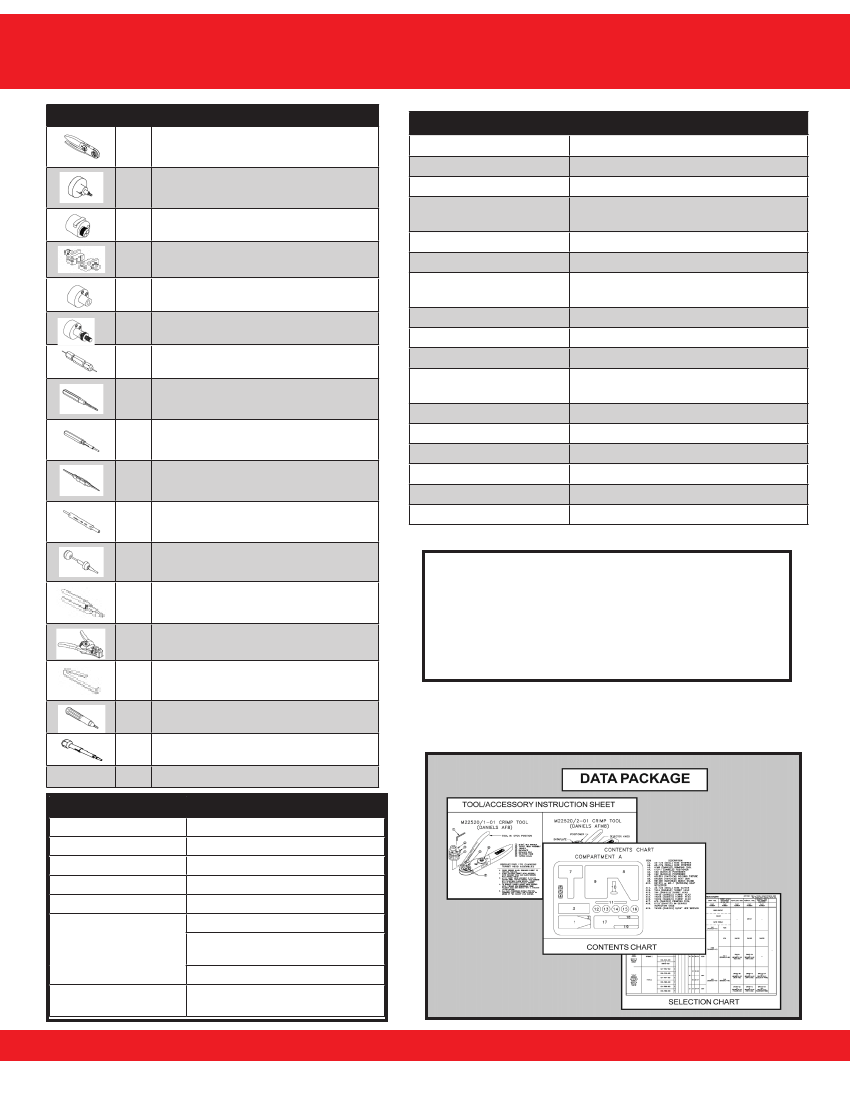

DMC30 TOOL AND ACCESSORY LIST
3
17
6
18
2
1
1
14
17
155
4
4
1
2
1
1
4
1
Type of Case
Number of Cases
Color
Type of Construction
Application
Coverage
Crimp Tools
Positioners
Turret Heads
Die Sets
Single Position Heads
Universal Turret Head
In-Service Inspection Gage
Metal Insertion Tools
Metal Removal Tools
Plastic Ins/Rem Tools
Contact gages
Unwired Contact Removal Tools
w/ Probes
Wire Cutter
Wire Strippers
Die Removal Tool
Hex Wrench
Contact Retention Testers
X-Acto Knife
Portable
1
Yellow
Fiberglass/Aluminum
Airbus A300,A310,A320,A330,A340
Airframe Connectors
Terminals size 12 AWG
and Smaller
Coaxial Connectors
DMC30 CONNECTOR COVERAGE
MANUFACTURER
Air LB
AMP
Deutsch
Edison
Flight
ITT Cannon
Matrix Science
Radiall
Socapex
Souriau
MIL-C-26482
MIL-C-26500
MIL-C-38999
MIL-C-5015
MIL-C-83723
MIL-T-7928
SERIES
Junction Modules
RME Series, RF Coaxial
Common Termination System, SRE/
SREL, FDBA Series
Fire Detection Connectors
FC, FH, FHZ Series
BKAD/E, CA-KE, DBA, DPAMA,
DPDMA, DPXMA, HTAMF, PV Series
MB, 983 Series
DSX, JT, NSX Series
RJT, 992 Series
S600, 8T, 8525, 8526, 8533, 8559, 8665,
892 Series
Series 1, 2
Firewall Connectors
Series 1, 2
3450 Series
Series 3
Insulated Terminals & Splices
Tools contained in this kit have been selected based upon their
suitability to service the related connector or contact indicated.
Military Standard tools have been utilized wherever possible.
These tools are not necessarily the production tools used to
manufacture the aircraft and therefore, these tools may or may
not correspond to the tools listed in the OEM wiring manual
and/or the Chapter 20 Standard Wiring Practices Manual list of
approved tooling.
TOOL KIT CONFIGURATION
Type of Inserts
Unicellular Polyethylene
Foam with Die Cut Tool Cavities
Actual Charts and Sheets
may vary from examples shown.
