ADJUSTABLE HAND
CRIMP TOOL M310
THIS HAND TOOL MUST NOT BE USED IN ANY POWERED
"PRESS" AS DEFINED BY OSHA CFR 1910.211 (46)
DIC.......
DATASHEET
DANIELS
MANUFACTURING
II',
-..,
CORPORATION
SEE REVERSE SIDE FOR IMPORTANT INFORMATION CONCERNING
LIMITED WARRANTY, AND LIMITATION OF LIABILITY.

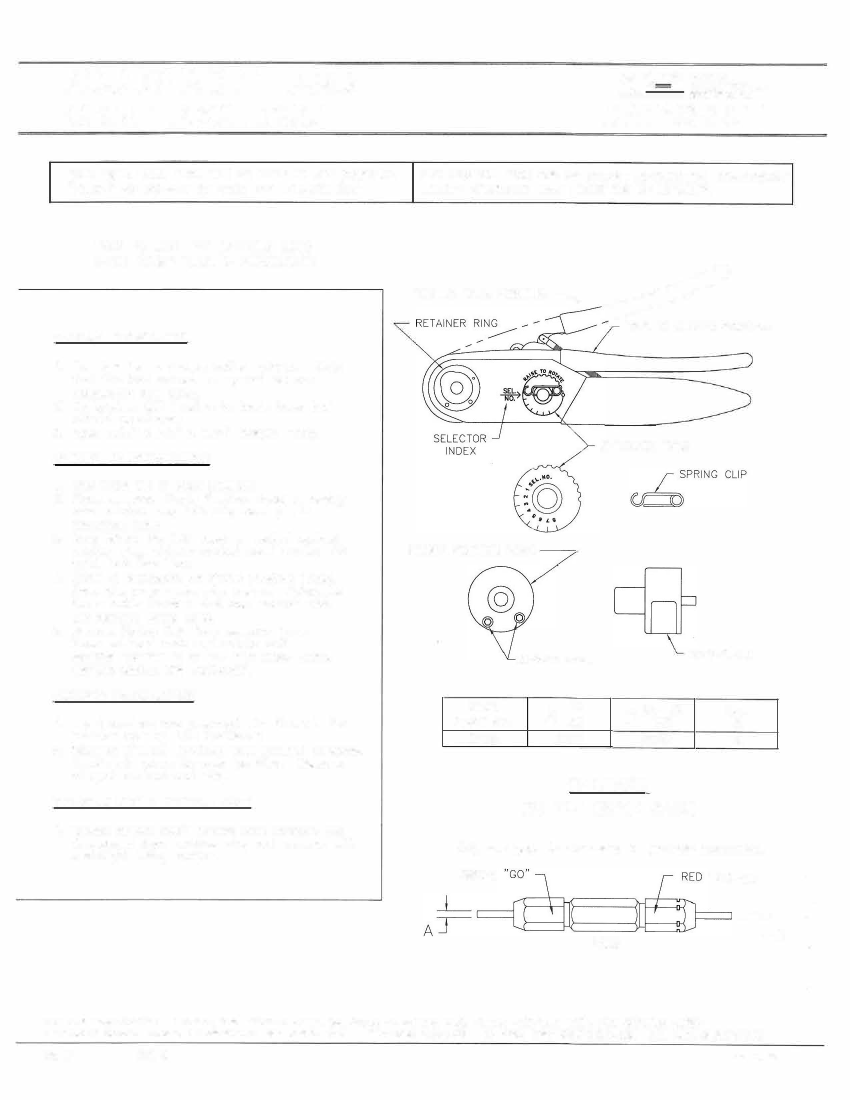

HOW TO USE THE DANIELS M310
HAND CRIMP TOOL & POSITIONER
TOOL IN OPEN POSITION ------..
GENERAL INFORMATION
1. The tool hos a double action ratchet. Note
that the tool cannot be opened without
completing the cycle.
2. Designation M310 refers to basic hand tool
without positioners.
3. Size: 9.75" x 2. 5" x 1. 25" Weight: 15oz.
SETTING UP INSTRUCTIONS
1. Tool must be in open position.
2. Place selected Single Position Head assembly
onto retainer ring with alignment pin in
alignment hole.
3. After Single Position Head is seated against
retainer ring, tighten socket head screws with
9/64 inch hex key.
4. Refer to dataplate on Single Position Head.
From the proper wire size column, determine
the selector number that corresponds with
the contact being used.
5. Remove Spring Clip from selector knob.
Raise selector knob and rotate until
selector number is in line with index mark.
Replace Spring Clip (optional).
CRIMPING INSTRUCTIONS
1. Insert contact and prepared wire through the
indenter opening into Positioner.
2. Squeeze handles together until ratchet releases.
Handle will return to open position. Remove
crimped contact and wire.
REMOVING SINGLE POSITION HEAD
1. Loosen socket head screws until threads are
disengaged from retainer ring and remove with
a straight lifting motion.
-_-____--
-----
--½
--
TOOL IN CLOSED POSITION
SELECTOR KNOB
SINGLE POSITION HEAD
SOCKET HEAD
DATAPLATE
GAGE
PART NO.
G436
A
GO
DIA
8
NO-GO
DIA
.0660
SEL
NO
4
.0610
CAUTION!
DO NOT CRIMP GAGE!
Only one gage is necessary for periodic inspection.
GREEN
"NO-GO"
G436
_J_
-rB
DANIELS MANUFACTURING CORP., 526 THORPE ROAD, ORLANDO, FL 32824, USA, PHONE 407/855-6161, FAX 407/855-6884
COPYRIGHT © 2007 DANIELS MANUFACTURING CORP., USA.
WWW.DMCTOOLS.COM E-MAIL: DMCOOMCTOOLS.COM ALL RIGHTS RESERVED
06/07
REV. B
M310-0S
DATASHEET

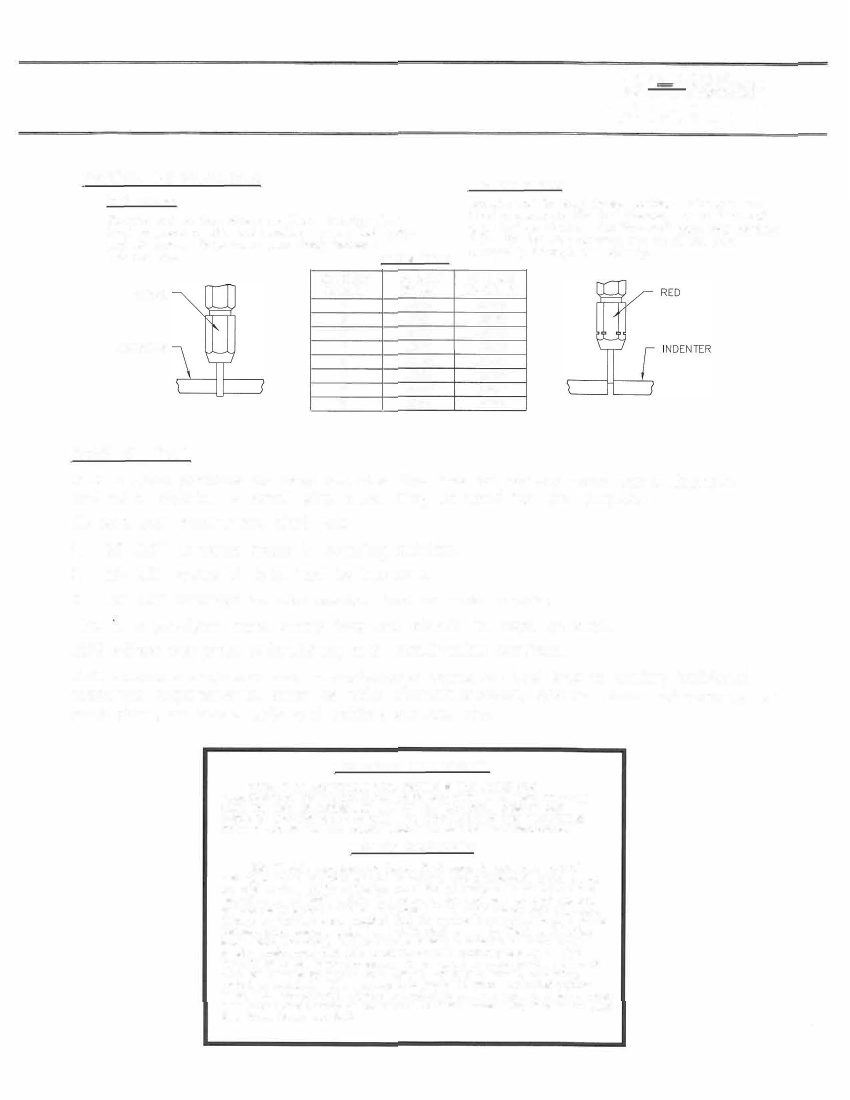

GAGING INSTRUCTIONS
"GO" GAGING
Operate tool to fully closed position. Maintain firm
hand pressure on the tool handles. Insert "GO" gage
end as shown. Gage must pass freely between
indenter tips.
GAGING LIMITS
GREEN
SELECTOR
NUMBER
GO DIA
A ±.0001
...... DANIELS
,,,.
MANUFACTURING
W'i
-..,
CORPORATION
"NO-GO" GAGING
Operate tool to fully closed position. Maintain firm
hand pressure on the tool handles. Insert "NO-GO"
gage end as shown. The "NO-GO" gage may partially
enter the indenter opening, but must not pass
completely through the opening.
NO-GO DIA
B
±.0001
INDENTER
1
2
3
4
5
6
7
8
.0360
.0450
.0520
.0610
.0690
.0760
.0860
.1000
.0410
.0500
.0570
.0660
.0740
.0810
.0950
.1100
CARE OF TOOL
It is a good practice to keep indenter tips free of residual color band deposits
and other debris.
A small wire brush may be used for this purpose.
We strongly recommend that you:
1.
2.
3.
DO NOT immerse tools in cleaning solution.
DO NOT spray oil into tool to lubricate.
DO NOT attempt to disassemble tool or make repairs.
This 1s a precision hand crimp tool and should be used as such.
DMC offers complete refurbishing and recalibration services.
DMC specially engineers and manufactures complete tool kits to satisfy individual
customer requirements, such as total aircraft support, general shop maintenance or
production, on board ship and vehicle service, etc.
LIMITATION OF LIABILITY
DANIELS MANUFACTURING CORPORATION IS NOT LIABLE FOR
CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY NATURE OR KIND RESULTING
FROM THE USE, OR MISUSE, OF ANY OF ITS PRODUCTS. OWNERS AND
USERS OF DMC PRODUCTS ASSUME FULL RESPONSIBILITY FOR INSTRUCTING
THEIR EMPLOYEES IN THE PROPER AND SAFE USE OF SUCH PRODUCTS.
LIMITED WARRANTY
DMC (Daniels Manufacturing Corporation) worronts each new product
sold by it to be free from defects in moteriol ond workmanship under normal
use ond service. DMC's obligation under this warranty is limited to the free
correction or, ot DMC's option, the refund of the purchase price of ony such
product which proves defective in normal service within ninety (90) days after
delivery to the first user, provided that \he product is returned to DMC with all
transportation charges prepaid and which shall oppeor to DMC's satisfaction,
ofter DMC's inspection, to have been defective in materiel or workmanship,
it being understood that DMC products are not consumer products. This
worronty shall not cover any damage to any product which, in the opinion of
DMC, wos caused by normal wear, misuse, improper operation, tampering,
neglect or occident. This warranty is in lieu af all other warranties express
or implied. No warranty, express or implied, is made or authorized to be made
or assumed with respect to products of Doniels Manufacturing Corporation other
thon those herein set forth.
