1309G8 Tool Kit
Assembly Instructions

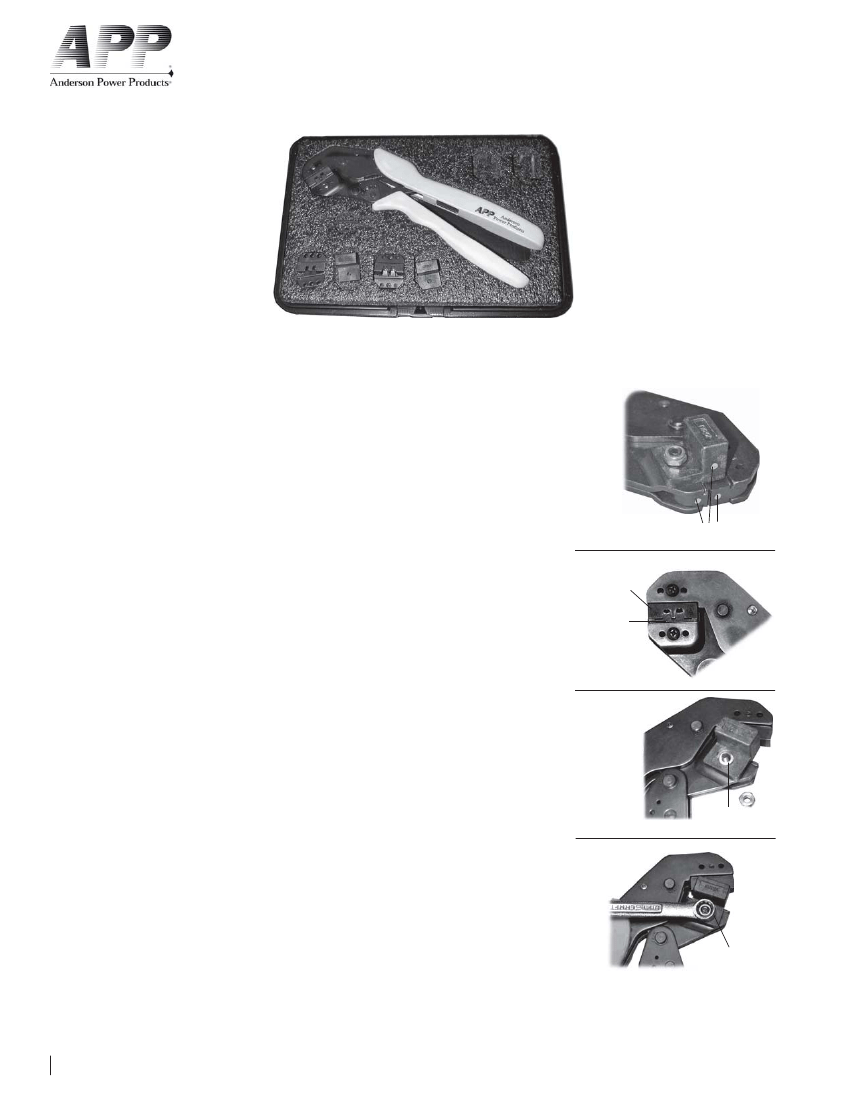

Figure 1
NOTE: Instructions are included with each crimp tool for terminating specific contacts. Use of non-
Anderson Power crimp tools can affect UL & CSA approval. See website for comprehensive
tooling data.
The 1309G8 Tool Kit
has three die sets, three locators and one frame for crimping 15-45 Amp APP
contacts (See Figure 1). The following instructions describe how to change the configuration from
the 1309G2, 1309G3 and 1309G6 configurations.
The dies and locators are color coded to identify the components required for each configuration
(See Figure 2). See table below for configurations.
Figure 2
Color coded dies
and locator
Top Die,
Forming Die
Bottom Die,
Anvil
Figure 3
Modification Procedure
Disassemble
1. Remove the nut, wavy washer and locator.
2. Unscrew the top and bottom die screws.
3. Remove the dies from the frame. The tool can now be assembled with a different
configuration.
Reassemble
1. Assemble the desired die in the top position with the supplied screw.
(See Figure 3)
2. Place the bottom anvil die in the frame. (See Figure 3)
3. Tighten the screws until they bottom on the frame and loosen ½ turn.
4. Place the locator, wavy washer and nut on the screw; in that order.
(See Figure 4 & Figure 5)
5. Tighten until the nut & locator bottom-out. (9 mm or 11/32" Wrench)
6. LOOSEN THE NUT ONE COMPLETE TURN. This is required for correct tool operation.
7. Adjust the release force to 25 lbf (111.21 N) minimum at the handle ends. The load can
be checked by placing the end of one of the handles on a scale and pushing the other
grip until the ratchet releases. If the tool requires adjustment, follow the adjustment
procedure.
Figure 4
Wavy Washer
in place
Figure 5
Tighten bottom out
and then loosen one
complete turn
www.andersonpower.com
1309G8 Tool Kit
Page 2
How to Adjust Tool Preload
(It may be necessary, when changing dies, or over the normal life of the tool, to adjust the
tool handle preload.)
1. To adjust tool to obtain proper crimp force values, open the handles and remove the
cam lock screw with a hex key wrench supplied. (See Figure 6)
2. Rotate the cam clockwise to increase handle load or counterclockwise to decrease
handle load.
3. Position odd numbers on the cam in the locking screw hole adjacent to the letter “L” and
even numbers adjacent to the letter “T”.
4. Lock the cam at the desired handle load setting and remeasure the force.
5. Continue adjustment if necessary.
1309 Crimp Tool Series Operating Procedure
1. Strip cable according to manufacturer’s specifications.
2. Select the appropriate tool cavity for the contact being crimped.
3. Place contact in die end of modular locator. Insert contact fully until the wire stops on the
contact are recessed into the locator (See Figure 7a).
4. Close tool carefully until jaws grip the contact.
5. Insert the properly stripped wire into the contact.
6. Holding the wire in place, close the tool past the ratchet release position and allow the
jaws to open.
7. Remove and inspect the crimp.
8. Test by holding contact and pulling firmly on cable.
Tooling
Part Number
1309G2
Locator
Color Code
Red
Red
Red
Red
Red
Yellow
Yellow
Yellow
Yellow
Yellow
Blue
Blue
Blue
Die
Color Code
Red
Red
Red
Red
Red
Yellow
Yellow
Yellow
Yellow
Yellow
Blue
Blue
Blue
Wire Size
AWG (mm²)
#12-16 (4.0-1.5)
#16-20 (1.5-0.5)
16-20 (1.5-0.5)
16-20 (1.5-0.5)
16-20 (1.5-0.5)
12/14/2016
14-16 (2.5-1.5)
10-12 (6.0-4.0)
12-16 (4.0-1.5)
10-14 (6.0-2.5)
6mm, #10-14
6mm, #10-14
6mm, #10-14

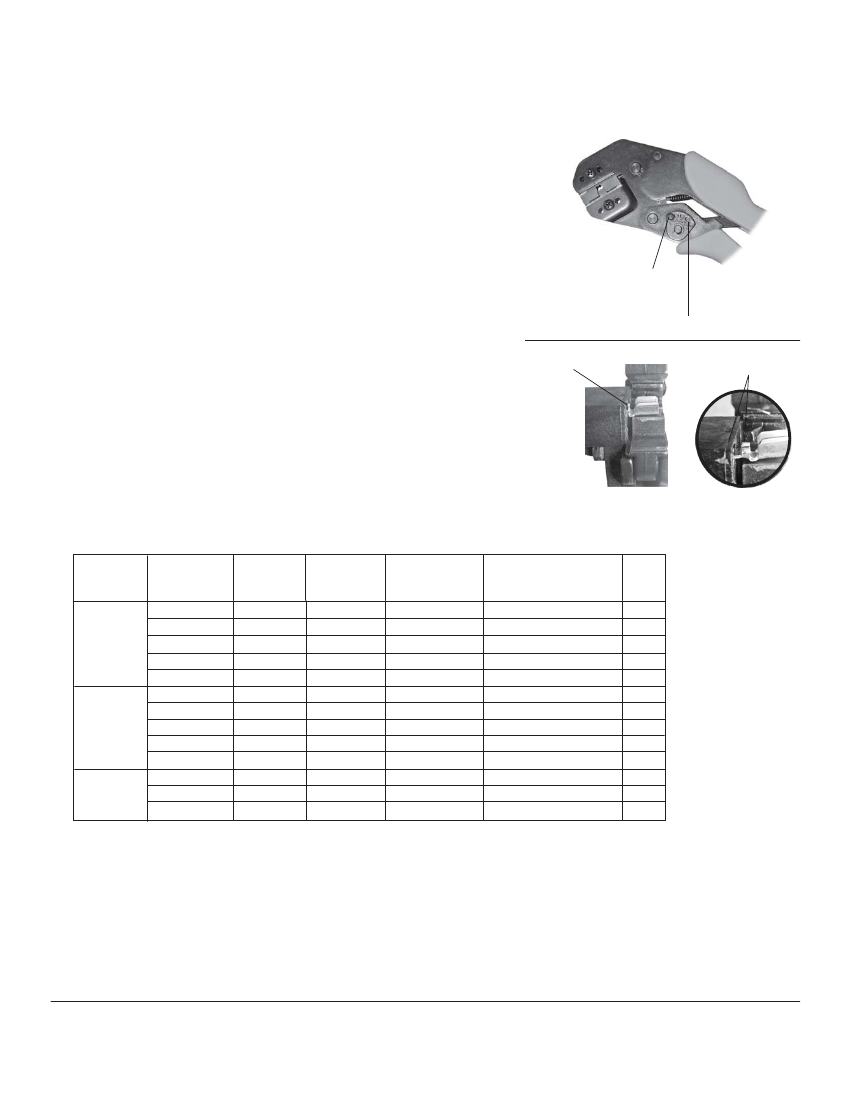

Figure 6
Cam Lock
Screw
Cam Lock
End of locator
To far out
from locator
Figure 7a
Correct
Not Correct
Contacts
1331
1332
262G1
200G2L
269G2
261G1
261G2
261G2
269G1
Pullout Values (lbf)
(per UL standard 486A)
When Properly Crimped **
70-30
30-13
30-13
30-13
30-13
70-50-30
50-30
80-70
70-30
80-50
80, 80-50
80, 80-50
100,80-50
Tool
Cavity
30
15
15
15
15
A
A
B
A
A
B
B
B
1309G3
1309G6
269G3
200G1L
201G1H
1830G1
** Tool user is responsible to ensure that the crimps made conform to the required quality and agency specifications.
Certification
Tool user is responsible to ensure that the tool is adjusted to provide proper crimps, that conform to required quality and pull force values.
• If the tool does not meet minimum pull force values, handle preload should be increased and the pull test rerun, (See How to Adjust Preload).
• When the hand tool is no longer capable of achieving minimum pull force, it should be taken out of service and replaced.
All Data Subject To Change Without Notice
1S6507
14680
ASM-1309G8KIT REV03
