DN SERIES-NEW D SUBMINIATURE
INTERFACE CONNECTORS
General
Nov.1.2018
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2018

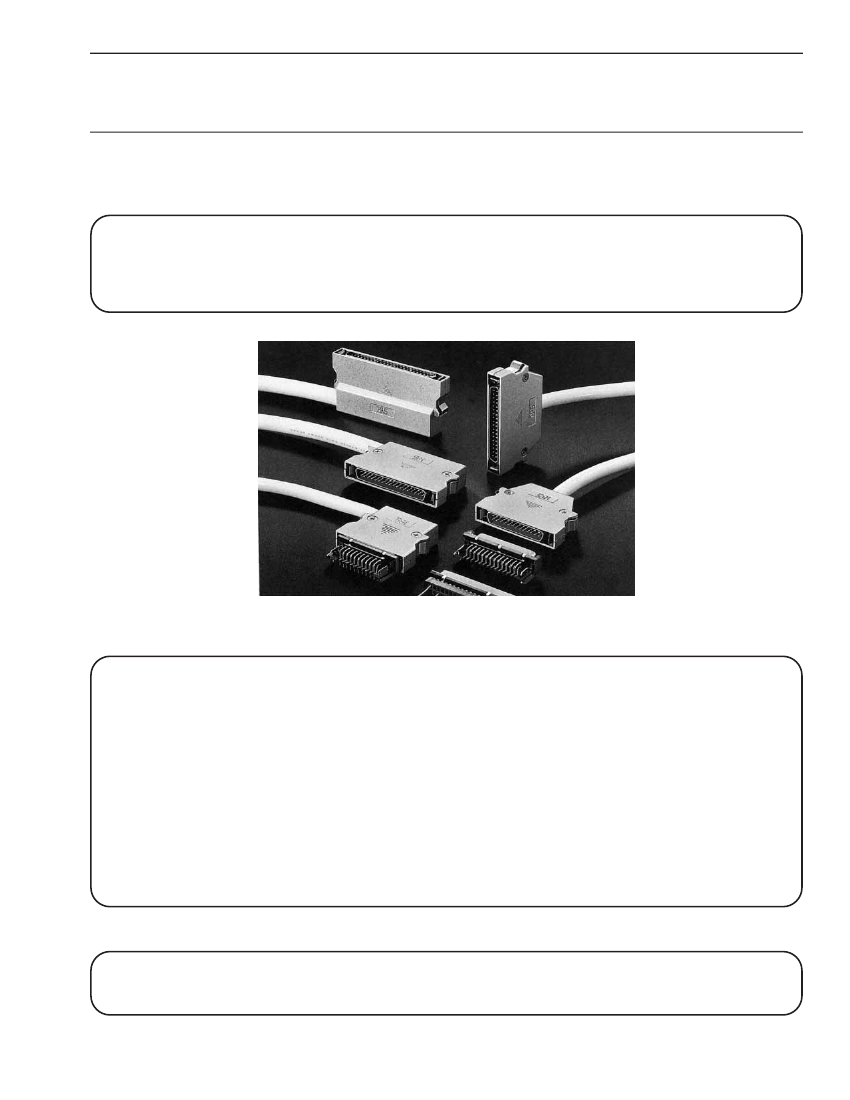

The DN series are compact, rectangular multi-contact
connectors developed to meet the demand for smaller
and slimmer electronic equipment. 2.54 mm grid con-
tact position and Direct dip soldering on PCB enable
high density circuit designing at reduced cost.
Aluminum die-cast shell and Metallic shell areshieledto
prevent from Electro-Magnetic interference. 20, 26, 36
and 50 way available.
Features
1. 2.54 mm grid contact position enable high density
circuit designing.
2. Stable quality due to the contact design based on
our field-proven SM series (D sub-connector).
3. One-touch lock system ensures perfect operation.
4. The cover case uses a thin, low-back compact design
that meets the needs of high density mounting. It
can be mounted between 17.78 millimeters (700mil)
substrates.
5. The cover case is made of aluminum diecast to
shield aginst electromagnetic waves In a combina-
tion with a connector metal shell, the cover case is
an ideal solution for noise.
6. Dip soldering connectors are provided with snap
clamps for temporarily fixing the connector on the
PCB.
7. IDC termination types are for standard 1.27 mm pitch
cables, and are available for two types of cables:
AWG26 and AWG28.
8. Crimp contact cables from AWG26 through AWG28.
9. Allows you to take out the cable vertically or hori-
zontally, as your application requires.
Application
Office Automation, Computers, Communications Equipment, Factory Automation, Home Automation and other
commercial applications needing high density interconnections.
04/2009
169
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Specifications and Material
Main specifications
Current capacity
Rated voltage
Insulation
resistance
Contact
resistance
Withstand
voltage
3A
AC 200V
5000mΩ on higher
at DC 500V
20mΩ or less
at DC 100mA
1 minute AC 1000 Vrms
Shell
Insulator
Contacts
Main materials used
Aluminum dei-cash
PBT*
Phosphor bronze
Silver coating
Black
Selective gold plating
*UL94V-0
Nov.1.2018
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2018

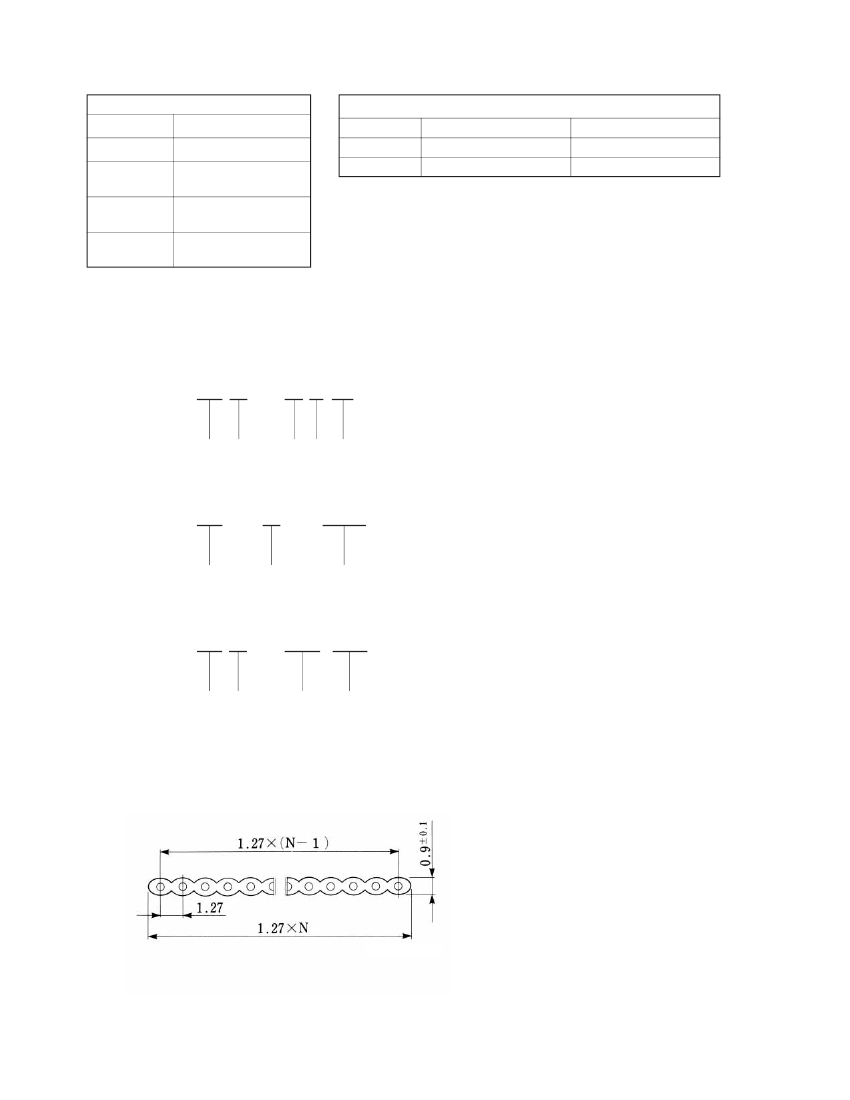

Ordering Information
DN 10
−
26 S
（ ）
(1) Series Number: DN
(2) Type
10: Right Angle DIp Type
30: IDC Plug Type
50: Crimp Type
(3) No. of Pins: 20, 26, 36 and 50 way
(4) P: Plug
S: Receptacle
(5) Shell
CVE1: Angle Cable Exit Shell
CV1: Straight Cable Exit Shell
(6) Applicable Wire
2628: AWG#26 ~ AWG#28
(7) Type of Contact Pin
PC1: Bulk Pin Contact
PC2: Chain Pin Contact
(8) Specification
(50): RoHS compliant
(1) (2)
(3) (4) (8)
DN
−
26
−
CVE 1
(1)
(3)
(5)
DN 50
−
2628 PC 1
(1) (2)
(6)
(7)
Cable specifications
N: Pin
Pin: AWG#28(7/0.127)
AWG#26(7/0.16)
170
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

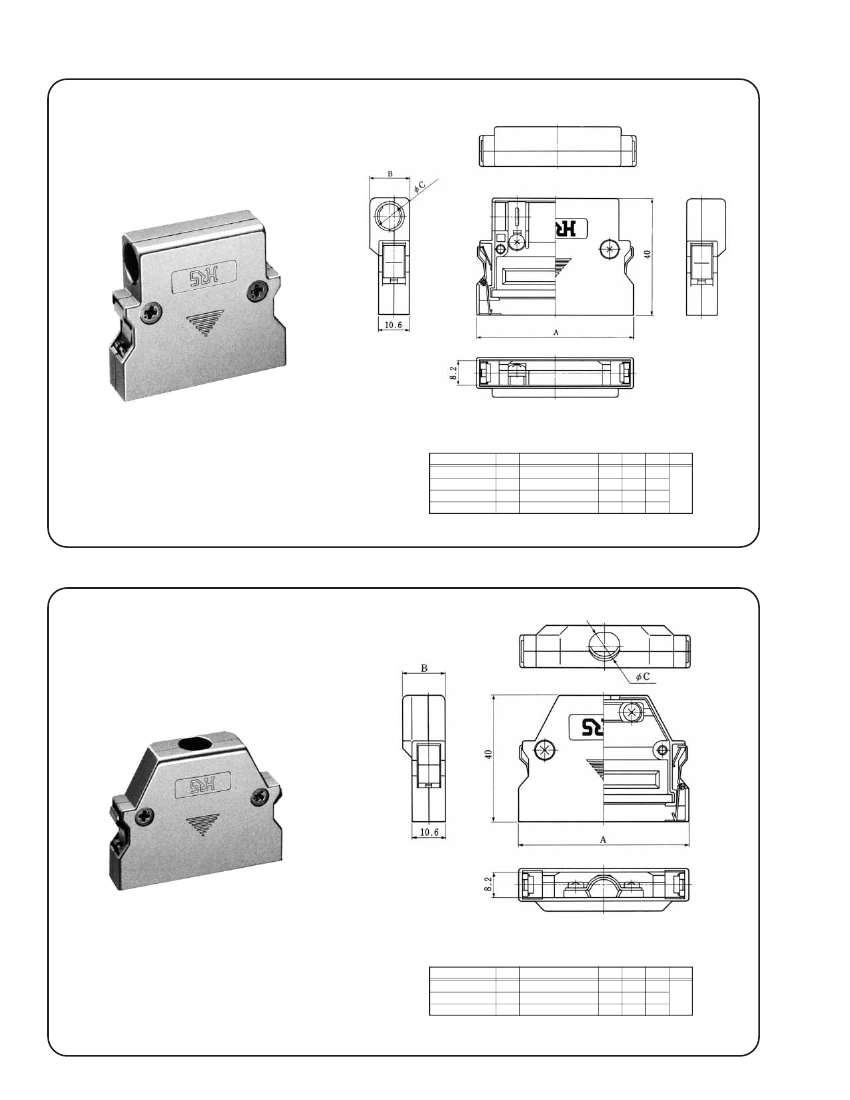

Angle Cable Exit Shell
Nov.1.2018
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2018

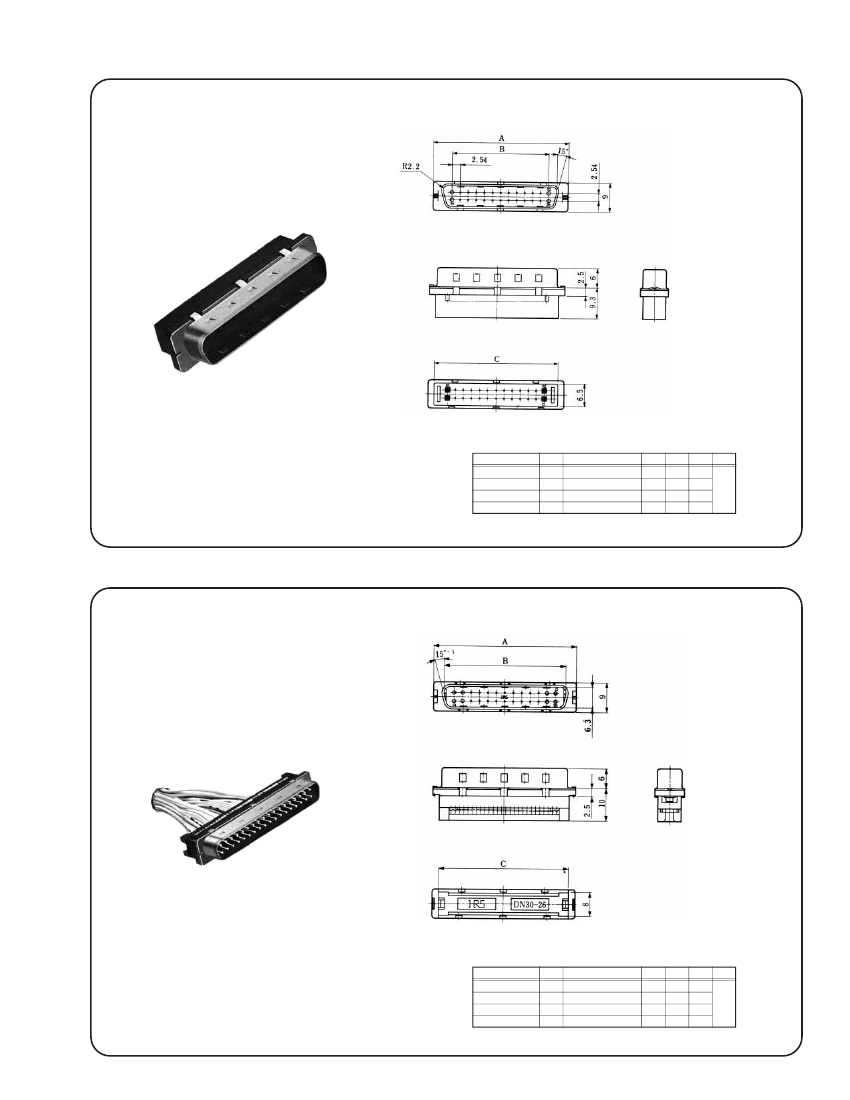

DN-26-CVE1
HRS No.
225-0019-1
225-0020-0
225-0021-3
225-0022-6
No.of pin
20
26
36
50
Part No.
DN-20-CVE1
DN-26-CVE1
DN-36-CVE1
DN-50-CVE1
A
45.9
53.5
66.2
84
B
12.7
13.7
Unit: mm
C
9
9.7
RoHS
14.2
11
14.2 12
×
13
YES
Straight Cable Exit Shell
DN-26-CV1
Unit: mm
HRS No.
225-0031-7
225-0024-1
225-0025-4
No.of pin
20
26
36
Part No.
DN-20-CV1
DN-26-CV1
DN-36-CV1
A
45.9
53.5
66.2
B
13.7
13.7
14.2
C
9
9.7
11
RoHS
YES
172
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

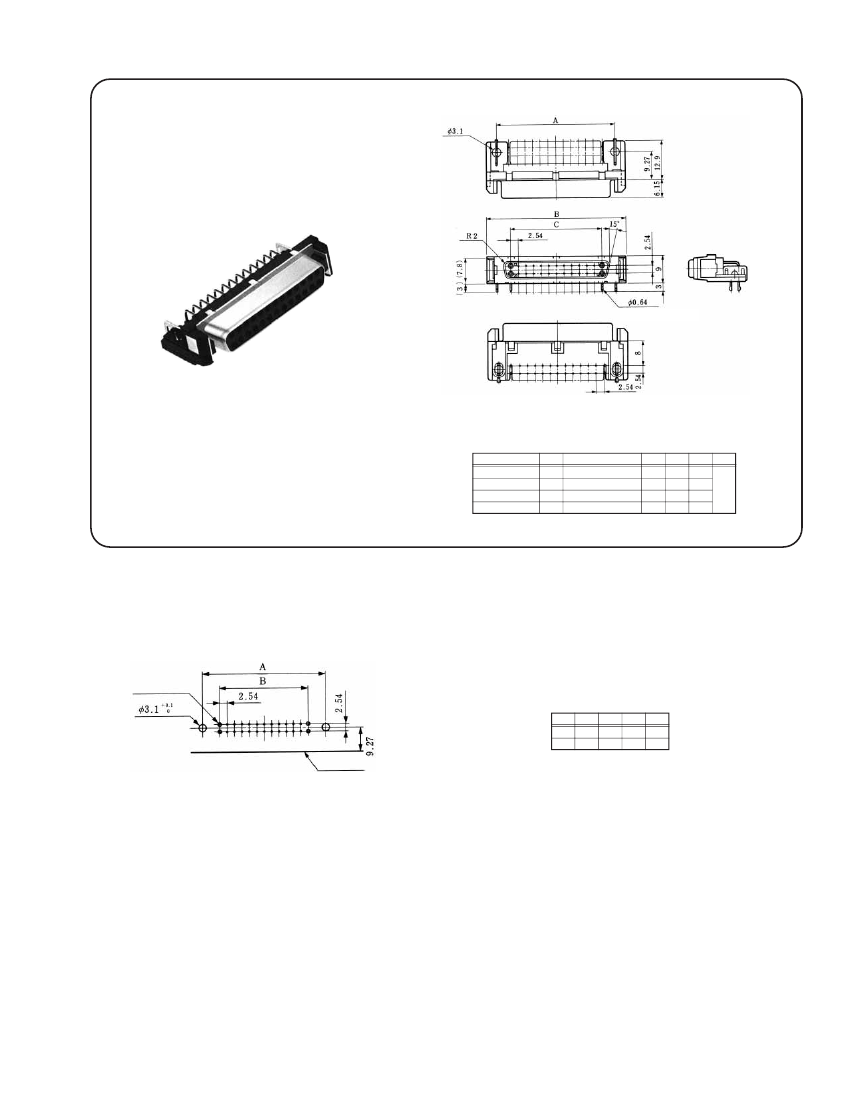

Right Angle P.C. Mount Receptacle
Nov.1.2018
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2018
(Dip Post)
DN10-26S
（50）
Unit: mm
HRS No.
225-0015-0-50
225-0001-6-50
225-0002-9-50
225-0003-1-50
No.of pin
20
26
36
50
Part No.
DN10-20S
（50）
DN10-26S
（50）
DN10-36S
（50）
DN10-50S
（50）
A
32
39.6
52.3
70.1
B
38.9
46.5
59.2
77
C
22.86
30.48
43.18
60.96
RoHS
YES
PCB Layout
mounting panel thickness 1.6mm
Unit: mm
No.of pin
A
B
20
26
36
50
32.0 39.6 52.3 70.1
22.86 30.48 43.18 60.96
PCB End
04/2009
173
