Hand Tools 80611380736 8765-APC CRIMPLOK(TM) + CONNECTOR KIT SC/APC

8765-APC Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	3M
Product Category	Hand Tools

Preview

Download Datasheet

View All

™

Fiber Interconnect Solutions

The Network of Networks

Performance

Fiber Connections

High

The future is fiber.

A complete family of

high-performance

products.

3M meets the increasing demand

for speed and reliability with a wide

variety of innovative solutions. Choose

from a broad range of ferruled fiber

connectors and adapters, mechanical

splices, cable assemblies and accessories

designed for the interconnection of

fiber optic networks. 3M provides a

full line of singlemode and multimode

LC, SC, ST and FC connectors. 3M

™

Hot Melt Connectors, 3M

™

Crimplok

™

Connectors and 3M

™

No Polish

Connectors are very popular among

contractors and installers because

of their reliability and ease of use.

And the 3M

™

Crimplok

™

+ line is the

first-known, commercially available,

field-mounted connector for FTTX

indoor and outdoor use with no splice,

no gel and no adhesive. The 3M

™

Fibrlok

™

Optical Splice is one of the

leading mechanical splices and is now

specified in fiber-to-the-home projects

as a substitute for fusion splicing.

Develop a high-performance network

with 3M fiber interconnect solutions.

And 3M fiber interconnect

solutions are leading the way.

A full line of products from

a full-service company.

3M is an innovation company. Our

products, systems and services are

optimized for constructing and

rehabilitating networks for faster,

more reliable performance. That means

delivering products that conform to

industry standards and that are as

reliable as they are intermateable.

3M maintains a strong reputation for

service by collaborating with other

industry leaders to develop meaningful

goals and standards. We strive to exceed

those standards in everything we do.

Connect with 3M

experience.

With more than 70 years of adhesive

expertise, 40 years of ceramic

technology leadership, 30 years of

fiber optic experience, and 100 years

of cumulative telecom experience,

3M provides an ideal offering of

convenient, reliable and easy-to-install

connectors for fiber networks.

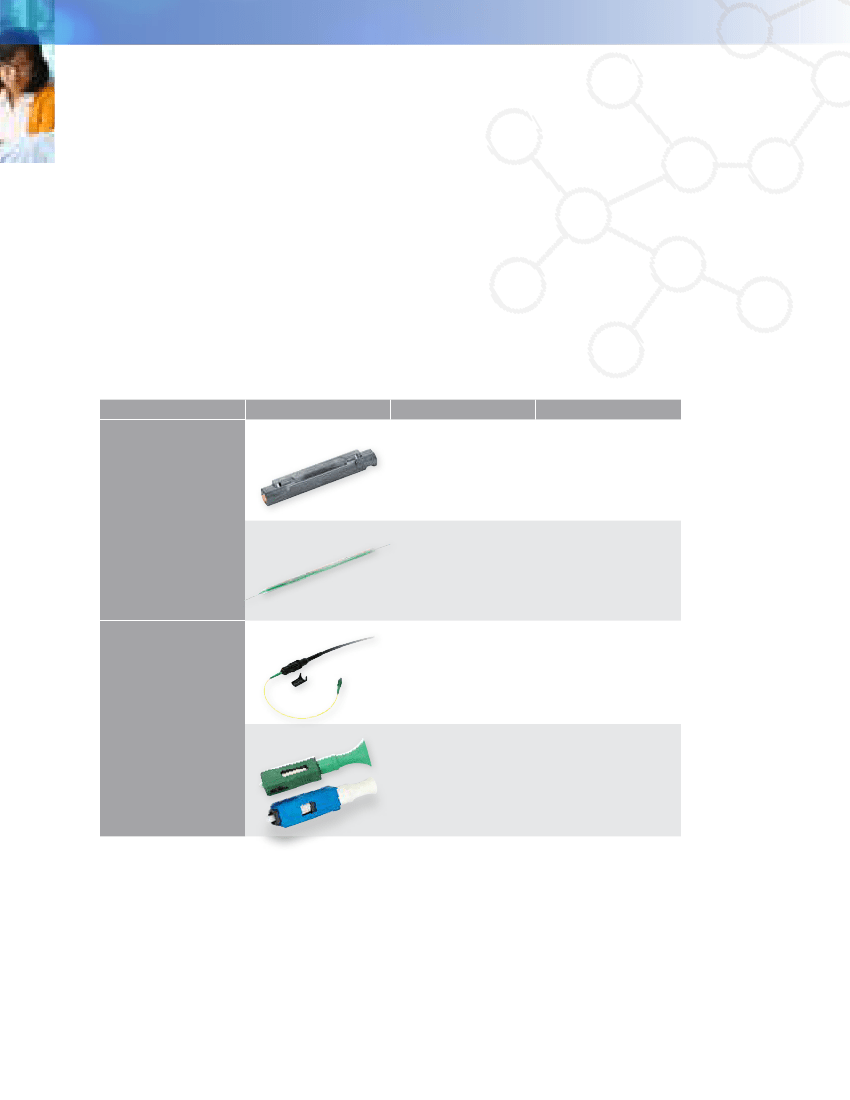

Selecting the Right

Connector or Splice

The first step in the selection process is to determine whether

a field installable connector or a mechanical splice will best

meet your needs.

Pros

Mechanical

Fast installation

Low tooling cost

Easy to use

Cons

Higher part cost

Slightly higher loss

No field testing

Splice

Fusion

Low insertion loss

and reflection

Low material cost

High equipment cost

Requires power

Higher skill level required

Factory-terminated

No tooling required

Very easy to install

Plug-n-play

Higher cost

Cable management issue

Replacement of damaged

connectors

Connector

Field-terminated

Custom cable installation

Low inventory costs

Easy to install

Lower material costs

Slightly higher loss

Tooling required

Some skill required

™

Field Installable Connectors

3M offers a complete line of fiber connectors

with ceramic ferrules. Our 3M

™

Hot Melt

Connectors, 3M

™

Crimplok

™

Connectors,

™

Crimplok

™

+ Connectors and 3M

™

Polish Connectors (NPCs) are popular among

contractors because of their reliability and ease

of use. 3M field installable connectors maximize

termination yield through ease of mounting and

high performance installation tools. 3M field

installable connectors are available in SC, LC,

ST and FC product families. 3M also provides

field installable FC/APC, SC/APC and LC/APC

angle polish connectors.

™

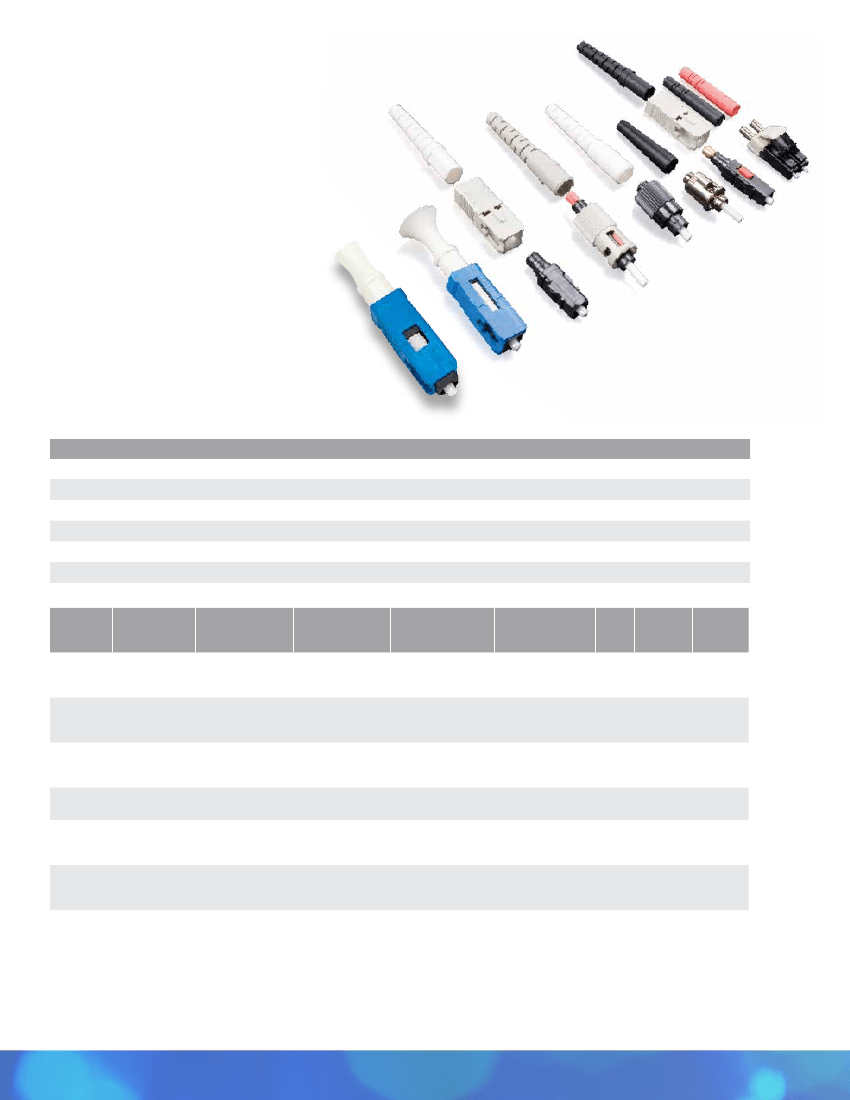

Fiber Connector Family

Fiber Connector Selection Charts

3M Connector

250/900 µm

Crimplok+

No Polish

Hot Melt

Crimplok

Epoxy

Jacketed

250/900 µm

Installation

Method

Performance*

Application

Jacketed

250/900 µm

Recommended

connectors installed

per location

†

Jacketed

250/900 µm

Jacketed

Tools

Required

Tool

Price

Connector

Price

Training

Required

Connector

Crimplok+

No Polish

Hot Melt

Crimplok

Epoxy

(2-part)

Crimp and field

polish

Mechanical

splice with gel/

no field polish

Pre-loaded

adhesive/

field polish

Crimp and field

polish

Field inject

adhesive/

field polish

Outdoor wide

temperature range

Outdoor wide

temperature range

Controlled

environment

Controlled

environment

Outdoor wide

temperature range

Controlled

environment

Service provider/

enterprise cabling

Service provider/

enterprise cabling

Enterprise cabling

Cable assembly

house

Enterprise cabling

Less than 10

Greater than 10

Less than 10

Greater than 100

Greater than 10

Quality cleaver/

Nano finisher/ Install

tool provided

Quality cleaver/

Install tool provided

Electric oven/

Polish tools

Scribe and actuator/

Polish tools

Adhesive syringe/

Polish tools

Adhesive syringe/

Polish tools

$$$

Epoxy

Field inject

(Anaerobic) adhesive/

field polish

†

* Outdoor wide temperature range meets Telcordia standards of -40°C to 75°C (-40°F to 167°F). Controlled environment meets TIA 568B.3 requirements for structured cabling.

™

No Polish Connectors , 3M

™

Crimplok

™

+ Connectors, and 3M

™

Crimplok

™

Connectors use mechanical technology that is quick to set up to install a few connectors.

™

Hot Melt Connectors and 3M

™

Epoxy Connectors installation processes are optimal for a larger number of connectors installed at one location.

™

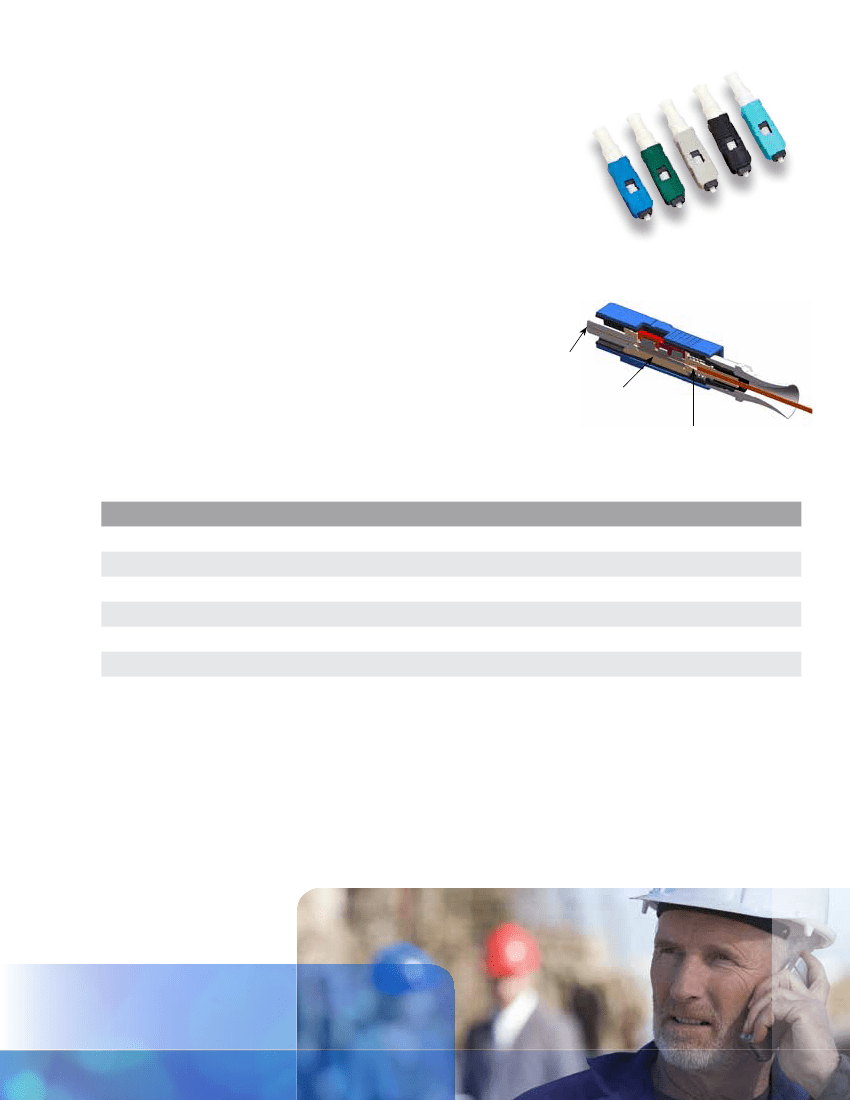

Crimplok

™

+ Connectors

™

Crimplok

™

+ Connectors provide fast, easy field installation of 250 μm

and 900 μm singlemode and multimode fiber without a splice, gel or adhesive.

The connectors are SC compatible with a metallic element that mechanically

locks the fiber in place. To install, the fiber is cleaved, inserted through the

connector and locked in place using the 3M

™

Crimplok

™

+ Protrusion Setting

Tool and the fiber tip polished with the 3M

™

Crimplok

™

+ Nano Finishing Tool.

This hand tool utilizes a polishing film and an orbital mechanism that polishes

with a single turn of the handle. Once completed, the connector is cleaned and

ready for use.

Crimplok+ Connectors have a thermally balanced design that is tested for

premises and FTTP applications for indoor and outdoor conditions from

-40°F to 167°F. The connectors have a streamlined boot attached to the

body, minimizing the chance of losing or forgetting to install it during the

termination process. After installation, the boot helps keep the fiber from

kinking, even during side pull.

The Crimplok+ Connectors and Tools are RoHS compliant.*

Field-polished

fiber tip

Mechanical fiber crimp

(No splice or gel)

Field fiber through

connector

™

Crimplok

™

+ Connector Family

Features and Benefits

™

Crimplok

™

+ Connectors

No splice, gel or adhesive

Simple assembly tools

Thermally balanced design

Polishing film with every connector

One-piece, pre-assembled design

Field installation

SC/APC angle polish

Eliminates splice interface/potential optical loss point

Fast, easy installation without electrical power

Excellent optical performance from -40°F to 167°F

Always have new polishing film

No small, loose parts

Always the right cable length with no cable slack to store

Low reflection, <-60 dB for outdoor temperatures
