Part Number

Search

1590321

Description
Circular Metric Connectors HC-26P1NRA90DU
CategoryThe connector
File Size60KB,3 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

1590321 Online Shopping

Suppliers Part Number Price MOQ In stock
1590321 - - View Buy Now

1590321 Overview

Circular Metric Connectors HC-26P1NRA90DU

1590321 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerPHOENIX CONTACT
Product CategoryCircular Metric Connectors
RoHSDetails
Number of Contacts26 Contact
Thread SizeM27
Termination StyleCrimp
Body StyleStraight
ShieldingShielded
Locking MechanismScrew Locking
Contact GenderMale
Factory Pack Quantity1
https://www.phoenixcontact.com/us/products/1590321
Coupler connector - HC-26P1NRA90DU - 1590321
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Coupler connector, straight, Screw locking, M27, Number of positions: 26, Type of contact: Male connector,
Crimp connection, shielded: yes, Cable diameter: 2 mm...14.5 mm

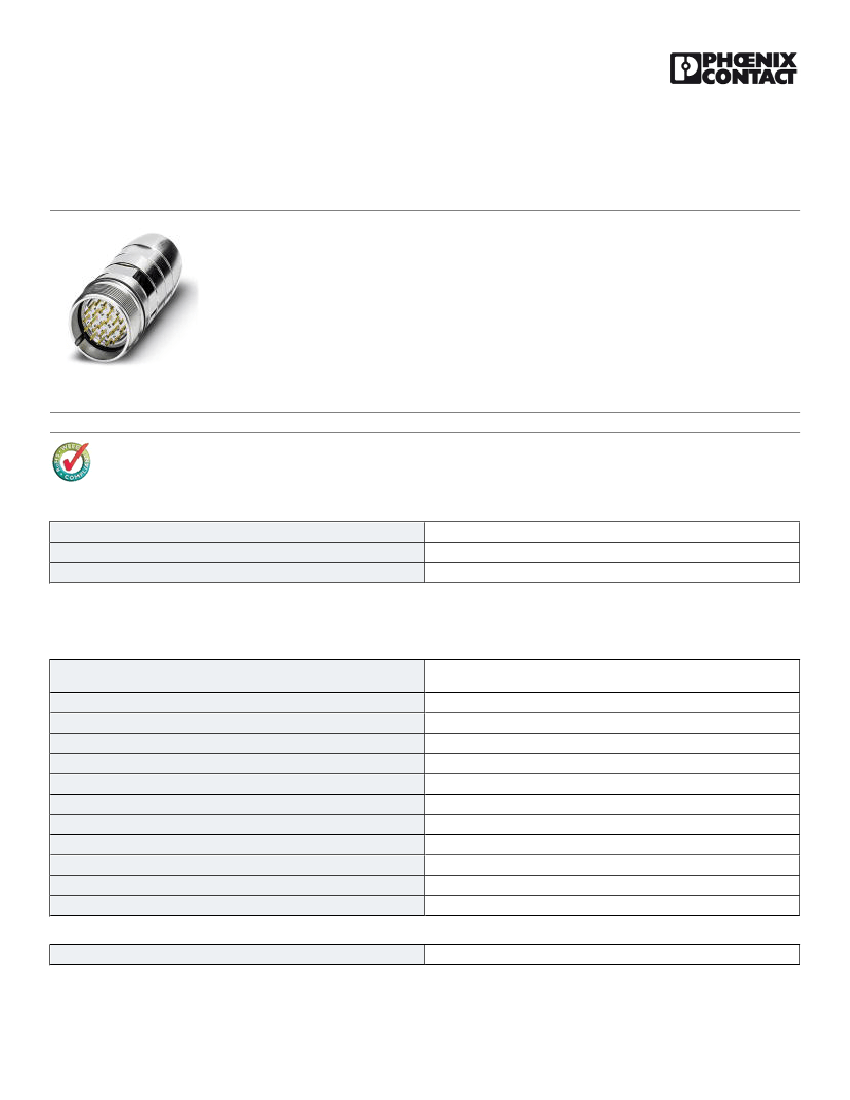

The figure shows the 28-pos. product
version
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 pc
85366990
Germany
Technical data
General
Note
Order information: Follow-up item from 1st December 2015: 1623254
HC-26P1N8A90DU
Order information: Order crimp contacts Ø 1 mm separately
Type of locking
Direction of rotation of contact chamber numbering
Coding
Contact connection method
Type of contacts
Number of positions
Contact diameter of power contacts
Nominal current per power contact at 25°C
Conductor entry
Pg housing screw connection
Screw locking
Standard
N
Crimp connection
Male connector
26
1 mm
8A
2 mm ... 14.5 mm
none
Ambient conditions
Ambient temperature
-20 °C ... 125 °C
04/14/2016   Page 1 / 3
