39-30-6049

Description
Headers & Wire Housings MINI-FIT R/A Header der 4 Ckt Tin/Nickel
CategoryThe connector    The connector
File Size30KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39-30-6049 Online Shopping

Suppliers Part Number Price MOQ In stock
39-30-6049 - - View Buy Now

39-30-6049 Overview

Headers & Wire Housings MINI-FIT R/A Header der 4 Ckt Tin/Nickel

39-30-6049 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codeunknown
Other featuresMINI-FIT JR
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationTIN (100)
Contact completed and terminatedTIN (100)
Contact point genderMALE
Contact materialBRASS
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number5569
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
OptionsGENERAL PURPOSE
Shell materialPOLYAMIDE66
Total number of contacts4
UL Flammability Code94V-2
Base Number Matches1

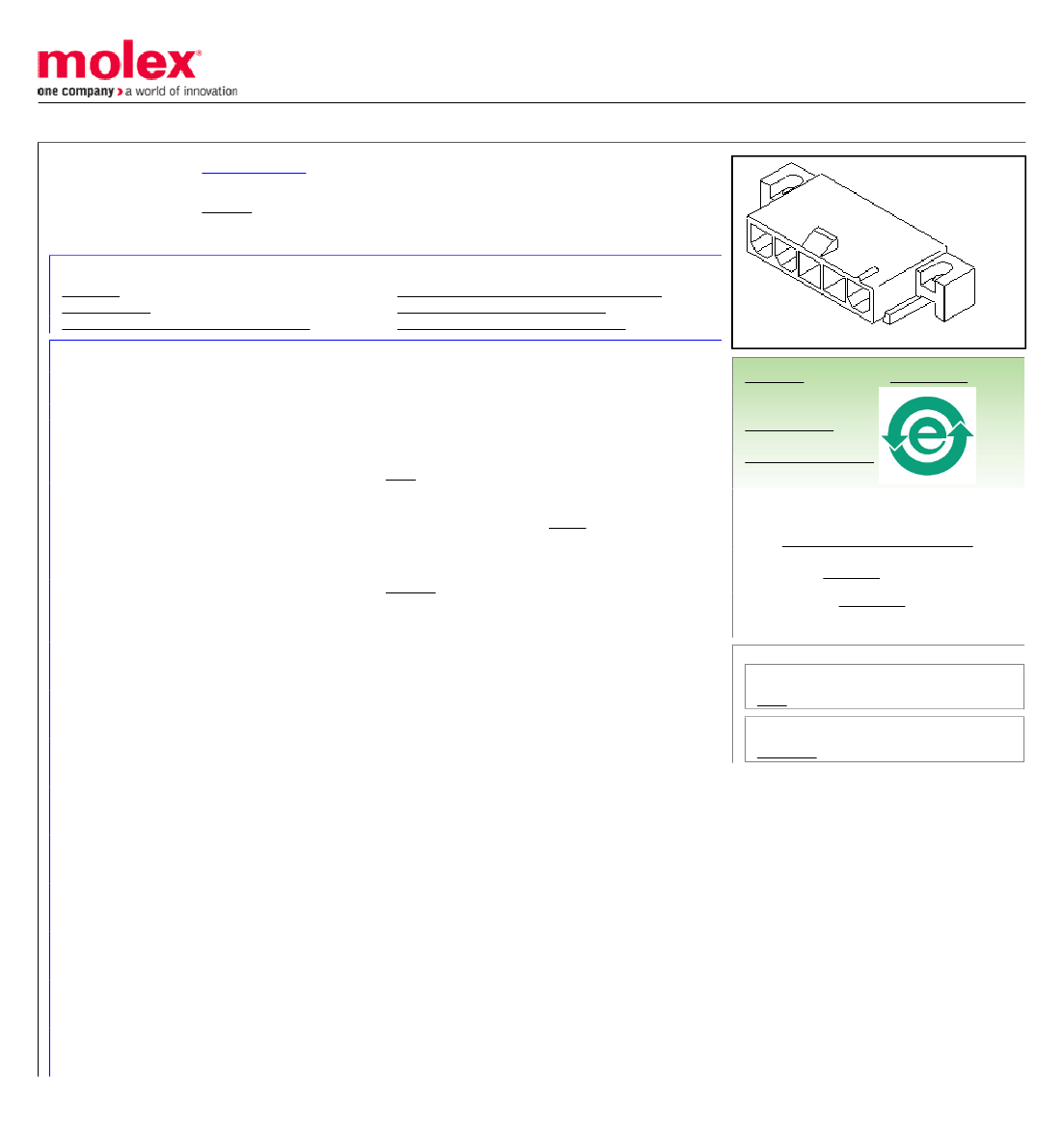

This document was generated on 03/05/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0039306049
Active
minifit_jr
4.20mm Pitch Mini-Fit Jr.™ Header, Single Row, Right Angle, with PCB Mounting
Flanges, 4 Circuits, PA Polyamide Nylon 6/6, 94V-2, Tin (Sn) Over Nickel (Ni) Plating
Documents:
3D Model
Drawing (PDF)
Product Specification PS-5556-001 (PDF)
Packaging Specification PK-5569-002 (PDF)
Test Summary TS-5556-002 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Application
Comments
PCB Headers
5569
Power, Wire-to-Board
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 Mini-Fit® Plus HCS
Crimp Terminal Crimped to 16 AWG wire., See Molex
Product specification PS-5556001 for additional current
de-rating information.
minifit_jr
Mini-Fit Jr.™
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
No
4
4
Natural
30
No
94V-2
No
No
None
Yes
Brass
Tin
Tin
Nylon
1
Right Angle
Yes
Yes
1.78mm
Bag
4.20mm
4.20mm
2.540µm
2.540µm
Yes
Yes
Search Parts in this Series
5569Series
Mates With
39014040 Receptacle
