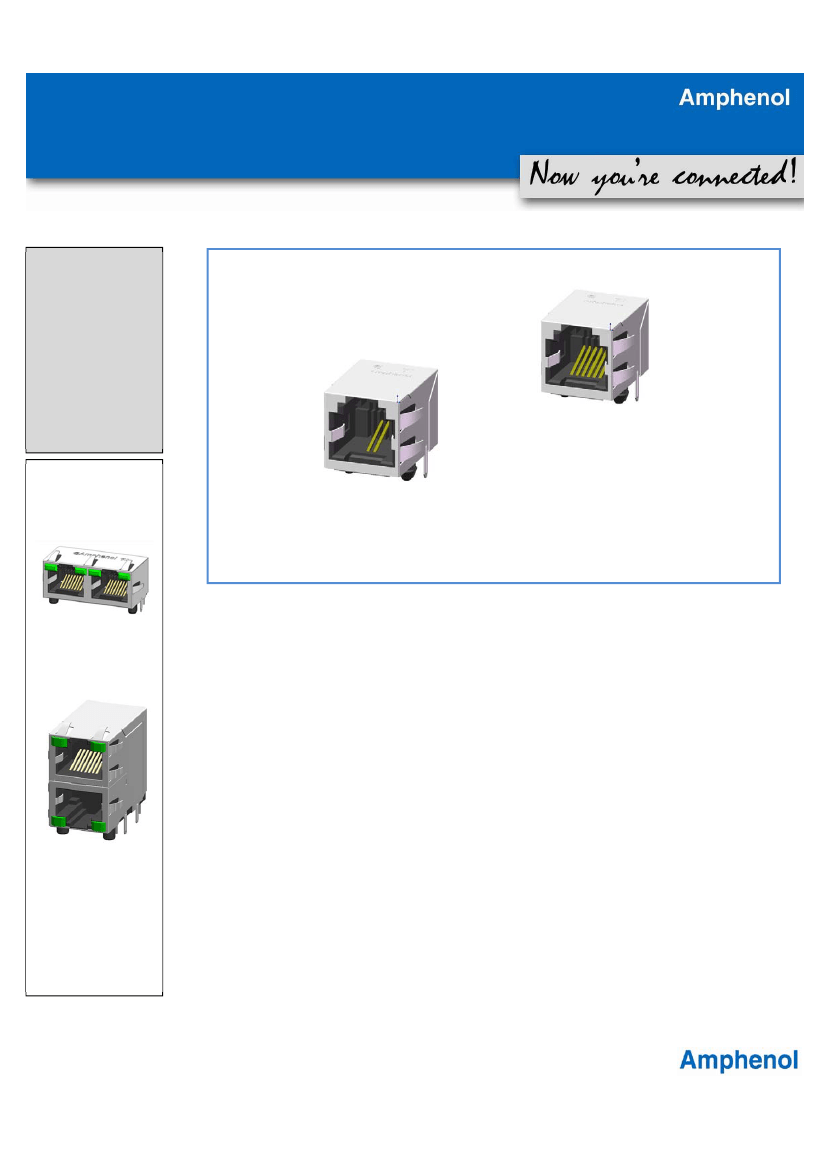

RJE01
Product Specification S6076C Rev 0.1
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
P/N RJE01‐662‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
WITH SHIELD
Related Products
P/N RJE01‐622‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
WITH SHIELD
RJHSE
Overview
P/N RJHSE‐5385‐02 SHOWN
TWO PORTS, 8 POSITIONS,
WITHT SHIELD AND LEDs
This product specification defines the general use and performance parameters for Amphenol’s
RJE01 series of inverted modular jacks.
Availability: Single, multiport, right angle connectors with a wide variety of shielding options.
RJSAE
Usage
The RJE01 inverted modular jacks with superior EMI performance supports Ethernet Protocols.
Shielding available for increased EMI performance.
Applications
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches
Office & Home Equipment
PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines
P/N RJSAE‐5385‐02 SHOWN
STACKED 2x1, 8 POSITION,
WITH SHIELD AND LEDs
Security Systems
Set Top Boxes
Video Game Systems
Miscellaneous
Multi-Media Equipment
Industrial Equipment
POS Terminals
Consumer Goods
Revision date: FEB 28, 2013
Page 1 of 2

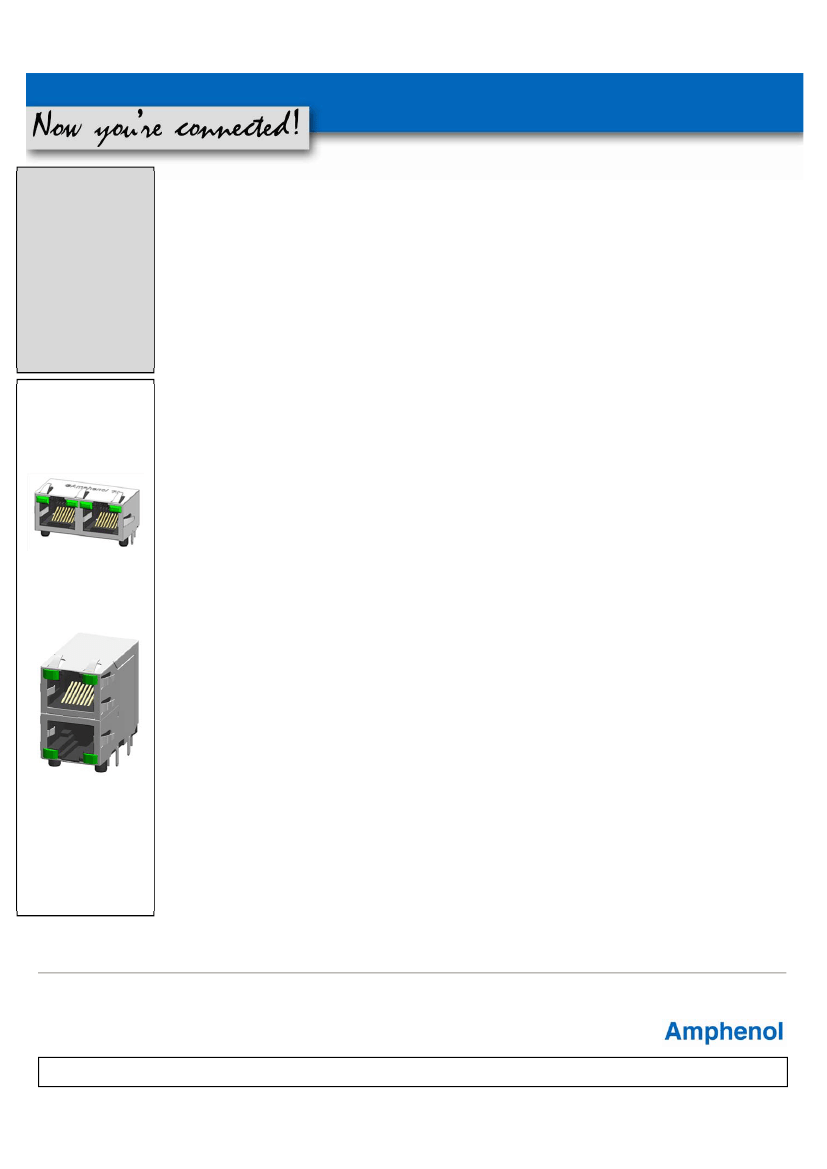

S6076C Rev 0.1
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Electrical Characteristics
Contact resistance:
Insulation resistance:
Current rating:
Voltage rating:
DWV
20 mΩ max.
500 MΩ minimum at 500V DC for 2 minutes max.
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 min.
Mechanical Characteristics
Mating connector insertion force: 5.0 lbs. Maximum.
Mating connector pull retention force: 20 lbs Minimum.
Durability: 750 mating & unmating cycles
Recommended soldering temperature: Wave soldering peaked at 260° C for 5 seconds maximum.
Operating temperature: -55° C to +85° C
Related Products
RJHSE
Material Requirements
RJE01 connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Insulator:
High Temp thermoplastic. Complies with UL 94V-0, Black color
Contacts:
Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ”, 30µ”, 50µ”) over
50µ” minimum Nickel on contact mating area.
100µ” minimum matte tin plating on soldering tail
Shield:
Stainless Steel with tin dipped tails
P/N RJHSE‐7060 SHOWN
SINGLE PORT, 6 POSITIONS,
WITHOUT SHIELD
RJSAE
Available Documents
Drawing Numbers:
P-RJE01-6XX-XX-X
6 Position Modular Jack, optional Shielding, 1, 2 port versions
Contact factory or Authorized Amphenol representative for additional configurations
P/N RJSAE‐5385‐02 SHOWN
STACKED 2x1, 8 POSITION,
WITH SHIELD AND LEDs
Amphenol Canada Corp.
605 Milner Avenue
Toronto, Ontario, Canada, M1B 5X6
+1 416 291 4401
www.amphenolcanada.com
Page 2 of 2
Copyright © Amphenol Corporation 2013 • All rights reserved
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
