194308 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 194308

194308: DescriptionD-Sub Standard Connectors 15P 9MM VERT MALE THREAD 4-40 UNC SMT; CategoryThe connector; File Size110KB，2 Pages; ManufacturerERNI Electronics; Environmental Compliance

Download Datasheet Parametric View All

194308 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	194308	-	-	View	Buy Now

194308 Overview

D-Sub Standard Connectors 15P 9MM VERT MALE THREAD 4-40 UNC SMT

194308 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ERNI Electronics
Product Category	D-Sub Standard Connectors
RoHS	Details
Factory Pack Quantity	75

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 36 St.

+0,3

5 x 18 = 90

0,7

max. 138

17,5

5,8

5,9

Aussparung in Arbeit

Pin 1

tray packaging

packaging unit 36 pcs

1,5

1,4

0,6

Leiterplatte

46,2

2,8

+0,2

39,3

-0,4

pcb

+0,2

5 x 46,2 = 231

max. 325

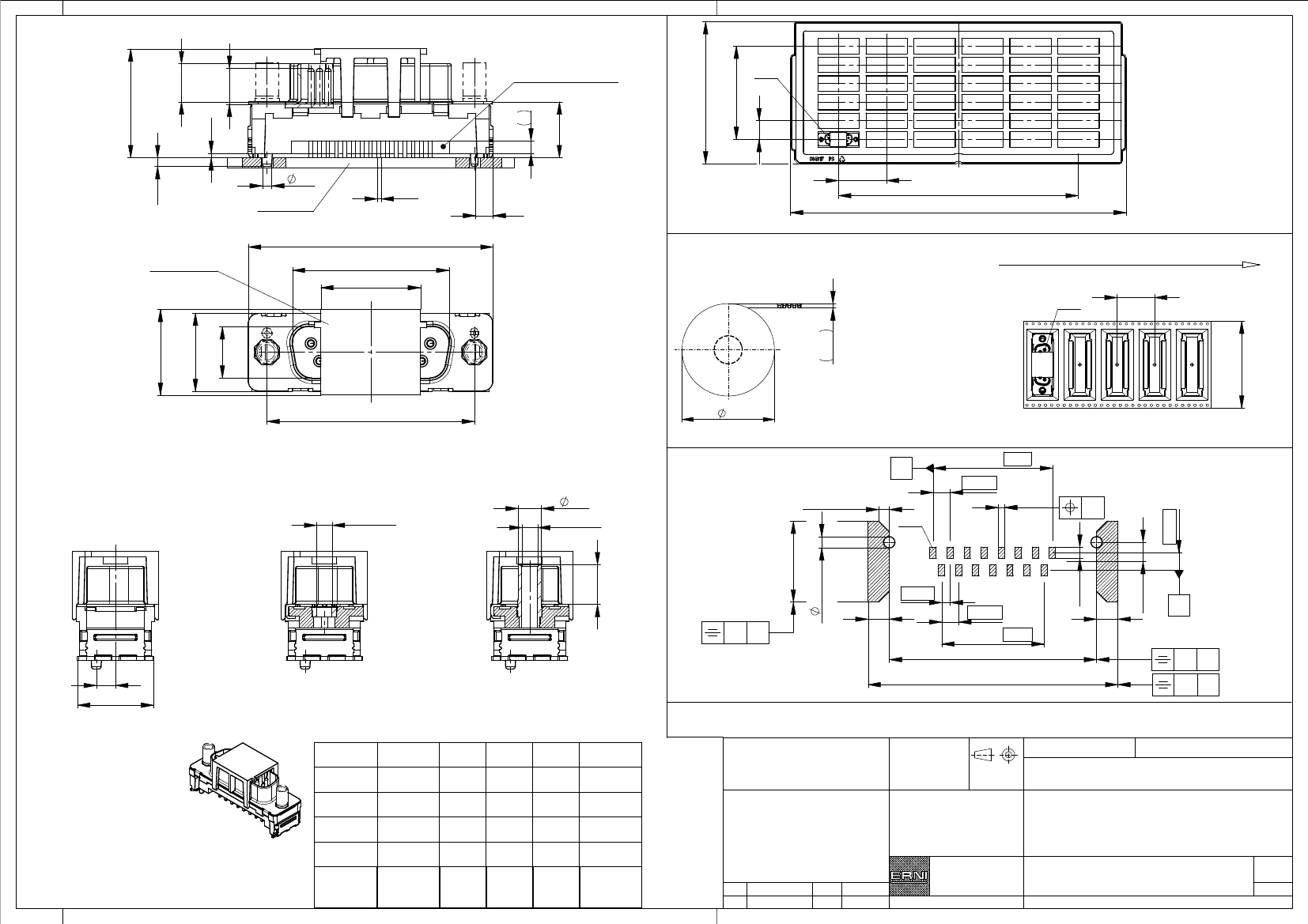

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

Verpackt im Gurt in Anlehnung an DIN IEC 60286-3

Ansaughaube

hood

25,1

Tape on Reel Packaging according to DIN IEC 60286-3

Verpackungseinheit: 75 Stück

Abspulrichtung -

Reel off Direction

Pin 1

Packaging unit: 75 pcs

12,6

±0,3

+0,2

13,8

8,25

21,2

33,3

±0,1

330

ohne /

without

max. Einschraubtiefe 7,5 mm

thread depth max. 7,5 mm

Gewinde

/ thread

/ #4-40

Mutter /

nut

Bolzen /

bolt

max. Einschraubtiefe 5,5 mm

thread depth max. 5,5 mm

3,7

Gewinde

/ thread

/ #4-40

Sonstige Angaben siehe Zeichnung 204654 /

Additional indications according to drawing 204654

7 x 2,74 = 19,18

Layoutvorschlag:

2,74

recommended layout:

(15x)

1,7 x 45° (4x)

Pin 1

0,1

2,84

Bohrung

/ hole

1,8

±0,05

1,8

1,37

3,4

2,74

6 x 2,74 = 16,44

33,3

±0,05

3,1

±0,05

6,4

3,4

0,1

3,1

12,2

40,1

±0,2

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

M 1:1

#4-40

ohne

without

Mutter

Bolzen Bemerkung

Proprietary notice pursuant to ISO 16016 to be observed.

194305

Anschlussbereich verzinnt

194300

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

terminal area tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

194306 194301

194307 194302

194308 194303

194309 194304

Ident-Nr.

part-no.

tape &reel

Ident.-Nr.

coplanarity area of termination

≤

0,1 mm

Anforderungsstufe: 2

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

04.02.2016

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-P 15-SMD-9,0-BA8

TMC-P 15-SMD-9,0-type 8

class: 2

part-no.

tray

www.ERNI.com

Class

thread

bolt

remark

144908

TMCP
