Part Number

Search

M80-7085105

Description
Headers & Wire Housings 51 WAY S/BORE CRIMP
CategoryThe connector    The connector

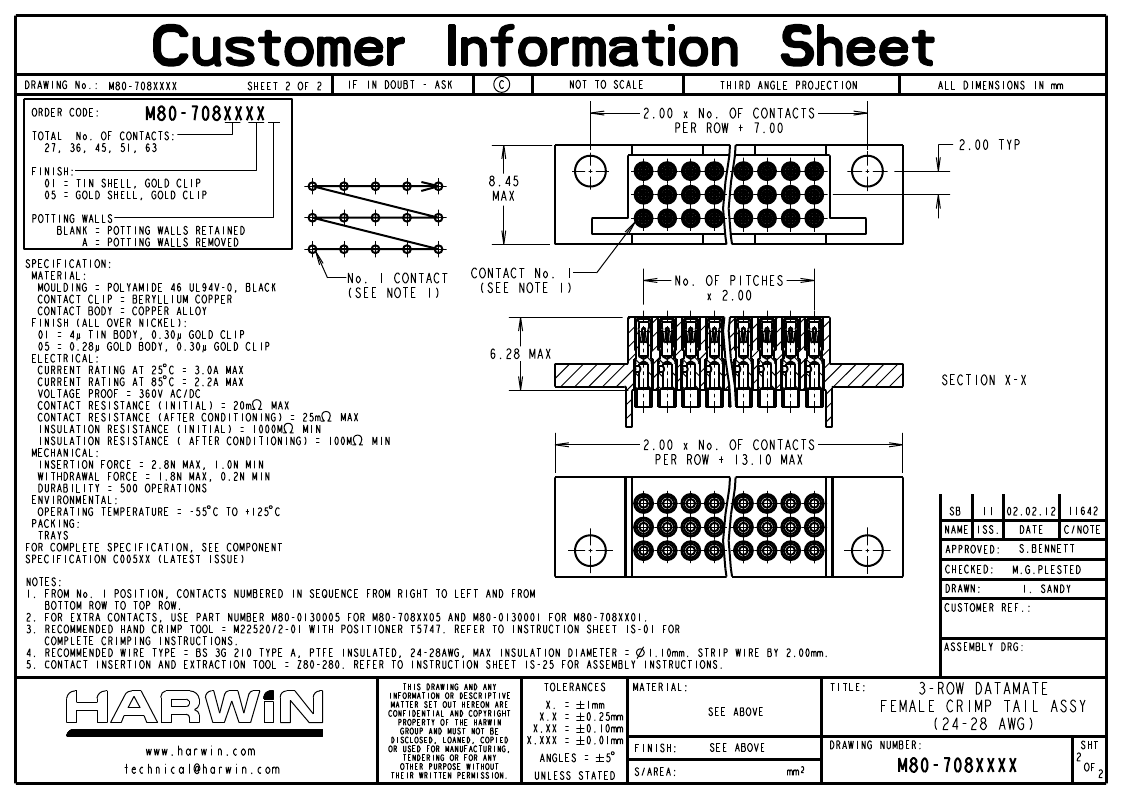

File Size117KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

M80-7085105 Online Shopping

Suppliers Part Number Price MOQ In stock
M80-7085105 - - View Buy Now

M80-7085105 Overview

Headers & Wire Housings 51 WAY S/BORE CRIMP

M80-7085105 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHarwin
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresPOLARIZED, SHROUDED
body width0.332 inch
body length1.854 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Durability500 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force2.78 N
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYETHYLENE
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness12u inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Shell materialPLASTIC
Termination typeCRIMP
Total number of contacts51
UL Flammability Code94V-0
Maximum wire diameter24 AWG
Minimum wire diameter28 AWG
Evacuation force-minimum value.199882 N

M80-7085105 Related Products

M80-7085105 M80-7084505 M80-7086305
Description Headers & Wire Housings 51 WAY S/BORE CRIMP Headers & Wire Housings 45 POS FEMALE W/ JACKSCREWS Headers & Wire Housings 63 POS FEMALE W/ JACKSCREWS
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Maker Harwin Harwin Harwin
Reach Compliance Code compliant compliant compliant
ECCN code EAR99 EAR99 EAR99
Other features POLARIZED, SHROUDED POLARIZED, SHROUDED POLARIZED, SHROUDED
body width 0.332 inch 0.332 inch 0.332 inch
body length 1.854 inch 1.697 inch 2.169 inch
Body/casing type PLUG PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contactor design PREASSEM CONN PREASSEM CONN PREASSEM CONN
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated Gold (Au) Gold (Au) Gold (Au)
Contact point gender FEMALE FEMALE FEMALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 25 mΩ 25 mΩ 25 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT
DIN compliance NO NO NO
Durability 500 Cycles 500 Cycles 500 Cycles
empty shell NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
maximum insertion force 2.78 N 2.78 N 2.78 N
Insulation resistance 100000000 Ω 100000000 Ω 100000000 Ω
Insulator color BLACK BLACK BLACK
insulator material GLASS FILLED POLYETHYLENE GLASS FILLED POLYETHYLENE GLASS FILLED POLYETHYLENE
JESD-609 code e4 e4 e4
MIL compliance NO NO NO
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO
Installation option 1 LOCKING LOCKING LOCKING
Installation type CABLE CABLE CABLE
Number of rows loaded 3 3 3
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Plating thickness 12u inch 12u inch 12u inch
Rated current (signal) 3 A 3 A 3 A
Guideline UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Shell material PLASTIC PLASTIC PLASTIC
Termination type CRIMP CRIMP CRIMP
Total number of contacts 51 45 63
UL Flammability Code 94V-0 94V-0 94V-0
Maximum wire diameter 24 AWG 24 AWG 24 AWG
Minimum wire diameter 28 AWG 28 AWG 28 AWG
Evacuation force-minimum value .199882 N .199882 N .199882 N
