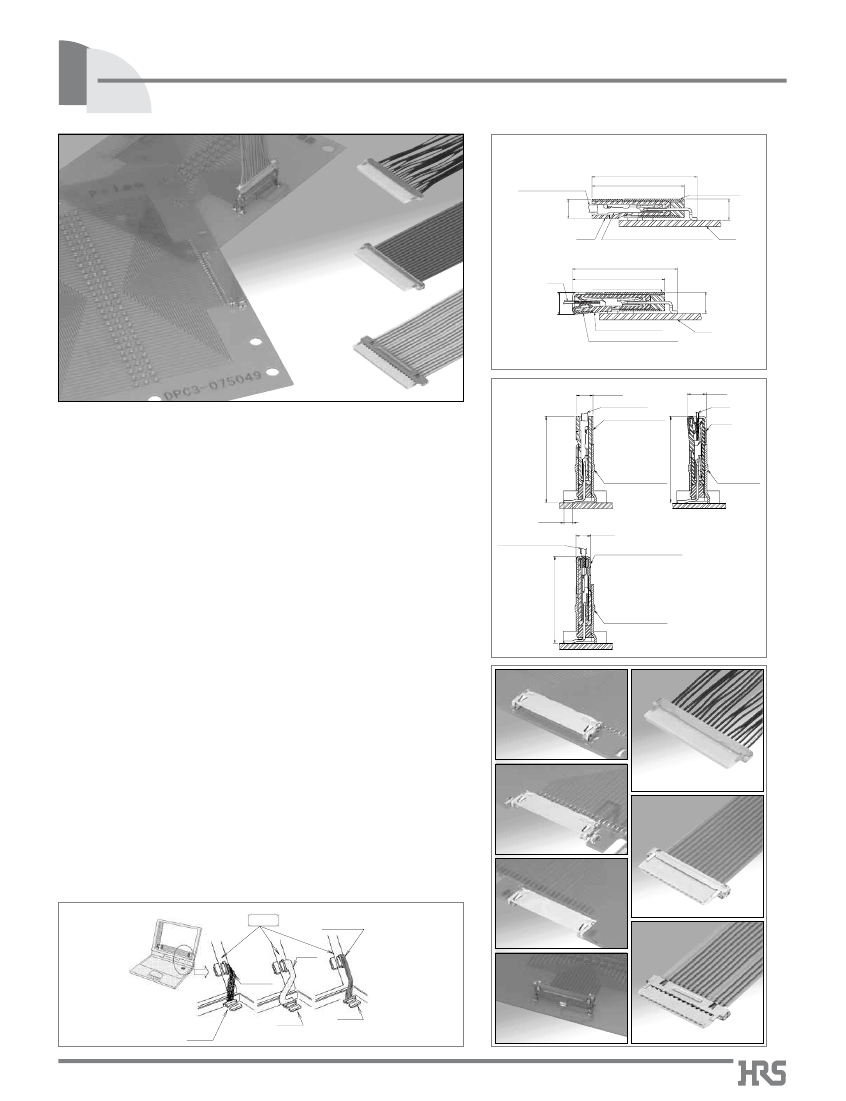

1 mm Contact Pitch, Board-to-Cable, Board-to-FPC,
Board-to-Micro-coaxial Cable Connectors
DF19 Series
Small configuration and board space
8.2
7.2
Receptacle
1.65
Plug
DF19A-2830 / 3032 / 36SCFA
PCB
8.2
7.2
DF19G-*P-1H(56)
1.65
DF19G-*S-1F(05)
DF19G-*S-1F-GND(05)
PCB
1.5±0.1
Discrete wire
(1.7)
FPC
Plug
DF19G-*S-1C(05)
(7.7)
DF19-*P-1V(56)
Receptacle
1.3±0.2
DF19G-*S-1SD(05)
+DF19G-*S-1SD-GND
DF19-*P-1V(56)
Micro-coaxial cable
1.5
FPC
(1.7)
Horizontal mounting
■
Overview
Industry and market accepted as “De facto” standard for LCD panel
connections (panels under 12 inches).
High-performance connectors for LVDS high-speed differential
(Ø1.5mm, Ø1.6mm max.) and FPC 1.7 mm maximum thick.
2. Common use of receptacle
The same receptacle will accept plugs terminated with discrete wire,
FPC or micro-coaxial cable.
Vertical mounting
3. Uniform external dimensions
The plug assembly external dimensions remain the same when is
terminated with discrete wire, FPC or micro- coaxial cable.
Top-board mounting
Discrete wire
4. Variety of mounting styles
Device design engineers have a choice of mounting styles: top-
board, offset, reverse mount offset and vertical.
5. Ground connection
Metal grounding plates connect with the common ground line.
Offset mounting
FPC
■
Applications
LCD connections in small consumer devices: digital cameras,
notebook computers, PDA’s. Any device requiring high-density
interconnection for consistent high speed transmission data rates.
Reverse, offset mounting
DF19
Micro-coaxial cable
Micro-coaxial cable
Vertical mounting
FPC
Twisted
pair cable
Notebook PC
DF19
DF19
DF19
B253
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will
be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
■Product
Specifications
Current rating AWG#28 : 1A
AWG#30 : 0.9A
AWG#32 : 0.8A
Rating
AWG#36 : 0.5A
FPC
Voltage rating 100V AC
Item
1.Insulation resistance
2.Withstanding voltage
3.Contact resistance
4.Insertion-Extraction force
(per contact)
5.Vibration
6.Humidity
(Steady state)
7.Temperature cycle
500 Mø min.
No flashover or insulation breakdown.
30 mø max. (50 mø max. for FPC)
Min. 0.2N, Max. 3N
Operating temperature range -35ç to 85ç Note 1
Storage temperature range
-10ç to 60ç Note 2
-35ç to 85ç
Note 2
Operating humidity range
-20%
to 80%
Storage humidity range
: 0.5A
-40%
to 70%
Micro-coaxial cable AWG# 40: 0.3A
Specification
100 V DC
Conditions
300 V AC / one minute
100 mA
Measured with a steel pin Ø0.2±0.005
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
2 hours in each of the 3 directions.
96 hours at temperature of 40±2ç and
humidity of 90% to 95%
Temperature: –55ç
➝
+5ç to +35ç
➝
+85ç
➝
+5ç to +35ç
Time (Minutes):
–30
➝
+10
➝
+30
➝
+10
5 cycles
30 cycles
Re-flow soldering: At the recommended temperature profile
Manual soldering: Soldering iron temperature 300ç, 3 seconds
No electrical discontinuity of 1μs or more.
Contact resistance: 30 mø max. (50 mø max. for FPC)
Insulation resistance: 500 Mø min.
Contact resistance: 30 mø max. (50 mø max. for FPC)
No deformation of the insulator parts affecting performance.
Note1: Includes temperature rise caused by current flow.
Note2: The term “storage” refers to connectors stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during
transportation.
Note3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
specifications for a specific part number shown.
■
Materials / Finish
Product
Receptacle
Component
Insulator
Contacts
Grounding plate
Plug
Crimp contact
Plug for PPC
Grounding plate for PPC
Plug for micro-coaxial cable
Grounding plate for micro-coaxial cable
Insulator
Tin-lead plated
Contact
Insulator
Contact
Grounding plate
Insulator
Contact
Grounding plate
Grounding plate
Material
Polyamide
Phosphor bronze
Phosphor bronze
Polyamide
Stainless steel
Phosphor bronze
Polyamide
Phosphor bronze
Stainless steel
LCP
Phosphor bronze
Phosphor bronze
Phosphor bronze
Finish/Color
Beige
Gold plated
Tin-copper plated
Beige
Tin-copper plated
Gold Plated
Beige
Gold plated
Tin-copper plated
Beige
Gold plated
Tin plated
Tin plated
Remarks
UL94V-0
----------
----------
----------
----------
----------
UL94V-0
----------
----------
UL94V-0
----------
----------
----------
B254
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be
DF19 Series●1 mm Contact Pitch, Board-to-Cable,
RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
discontinued soon. Please check the products status on the Hirose website
Note 1: Number of contacts will differ depending on the connector style.
Note 2: Grounding plates are required when terminating with the FPC and micro-coaxial cable.
●
Contact
DF19A - 2830 SCF A (
* *
)
1
1
Conductor size
2830 : AWG#28
~
#30
3032 : AWG#30
~
#32
0036
: AWG#36
2
Contact type
SCF : Plug contact, tape and reel
packaging
2
3
3
Plating
A : Gold
4
4
Packaging
Blank : 10,000 pieces / reel
(41) : 20,000 pieces / reel
B255
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will
be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
■Right
angle receptacle, top-board mounting
2.375
P= 1
2.45
A
B
0.25
2.175
4.7
2
Contact No. 1 indicator
C
5.7
1.65
B
PCB mounting pattern
1.85±0.1
1
0
+0.1
B±0.05
P=1±0.05
0.55±0.05
1.65
1.65±0.1
2.5±0.05
2.5
+0.1
0
1.1
+0.1
0
Outline of the receptacle
No conductive traces
Specification
(56): Tape & reel packaging
(1,000 pieces per reel)
Unit: mm
Part number
DF19G-18P-1H (56)
DF19G-14P-1H (56)
DF19G-20P-1H (56)
DF19G-30P-1H (56)
CL No.
685-0021-0-56
685-0004-0-56
685-0006-6-56
685-0015-7-56
Number of contacts
8
14
20
30
A
11.55
17.55
23.55
33.55
B
7
13
19
29
C
11.95
17.95
23.95
33.95
1.65mm high
YES
Remarks
RoHS
Note: Order by number of reels.
B256
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be
DF19 Series●1 mm Contact Pitch, Board-to-Cable,
RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
discontinued soon. Please check the products status on the Hirose website
