M20-7860742 datasheet, PDF - EEWORLD Datasheet

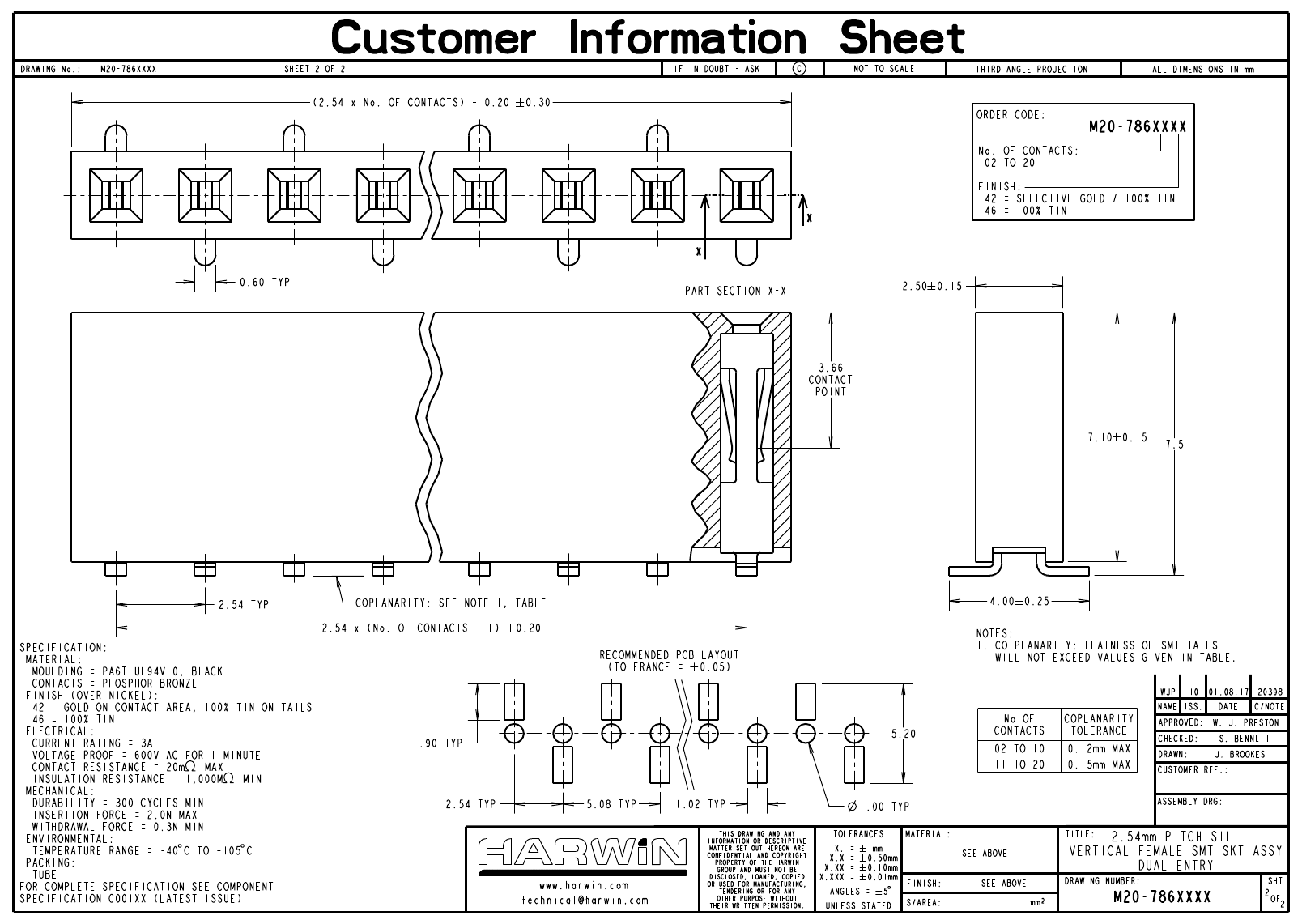

M20-7860742: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M20-7860742 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M20-7860742	-	-	View	Buy Now

Board Connector, 7 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1740524881
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Headers & Wire Housings 7 WAY SIL SMT SOCKET
Samacsys Manufacturer	Harwin
Samacsys Modified On	2023-03-07 16:10:32
YTEOL	0
Other features	ROHS COMPLIANT
body width	0.1 inch
subject depth	0.295 inch
body length	0.708 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Rated current (signal)	3 A
Guideline	UL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	7
UL Flammability Code	94V-0
Evacuation force-minimum value	.29746 N
