5045-0008 datasheet, PDF - EEWORLD Datasheet

5045-0008: DescriptionAmphenol; File Size126KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

5045-0008 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5045-0008	-	-	View	Buy Now

5045-0008 Overview

Amphenol

5045-0008 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	Amphenol

Preview

Download Datasheet

View All

ROHS COMPLIANT

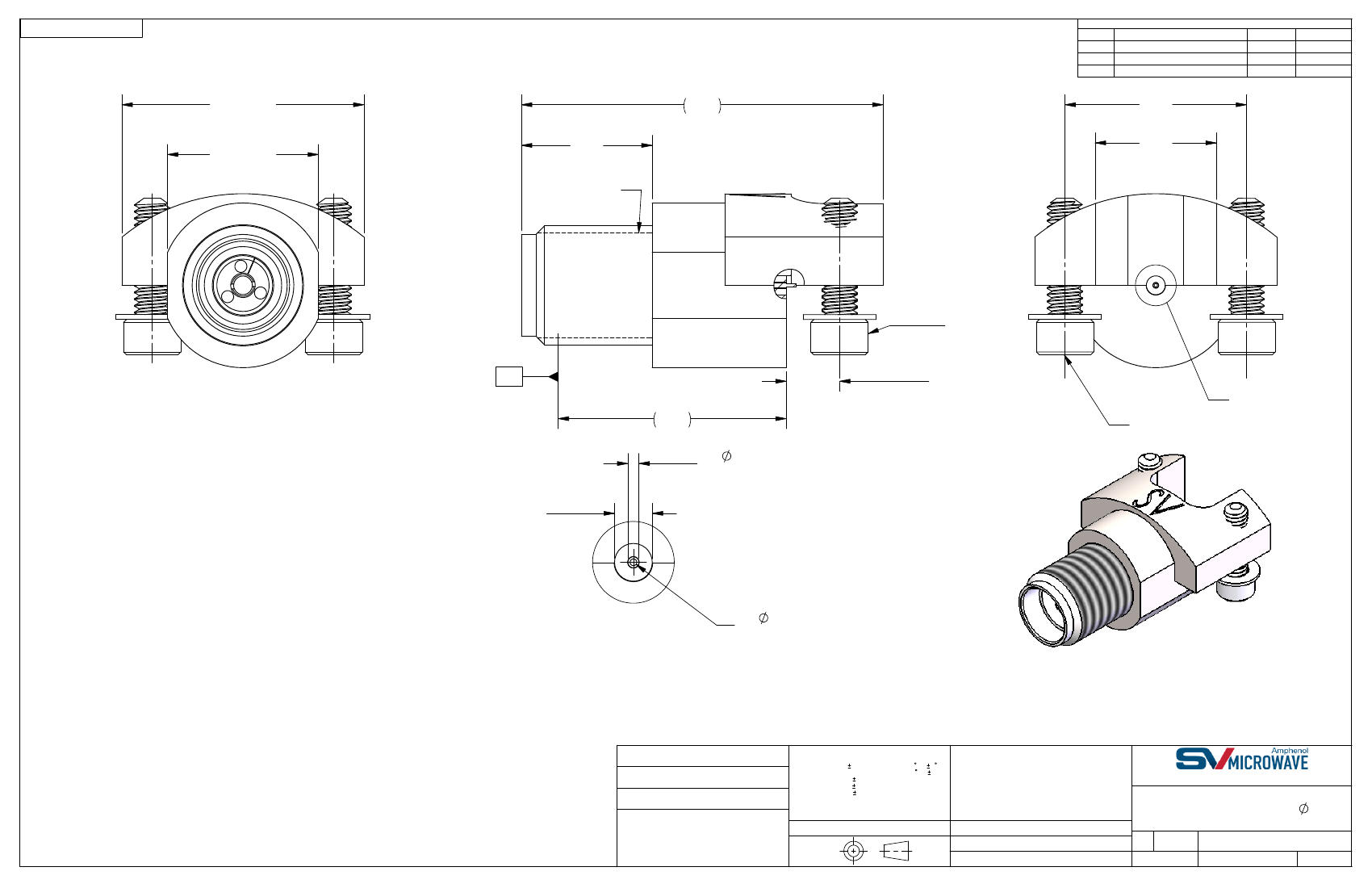

PRODUCT DATA DRAWING

.500±.010

+.001

.312 - .003

.270

.747

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

DCN 42768

DCN 43013

DCN 46533

10/16

02/17

06/17

DAL

STW

.375

.250

1/4-36 UNS-2A

1-72 SCREWS

.471

.0115

INTERNAL PIN

.039

BODY I.D.

2X .110±.001

2X 1/16" ALLEN KEY

MATERIAL:

BODY:

CONTACT:

INSULATOR:

BEAD:

STAINLESS STEEL

BERYLLIUM COPPER

PTFE

ULTEM

NOTES:

PASSIVATED

GOLD OVER NICKEL, .00005" MIN.

MATERIAL:

DETAIL A

SCALE 12 : 1

.007

BOARD PIN

FINISH:

BODY:

CONTACT:

FOR RECOMMENDED FOOTPRINT FOR YOUR PCB, CONTACT SV MICROWAVE

SALES DEPARTMENT (sales@svmicro.com, 561-840-1800)

PERFORMANCE:

IMPEDANCE:

FREQ. RANGE:

VSWR:

50 OHMS

DC TO 40.0 GHz.

1.25:1 MAX. DC TO 40.0 GHz.

SEE NOTES

N/A

PROPRIETARY

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

2) ALL DIMENSIONS ARE AFTER PLATING.

3) BREAK CORNERS & EDGES .005 R. MAX.

4) CHAM. 1ST & LAST THREADS.

5) SURFACE ROUGHNESS 63

MIL-STD-10.

6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN .005 T.I.R.

7) REMOVE ALL BURRS

FINISH:

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

SURFACE AREA:

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

THIRD ANGLE PROJECTION

DRAWN:

CHECKED:

APPROVED:

ELA 10/24/16

DAL 10/24/16

SVK FEMALE EDGE LAUNCH

CONNECTOR WITH .007

LAUNCH PIN

95077

SIZE CAGE CODE DWG. NO.

SF1521-60107

SHEET 1 OF 1

SCALE: 6:1
