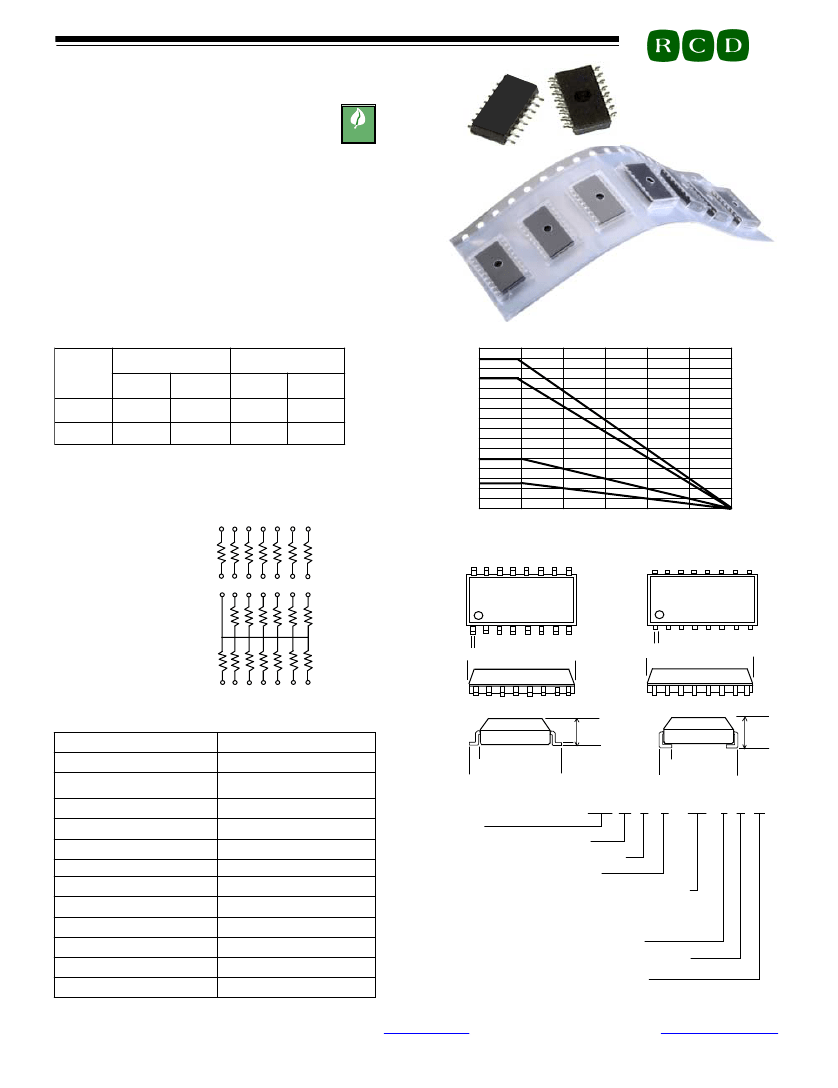

SMN16 SERIES
RoHS
Term.W is
RoHS
compliant
& 260°C
compatible
Choice of gull-wing or J-lead styles!
RCD’s SMN series feature SOIC-type packaging with gull-wing
leads, or SOJ type with leads formed under the body for even
greater space savings. The molded construction results in
excellent moisture resistance, and compliant leads prevent
solder joint fatigue under vibration and thermal shock conditions.
Epoxy-molded for excellent environmental performance
Standard tolerance: ±5% (1%, 2% available)
Temperature coefficient: ±100ppm/°C Typ.
Available on 24mm embossed plastic tape or magazine tube
POWER RATING
Config.
Type
A
B
Single Resistor
@ 25°C
.25W
.125W
@ 70°C
.16W
.08W
P ackag e
@ 25°C
.75W
.75W
@ 70°C
.5W
DERATING
PACKAGE (W)
.75
.65
16-Pin
14-Pin
SINGLE RESISTOR (W)
.5W
.250
.125
0
Config. A
Config. B
STANDARD CONFIGURATIONS
(Custom circuits available.)
1
RC
D
SM 100
N1 1F
6A
S
THICK FILM SURFACE MOUNT NETWORKS
SMALL OUTLINE MOLDED DIP
RESISTORS CAPACITORS COILS DELAY LINES
25
50
75
AMBIENT TEMP. (°C)
100
125
150
Config. A
(Isolated resistors)
16 PIN/8RES
Pin #1
S Type (SOIC)
J Type (SOJ)
Config. B
(bussed resistors)
16 PIN/15RES
Pin #1
.016[.4]
→ ←
.016
→
[.4]
←
←
.43±.02 [11±0.5]
→
←
.43±.02
[11±0.5]
→
SPECIFICATIONS, TYPICAL
Resistance Range
Resistance Tolerance
Voltage Rating
Temperature Range
Temperature Coefficient
T.C. Tracking
Voltage Coefficient
Thermal Shock
Short-Time Overload
Resistance to Solder Heat
Moisture Resistance
Load Life (1000 hours)
Dielectric Strength
33
Ω
to 3.3 Meg
±1, 2, 5, 10%
25VDC or
√
PR
(whichever is less)
-55 to +150°C
±200ppm/°C
50ppm/°C
<50 ppm/ V Typ.
±0.5% + .05
Ω
±.25% + .05
Ω
±.25% + .05
Ω
±0.5% + .05
Ω
±1.0% + .05
Ω
200V Min.
→
←
.012 [.3]
←
.30± .02 [7.7± 0.3]
→
P/N DESIGNATION:
max
↓
↑
.004
[0.1]
.079 [2]
.085
[2.2] max.
←
←
←
.040 [1] typ.
.240 ± .012
[6.1 ± .3]
→
SMN 16 A
S - 102 - J B W
RCD Type
Number of Pins
(16 is standard)
Configuration:
A=Isolated, B=Bussed
Package Style:
S= SOIC, J = SOJ
Resis.Code 1%:
3 signif. figures & multiplier (10R0=10Ω,
1000=100Ω, 1001=1K, 1002=10K, 1003=100K, 1004=1M)
Resis.Code 2%-5%:
2 signif. figures & multiplier (100=10Ω,
101=100Ω, 102=1KΩ, 103=10K, 104=100K, 105=1M, etc.)
Tolerance:
J=5% (standard), G=2%, F=1%
Packaging:
B = Bulk, M = Magazine, T = Plastic Tape
Termination:
W= Lead-free, Q= Tin/Lead
(leave blank if either is acceptable)
RCD Components Inc,
520 E.Industrial Park Dr, Manchester, NH, USA 03109
rcdcomponents.com
Tel: 603
-
669
-
0054 Fax: 603
-
669
-
5455 Email:sales@rcdcomponents.com
FA072A Sale of this product is in accordance with GF-061. Specifications subject to change without notice.
