Single Digit LED Numeric Display
LA-301 B / L Series
SIM-013STW1
Datasheet
LA-301 B / L series is developed because of the demand for small single digit LED Numeric Display.
Materials of emission are GaAsP on GaP, AlGalnP and GaP. This is the height of a letter 8mm,
single digit LED Numeric Display that is packed by epoxy resin.
lFeatures
1) The height of a letter is 8mm.
2) The light don’t leak from the segment in spite of the small package.
3) The package of surface color is black. Color of segment is colored in emitting color.
4) Each color has anode common and cathode common respectively.

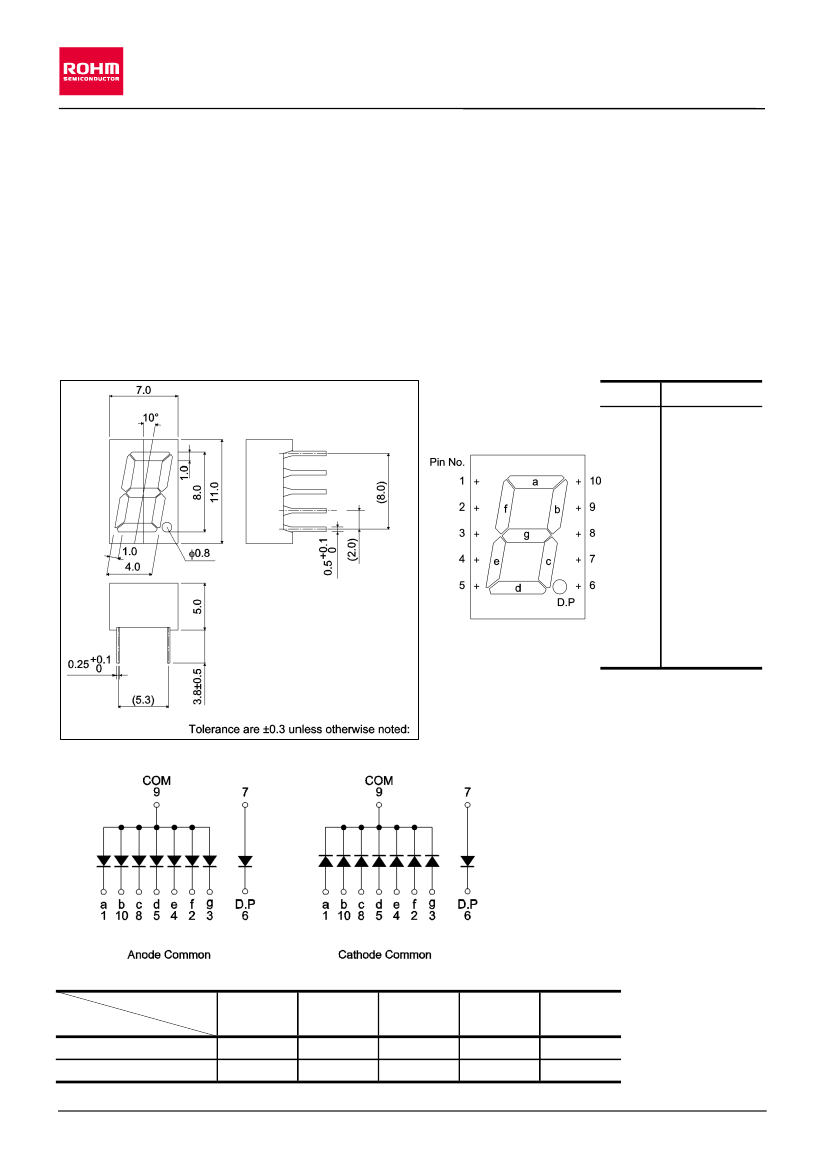

lDimensions
(Unit : mm)
lPin
assignments
Pin No.
1
2
3
4
5
6
7
8
9
10
Function
Segment "a"
Segment "f"
Segment "g"
Segment "e"
Segment "d"
D.P Cathode
D.P Anode
Segment "c"
Common
Segment "b"
lInternal
circuit schematic
lSelection
guide
Emitting color
Red
Orange
Yellow
Red
Green
(High brightness) (High brightness) (High brightness)
Common
Anode
LA-301VB LA-301AB LA-301EB LA-301XB LA-301MB
Cathode
LA-301VL LA-301AL LA-301EL LA-301XL LA-301ML
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
1/4
2017.03 - Rev.D
