940-99-028-24-000000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 940-99-028-24-000000

Preview

940-99-028-24-000000: DescriptionIC & Component Sockets 28 POS. TIN PLATED; CategoryThe connector socket; File Size445KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

940-99-028-24-000000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	940-99-028-24-000000	-	-	View	Buy Now

940-99-028-24-000000 Overview

IC & Component Sockets 28 POS. TIN PLATED

940-99-028-24-000000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	unknown
ECCN code	EAR99
Contact to complete cooperation	TIN LEAD (100) OVER NICKEL (50)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	PLCC28
Shell material	POLYPHENYLENE SULFIDE
JESD-609 code	e0
Manufacturer's serial number	940
Number of contacts	28
Base Number Matches	1

Preview

Download Datasheet

View All

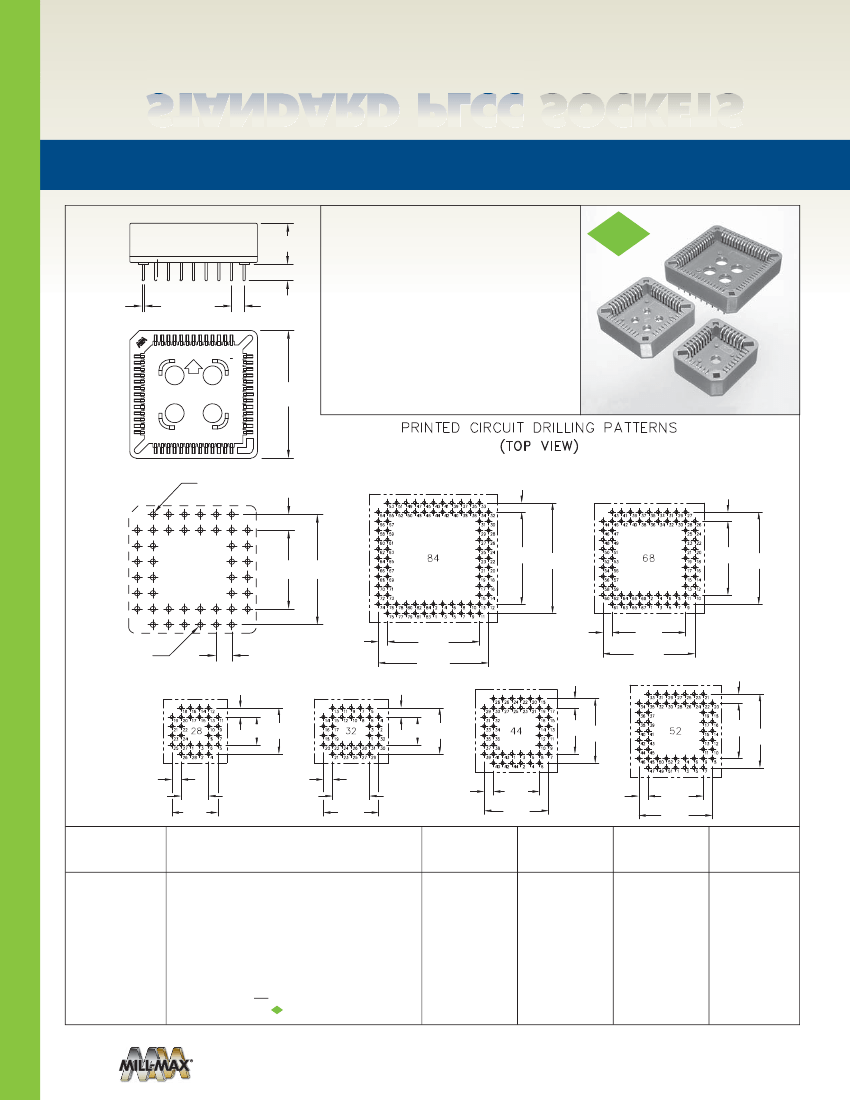

STANDARD PLCC

SOCKETS

SERIES 940 • THROUGH-BOARD MOUNT

•

Note: Not end stackable

•

Accepts JEDEC PLCCs MS-016 & MS-018

leaded plastic substrates

.130

RoHS - 2

2011/65/EU

.325

•

Internal standoffs insure proper positioning

of chip carrier in socket

.018x.010

.100

(TYP)

•

Standoffs provide clearance for heat

dissipation and cleaning

A

•

Contacts are plated with 150

”

tin

•

Insulator material is glass reinforced PPS

•

For Electrical, Mechanical and Environmental

Data, see page 141 for details

.035" dia. min. mounting holes

.035" DIA. HOLE

.100

1.000

B

C

1.200

.800

1.000

.100

1.000

.800

1.000

.062" DIA.

SOLDER PAD

.100

(TYP)

1.200

.100

.300 .500

.500

.700

.600

.800

.100

.300

.400

.600

.100

.500

.700

.100

.600

.800

PAGE 144 | IC SOCKETS / TO SOCKETS

RECTANGULAR

*

.500

Number of

Contacts

20

28

32

*

44

52

68

84

100

Ordering Information

940-44-020-24-000000

940-44-028-24-000000

940-44-032-24-000000

*

940-44-044-24-000000

940-44-052-24-000000

940-44-068-24-000000

940-44-084-24-000000

940-44-100-24-000000

Plating Code 44

= 150

”

Sn

-A-

0.613

0.713

0.813 / .713

0.913

1.013

1.213

1.413

1.603

-B-

0.200

0.300

0.400 / .300

0.500

0.600

0.800

1.000

1.200

-C-

0.400

0.500

0.600 / .500

0.700

0.800

1.000

1.200

1.400

Quantity

per Tube

38

33

29

26

23

19

16

25

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
