ATL
CONNECTOR
Board-to-wire
Features
●21Circuits:
0.64 Unsealed Connector
●Unique
PCB mounting, low profile side entry design
●Varieties
of Color and Key code options are
available

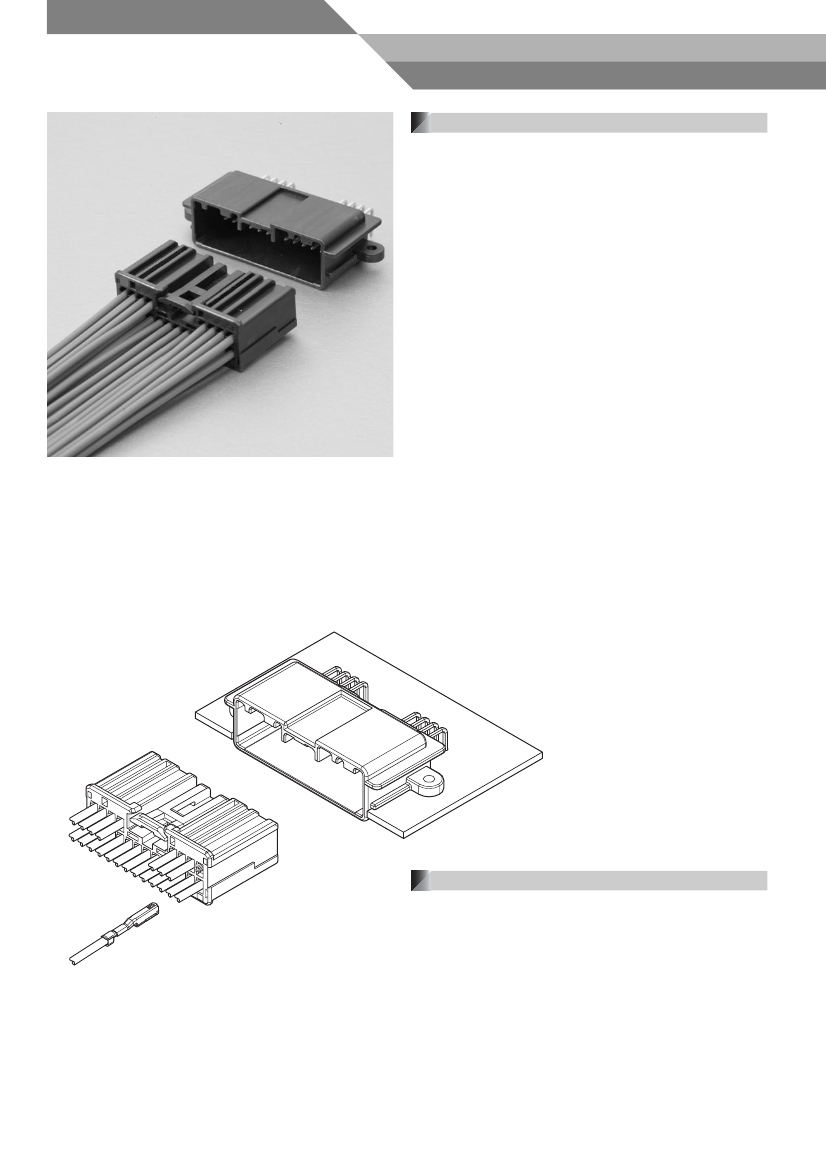

21 Circuits 0.64 Unsealed Connector system.
Ultra low profiled design for high density PCB
placement.
1
8
Specifications
21
¡Current
rating: 5A DC max.
¡Voltage
rating: 14V DC
¡Temperature
range: - 40°C to +125°C
(including temperature rise in applying
electrical current)
¡Contact
resistance: Initial value/15mΩ max.
After environmental testing/15mΩ max.
¡Insulation
resistance: 100MΩ min.
¡Applicable
wire:
SAE/AVSS/CAVS
0.3mm
2
to 0.8mm
2
∗
Compliant with ELV/RoHS.
∗
Contact JST for details.
1
ATL
CONNECTOR

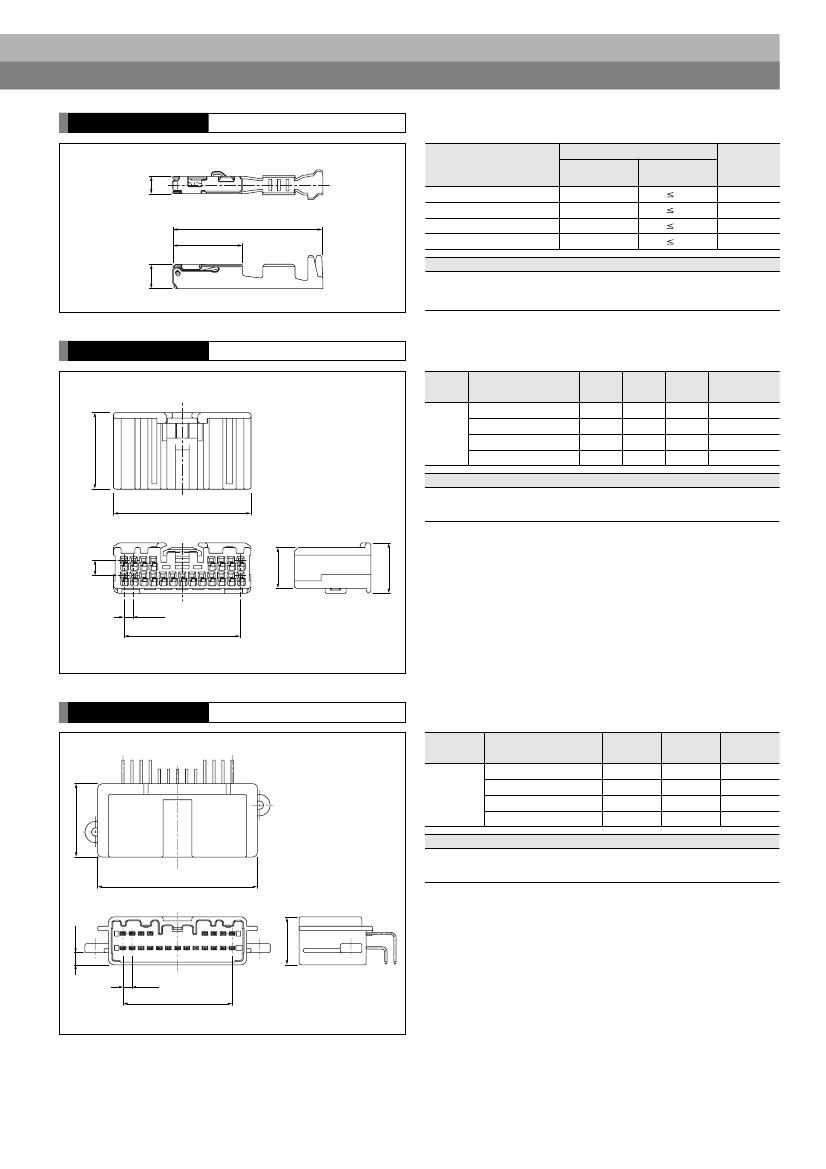

Female terminal
Applicable wire range
Model No.
1.6
Conductor
(mm
2
)
0.3 to 0.5
0.75 to 0.8
0.3 to 0.5
0.75 to 0.8
Insulation O.D.
(mm)
1.9
1.9
1.9
1.9
Q’ty/reel
6,500
6,500
6,500
6,500
qSAIT-A03T-M064
qSAIT-A02T-M064
14
6.5
wSAIT-A03GF-M064
wSAIT-A02GF-M064
Material and Finish
qCopper
alloy, tin-plated (reflow treatment)
wCopper
alloy, nickel-undercoated, Contact area; gold-plated
Barrel area; tin-plated
Female connector
Circuits
Model No.
ATLPB-21-2AK
21
20
2.25
Key
Code
A
B
C
D
Material
Q’ty/box
1,000
1,000
1,000
1,000
Housing
Color
Black
Gray
Orange
TPA Color
Natural (White)
Natural (White)
Black
ATLPB-21-2BH
ATLPB-21-2CD
ATLPB-21-2DD
Orange Natural (White)
35.9
Housing: PBT
TPA: Glass-filled PBT
10.7
2.54
(30.48)
Male connector
Circuits
Model No.
S21BA-ATL-2AK
21
20.5
13.1
4
Key
Code
A
B
C
D
Q’ty/box
600
600
600
600
Housing
Color
Black
Gray
Orange
Orange
S21BA-ATL-2BH
S21BA-ATL-2CD
S21BA-ATL-2DD
Material and Finish
Housing: Glass-filled PBT
Pin: Brass, tin-plated
44.6
3.4
9
21
2.54
(30.48)
13.4
1
8
2
ATL
CONNECTOR
PC board layout, Assembly layout
30.48
±0.05
φ
1.2
±0.05
9.73
±0.05
17.23
±0.05
2.54
±0.05
4.1
20.5
4.4 MIN.
φ3.4
2
×
+0.1
0
39 MIN.
45.72
±0.05
Crimping machine, Applicator
Strip terminal
SAIT-A03( )-M064
SAIT-A02( )-M064
Crimping
machine
AP-K2N
Crimp applicator MKS-L
Dies
MK/SAIT-A03-064
MK/SAIT-A02-064
Crimp applicator with dies
APLMK SAIT-A03-064
APLMK SAIT-A02-064
Note: When crimping operation is conducted using an applicator and die set other than the above, JST cannot guarantee the performance of the terminal.
3
13.4
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
JST
:
S21BA-ATL-2BH SAIT-A03T-M064 ATLPB-21-2AK ATLPB-21-2DD S21BA-ATL-2CD SAIT-A02GF-M064 ATLPB-
21-2BH ATLPB-21-2CD S21BA-ATL-2AK S21BA-ATL-2DD SAIT-A02T-M064 SAIT-A03GF-M064
