180-091NFS7-25-29SE datasheet, PDF

Datasheet> All Categories > The connector> 180-091NFS7-25-29SE

180-091NFS7-25-29SE: DescriptionCircular MIL Spec Connector SQ FLNG WALL MT RCPT SLOT HOLE SOCKET; CategoryThe connector; File Size326KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

180-091NFS7-25-29SE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	180-091NFS7-25-29SE	-	-	View	Buy Now

180-091NFS7-25-29SE Overview

Circular MIL Spec Connector SQ FLNG WALL MT RCPT SLOT HOLE SOCKET

180-091NFS7-25-29SE Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Connector
RoHS	N
Number of Positions	29 Position
Insert Arrangement	25-29
Contact Gender	Socket (Female)
MIL Type	MIL-DTL-38999 III
Product	Receptacles
Shell Size	25
Shell Style	Square Flange
Mounting Style	Wall Mount
Termination Style	Crimp
Current Rating	-
Contact Plating	-
Mounting Angle	Straight
Voltage Rating	-
Shell Plating	Olive Drab Cadmium
Mating Style	Threaded
Shell Material	Aluminum Alloy
Factory Pack Quantity	1
Wire Gauge	-

Preview

Download Datasheet

View All

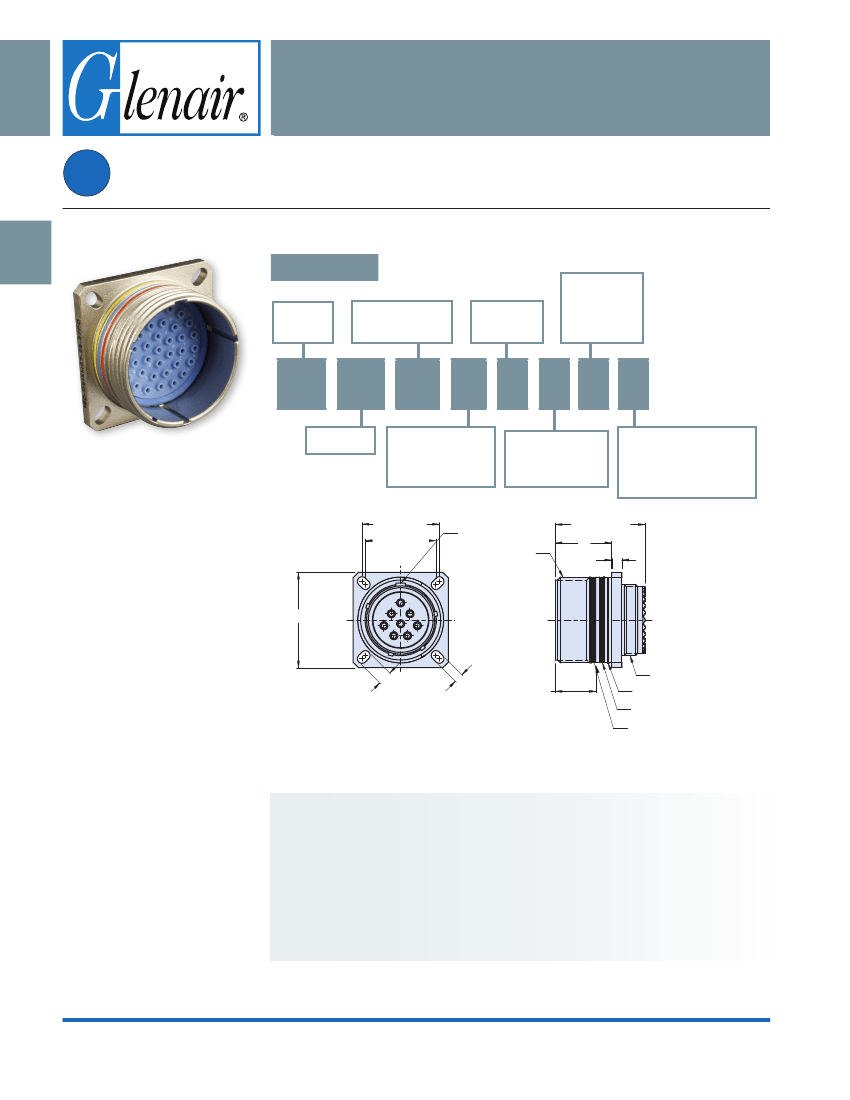

180-091 (S7) Square Flange Wall Mount Receptacle

Advanced Fiber Optic Connector

MIL-DTL-38999 Series III Type with Slotted Holes

MIL-DTL-38999

Series III Type

D38999

Series III

MIL-DTL-38999 type advanced fiber optic receptacle connector

How To Order

Product

Series

Material/Finish

(Table II)

Shell Size

(Table I)

Insert

Designation

= Pin

= Socket

180

091 XW S7

Basic No.

= Wall Mount

Receptacle with

Slotted Holes

Alternate Key Position

per MIL-DTL-38999

A, B, C, D,

= Normal

Insert

Arrangement

(See Page B-12)

2X C BSC

2X D BSC

Master Keyway

A Thread

1.240 (31.5)

Max

B SQ

4XF

4XE

.510 (13.0) Max

Full Mate Indicator

J Thread

Yellow Color Band

Blue Color Band

Red Color Band

Full Mate Indicator

S7 - WALL MOUNT RECEPTACLE

WITH SQUARE FLANGE AND SLOTTED HOLES

Notes

Insert arrangement in accordance with

MIL-STD-1560, See Page B-12.

Blue Color Band indicates rear release

retention system.

For appropriate Glenair Terminus part

numbers, see Glenair Drawing 181-001

and 181-002.

For recommended panel cutout, See

Page B-13

S7 wall mount receptacle can be front panel

mounted using cut out dimensions R1 or R2

on page C-11. Dimension R2 is for use with

S7 wall mount receptacle only.

Material and Finish

Shell: See Table II

Insulator: High Grade Rigid Dielectric

Seals: Fluorosilicone

U.S. CAGE Code 06324

Rev. 10.20.17

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-22

E-Mail: sales@glenair.com
