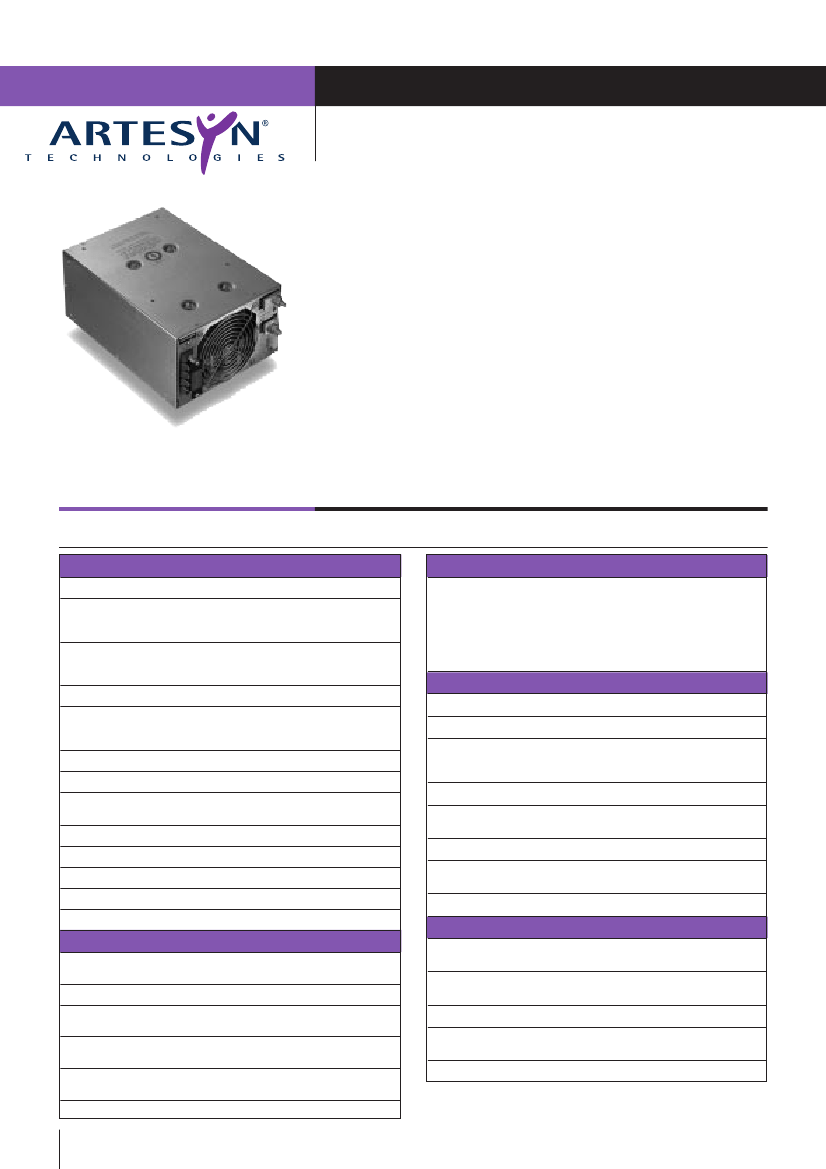

L2000 SERIES
Single output
•
•
•
•
•
•
•
•
Load currents up to 400A
3 phase or single phase input
Shutdown on phase loss
3 phase power factor correction
Single wire current share to 5%
Ideal for N+1 applications
Current monitor output included
UL, CSA, TÜV safety approvals
[ 2 YEAR WARRANTY ]
The L series is a range of single output, high current power supplies ideally suited
to a broad range of applications. Robust performance and field proven reliability
are hallmarks of this series. Field reliability in excess of 100,000 hours has been
documented. The L series will provide stable power for any large electronic
system including telecommunication, data processing and industrial. Typical
applications include broadcast systems, ATM systems and RISC processors and
systems. Semiconductor test equipment, semiconductor and wafer processing
equipment and functional board level testers are other possible applications.
Industrial uses include applications such as laser cutting, water purification,
battery charging, machine control, large scale data logging and optical inspection
equipment. Current sharing, built-in current monitoring, voltage margining and
remote adjustment capability are standard features. Other system interface
features include AC and DC good, OVP, OCP, over temperature protection and
remote enable. Worldwide safety certifications are included.
SPECIFICATION
OUTPUT SPECIFICATIONS
Voltage adjustability
Remote sense
All specifications are typical at nominal input, full load at 25°C unless otherwise stated
EMC CHARACTERISTICS
±10%
Radiated noise
Conducted noise
Electrostatic discharge
RF field susceptibility
Electrical fast
transients/bursts
Surge susceptibility
EN55022/11, FCC part 15
EN55022/11, FCC part 15
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
Level A
Level A
Level 3
Level 3
Level 3
Level 3
Accessible at front panel
Open/reverse sense lead protection
Compensates for voltage drop
of up to 0.5V to the load
±0.2%; 10mV
Regulation, line or load All outputs, NL to FL
at nominal line or all
line variations at FL
Overshoot/undershoot
Transient response
Main output
25% step load
change at 1A/µs
GENERAL SPECIFICATIONS
≤5.0%
max. dev.,
≤200µs
recovery
to 1.0%
±0.02%/°C
Hold-up time
Efficiency
Isolation voltage
230VAC, 2kW load
230VAC, full load
Input/output
Input/chassis
Output/output
25ms min.
78%
3000VAC
1500VAC
500VAC
100kHz
TÜV EN60950, UL1950,
CSA C22.2 No. 234/950
10kg (22Ibs)
5 x 8 x 11 inches
127 x 203.2 x 279.4 mm
>100,000 hours
None at turn on/off
Temperature coefficient
Ripple and noise
Overvoltage protection
Overload protection
Short circuit protection
Thermal protection
Current sharing
Current monitor (V1)
±5.0%
5VDC at full load
0Hz to 20MHz
50mV pk-pk or 1.0%
115% to 130%
of nominal
Switching frequency
Approvals and
standards
Weight
Size
MTBF
Reset by cycling AC
105% to 115% full load
90% of rated load
Auto recovery
Auto shutdown, AC reset
50% to 100% load
±0.5V
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
Operating ambient
Non-operating
45CFM
Non-condensing
Operating
Non-operating
5Hz to 500Hz
0°C to +50°C
-15°C to +85°C
Internal DC
ball bearing fan
0% to 95% RH
6,000 feet max.
55,000 feet max.
2.4G rms peak
INPUT SPECIFICATIONS
Input voltage range
Input frequency range
Input surge current
Input current
Power factor
Power up time
3 phase
1 phase (optional)
180 to 264VAC
180 to 264VAC
47Hz to 63Hz
Meets IEEE std. 587.1980;
3kV ring wave
208VAC, 3 phase
208VAC, 1 phase
3 phase
1 phase
Full load
8A
20A
0.94
0.65
1.0s max.
Cooling
Relative humidity
Altitude
Vibration
PAGE 1
MEDIUM TO HIGH POWER AC/DC POWER SUPPLIES
|
2000W AC/DC
2000 Watt
AC/DC high current power supplies
MAX. OUTPUT
POWER
2000W
2000W
2000W
2000W
2000W
2000W
2000W
2000W
2000W
2000W
2000W
2000W
2000W
2000W
2000W
2000W
INPUT
VOLTAGE
(3)
OUTPUT
VOLTAGE
2V
3.3V
5V
12V
15V
24V
28V
48V
2V
3.3V
5V
12V
15V
24V
28V
48V
OUTPUT
CURRENT
400A
400A
400A
166A
133A
83A
71A
42A
400A
400A
400A
166A
133A
83A
71A
42A
MODEL
NUMBER
(3)
Single Phase
Single Phase
Single Phase
Single Phase
Single Phase
Single Phase
Single Phase
Single Phase
Three Phase
Three Phase
Three Phase
Three Phase
Three Phase
Three Phase
Three Phase
Three Phase
L2000-26-0
L2000-26-9
L2000-26-1
L2000-26-2
L2000-26-3
L2000-26-4
L2000-26-5
L2000-26-6
L2000-86-0
L2000-86-9
L2000-86-1
L2000-86-2
L2000-86-3
L2000-86-4
L2000-86-5
L2000-86-6
STANDARD CONTROL SIGNALS
Remote Enable
DC OK
(See Figures 2, 5)
AC Good
(See Figures 2, 5)
Margin Hi/Lo (V1)
(See Figure 3)
Remote Adjust
(See Figure 4)
Current Monitor
See Figure 1A
Signal remains "Hi" as long as
output is ±5.0% of nominal
Signal "Hi" when AC >175VAC
and "Lo" when <175VAC
Switch closure allows ±5% change
in output for system margin checking
The outputs may be remotely
adjusted linearly ±10% for system
margin checking
Analog signal indicates load current in
single or parallel operation. 5±0.5VDC
represents FL, resistive load 10
3
kΩ
Overvoltage, overtemperature
indicated by 'low' signal
Note
1
2
3
Units available with 4.5V, 5.2V, 10V, 13V, 20V, 30V and 32V. Please consult
factory for further details.
Consult factory for any output voltage requirement up to 60VDC which is
not listed.
Models with ‘-26’ are single phase input; ‘-86’ indicates 3 phase input.
FIG. 5
AC Power Fail Signal/DC
OK Timing
AC Input Voltage
180Vrms
0V
> 10ms
Power Fail
> 5msec
DC Outputs
Supply Fault
DC Good Flag
FIG. 1A
5V
3
3
FIG. 1B
5V
FIG. 2 (Ref. FIG. 5)
5V
5V
FIG. 3
5V
Close to
Margin High
5K
5K
10K
FIG. 4
5V = -10%
7
>10K
2.5V Nominal
6
10
10
Close to
Enable
Close to
Inhibit
(optional)
(optional)
13
Close to
Margin Low
Return = +10%
http://www.artesyn.com
PAGE 2
2000W AC/DC
|
MEDIUM TO HIGH POWER AC/DC POWER SUPPLIES
2000 Watt
AC/DC high current power supplies

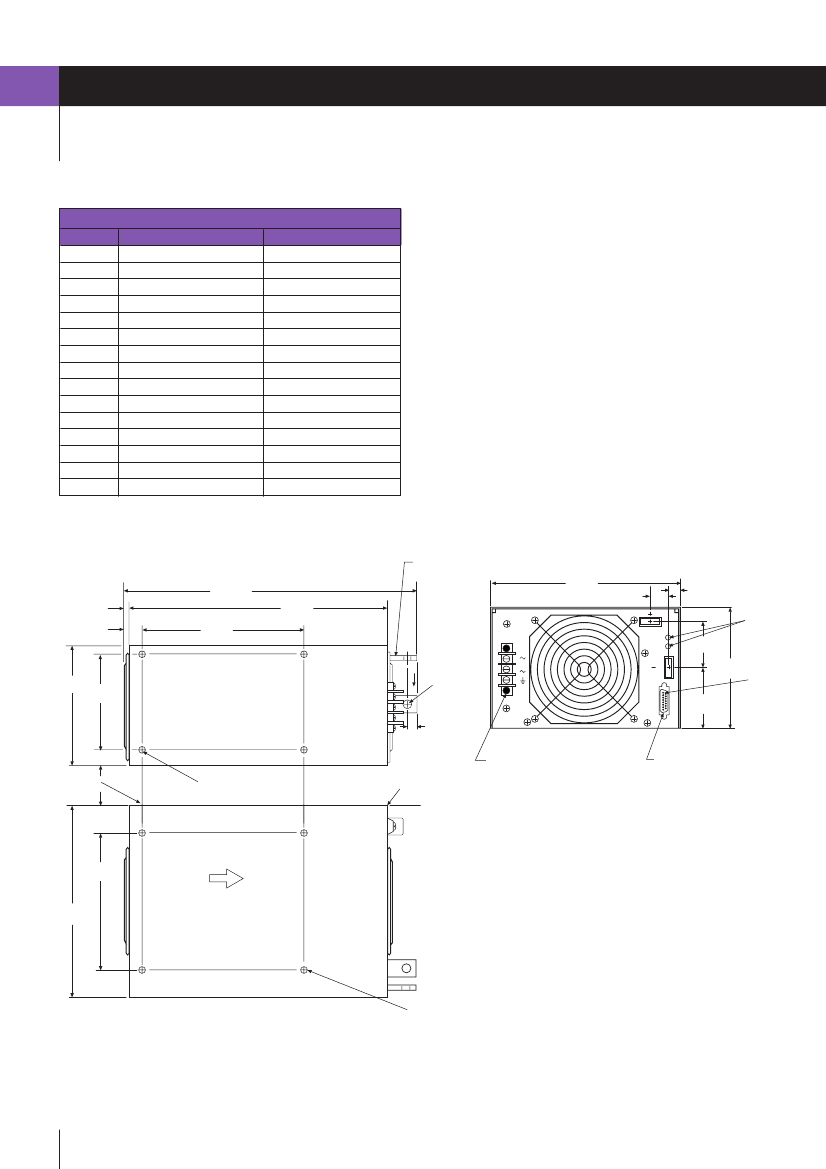

Mechanical notes
A AC connector is 3 position terminal block (#8 screws included), mating to
#8 ring tongue terminal.
B DC output is 5/16-18 studs mating to 5/16 terminal lugs.
C J-1 signal connector is Molex 39-30-1140 or equivalent. Mating
connector is Molex 39-01-2140 or equivalent.
D J-2 signal connector is Molex 39-01-1120 or equivalent. Mating
connector is 39-01-2120 or equivalent.
E Signal connector contacts are Molex 39-00-0039 or equivalent.
F Auxiliary DC output(s) are 6 position terminal block (#8 screws included)
mating to #8 ring tongue terminal.
G TB1 and J2 are not installed on single output models.
PIN NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
OUTPUT PIN CONNECTIONS
J1
REFERENCE
+ Remote Sense
Note 1
- Remote Sense
Note 1
Enable
Notes 2 & 4, Fig. 1
DC OK Inverse (Optional)
Notes 3 & 4, Fig. 2
AC Good Inverse
Notes 3 & 4, Fig. 2
Margin High
Fig. 3
Remote Adjust
Fig. 4
Current Monitor
Note 6
Current Share
Note 6
Inhibit (Optional)
Notes 2 & 4, Fig. 1
DC OK
Notes 3 & 4, Fig. 2 & 5
AC Good
Notes 3 & 4, Fig. 2 & 5
Margin Low
Note 3
Supply Fault
Notes 5 & 6
- Remote Sense
Output pin connector notes
1
2
3
4
5
6
Use 20AWG or larger twisted pair.
Switch on voltage must be <0.5V @ 5mA.
Figure 2 transistor on when signal TRUE. On voltage is <0.5V @ 5mA.
VCC in figures 1 and 2 is supplied internally; ground is pin 15.
Overvoltage and overtemperature will force fault TRUE. On voltage is
<0.5V @ 5mA.
All I/O signals are referenced to pin 15.
.19 X .70 X 1.20 LG
(4.83 X 17.78 X 30.48)
Output Bars
5/16 X 1.00 Bolt Washer and
Nut Supplied
12.45 MAX
(316.23)
.20
(5.08)
.75
(19.05)
6.750
(171.45)
11.00
(279.4)
8.00
(203.2)
.78
(19.81)
.48
(12.19)
Voltage Adjust
and Output
Good LED's
1Ø INPUT
VOLTAGE
ADJ
OUTPUT
GOOD
1.88
(47.75)
5.00
(127.0)
5.00
(127.0)
4.00
(101.60)
Ø.136
(3.45)
2
PIN 1
J1
2.54
(64.52)
.40
(10.16)
.50 (12.7)
Air Venting
Surface
AC Input Terminal Block
(# 8 Screws)
8-32 X .20 (5.08) Deep Max.
(4) Mounting Both Sides
Air Venting
Surface
Signal Connector
15 Position D-Sub
With Socket Contacts
1.12
(28.45)
5.75
(146.05)
AIRFLOW
8.00
(203.2)
ALL DIMENSIONS IN INCHES (mm)
8-32 X .20 (5.08) Deep Max.
(4) Top and Bottom Mounting
PAGE 3
MEDIUM TO HIGH POWER AC/DC POWER SUPPLIES
|
2000W AC/DC
2000 Watt
AC/DC high current power supplies
EFFICIENCY V'S OUTPUT CURRENT
85
84
83
TRANSIENT RESPONSE
20
18
16
M-CASE
Overshoot (%)
% Efficiency (3Ø)
82
81
80
79
78
77
76
75
74
73
0
200
400
600
14
12
10
8
6
4
2
0
0
100
200
300
400
L-CASE
Output Current (AMPS) @ 5VDC
Output Current Step (AMPS)
POWER FACTOR V'S OUTPUT CURRENT
.96
.95
.94
L-CASE
Power Factor (3Ø)
.93
.92
.91
.90
.89
.88
.87
.86
.85
M-CASE
100
200
300
400
500
600
Output Current (AMPS) @ 5VDC
International Safety Standard Approvals
TÜV
VDE0805/EN60950/IEC950 File No. R9172195
DS_L2000_19980401.PDF
UL1950 File No. E135734
CSA C22.2 No. 950 Bulletin No. 1402C
http://www.artesyn.com
PAGE 4
