L120TG6N datasheet, PDF - EEWORLD Datasheet

L120TG6N: DescriptionL120TXXN; CategoryLED optoelectronic/LED photoelectric; File Size54KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

L120TG6N Overview

L120TXXN

Parameter Name	Attribute value
Reach Compliance Code	unknow
color	HIGH EFFICIENCY GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	35.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.5 mm
method of packing	BULK
peak wavelength	568 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	50 deg
Base Number Matches	1

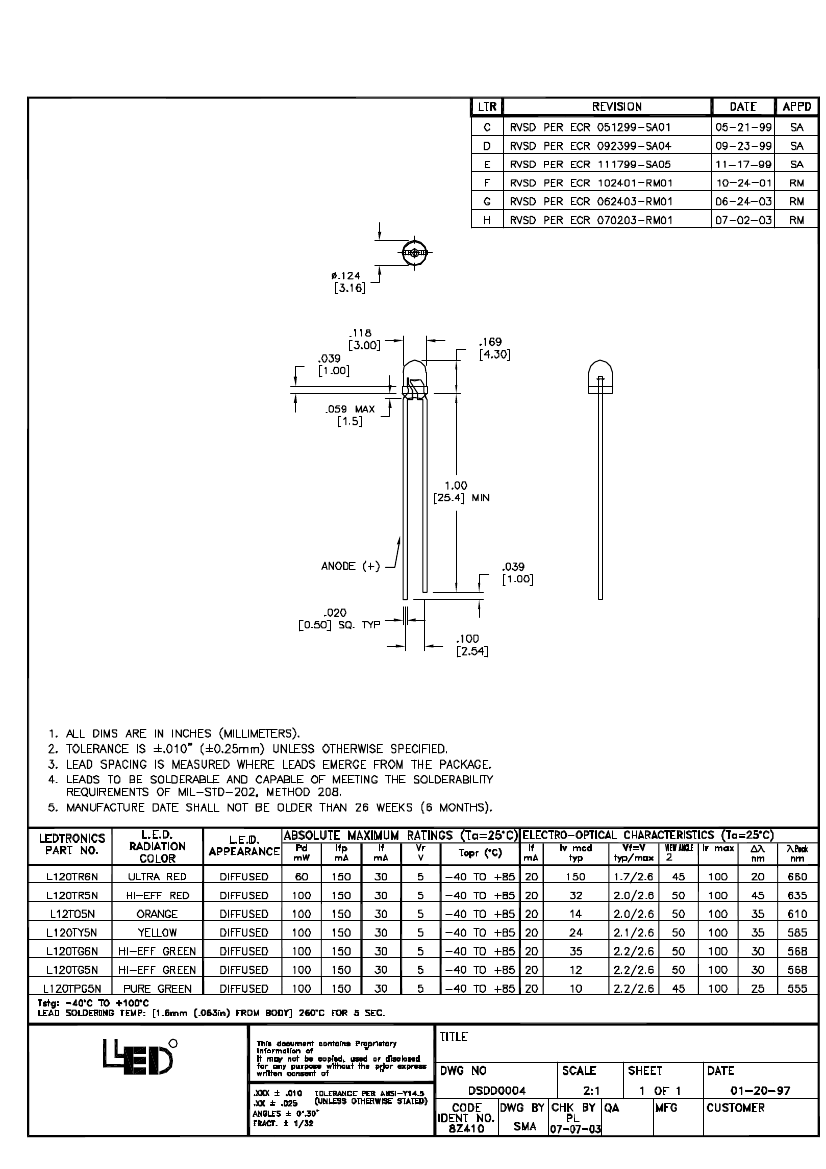

NOTES:

θ1/2

µΑ

R

-PROPRIETARY-

LEDTRONICS, INC.

L120TXXN

LEDTRONICS, INC.

23105 KASHIWA COURT

TORRANCE, CA 90505

TM

	L120TG6N	L120TPG5N	L120TG5N
Description	L120TXXN	L120TXXN	L120TXXN
Reach Compliance Code	unknow	unknow	unknown
color	HIGH EFFICIENCY GREEN	PURE GREEN	HIGH EFFICIENCY GREEN
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A
Lens type	DIFFUSED	DIFFUSED	DIFFUSED DARK GREEN
Nominal luminous intensity	35.0 mcd	10.0 mcd	20.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	85 °C	85 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	4.5 mm	4.5 mm	4.5 mm
method of packing	BULK	BULK	BULK
peak wavelength	568 nm	555 nm	562 nm
shape	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm
surface mount	NO	NO	NO
T code	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
perspective	50 deg	50 deg	50 deg
Base Number Matches	1	-	1
Is it Rohs certified?	-	conform to	conform to
Maker	-	LEDtronics	LEDtronics
