LUMINUS SERIES
Amphenol Pcd
Amphenol Pcd is one of the world’s leading suppliers of interconnect products for Military,
Commercial Aerospace and Industrial applications. Located north of Boston in Beverly,
Massachusetts, the company designs and manufactures a wide range of products; System
Attachments, Junction Modules, Relay Sockets, Terminal Blocks, Rectangular & Circular
Connectors, Cable Assemblies and Adapters. Each product is made and engineered with the
highest quality standards in the industry. With facilities in North America and Asia, Amphenol Pcd
products are chosen by thousands of OEMs around the world, reliant on Amphenol’s technical
excellence, global network of distributors, and cost-effective solutions for custom systems.
Amphenol
Pcd
72 Cherry Hill Dr.
Beverly, MA. 01915
978.624.3400
info@amphenolpcd.com
www.amphenolpcd.com

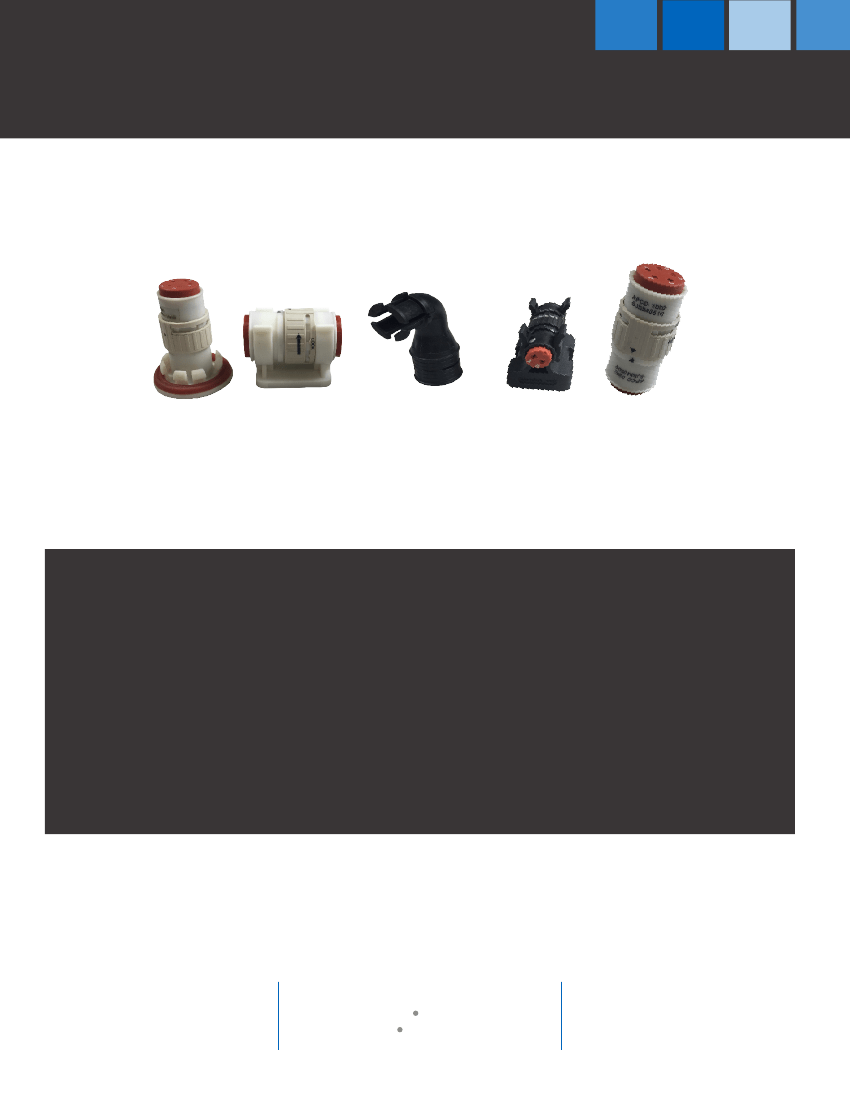

Luminus Series
The Luminus Series are lightweight, cost-effective connectors that are highly reliable and simple to use. With multiple
configurations and arrangements available, a solution can be tailored to suite your application’s exact requirements.
Proven solutions can be found in single engine general aviation, multiple-engine business and passenger jets, and
high performance rotary aircraft. Ideal where space is limited, these innovative, “scoop-proof” connectors feature a
locking mechanism that ensures stability, are suitable for blind-mating, and are RoHS compliant.
1/4 turn bayonet style connection; push and snap connection
Makes wire installation and maintenance easy and efficient; positive “click” when locked
Interfacial and Triple-Barrier Seal
Enables environmental sealing (IP 67 rating)
Multiple Keying Positions
Ensures proper connectivity
Multiple Configurations and Accessories
Tailored solutions to meet application needs
Contacts
AS39029 MIL Spec contacts for broad application compatibility. Stamped & Formed available as lower cost option
Visual markings
Visual aid for easy assembly
Rugged Polyamide Housings; 500 mating cycles
Durability
Blind-Mate Connection
Enables simple, blind mating; easy assembly
D160, M81714, FAR25 Compliance
Meets demanding military-aerospace environmental conditions
Features & Benefits
Applications

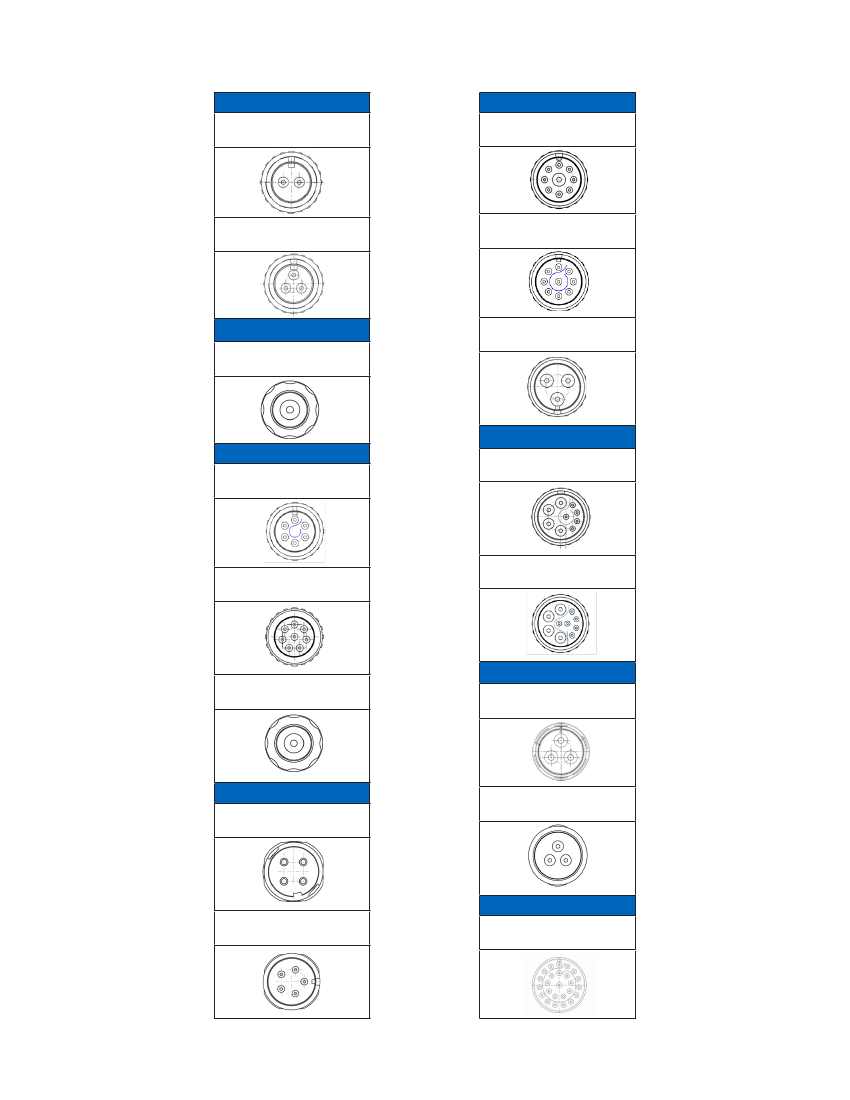

Shell Sizes
05 (max dia: 0.318)
2, size 22
Twist & Lock
08 (max dia: 0.528)
9: 1, size 16; 8 size 22
Twist & Lock
3, size 22
Twist & Lock
9, size 22
Twist & Lock
06 (max dia: 0.390)
1, size 16 & 20
Push & Pull
3, size 16 Twist & Lock
3, size 20 Push & Pull
07 (max dia: 0.448)
6, size 22
Twist & Lock
10 (max dia: 0.630)
9: 4, size 16; 5 size 22
Twist & Lock
8, size 22
Twist & Lock
10: 4, size 16; 6 size 22
Twist & Lock
1, size 12
Push & Pull
11 (max dia: 0.700)
3, size 12
Twist & Lock
08 (max dia: 0.528)
4, size 16
Twist & Lock
3, size 16
Push & Pull
5, size 22
Twist & Lock
14 (max dia: 0.875)
25, size 22
Twist & Lock
Materials & Specifications
Push & Pull
Insulator Body: Polyamide 6/6 (Nylon)
Grommet: Silicone Rubber
Contact Retainer: Stainless Steel
Contacts: Copper Alloy Gold Plated
Temperature Range
Temperature Life
Insulation Resistance
Dielectric Withstanding
Durability
-65˚C to 125˚C
150 hours @ 95 C
1500VAC, 60hz @ Sea Level
1500 VAC, 60 Hz @ Sea Level, 1ma
300 VAC, 60 Hz @ 70,000 ft, 2ma
50 mating cycles
-65˚C to 125˚C
500 hours @ 85˚C
5000 MΩ Min. @ 500 VDC
1500 VAC, 60 Hz @ Sea Level, 1ma
300 VAC, 60 Hz @ 70,000 ft, 2ma
500 mating cycles
5% salt solution, 75k feet
Altitude Immersion
5% salt solution, 55k ft, DWV 1500VA
5000Mohms @ 1500 VAC, sea level
5000Mohms @ 300 VAC, 70k ft
5000Mohms @ 300 VAC, 100k ft
Temperature Cycling
Thermal Shock
Vibration
Shock
Salt Spray
Humidity
10 Days @ 25˚C to 65˚C,
90% - 95% RH
Contact Factory
5(1) Hour Cycles: 0 C to 95 C
5(1) Hour Cycles: 0 C to 95 C
5(1) Hour Cycles: -65˚C to 125˚C
-65˚C to 200˚C
30G Sinusoidal; 43.96G Random
300G, 3msec, Half-Sine
5% Salt Spray @ 95˚C for 48 Hours
10 Days @ 25˚C to 65˚C,
90% - 95% RH
Lubricating Oil per Mil-Prf-7808
Cleaning Compound per Mil-Prf-87937, Alkaline Base
Isopropyl Alcohol & Mineral Spirit Solution
Fluid Immersion
Skydrol Hydraulic Fluid
Hydraulic Fluids per MIL-PRF-83282
MIL-PRF-87257
Ethylene Glycol
Propylene Glycol
Aviation Jet A
Seal Rating
IP67
Skydrol Hydraulic Fluid
Hydraulic Fluids per MIL-PRF-83282
MIL-PRF-87257
Ethylene Glycol
Propylene Glycol
Aviation Jet A
IP67
UL94, V0.
Flammability
UL94, V0.
DOTG section 26.6.2 & 26.6.3
FAR Part 25 App F Part I
RoHS & REACH Compliance
Yes
size 22
Yes
10 lbs
10 lbs
13 lbs
15 lbs
10 lbs
15 lbs
25 lbs
30 lbs
Twist & Lock
Insulator Body: Polyamide 6/6 (Nylon)
Grommet & Face Seal: Silicone Rubber
Contact Retainer: Stainless Steel
Materials
Contact Insertion &
Removal Force
(not to exceed)
-
size 20
size 16
size 12
size 22
Contact Retention
(minimum)
-
size 20
size 16
size 12

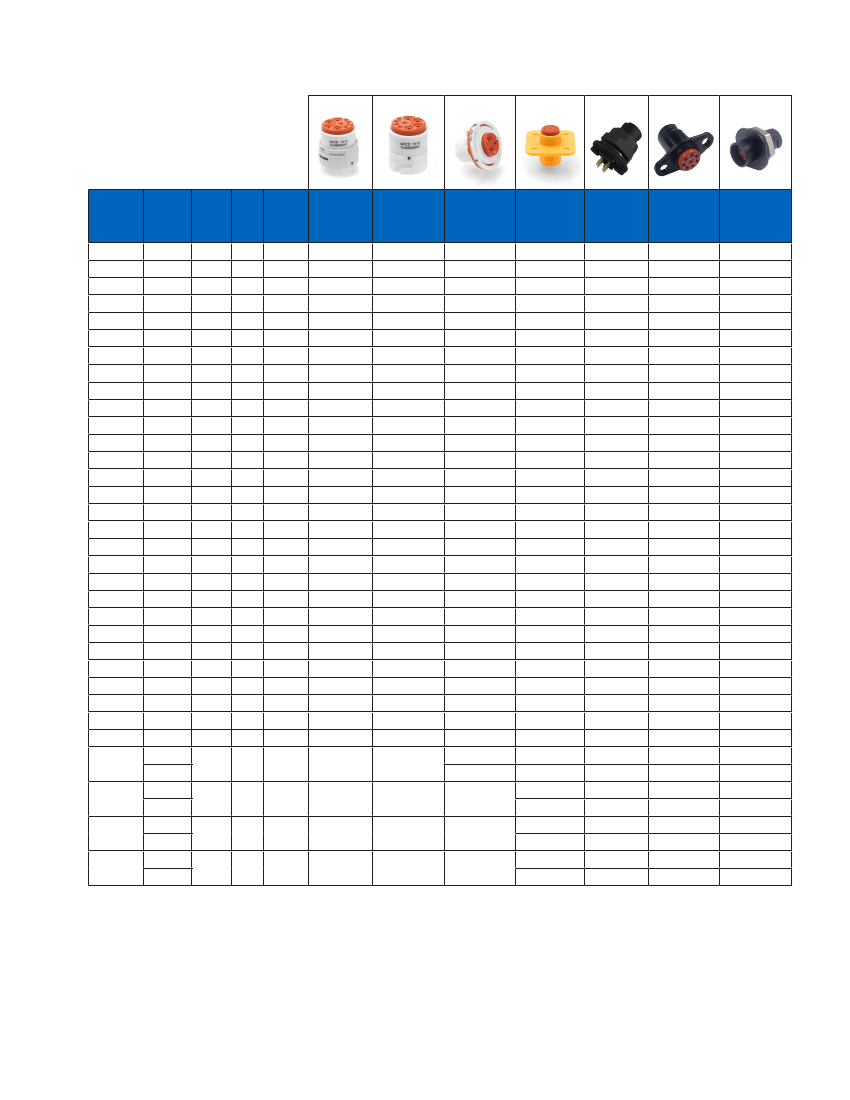

Part Numbering (Twist & Lock)
# of
Positions
1
2
3
3
3
3
3
3
3
4
4
4
5
5
6
8
8
8
9
12
12
12
12
12
25
25
25
25
12
5
Contact
Size
Quadrax
22D
12
22D
20
16
16
12
12
16
16
20
22D
22D
22D
22D
22D
22D
22D
22D
22D
22D
22D
22D
22D
22D
22D
22D
20
12 (3)
22 (2)
16
22D
16
22D
16
22D
Shell
Size
8
5
11
5
7
8
8
10
11
8
8
7
8
8
7
7
7
7
8
8
11
11
11
11
14
14
14
14
14
11
Key
-
-
-
-
-
A
B
-
-
A
B
-
-
-
-
A
B
C
-
-
A
B
C
D
A
B
C
D
-
-
Color
-
black
black
black
white
white
black
-
black
white
white
black
white
white
black
black
green
yellow
black
white
black
-
-
-
black
-
-
-
-
black
Plug P/N
SJS801110
SJS830250
SJS103110*
SJS830210
SJS862300
SJS840310
SJS840340
SJS003110
SJS103110
SJS840410
SJS840440
SJS704110
SJS860510
SJS870510
SJS861700
SJS830100
SJS830101
SJS830102
SJS862100
SJS861300
SJS112110
SJS112210
SJS112310
SJS112410
SJS425110
SJS425210
SJS425310
SJS425410
SJS412110
SJS1AE110*
Inline
Receptacle
P/N
SJS801120
SJS830270
SJS103120*
SJS830230
SJS862400
SJS840300
SJS840350
SJS003120
SJS103120
SJS840400
SJS840450
SJS704120
SJS860500
-
SJS861800
SJS830200
SJS830201
SJS830202
SJS862200
SJS861400
SJS112120
SJS112220
SJS112320
SJS112420
SJS425120
SJS425220
SJS425320
SJS425420
SJS412120
SJ1AE120*
Circular
Receptacle
P/N
-
-
-
-
-
SJS840320
SJS840330
-
-
SJS840420
SJS840430
-
SJS860520
SJS870520
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Square
Receptacle
PN
SJS801130*
-
-
-
SJS862450
SJS803730
SJS803130
-
-
SJS804730
-
-
SJS805730
-
-
SJS830220
SJS830221
SJS830222
SJS809130
SJS812730
-
-
-
-
-
-
-
-
-
-
-
-
-
SJS0AA730
-
SJS0A8730*
SJS0AB730
Jamnut
PCB Mount
SJS801160*
-
-
-
-
-
-
-
-
SJS804760
-
-
-
-
SJS706160
SJS708160
-
-
-
SJS812760*
SJS112160
SJS112260
SJS112360
SJS112460
SJS425160
SJS425260
SJS425360
SJS425460
-
-
-
-
-
-
-
SJS0BB770*
SJS0AB770
Oval
Receptacle
PN
SJS801170*
SJS502170
-
SJS503170
-
-
-
-
-
-
-
-
-
-
-
SJS708170
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Jam Nut
Rear Mount
Receptacle
PN
SJS801190*
SJS502190
-
SJ503190
-
-
-
-
-
SJS804790
-
-
-
-
-
SJS708190
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
9
8
-
white
SJS860100
SJS860200
9
10
-
-
white
SJS860910
SJS860900
-
10
10
white
SJS861100
SJS861200
-
Note: Above part numbers come without contacts; inquire within for “with contacts” part numbers
* SJS870510 uses pin contacts; SJS870520 uses socket contacts
*Available at extended lead timed.
