Part Number

Search

55909-0774

Description
Board to Board & Mezzanine Connectors 0.4 BtB Plg Assy J-B endTl 70CktEmbsTpPkg
CategoryThe connector    The connector
File Size29KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

55909-0774 Online Shopping

Suppliers Part Number Price MOQ In stock
55909-0774 - - View Buy Now

55909-0774 Overview

Board to Board & Mezzanine Connectors 0.4 BtB Plg Assy J-B endTl 70CktEmbsTpPkg

55909-0774 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionLOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSLIMSTACK
body width0.084 inch
subject depth0.047 inch
body length0.63 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (8) OVER NICKEL
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance40 mΩ
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.016 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness7.87u inch
Rated current (signal)0.3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.4 mm
Termination typeSURFACE MOUNT
Total number of contacts70
UL Flammability Code94V-0
Base Number Matches1

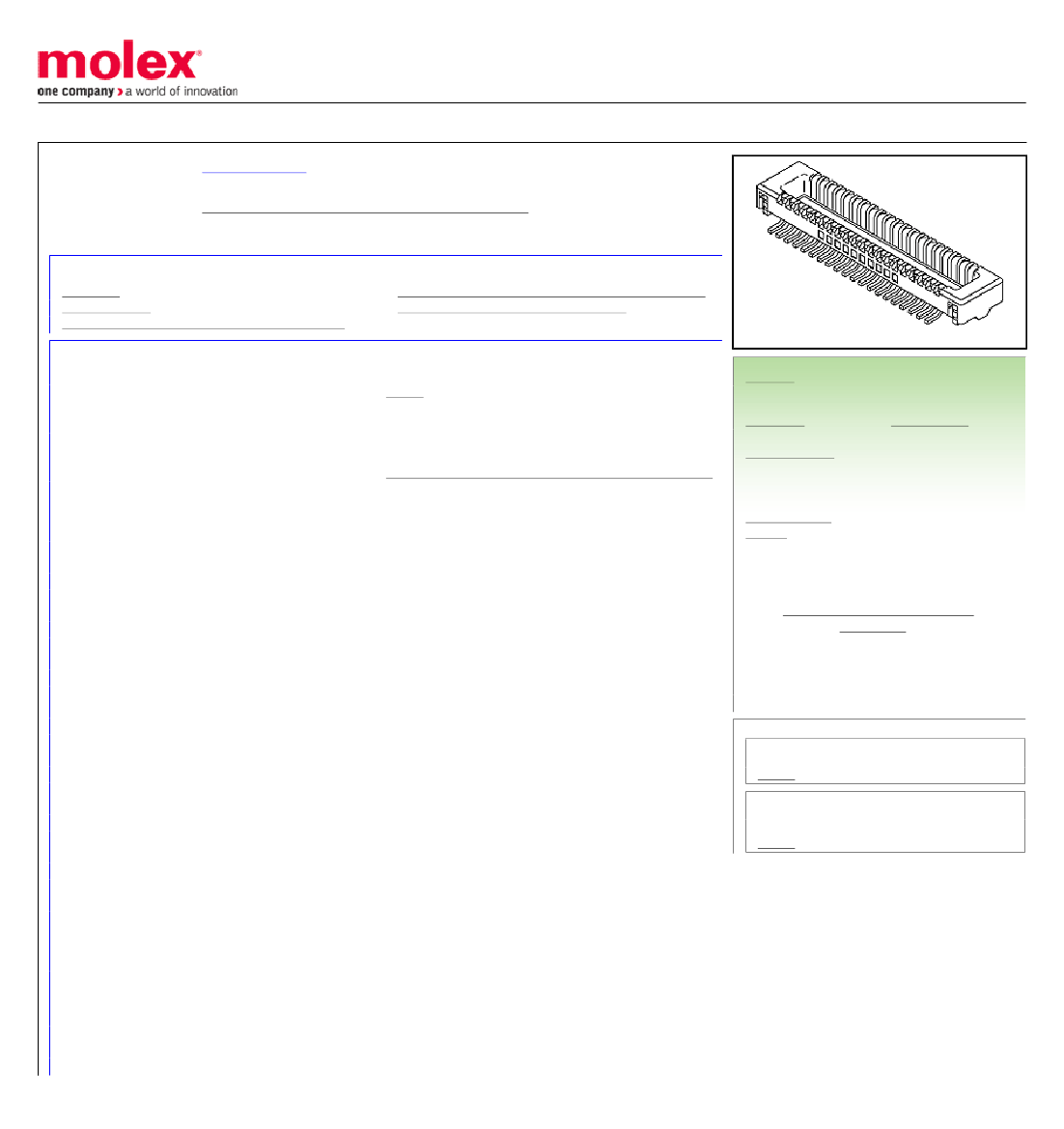

This document was generated on 03/01/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0559090774
Active
SlimStack™ 0.40mm Pitch Board-to-Board Connectors
0.40mm Pitch Board-to-Board SlimStack Plug, Surface Mount, Dual Row, Vertical
Stacking, 1.50mm Stacking Height, 70 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-51338-002-001 (PDF)
General
Product Family
Series
Application
Comments
Data Load Status
Made From
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Capable
Keying to Mating Part
Lock to Mating Part
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Stackable
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Packaging Specification SPK-55909-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
PCB Headers
55909
Board-to-Board, Signal
Solder Tab Plating: Tin
Post Go-Live Rev. Not Verified
0559080701, 0562580028
SlimStack™ 0.40mm Pitch Board-to-Board Connectors
SlimStack
822348176212
No
70
70
Black
30
No
No
None
Yes
1.50mm
Brass
Gold
Gold
61.090/mg
2
Vertical
No
Yes
Embossed Tape on Reel
0.40mm
No
-25°C to +85°C
Surface Mount
0.3A
50V AC (RMS)/DC
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
55909 Series
Mates With
SlimStack Board-to-Board Receptacle
51338
SPK-55909-001-001
PS-51338-002-001
SD-55909-003, SD-55909-004
