87797-0016 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 87797-0016

87797-0016: DescriptionHeaders & Wire Housings 2.54MM C-grid DRDW Wspacer TH 16CKT; CategoryThe connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87797-0016 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87797-0016	-	-	View	Buy Now

87797-0016 Overview

Headers & Wire Housings 2.54MM C-grid DRDW Wspacer TH 16CKT

87797-0016 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Headers & Wire Housings
RoHS	Details
Product	Headers
Type	Pin Strip
Number of Positions	16 Position
Pitch	2.54 mm
Number of Rows	2 Row
Termination Style	Through Hole
Mounting Angle	Vertical
Contact Plating	Tin
Current Rating	3 A
Housing Material	Liquid Crystal Polymer (LCP)
Voltage Rating	250 V
Contact Material	Copper Alloy
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	3600
Unit Weight	0.014357 oz

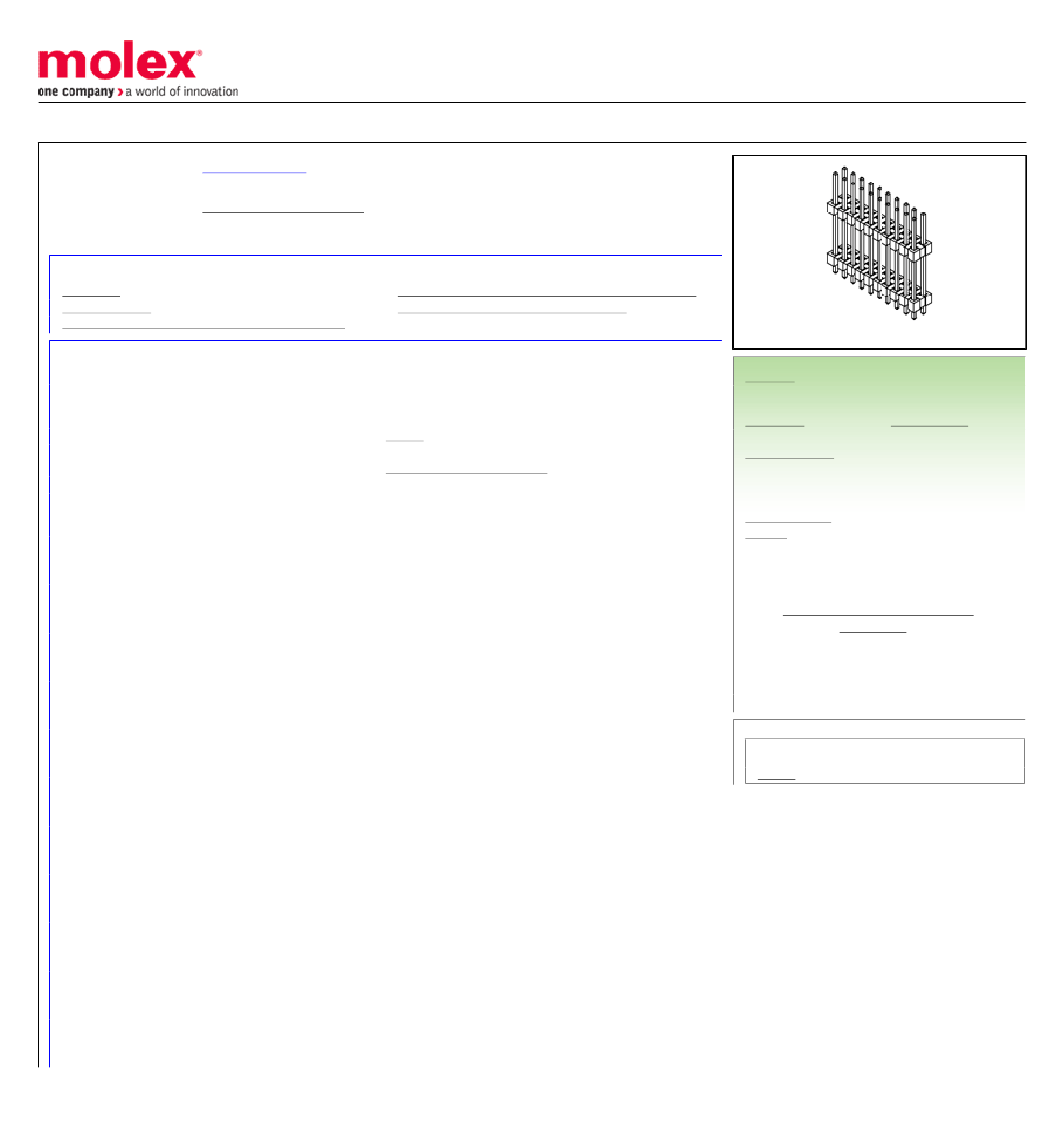

Preview

Download Datasheet

View All

This document was generated on 02/06/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0877970400

Active

C-Grid Connector Products

C-Grid Header, Through Hole, Dual Row Dual Body, Vertical, 0.38µm Gold (Au)

Plating, 12.70mm Stacking Height, Tray Packaging, 40 Circuits, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87920-019-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Packaging Specification PK-89990-489-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

PCB Headers

87797

Board-to-Board, Signal

C-Grid Connector Products

C-Grid, Dual Body

822350598705

Yes

Black

94V-0

None

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

5.025/g

Vertical

2.79mm

None

1.60mm

Tray

2.54mm

0.381µm

2.032µm

Yes

-55°C to +105°C

Through Hole

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

87797 Series

87797-0016 Related Products

	87797-0016	87797-1001	87797-2000	87797-0400	87797-0040
Description	Headers & Wire Housings 2.54MM C-grid DRDW Wspacer TH 16CKT	Headers & Wire Housings 2.54MM C-grid DRDW DRDW T/H Hdr 10ckt	Headers & Wire Housings 2.54mm C-GRID DRDW T/H HDR 20CKT	Headers & Wire Housings 2.54MM C-grid DRDW DRDW T/H Hdr 40ckt	Headers & Wire Housings 2.54MM C-grid DRDW DW T/H W/Kink 40Ckt
Product Attribute	Attribute Value	-	Attribute Value	-	Attribute Value
Manufacturer	Molex	-	Molex	-	Molex
Product Category	Headers & Wire Housings	-	Headers & Wire Housings	-	Headers & Wire Housings
RoHS	Details	-	Details	-	Details
Product	Headers	-	Headers	-	Headers
Type	Pin Strip	-	Pin Strip	-	Pin Strip
Number of Positions	16 Position	-	20 Position	-	40 Position
Pitch	2.54 mm	-	2.54 mm	-	2.54 mm
Number of Rows	2 Row	-	2 Row	-	2 Row
Termination Style	Through Hole	-	Through Hole	-	Through Hole
Mounting Angle	Vertical	-	Vertical	-	Vertical
Contact Plating	Tin	-	Gold	-	Tin
Current Rating	3 A	-	3 A	-	3 A
Housing Material	Liquid Crystal Polymer (LCP)	-	Liquid Crystal Polymer (LCP)	-	Liquid Crystal Polymer (LCP)
Voltage Rating	250 V	-	250 V	-	250 V
Contact Material	Copper Alloy	-	Copper Alloy	-	Copper Alloy
Factory Pack Quantity	3600	-	1200	-	390
Unit Weight	0.014357 oz	-	0.028466 oz	-	0.795075 oz
