502598-1793 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 502598-1793

502598-1793: DescriptionFFC & FPC Connectors 0.3 FPC BackFlipHsg Assy17CktEmbsTpPkg; CategoryThe connector The connector; File Size26KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

502598-1793 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	502598-1793	-	-	View	Buy Now

502598-1793 Overview

FFC & FPC Connectors 0.3 FPC BackFlipHsg Assy17CktEmbsTpPkg

502598-1793 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Factory Lead Time	4 weeks
Samacsys Description	0.30mm Pitch Easy-On Back Flip FPC Connector, Right-Angle, Surface Mount, Dual Contact Style, 1.15mm Mated Height, Circuits
body width	0.045 inch
subject depth	0.15 inch
body length	0.283 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU ON NI
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	50000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.012 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	3.93u inch
Rated current (signal)	0.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.6096 mm
Termination type	SURFACE MOUNT
Total number of contacts	17

Preview

Download Datasheet

View All

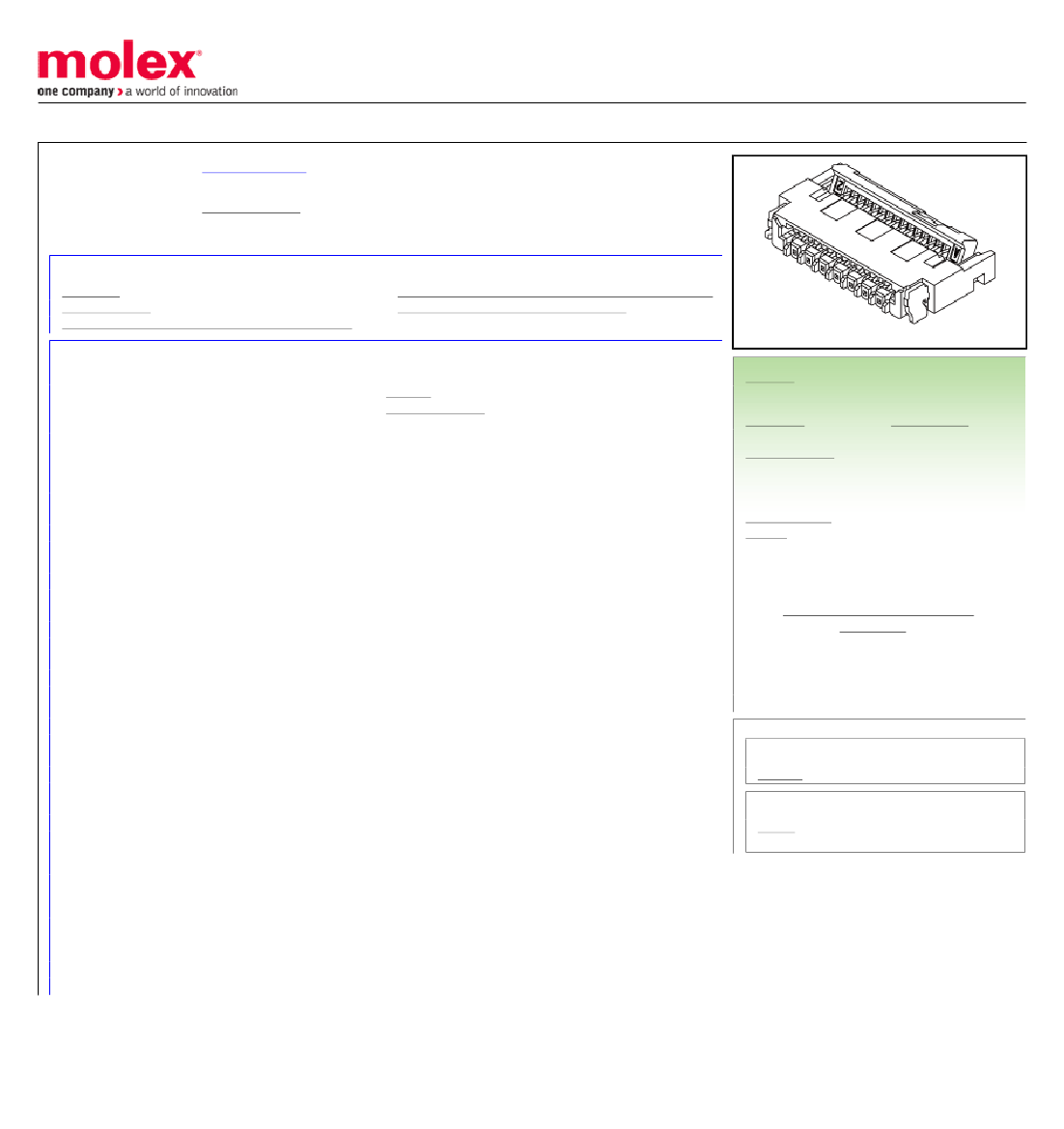

This document was generated on 03/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5025981793

Active

FFC-FPC (SMT)

0.30mm Pitch Easy-On Back Flip FPC Connector, Right Angle, Surface Mount, Dual

Contact Style, 1.15mm Mated Height, 17 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-502598-002-001 (PDF)

General

Product Family

Series

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification SPK-502598-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

FFC/FPC Connectors

502598

FFC-FPC (SMT)

Easy-On

Back Flip

887191391939

Black, White

Dual

90° Angle

1.15mm

Copper Alloy, Phosphor Bronze

Gold

Gold, Tin

50.280/mg

Right Angle

Yes

Embossed Tape on Reel

0.30mm

Yes

-40°C to +105°C

Surface Mount

FPC only

0.2A

50V AC (RMS)/DC

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

502598 Series

Mates With

15015 0.30mm Pitch Premo-Flex Etched

Polyimide Jumper

SPK-502598-001-001

PS-502598-002-001

SD-502598-003, SD-502598-004

This document was generated on 03/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
