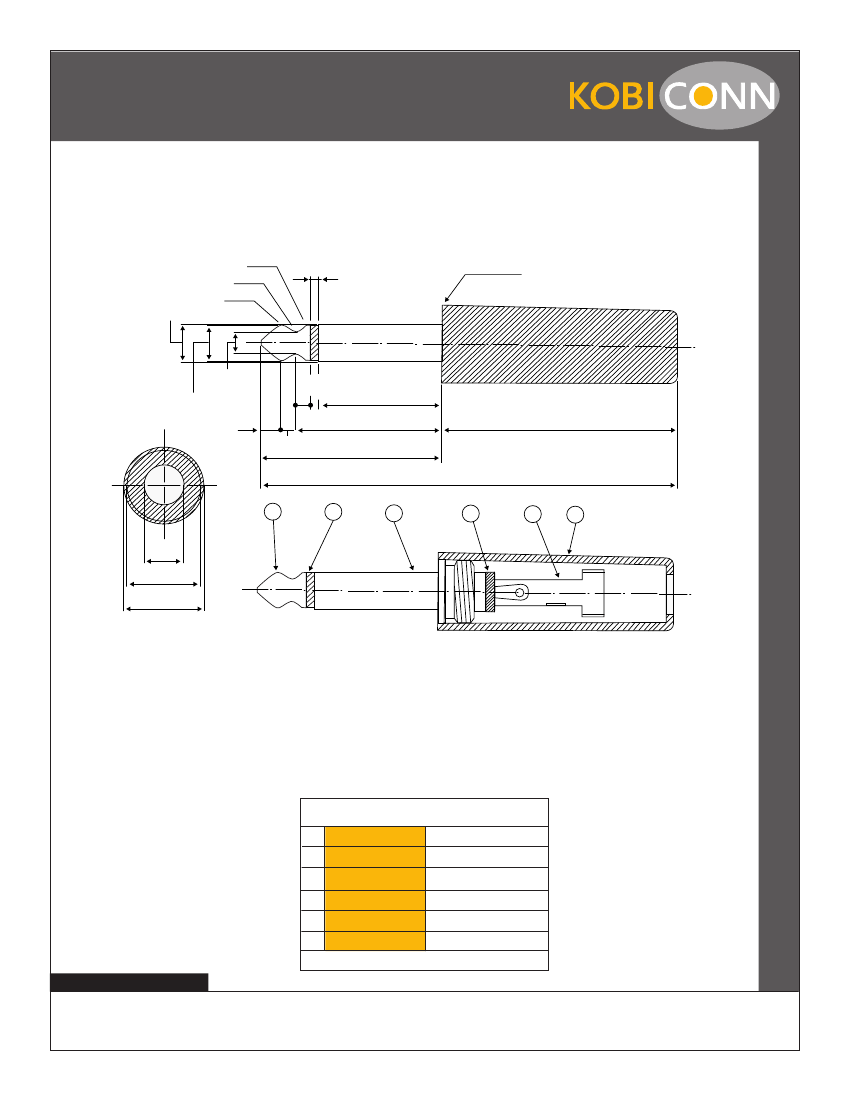

1/4” Phone Plug Mono
171-PA61111-1-E
1/4” Phone Plug Mono
R0.6
R1.3
+0.04
ø6.34-0.05
(ø.249±.001)
R1.4
1.5±0.1
(.059±.003)
ø13.5±0.5
(ø.531±.01)
ø3.8±0.1
(ø.149±.003)
ø6±0.1
(ø.236±.003)
3.5
(.137)
+0.2
2.5-0
(.098±.007)
25±0.5
(.984±.01)
2.5±0.1
(.098±.003)
31±0.5
(1.22±.01)
71±1
(2.79±.03)
40±2
(1.57±.07)
1
2
3
4
5
6
ø6.9±0.5
(ø.271±.01)
ø12.5±0.5
(ø.492±.01)
ø13.5±0.5
(ø.531±.01)
Dimensions: mm (in.)
MATERIAL SPECIFICATIONS
1
2
3
4
5
6
Brass
A.B.S.
Brass
A.B.S.
Brass
A.B.S.
Nickel
Black
Nickel
Black
Nickel
Black
171-PA61111-1-E
RoHS Compliant by Exemption
Date Last Revised: 06/08/09
Available from Mouser Electronics
1-800-346-6873 / www.mouser.com
KC-301342
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
