807-190-07NF9-19PC datasheet, PDF

Datasheet> All Categories > The connector> 807-190-07NF9-19PC

807-190-07NF9-19PC: DescriptionCircular MIL Spec Connector MIGHTY MOUSE CONNECTOR; CategoryThe connector; File Size203KB，3 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

807-190-07NF9-19PC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	807-190-07NF9-19PC	-	-	View	Buy Now

807-190-07NF9-19PC Overview

Circular MIL Spec Connector MIGHTY MOUSE CONNECTOR

807-190-07NF9-19PC Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Connector
RoHS	N
Number of Positions	19 Position
Insert Arrangement	9-19
Contact Gender	Pin (Male)
MIL Type	MIL-DTL-38999
Product	Receptacles
Shell Size	9
Shell Style	Jam Nut
Mounting Style	Panel
Termination Style	Crimp
Contact Plating	Gold
Mounting Angle	Straight
Shell Plating	Cadmium, Olive Drab over Electroless Nickel
Mating Style	Threaded
Shell Material	Aluminum
Factory Pack Quantity	1

Preview

Download Datasheet

View All

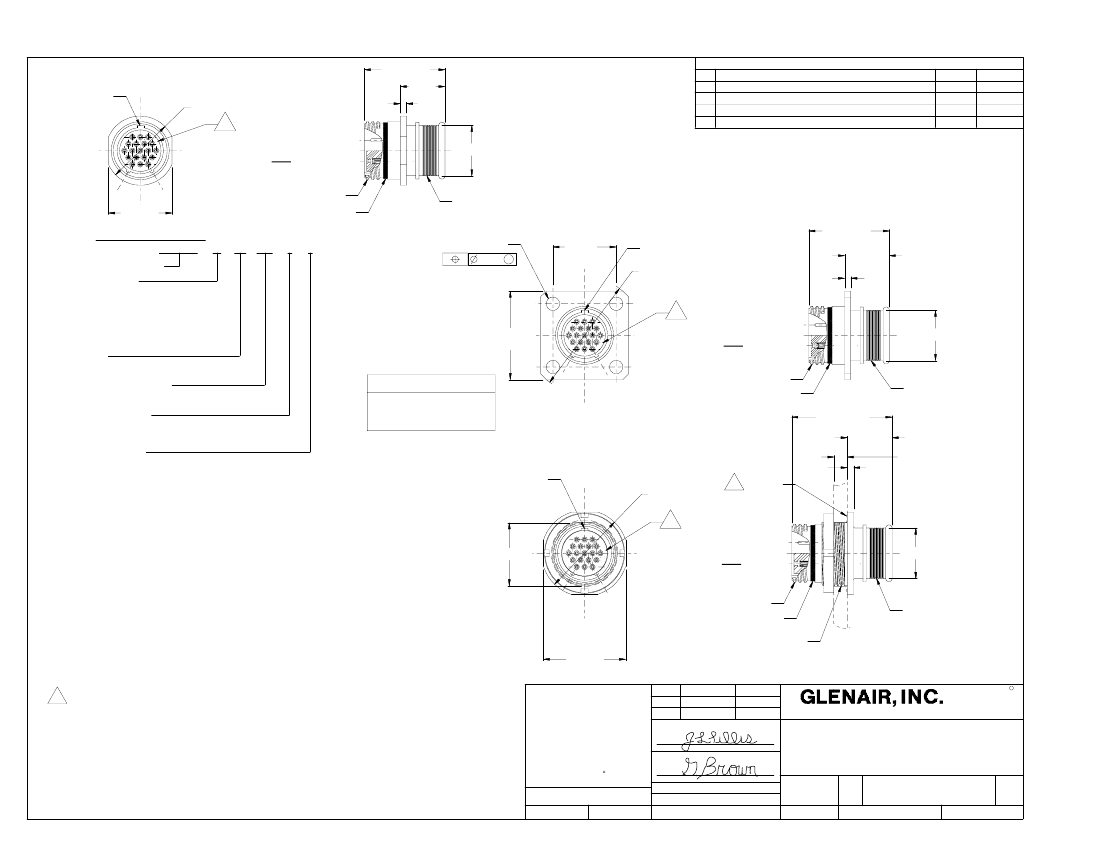

Anna Marie Canizalez

S:\part\s8\80\807-1901OF3.prt

MASTER KEYWAY

ø A

.900 MAX

.430

MAX

.060

REVISIONS

SYM.

DESCRIPTION

PRODUCTION RELEASED PER DCN 23194

REVISED PER DCN 23239

REVISED PER DCN 23312

REVISED PER DCN 23341

807-190

DATE

12/03/04

12/13/04

01/06/05

01/12/05

APPROVED

GSB

C THREAD

RED FULL MATE

INDICATOR BAND

6-7

ø D

B FLAT

PART NUMBER DEVELOPMENT

EXAMPLE:

807-190 - 01

CONNECTOR SERIES

SHELL STYLE

01 = IN LINE RECEPTACLE

02 = SQUARE FLANGE RECEPTACLE

FOR FRONT OR REAR

PANEL MOUNTING

07 = JAM NUT RECEPTACLE

FOR REAR PANEL MOUNTING

CLASS

(SEE TABLE II)

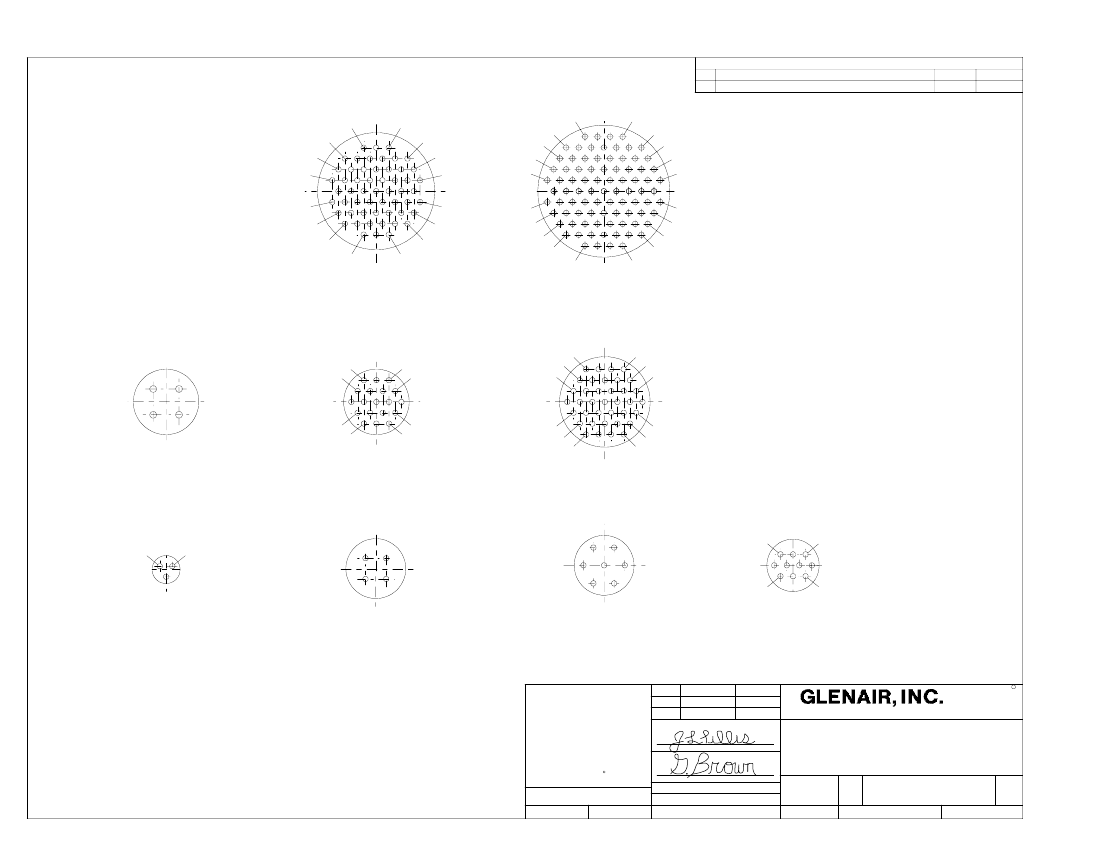

INSERT ARRANGMENT

(SEE TABLE IV)

CONTACT STYLE

P = PIN

S = SOCKET

KEY POSITION

A,B,C,D (SEE TABLE III)

KNURLS OR RIDGES

MFG'S OPTION

4X ø H THRU

.005

G BSC

TYP

.900 MAX

MASTER KEYWAY

ø E

.430

MAX

.060

F SQ

TYP

C THREAD

RED FULL MATE

INDICATOR BAND

1.060 MAX

.430

MAX

ø D

L-3 COMM APPLICATION

NO CHANGES PERMITTED

UNLESS APPROVED BY

L-3 COMM

KNURLS OR RIDGES

MFG'S OPTION

MASTER KEYWAY

ø J

8. THIS CONNECTOR MATES WITH 807-189

HIGH DENSITY PLUG CONNECTORS WITH SAME

POLARIZATION AND OPPOSITE CONTACT GENDER.

.060

2 O-RING

.100 MAX

PANEL THICKNESS

7 INSERT ARRANGEMENT SHOWN IS FOR REFERENCE ONLY.

6. CRIMP TOOL DATA (23 GA):

a) CRIMP FRAME: GLENAIR P/N 809-015 (M22520/2-01)

b) POSITIONER FOR USE WITH CRIMP FRAME: GLENAIR PART NO. 809-005.

c) INSERTION TOOL: GLENAIR PART NO. 809-013 (METAL TWEEZERS TYPE TOOL).

d) EXTRACTION TOOL: GLENAIR PART NO. 809-007 (METAL TWEEZERS TYPE TOOL).

GLENAIR PART NO. 809-019 (PLASTIC TOOL WITH HANDLE)

5. 23 GA CRIMP BARREL ACCOMMODATES 22, 24, 26 AND 28 GAGE WIRE.

4. FOR ADDITIONAL INSERT ARRANGEMENTS CONSULT FACTORY.

3. THE CONTACTS ARE SIZE 23 CRIMP TYPE, AND ARE USED IN A

REAR RELEASE RETENTION SYSTEM. (EXCEPT FOR 9-4 ARRANGEMENT)

2. MATERIAL / FINISH:

SHELL, AL ALLOY OR CRES/SEE TABLE II .

INSULATOR-LCP OR EPOXY

INTERFACIAL SEAL, GROMMET SEAL- FLUOROSILICONE/N.A.

CONTACT- COPPER ALLOY / GOLD PLATE PER ASTM B 488, TYPE 3,

CLASS 1.25 (.00005 MIN THK), OVER A SUITABLE UNDERPLATE.

O-RING - FLUOROSILICONE (NON-CONDUCTIVE).

ASSEMBLY TO BE IDENTIFIED WITH GLENAIR'S NAME PART NUMBER

AND DATE CODE SPACE PERMITTING.

L FLAT

C THREAD

RED FULL MATE

INDICATOR BAND

M THREAD

ø D

KNURLS OR RIDGES

MFG'S OPTION

K FLAT

TYP

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES

TOLERANCES:

FRACTIONS

DECIMALS

ANGLES

+ 1/16

+ .030

.XX

.XXX + .015

+ 1

RELEASE DATE

ORIGINAL

RELEASE DATE

APPROVED

DRAWN

CHECK

ENGR

R L

GSB

05/13/04

1211 AIR WAY - GLENDALE - CALIFORNIA 91201

CAD 1997

CONNECTOR, RECEPTACLE, QUICK COUPLING

THREADS HIGH DENSITY CRIMP REAR RELEASE

#23 CONTACTS, BANDING TERMINATION

SHELL SIZE 5 THRU 17

CODE IDENT. NO.

SIZE

APPROVED

DO NOT SCALE THIS DRAWING

06324

SCALE

N/A

NOTES: UNLESS OTHERWISE SPECIFIED

B/F

04-3857

P/C 807

NON REPARABLE COMMERCIAL ITEM

WEIGHT

807-190

N/A

REV.

SHEET

1 OF 3

1 of 1
