Material
Plating
Wire Size
Wire Type
High Conductivity
Seamless Copper Tube
Electro-Tin
4/0 AWG
Stranded Copper; Class B:
Compact, Compressed or
Concentric, Class C: Concentric
1-5/8 in.
1/2 in.
Yes, for applications up to 35kv.
Consult cable manufacturer for
voltage stress relief instructions
with applications greater than
2000 volts.
90 C
Yes
PURPLE
1.56±.04
Beveled wire
entry
1.06±.04
.59 R REF
Color coded
barrel markings
PANDUIT
Wire Strip Length
Stud Size
UL Listed Wire
Connector
PURPLE DIE P54 (15)
PANDUIT
N
200
4/0 STR CU
LCBH4/0-12
.50±.04
.53±.02 DIA
3.22±.06
Corona Relief
Taper
UL Temperature
Rating
C.S.A Certified
Wire Connector
Panduit Color Code
on Barrel
Panduit Die Index No. P54
on Barrel
Alternate Industry
Die Index No. ( )
on Barrel
(15)
.57±.01 .71±.01
.14±.01
CERTIFIED
LISTED
Wire Connector
CORP.
00
REV
TINLEY PARK, ILLINOIS
7/02
DATE
SAB DRL
BY
CHK
RELEASED
DESCRIPTION
10327
ECN
LCBH4/0-12-X

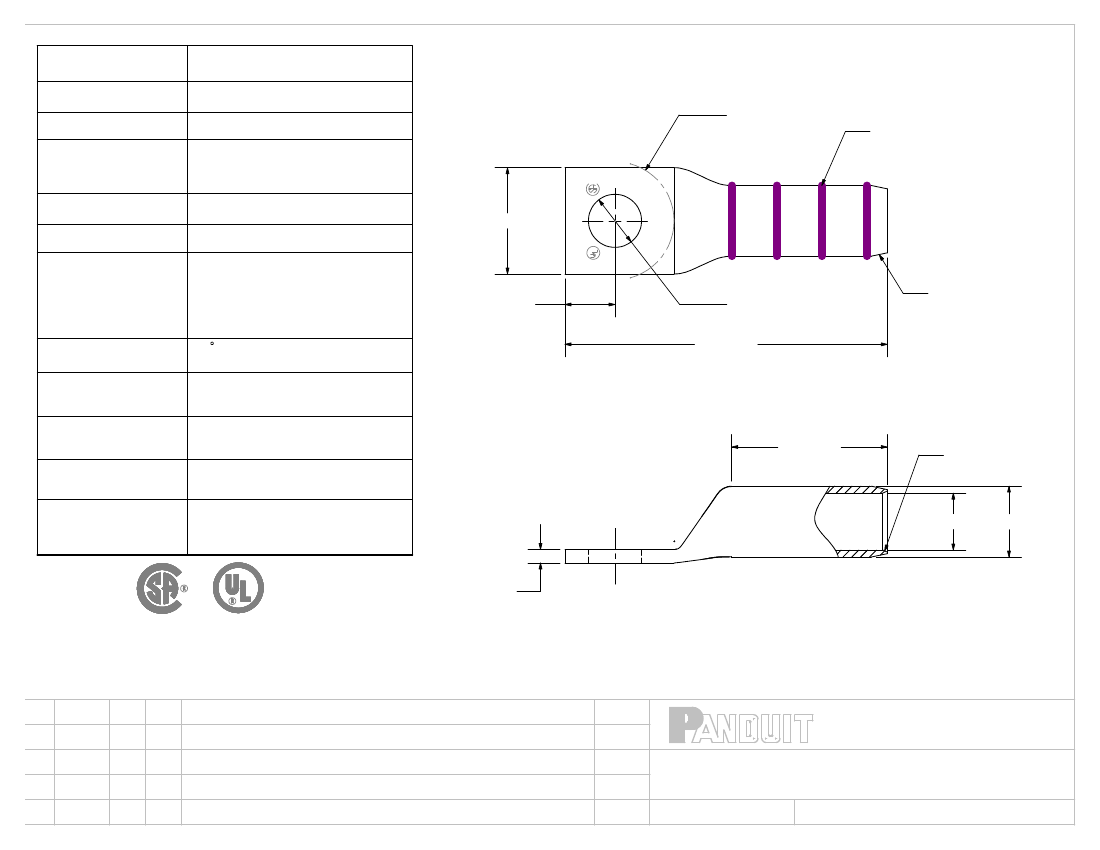

Copper Lug - High Voltage, One-Hole, Long Barrel
SCALE
N/A
DRAWING NO / CAD FILE
LCBH4_0-12-CUST
