SMS Series
|
Quick Mating
Quick Mating panel
and cable connectors
Description
The versatile and easy to use “SMS” Quick
Mating panel and cable connectors are a highly
cost-effective system approach to solving the
constant demand for more interconnection
solutions and techniques.
A full plastic solution offered in either Wire
attachment or PCB mounting options to
provide rapid assembly/installation without
requiring additional mounting hardware. Panel
receptacle connectors simply snap and lock into
panel cut-outs and cable plugs quickly connect
and disconnect with positive retention locks.
Just push to mate then press and release to
un-mate.

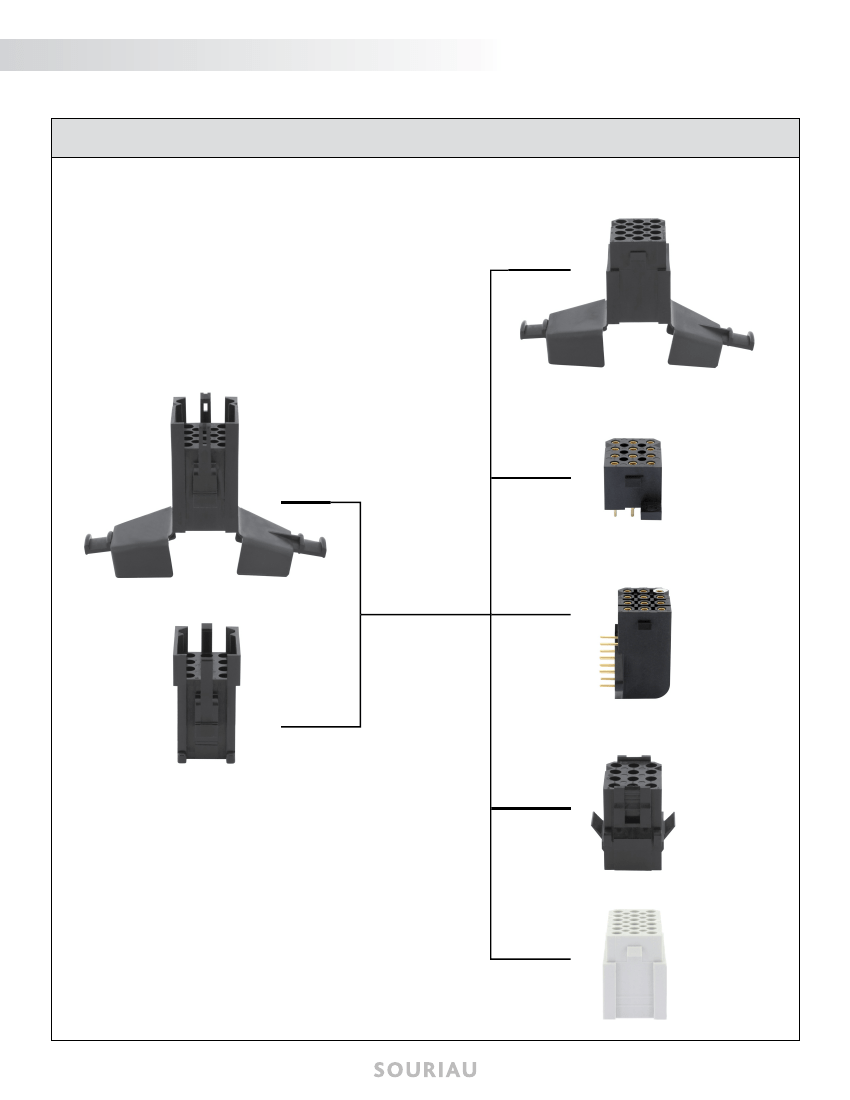

In addition, cable plug connectors also feature
pin-protection skirts, positive polarization and
are offered with or without integrated strain
relief hoods. Cable receptacle connectors (with
integrated strain relief hoods) are available to
mate with the cable plug connectors for cable-
to-cable solutions when needed.
These multi-way connectors accept the Size 16
TRIM TRIO (1.6mm) diameter contacts and are

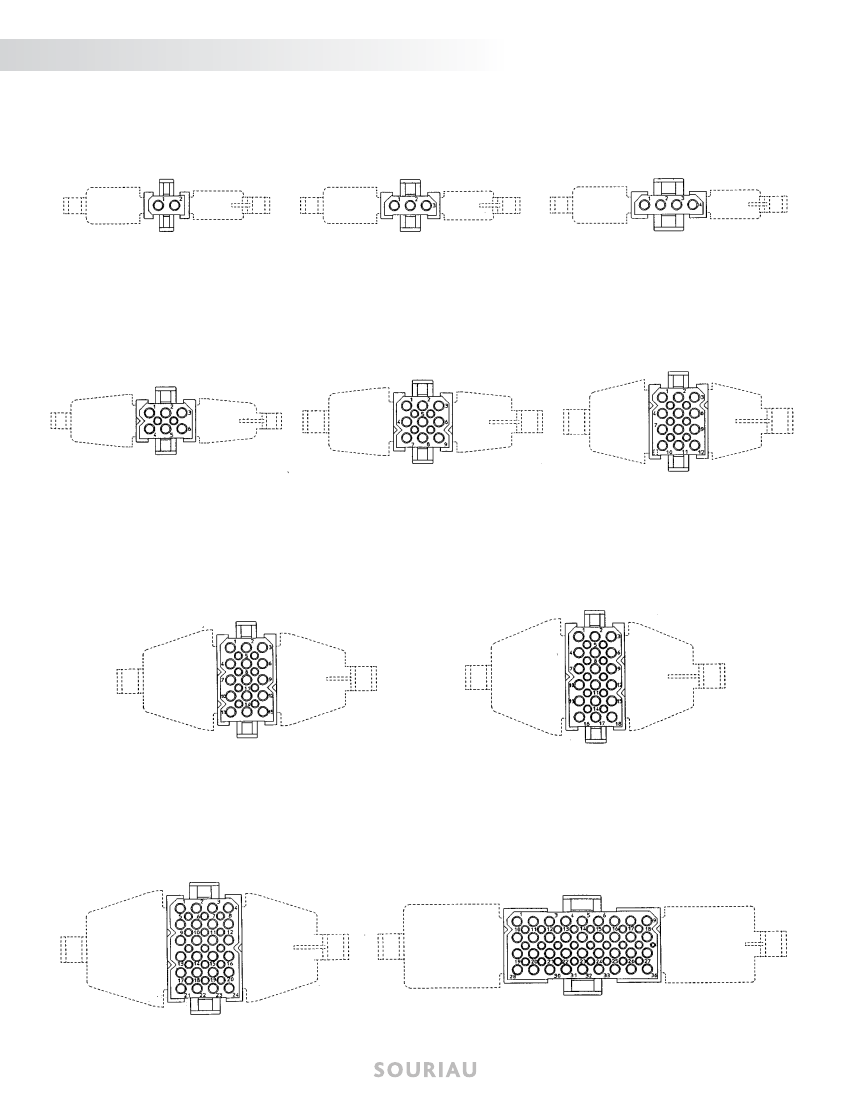

available with 10 contact arrangements from 2
to 36 positions.
Environmental
•
•
•
•
•
•
Operating temperature: -55°C to +105°C
Insulation resistance: 5000 MΩ min.
Test potential: 2000 VAC
Durability: 500 matings and unmatings
Sealing performances: IP40
Electrical performances:
UL: 250V - 10A
CSA: 250V - 15A
Material
• Connector: Polyamide 6.6
• Flammability rating: UL94 V2 (Black) or
UL94 V0 (White).
The white version is also I3F2/I2F3 according
to the NFF 16101 /16102 (Fire & fume
standard for French rail market) and
R23/HL3 following EN 45 545
Features and benefits
• Available in 10 contact arrangements
• Self mountable panel receptacle with
positive housing retention
• Cable plugs with retaining latches for
positive locking
• Cable plug has pin protection skirt to
prevent damage of male contacts
• Positive polarization keys prevent mismating
• Cable plug and receptacle have integrated
strain relief hood which can accept a wide
range of cables
• Cable plug and receptacle have
discrimination cavities in between contact
cavities, thus offering discrimination without
contact loss. See instruction page 21.
• UL recognized File Nr.: E238675
• CSA certififed File Nr.: LR44961-21
Wire insulation acceptance
• SMS PDH1, RDH1, PD3, PDH3, RD3, RDH3
max: 3.2mm
• SMS R1, P1, R3 max: 4.19mm
Contact
• “SMS” Quick Mating connectors accept
TRIM TRIO size 16 removable snap-lock
contacts (see contact section)
• Contacts to be ordered seperately.
Ordering information
Connector family
Layout:
see next page
Body variation:

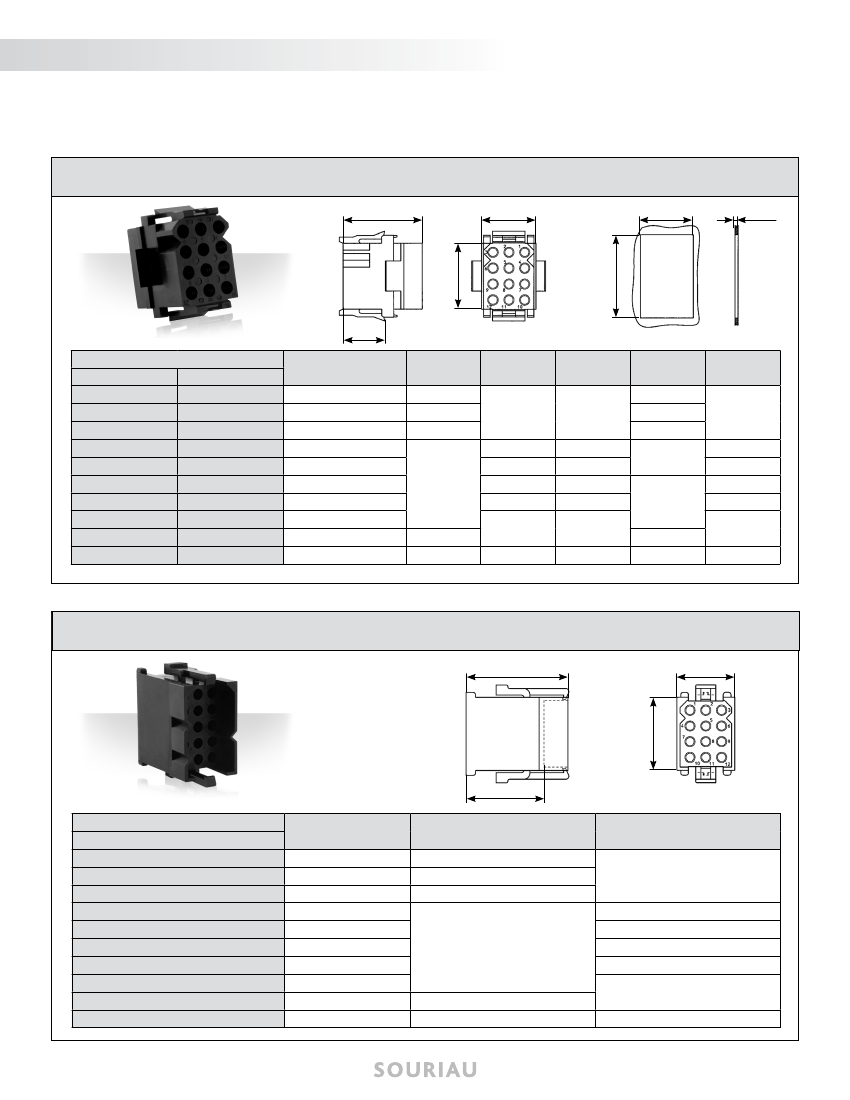

R1:
(UL94 V2) Panel mount receptacle - Black
R3:
(UL94 V0) Panel mount receptacle - White
P1:
(UL94 V2) Cable plug without strain relief hood - Black
PD3:
(UL94 V0) Cable plug without strain relief hood - White
PDH1:
(UL94 V2) Cable plug with integrated strain relief hood - Black
PDH3:
(UL94 V0) Cable plug with integrated strain relief hood - White
RD3:
(UL94 V0) Cable receptacle without integrated strain relief hood - White
RDH1:
(UL94 V2) Cable receptacle with integrated strain relief hood - Black
RDH3:
(UL94 V0) Cable receptacle with integrated strain relief hood - White
SMS
12
PDH3
5
