M83513/06-E: DescriptionD-Sub MIL Spec Connectors SLDRCUP/SLASH CON PIN/PLSTC SHLL 21CNT; CategoryThe connector The connector; File Size184KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M83513/06-E Overview

D-Sub MIL Spec Connectors SLDRCUP/SLASH CON PIN/PLSTC SHLL 21CNT

M83513/06-E Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Other features	STANDARD: MIL-DTL-83513
body width	0.208 inch
subject depth	0.196 inch
body length	1.328 inch
Body/casing type	PLUG
Connector type	D MICROMINIATURE CONNECTOR
Contact arrangement	S31P0
Contact completed and terminated	GOLD
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	YES
Plug contact pitch	0.05 inch
Match contact row spacing	0.043 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .096
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	MIL
Shell material	PLASTIC
Housing size	E
Terminal length	0.11 inch
Termination type	SOLDER
Total number of contacts	31
Maximum wire diameter	24 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	0.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

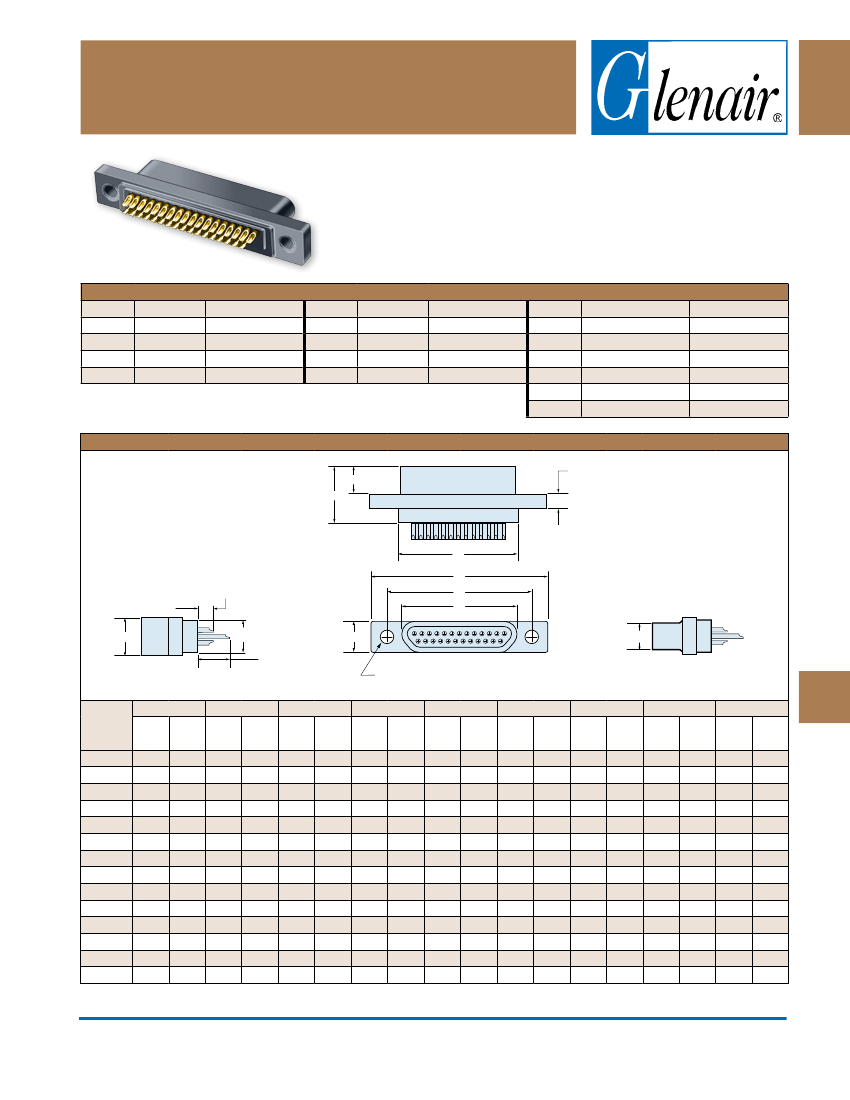

MIL-DTL-83513/06 & /07 Micro-D

Solder Cup Terminated, Plastic Shell Connector

Plastic Shell Solder Cup M83513 Connectors

feature goldplated TwistPin non-removable contacts for

solder termination to AWG #26 or smaller wire. These all-plastic

connectors are more economical, lighter and smaller than metal

shell versions.

Layout

15P

15S

Config.

Plug

Receptacle

Plug

Receptacle

Part Number

M83513/06-A

M83513/07-A

M83513/06-B

M83513/07-B

Layout

21P

21S

25P

25S

Part Numbers

Config.

Part Number

Plug

Receptacle

Plug

Receptacle

M83513/06-C

M83513/07-C

M83513/06-D

M83513/07-D

Layout

31P

31S

37P

37S

51P

51S

Config.

Plug

Receptacle

Plug

Receptacle

Plug

Receptacle

Part Number

M83513/06-E

M83513/07-E

M83513/06-F

M83513/07-F

M83513/06-G

M83513/07-G

Table I: Dimensions

.100/.088

(2.54/2.24)

.110 (2.79)

MAX

.200 (5.08)

MAX

C Max.

In.

.292

.380

.442

.530

.592

.680

.692

.780

.842

.930

.992

1.080

.942

1.030

mm.

7.42

9.65

11.23

13.46

15.04

17.27

17.58

19.81

21.39

23.62

25.20

27.43

23.93

26.16

.096/.088 (2.43/2.23) DIA.

D Max.

In.

.218

.260

mm.

5.54

6.60

E Max.

In.

.202

.185

.202

.185

.202

.185

.202

.185

.202

.185

.202

.185

.202

.185

mm.

5.13

4.70

5.13

4.70

5.13

4.70

5.13

4.70

5.13

4.70

5.13

4.70

5.13

4.70

F Max.

In.

.395

.375

.395

.375

.395

.375

.395

.375

.395

.375

.395

.375

.395

.375

mm.

10.03

9.53

10.03

9.53

10.03

9.53

10.03

9.53

10.03

9.53

10.03

9.53

10.03

9.53

G Max.

In.

.408

.558

.708

.808

.958

1.108

1.058

mm.

10.36

14.17

17.98

20.52

24.33

28.14

26.87

PIN CONNECTOR

SOCKET CONNECTOR

A Max.

Layout

15P

15S

21P

21S

In.

.788

.938

1.088

1.080

1.188

1.185

1.338

1.488

1.438

mm.

20.02

23.83

27.64

30.18

33.99

37.80

36.53

H Max.

In.

.173

.220

mm.

4.39

5.59

J Max.

In.

.134

.218

.134

.218

.134

.218

.134

.218

.134

.218

.134

.218

.177

.260

mm.

3.40

5.54

3.40

5.54

3.40

5.54

3.40

5.54

3.40

5.54

3.40

5.54

4.50

6.60

In .

mm.

± .003 ± 0.08

.565

.715

.865

.965

1.115

1.265

1.215

14.35

18.16

21.97

24.51

28.32

32.13

30.86

INDEX

25P

25S

31P

31S

37P

37S

51P

51S

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

L-7
