SLiC
™
Fiber Aerial Closure
533 and 733
3M’s SLiC fiber aerial closures are designed to enable service providers to cost-
effectively deploy aerial fiber networks in the access network (FTTN, HFC, and
FTTP). The free-breathing, weather-resistant, single-piece aerial closure can be
very easily installed for new construction or maintenance applications.
The single-piece construction permits complete splice access after placement
without the removal of the closure from the cable. These free-breathing closures
are designed for strand-mount in-line, butt or taut sheath single or ribbon fiber
applications.
The durable double-walled, blow-molded body resists cracking or breaking even in
the harshest environments, providing the ultimate protection for fibers and splices.
The SLiC fiber closure portfolio consists of the 533 and 733 versions. The maximum
splice capacity of the 533 closure is 144 single and 432 mass fusion splices. The 733
closure can accommodate up to 288 single and 864 mass fusion splices.
Features and Benefits
One-piece construction
Double-walled molded
construction
Spacious fiber
management area
Multiple splicing applications
Quick-release latches
Interlocking Ends
Easy installation and access to the cable splice without
removing the closure or the terminal
Durable protection from bending and cracking in the most
extreme environments
Slack storage basket provides separate area for routing,
protecting, and “expressing” buffer tubes and ribbon fibers
Accommodates inline and butt end span and midspan as well
taut sheath applications
Easy installation and re-entry without the need for special tools
Permits the closure chamber to be extended to protect
damaged sheath
3M
TM
SLiC
TM
Fiber Aerial Closure 533 and 733
3M SLiC Fiber Aerial Closures are tested to Bellcore GR-771-CORE Mechanical
and Environmental Requirements for Free-Breathing Closures (FBCs). 3M SLiC
fiber aerial closures are Rural Development (RUS) Listed.
3M
TM
SLiC
TM

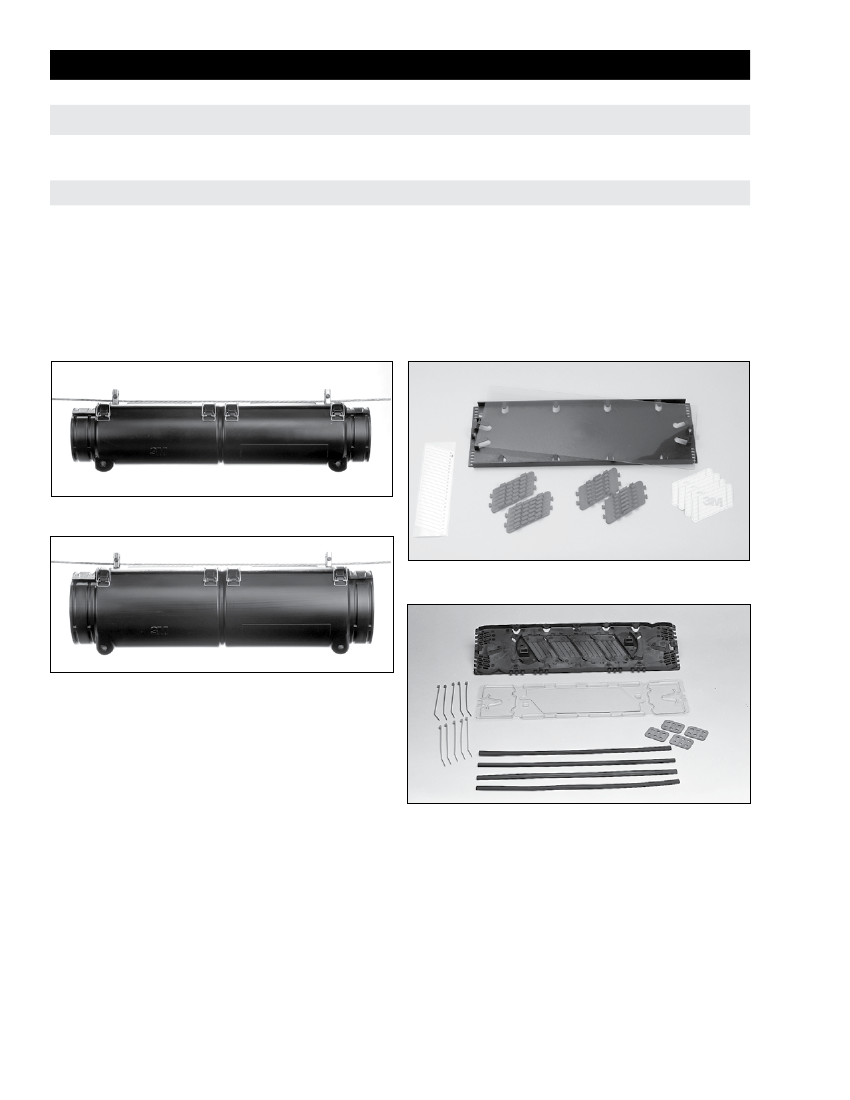

Fiber Aerial Closure Configuration Guide
slfC –
Size
533
733
xxx –
x
–
xx
5' x 33'
7' x 33'
Splicing Application
TS
Taut Sheath
SP
Midspan or Endspan
Trays
0...6
# of trays
Tray type
(Please see ordering information for specific products)
X
A
None
2527
Splice Tray Capacity
Model
#
2522
Description
Splices Accommodated
Splice
Capacity
per Tray
24
12
120
96
48
24
144
144
24
12
144
72
SLiC 533
Maximum # Maximum
of trays per Closure Splice
closure
Capacity
3
72
36
360
288
144
72
432
432
72
36
432
216
SLiC 733
Maximum #
of trays per
closure
6
Maximum
Closure Splice
Capacity
144
72
720
576
288
144
864
864
144
72
864
432
Stackable hinged
tray, fiber entry/exit
at any corner of
the tray
Stackable hinged
tray, fiber entry/exit
at any corner of
the tray
Stackable tray,
fiber entry/exit at
any corner of the
tray
Single fusion (45 or 60 mm)
Single mechanical
(3M
TM
Fibrlok
TM
Splice)
Mass fusion
Mass mechanical (Fibrlok splice)
Single fusion (45 or 60 mm)
Single mechanical (Fibrlok splice)
Mass fusion
Mass mechanical (Fibrlok splice)
Single fusion (45 or 60 mm)
Single mechanical (Fibrlok splice)
Mass fusion
Mass mechanical (Fibrlok splice)
2523
3
6
2527
3
6
3M
™
SLiC
™
Terminal Closure Ordering Information
Model #
Closures
SLFC-533-TS-1A
SLFC-533-SP-1A
SLFC-733-SP-1A
SLFC-533-SP-0X
SLFC-733-SP-0X
Accessories
2527
2522
2523
2521-F
2521-FL
SLiC-AC-HB2
SLiC/GATM-AC-HB3
AC-HB4
SLiC-ES/5TC/E SLiC Closures
SLiC-ES/7TC/E SLiC Closures
4460-D/FO
25T-BBE6
SLFC/SLFT-SPLICING-WS
SLFC/SLFT-SPLICING-WSCA
SLFC/SLFT-SPLICING-WS-STRAPS
SLFC/T-2-PORT
SLFC/T-6-PORT-FLAT
General Accessories
4414
5025-KIT
2529
2170
2520
Description
533 Fiber aerial closure, taut sheath, one 2527 tray
533 Fiber aerial closure, one 2527 tray
733 Fiber aerial closure, one 2527 tray
533 Fiber aerial closure, no tray
733 Fiber aerial closure, no tray
Fiber optic splice organizer tray
Fiber splice organizer tray small
Fiber splice organizer tray large
Fusion splice insert 2-pack
Fibrlok splice inserts 2-pack
Extended hanger bracket
Extended hanger bracket
Aerial offset hanger bracket, 4.0”, set
5” Rubber end seal 3 port, Version E
7” Rubber end seal 3 port, Version E
3M
™
Scotchlok
TM
Shield Bond Connector Assembly 4460-D/FO
1/2" X 25' bond braid w/eyelets 6”
SLiC Fiber Splicing Workstation Kit
SLiC Fiber Splicing Workstation Cleaver Arm
Splicing Workstation Straps (Set of 2)
SLiC 530/533/733 2-port 0.61” cable entry bracket
SLiC Fiber 6-port flat drop/cable entry kit
Cable cleaning kit
Reflective lettering system kit
Fibrlok II Universal Optical Fiber Splice (250 X 900)
Fiber optic splice sleeve
Fiber tube transport tubing (1 ft. length)
3M Stock Number
80611314420
80611314404
80611314446
80611314412
80611314453
80611175581
80610859904
80610859912
80610859250
80610859268
80610846778
80611150220
80611314701
80611316540
80611316532
80610844443
80610096150
80611321391
80611321896
80611321995
80611323447
80611317225
80610582225
80610133201
80610755896
80610281380
80610859276
3M, SLiC, Scotchlok and Fibrlok are trademarks of 3M Company. All other trademarks used herein are the properties of their respective owners.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness is
not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with
such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall
have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of 12 months from the date of purchase.
3M MAKES NO OTHER WARRANTIES INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the warranty period stated
above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M
will not be liable for any loss or damage arising from this 3M product, whether indirect, special, incidental or consequential regardless of the legal theory asserted.
3
Communication Markets Division
3M Telecommunications
6801 River Place Blvd.
Austin, TX 78726-9000
800/426 8688
Fax 800/626 0329
www.3MTelecommunications.com
Please recycle. Printed in USA.
© 3M 2007. All rights reserved.
80-6113-1516-1
