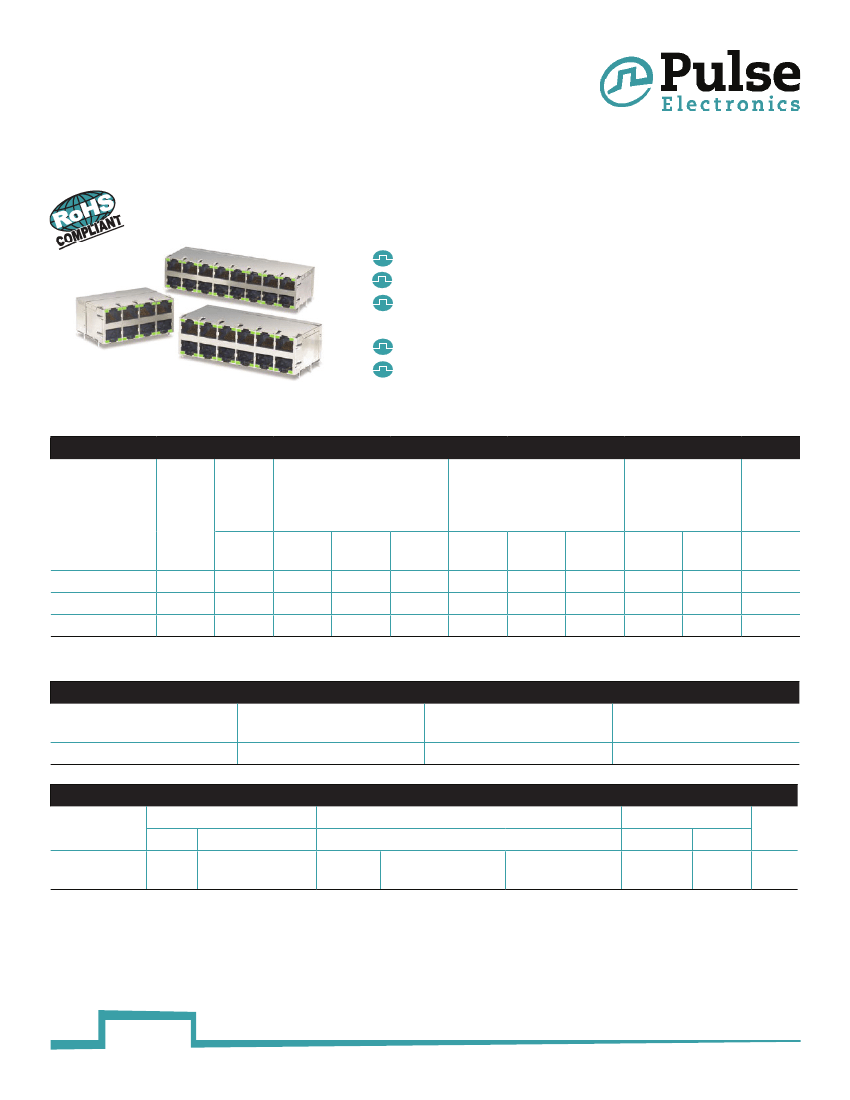

PulseJack®
2xN Gigabit PoE
U.S. Patent#7241181
Description:
10/100/1000Base-T RJ45 2xN PoE Integrated Connectors with Magnetics, with the addition of
power feeding over signal pairs.
Features and Benefits:
RoHS peak wave solder temperature rating 260°C
Suitable for CAT 5 & 6 UTP cable or better
Power over Ethernet enabled-compatible to IEEE
802.3af standard
350µH minimum OCL with 8mA bias current
High performance for maximum EMI suppression
Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C
Insertion
RoHS
Compliant
Part Number
(Number of Ports)

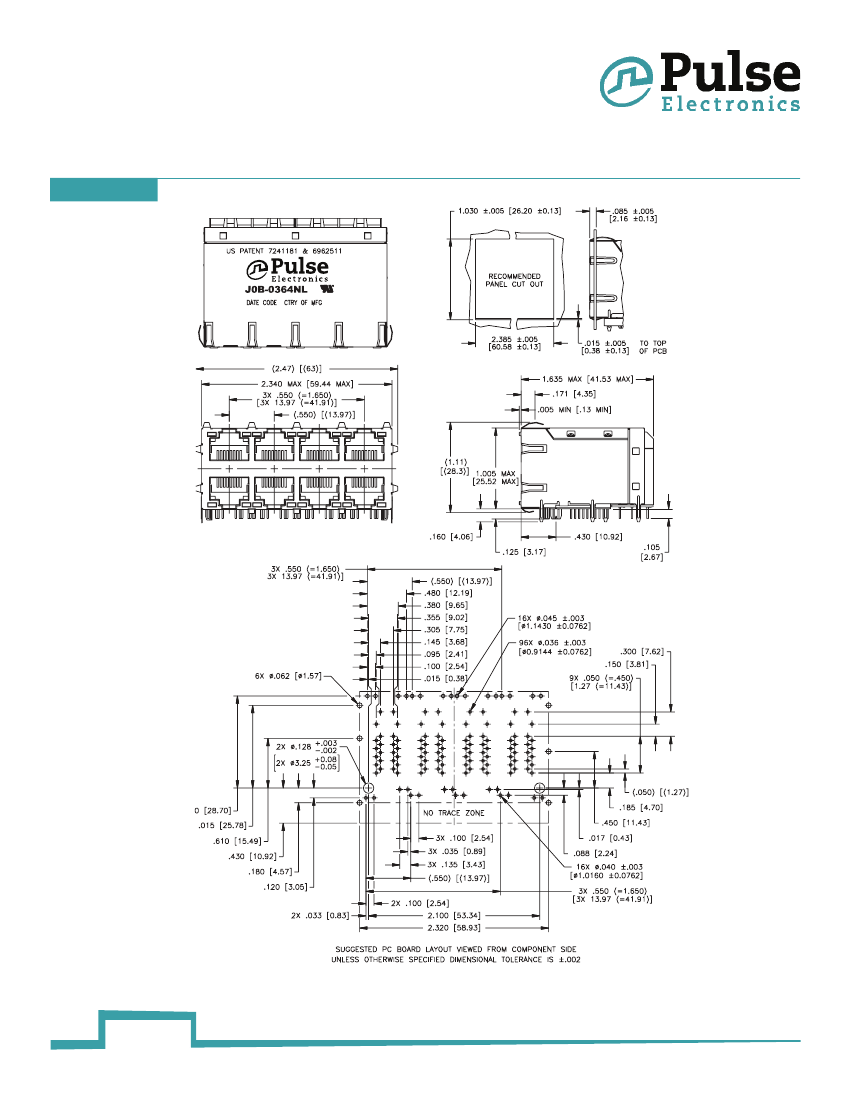

J0B-0364NL
(2X4)

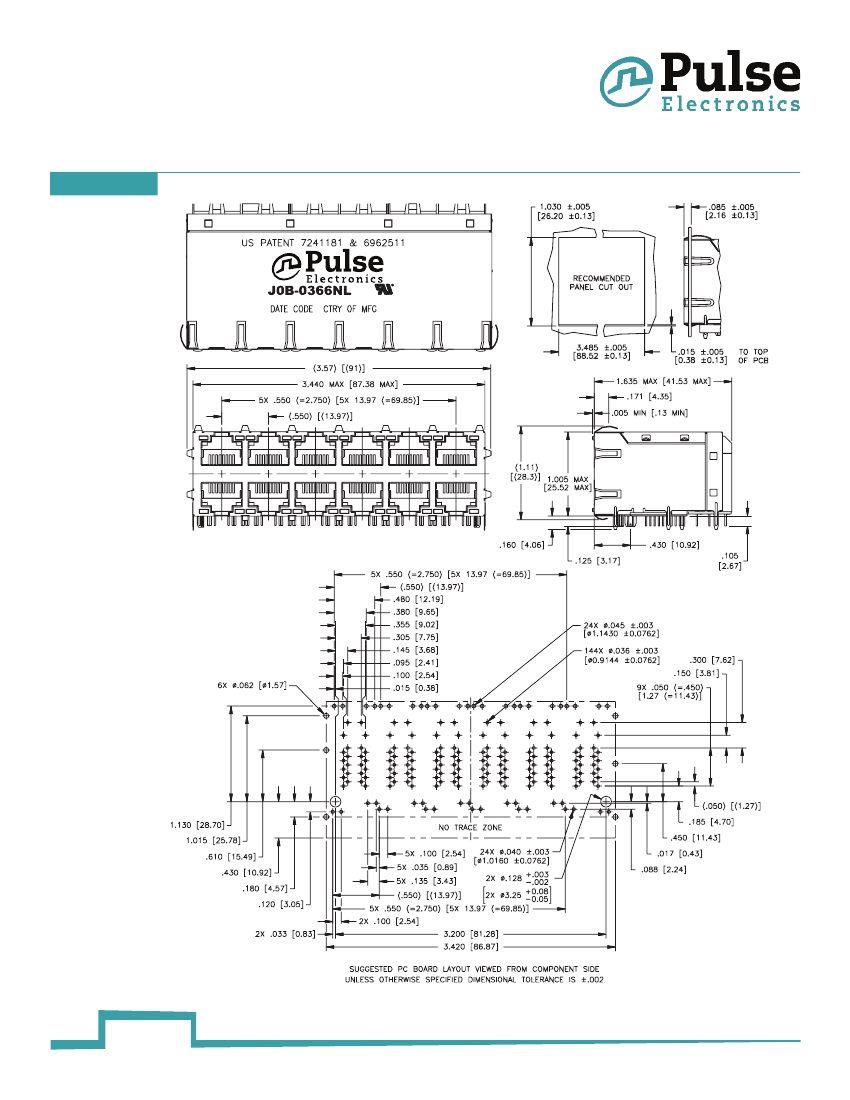

J0B-0366NL
(2X6)

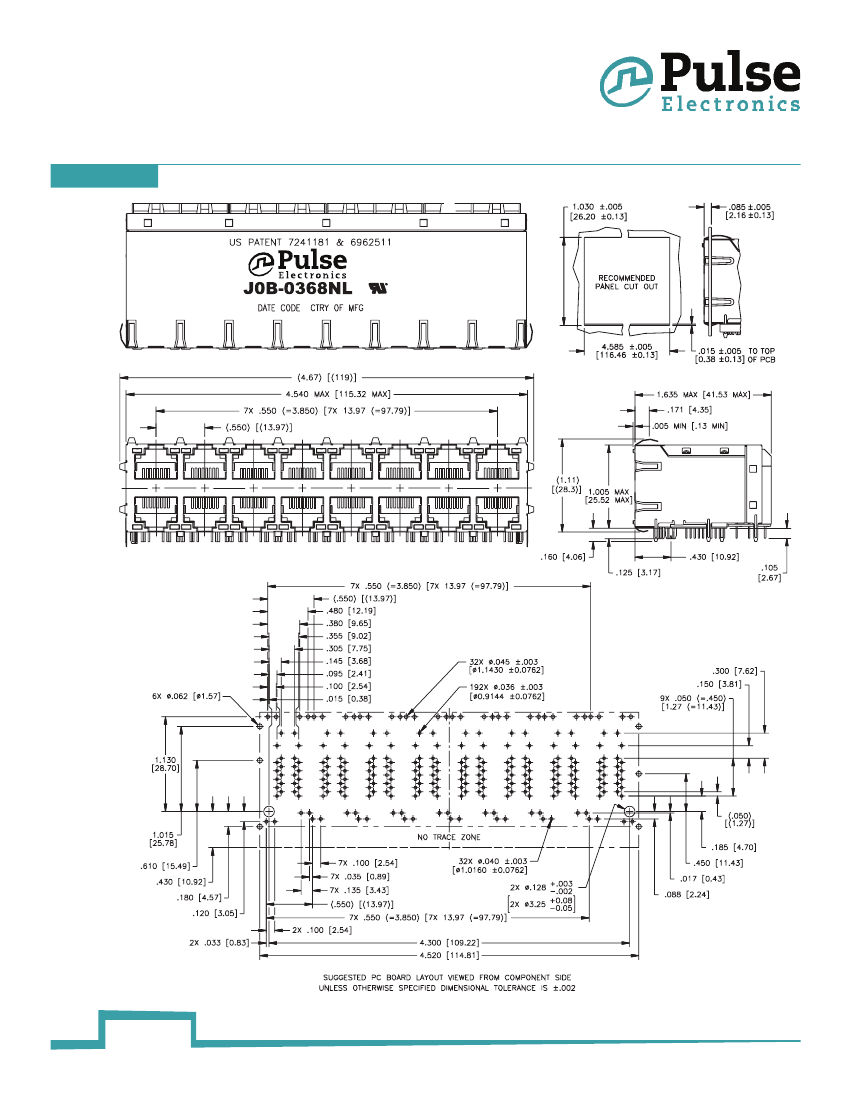

J0B-0368NL
(2X8)
LEDs
(L/R)
TX/RX
(dB TYP)
1-125
MHz
G-Y/G-Y
G-Y/G-Y
G-Y/G-Y
-0.8
-0.8
-0.8
1-40
MHz
-20
-20
-20
Return Loss
(dB TYP)
100Ω
(±15Ω)
60
MHz
-17
-17
-17
100
MHz
-14
-14
-14
1-10
MHz
-40
-40
-40
Crosstalk
(dB TYP)
30-60
MHz
-35
-35
-35
60-100
MHz
-30
-30
-30
1-10
MHz
-50
-50
-50
Common
Mode
Rejection
(dB TYP)
10-150
MHz
-40
-40
-40
Hipot
(Vdc MIN)
1 MIN
2250
2250
2250
Notes: 1.
Bi-color LEDs: G-Y = green/yellow. Contact Pulse for LED options
RJ45 Durability Test Rating
Part Number
J0B Series
Mating Force
(MAX)
5 Ibs./2.268 kgs.
RJ45 Material Specification
Part
Number
J0B Series
Shield
Material
Brass
Finish
20-40µ inches thick nickel
over brass
Material
5 Ibs./2.268
kgs.
Contact
Plating Area
50µ inches gold over
30-50µ inches nickel
Solder Area
Housing
Material
75-300µ inches tin-lead Thermoplastic
over 50-100µ inches nickel
MSL
Specification Rating
UL 94 V-0
1
Unmating Force
(MAX)
5 Ibs./2.268 kgs.
Durability
750 Insertions
Notes:
1.

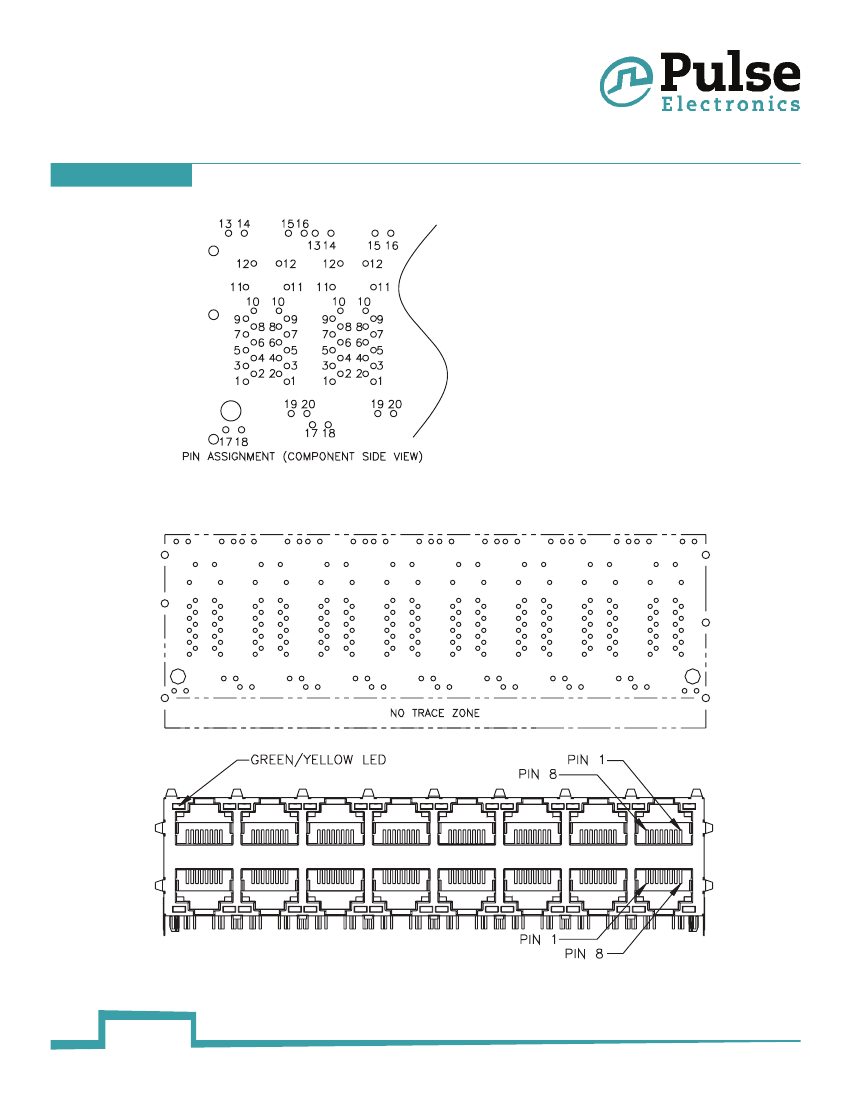

Connector dimensions comply with FCC dimension requirements.
