74981-1012 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 74981-1012

74981-1012: DescriptionHigh Speed / Modular Connectors HSD BACKPLANE 6R 10C 10C SHIELD END ASSY; CategoryThe connector The connector; File Size32KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

74981-1012 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74981-1012	-	-	View	Buy Now

74981-1012 Overview

High Speed / Modular Connectors HSD BACKPLANE 6R 10C 10C SHIELD END ASSY

74981-1012 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT, TUBE PKG
body width	0.673 inch
subject depth	0.484 inch
body length	1.063 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	18 mΩ
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
maximum insertion force	.3892 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
Plug contact pitch	0.079 inch
Match contact row spacing	0.089 inch
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	40
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

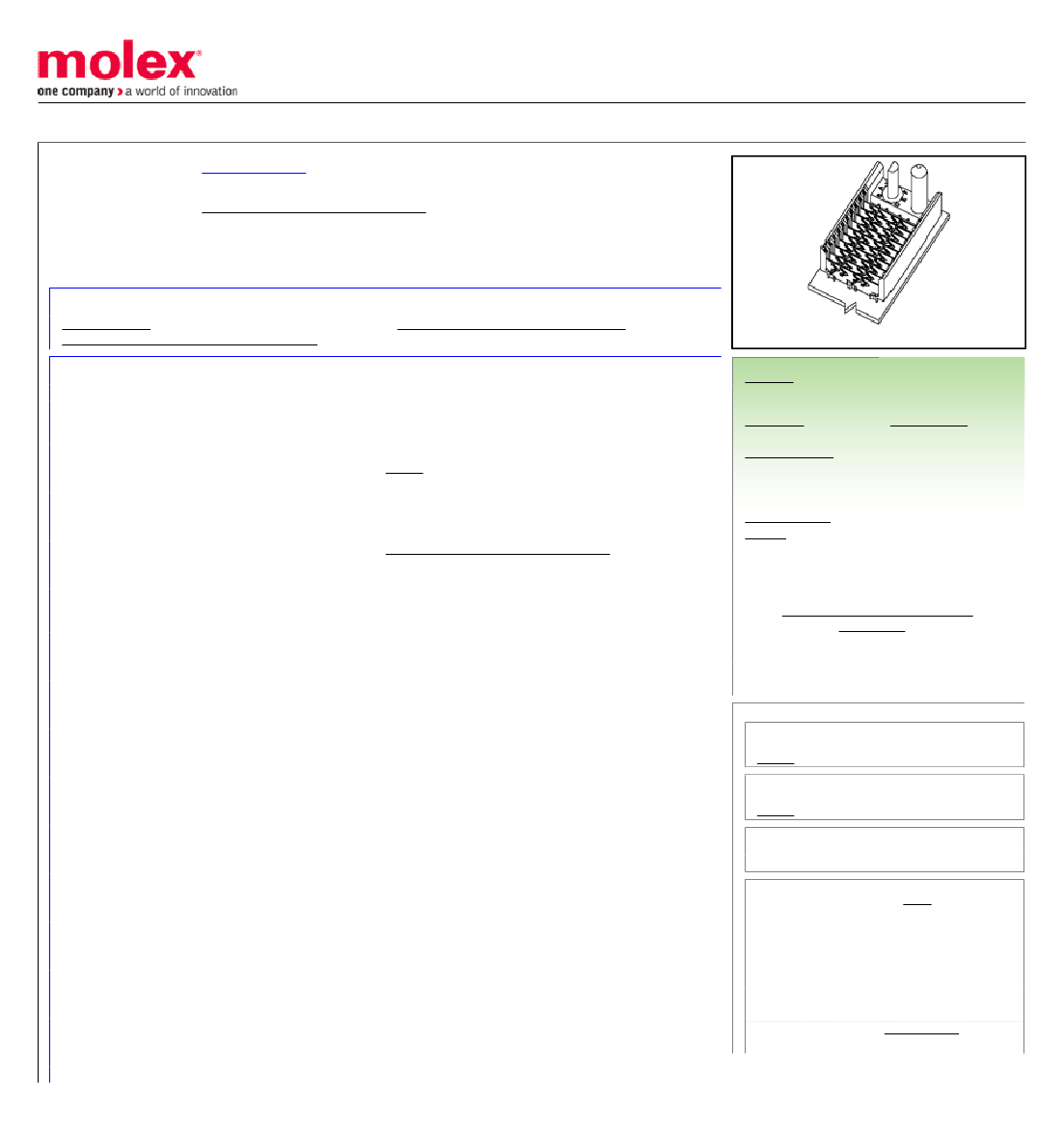

This document was generated on 09/29/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0749811012

Active

VHDM-HSD™ Backplane Connectors

VHDM-HSD™ Backplane Header, 2.00mm Pitch, 6-Row, Guide Pin Signal Module,

Shield End Version, 40 Circuits, Pin Length 6.25mm. Series:74984 Enables designers

to create custom loaded connectors utilizing standard pin lengths 4.25, 4.75, 5.15 and

6.25mm

Documents:

Drawing (PDF)

Product Specification PS-74031-999 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Application Tooling Documents

Comments

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Surface Mount Compatible (SMC)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/21/2016 (20 June

2016)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Green Image

Not Relevant

LR19980

E29179

Backplane Connectors

74981

Backplane

TM-622010999

Keying Orientation A

PCB Header

VHDM-HSD™ Backplane Connectors

VHDM-HSD™

822350649612

Black

200

94V-0

Yes

Copper-Nickel-Silicon, High Performance Alloy (HPA),

Stainless Steel

Gold

Matte Tin

High Temperature Thermoplastic

7.066/g

Open Pin Field

Vertical

2.50mm

None

1.80mm

Tube

2.00mm

0.762µm

Yes

Search Parts in this Series

74981 Series

Mates With

74880 VHDM-HSD™ Daughtercard

Use With

Daughtercard Modules

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Signal Pin Inserter 0622015700

Repair Tool

Recommended Resources
