50-57-9517 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 50-57-9517

50-57-9517: DescriptionHeaders & Wire Housings SL Crp Hsg H SR 17Ckt; CategoryThe connector The connector; File Size36KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

50-57-9517 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	50-57-9517	-	-	View	Buy Now

50-57-9517 Overview

Headers & Wire Housings SL Crp Hsg H SR 17Ckt

50-57-9517 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SL, COMPATIBLE CONTACTS: 16-02-0088; 16-02-1111; 16-02-1112; 16-02-1124, POLARIZED
body width	0.99 inch
subject depth	0.6 inch
body length	1.699 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	70066
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	CRIMP
Total number of contacts	17
UL Flammability Code	94V-0
Base Number Matches	1

Preview

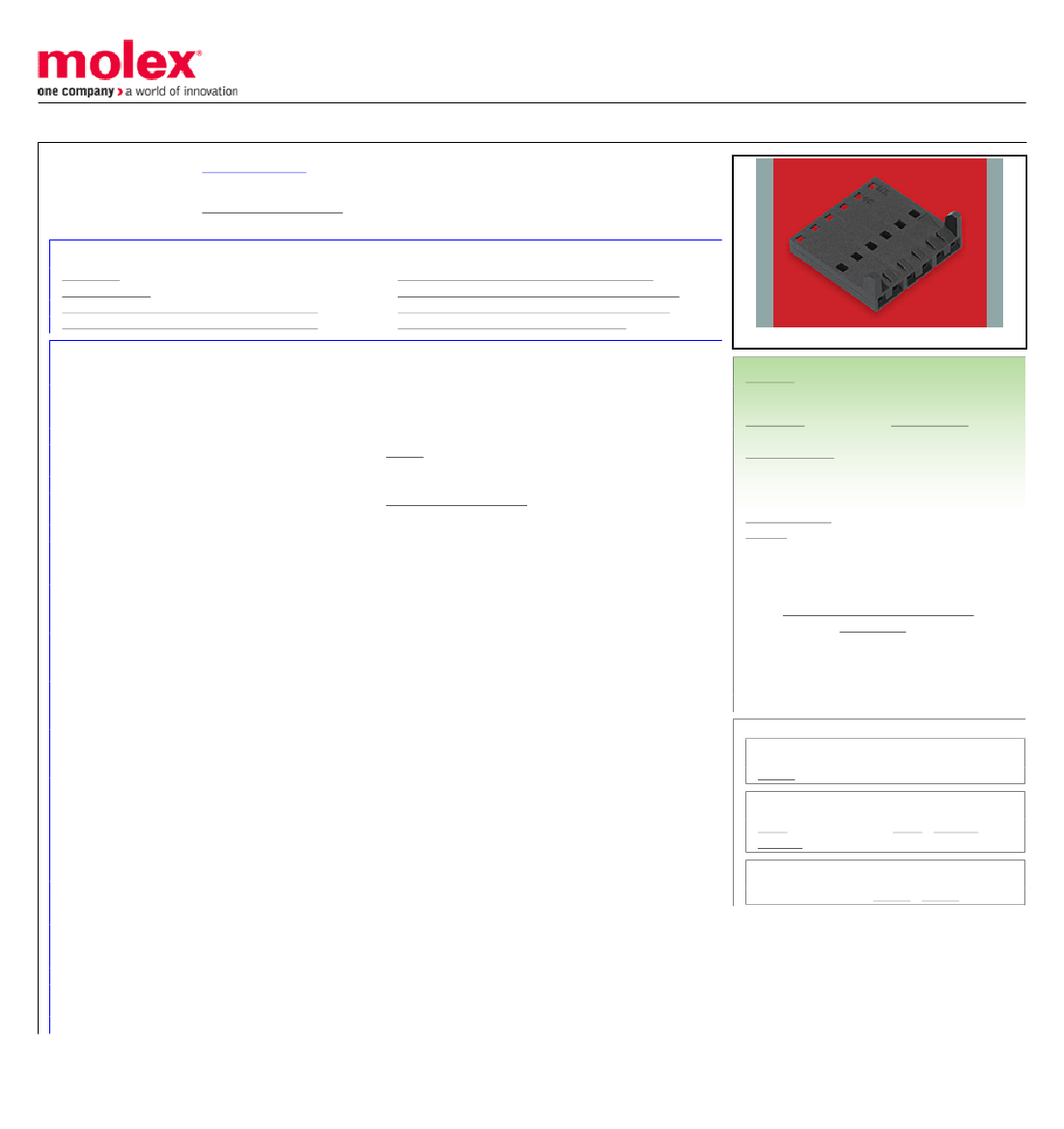

Download Datasheet

View All

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0050579517

Active

SL Modular Connectors

SL Crimp Housing, Single Row, Version H, Polarized Friction Lock, 17 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-70058-001 (PDF)

Product Specification PS-70400-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Capable

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Stackable

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Solder Process Data

Lead-freeProcess Capability

Material Info

Engineering Number

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Product Specification PS-71851-001 (PDF)

Product Specification TS-70058-001-001 (PDF)

Packaging Specification PK-70066-100 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

Crimp Housings

70066

Signal, Wire-to-Board

Version H

SL Modular Connectors

800754609296

Black

94V-0

Receptacle

None

Yes

Polyester Alloy

1.524/g

Bag

2.54mm

Yes

-40°C to +105°C

3.0A

N/A

70066-0226

PK-70066-100

PS-70058-001, PS-70400-001, PS-71851-001,

TS-70058-001-001

SD-70066-0211-0234

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

70066 Series

Mates With

6373 Straight Header, 7478 , 171856 ,

171857

Use With

SL Crimp Terminal 70058 , 71851

This document was generated on 03/01/2018
