Mill-Max Introduces Fine Pitch SMT Gull Wing Connector Series
1mm Pitch, Low Profile Makes Components Well Suited For
Compact Designs with Limited PCB Space

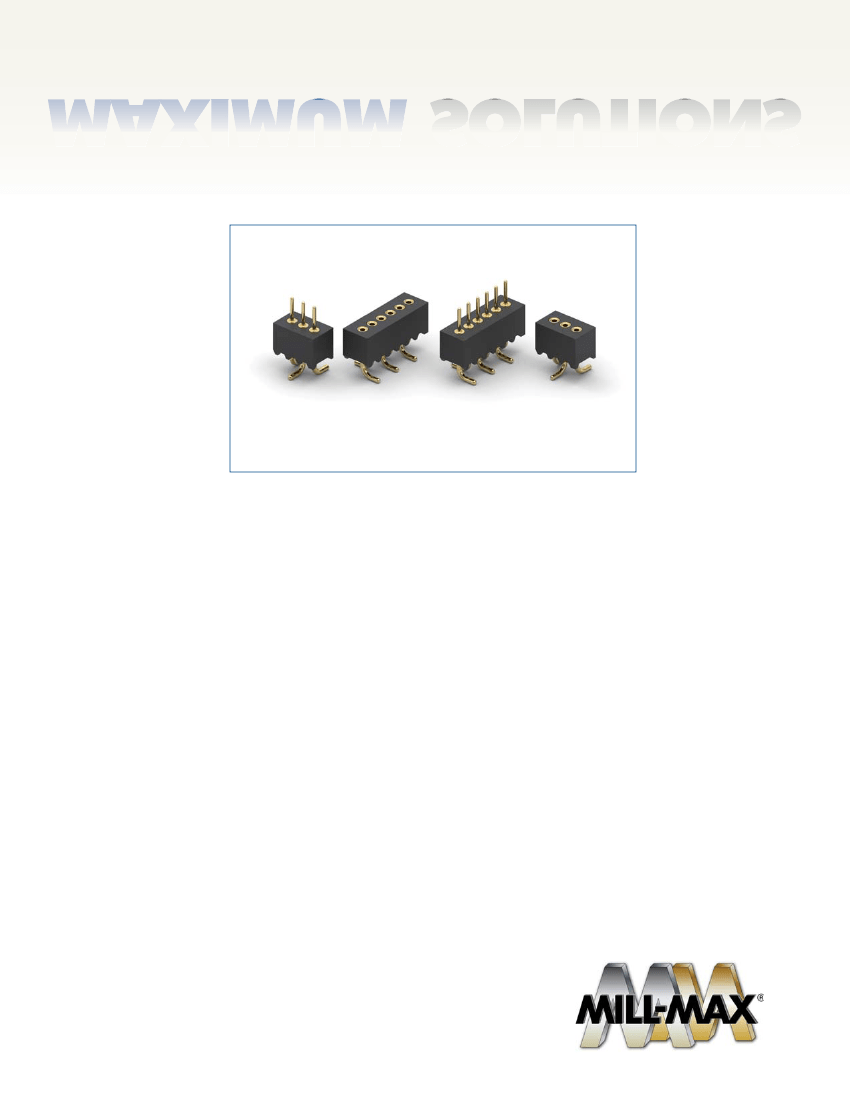

Mill-Max Mfg. Corp. announces the availability of its new fine pitch SMT gull wing connector series. The series
comprises the 860-10-0XX-30-002000 (1mm gull wing SMT header available in 3 - 26 positions) and the 861-
13-0XX-30-002000 (1mm gull wing SMT socket available in 3 - 26 positions).
With a board-to-board stack height measuring less than 0.3” (7,62mm), the Mill-Max gull wing series is ideal
for tight, compact spaces in which a surface mount, precision-machined connector is the preferred design
choice. In addition, the diameter of the leads – .014” (0,36mm) for the socket, .015” (0,38mm) for the header –
leaves a tiny footprint, saving valuable PCB space.
Sockets feature gold-plated shells and contacts, and headers gold-plated pins, thus ensuring optimum con-
ductivity and superior wear resistance. The gull wing design allows for more effective and efficient inspection
of the solder joints.
Additional features of the Mill-Max fine pitch SMT gull wing connector series:
•
•
•
•
•
RoHS compliant
Equipped with high temperature insulators and suitable for RoHS soldering processes
Socket end uses a low-insertion force contact inside receptacles
Gas tight connection when mated
Coplanarity of 0.005” (0,13mm).
All Mill-Max pin headers and receptacle sockets feature high-speed, screw-machined pins and receptacles
manufactured to precision tolerances. Inside each 861 series receptacle is a precision stamped Beryllium
Copper Mill-Max #04 3-finger contact clip with a pin acceptance range of .008”-.013” (0,2mm – 0,33mm)
diameter and a current rating of 2 amps.
For more information, go to
www.mill-max.com/PR643.
(10/13 -- PR643)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, Oyster Bay, NY 11771
516-922-6000 • Fax: 516-922-9253 •
www.mill-max.com
INTERCONNECTS
mm GRID SURFACE MOUNT

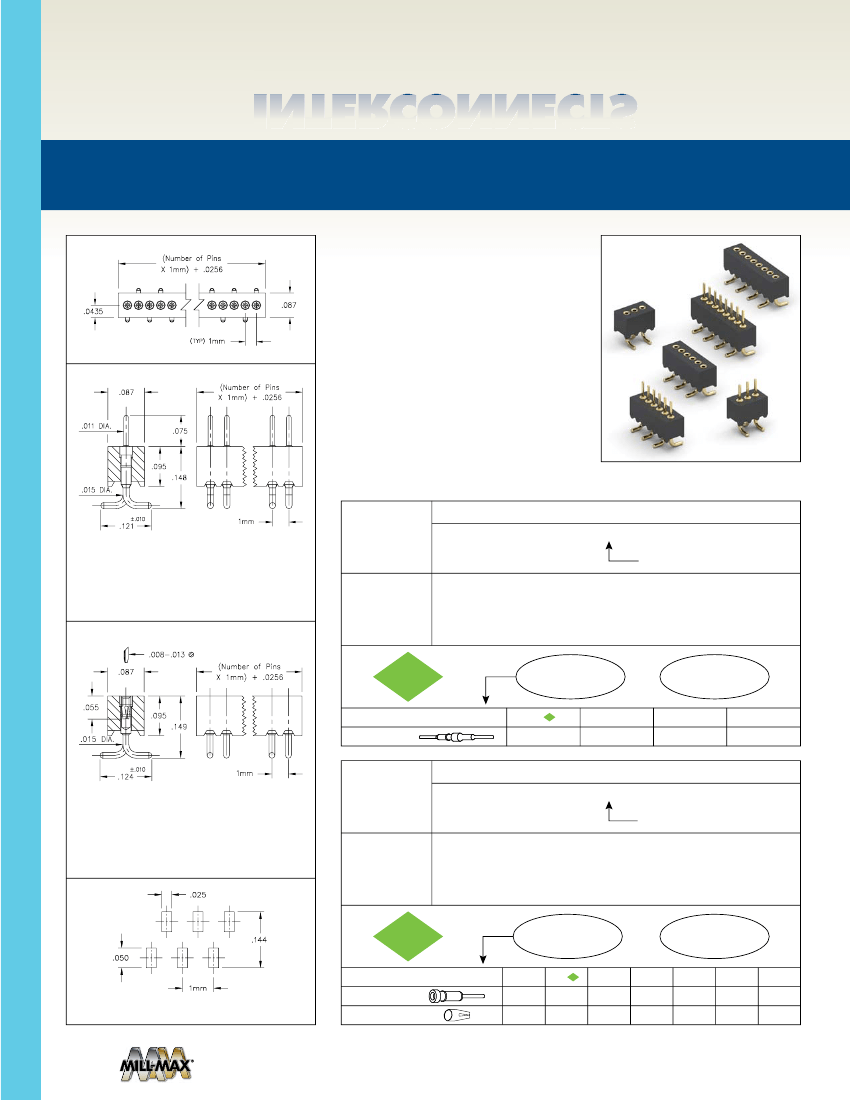

Series 860 surface mount gull wing headers
have .011” dia. pluggable pins for Surface
Mount soldering to the P.C.B. (MM #3039). See
page 208 for details
Series 861 surface mount gull wing sockets
uses MM #0439 receptacles that accept pin
diameters from .008”-.013”. See page
156
for
details
.087
(Number of Pins
X 1mm) + .0256
Receptacles use Hi-Rel, 3-finger BeCu #04
contact
rated at 2 amps. See page 250
for details
Insulators are high temperature thermoplastic,
suitable for all soldering operations
.075
.095
.148
ORDERING INFORMATION
Series
860...002
Single
Row
Surface Mount
Header
860-10-0_
_-30-002000
Specify number of
pins
03-26
.121
Coplanarity .005”. For pin
counts >20
positions,
consult Technical
Support.
FIG. 1
FIG. 1
For
Electrical, Mechanical
& Enviromental Data,
See page 264
.087
(Number of Pins
X 1mm) + .0256
RoHS - 2
2011/65/EU
XX=Plating
Code
See
Below
10
10
” Au
.055
.095
.149
SPECIFY PLATING CODE
XX=
Pin Plating
.015 DIA.
.124
Series
861...002
Single
Row
Surface Mount Socket
861-13-0_
_-30-002000
Coplanarity .005”. For pin
counts >20
positions,
consult Technical
Support.
FIG. 2
Specify number of
pins
03-26
PAGE 33.1 | INTERCONNECTS
FIG. 2
RoHS - 2
2011/65/EU
XX=Plating
Code
See
Below
13
10
” Au
30 ” Au
For
Electrical, Mechanical
& Enviromental Data,
See page 264
SPECIFY PLATING CODE
XX=
Footprint
Sleeve (Pin)
Contact (Clip)
