53748-0204

Description
Board to Board & Mezzanine Connectors SLIMSTACK PLUG 20P dual vert stacking
CategoryThe connector    The connector
File Size37KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

53748-0204 Online Shopping

Suppliers Part Number Price MOQ In stock
53748-0204 - - View Buy Now

53748-0204 Overview

Board to Board & Mezzanine Connectors SLIMSTACK PLUG 20P dual vert stacking

53748-0204 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSLIMSTACK, SHROUDED
body width0.169 inch
subject depth0.094 inch
body length0.346 inch
Body/casing typePLUG
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance50 mΩ
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability30 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.6116 N
Insulation resistance100000000 Ω
Insulator colorWHITE
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
MIL complianceNO
Manufacturer's serial number53748
Plug contact pitch0.02 inch
Match contact row spacing0.072 inch
Plug information52991-0208
Mixed contactsNO
Installation option 1LOCKING
Installation option 2FRICTION LOCK
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing3.4036 mm
Plating thickness4u inch
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.5 mm
Termination typeSURFACE MOUNT
Total number of contacts20
UL Flammability Code94V-0
Evacuation force-minimum value.139 N
Base Number Matches1

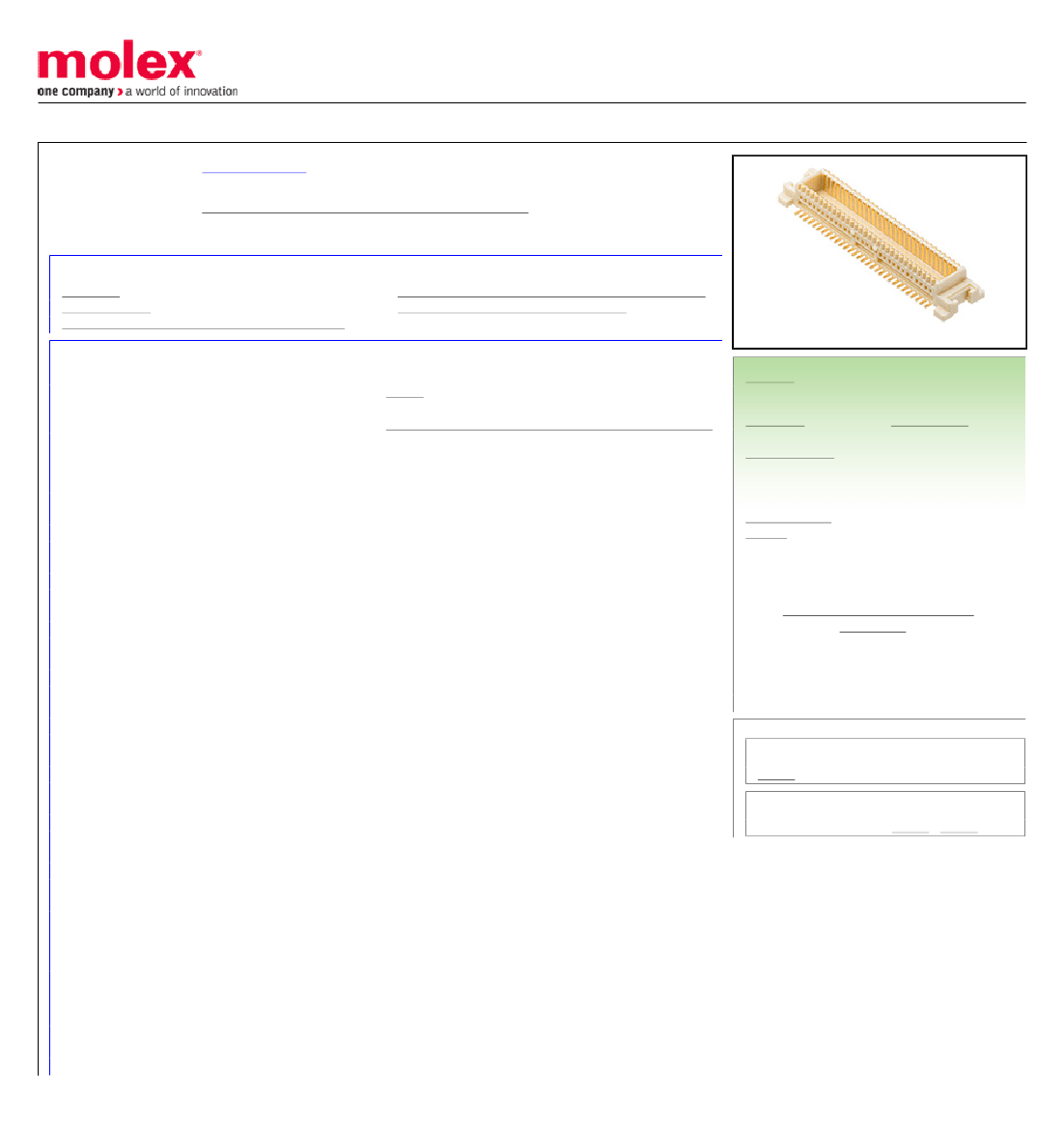

This document was generated on 05/18/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0537480408
Active
SlimStack™ 0.50mm Pitch Board-to-Board Connectors
0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 3.00mm Stack
Height, 40 Circuits, without Vacuum Pick-up Tape
Documents:
3D Model
Drawing (PDF)
Product Specification PS-52991-003-001 (PDF)
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
First Mate / Last Break
Glow-Wire Capable
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height
Mated Width
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Packaging Specification SPK-53748-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
PCB Headers
53748
Board-to-Board, Signal
SlimStack™ 0.50mm Pitch Board-to-Board Connectors
SlimStack
800754318525
No
40
40
No
No
No
None
None
3.00mm
5.40mm
Brass
Gold
Gold
223.700/mg
2
Vertical
No
None
Embossed Tape on Reel
0.50mm
0.102µm
No
Fully
No
-40°C to +105°C
Surface Mount
0.5A
50V
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
53748 Series
Mates With
SlimStack Receptacle 52991 , 54167
SPK-53748-001-001
PS-52991-003-001
SD-53748-002, SD-53748-005
