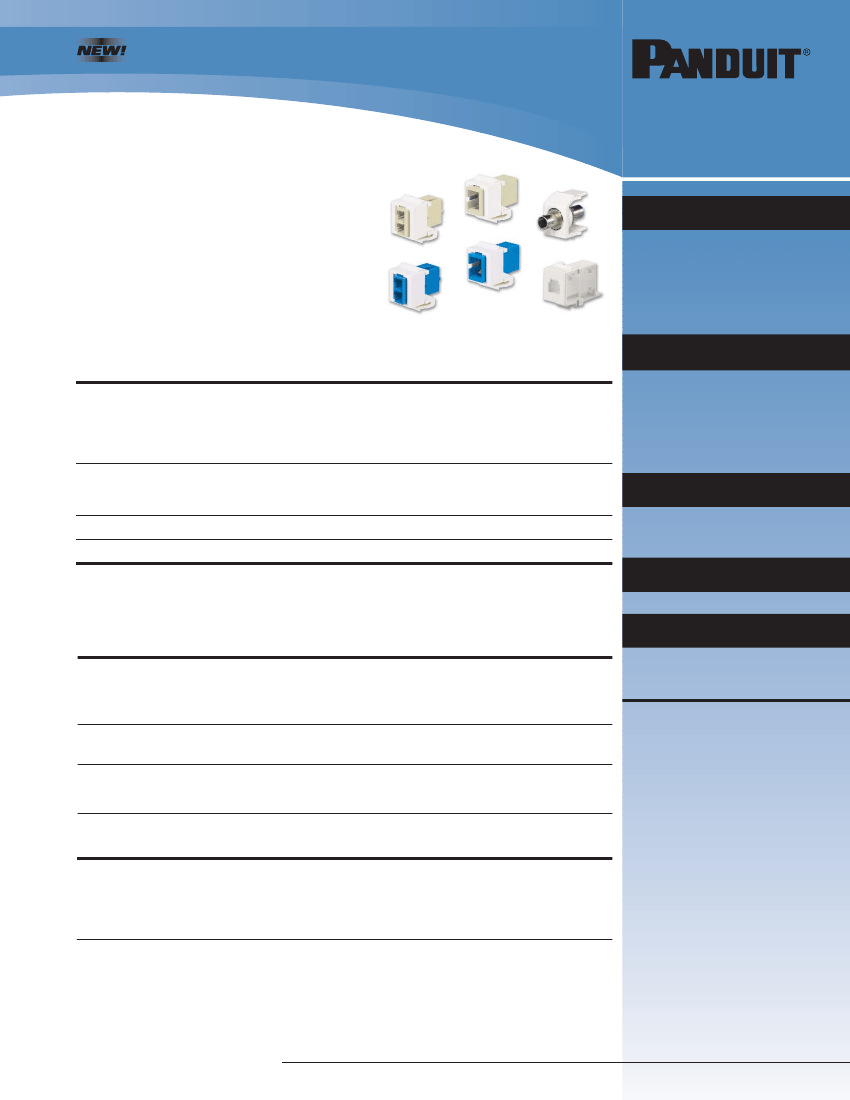

NetKey
®
Fiber Optic Adapter Modules
DATA SHEET
LC, SC, ST, and MT-RJ fiber optic adapters
have integrated panel retention clips and are
TIA/EIA-604 compliant or compatible. Each simplex
adapter will connect one connector pair in one
module space and each duplex adapter will
connect two LC connector pairs in one module
space. LC fiber optic adapters and adapter
modules include phosphor bronze split sleeves
for OM1 or OM2 multimode applications or
zirconia ceramic split sleeves for OM3 multimode
or singlemode applications.
NetKey
®
LC Duplex Fiber Optic
Adapter Module
LC duplex adapter
with phosphor
bronze split sleeve:
NKDLCM**
LC duplex adapter
with zirconia
split sleeve:
NKDLCMZ**
technical information
Standard
requirements:
All adapters meet or exceed TIA/EIA-568-B.3 requirements
LC: TIA/EIA-604 FOCIS-10 compatible;
SC: TIA/EIA-604 FOCIS-3 compliant;
ST: TIA/EIA-604 FOCIS-2 compatible;
MT-RJ: TIA/EIA-604 FOCIS-4 compliant
Zirconia ceramic:
Phosphor bronze:
10Gig
™
OM3 multimode adapters,
OS1/OS2 singlemode adapters
OM1 and OM2 multimode adapters
NetKey
®
SC Simplex Fiber Optic
Adapter Module
SC simplex adapter
with phosphor
bronze split sleeve:
NKSCM**
SC simplex adapter
with zirconia
split sleeve:
NKSCMZ**
NetKey
®
ST Fiber Optic
Adapter Modules
ST adapter with
phosphor bronze
split sleeve:
Split sleeve
material:
Insertion loss:
Return loss:
Supports the performance of connectors/patch cords
Supports singlemode and multimode connector polish performance
NKSTM**
NetKey
®
MT-RJ Multimode
Fiber Optic Adapter Module
MT-RJ adapter:
NKMJM**
key features and benefits
Integrated panel
retention clips
No metal clips to become bent, damaged or lost; simplex
adapter clips automatically adjust for FOCIS-3 or
FOCIS-10 panel thickness variations for
improved mounting
Improved modularity and higher density usage
Provides an adapter split sleeve material option to fit
specific network requirements
System flexibility; modules are interchangeable with
keystone outlets, boxes, and patch panels
NetKey
®
Module Multimedia
Panel – 6 port
Unloaded panel
accepts up to six
NetKey
®
Modules:
FKP6
Short flange design
(LC and SC only)
Choice of phosphor bronze
or zirconia ceramic
split sleeves
Adapters available in
keystone modules
** Substitute for module color
BL = Black
EI = Electric Ivory
IG = International Gray
IW = Off White
WH = White
applications
• Can be used with keystone
telecommunications room products
and work area outlets
• Provides a rugged solution for LANs,
public networks and fiber-to-the-desk
applications
w w w. p a n d u i t . c o m
NetKey
®
Fiber Optic Adapter Modules

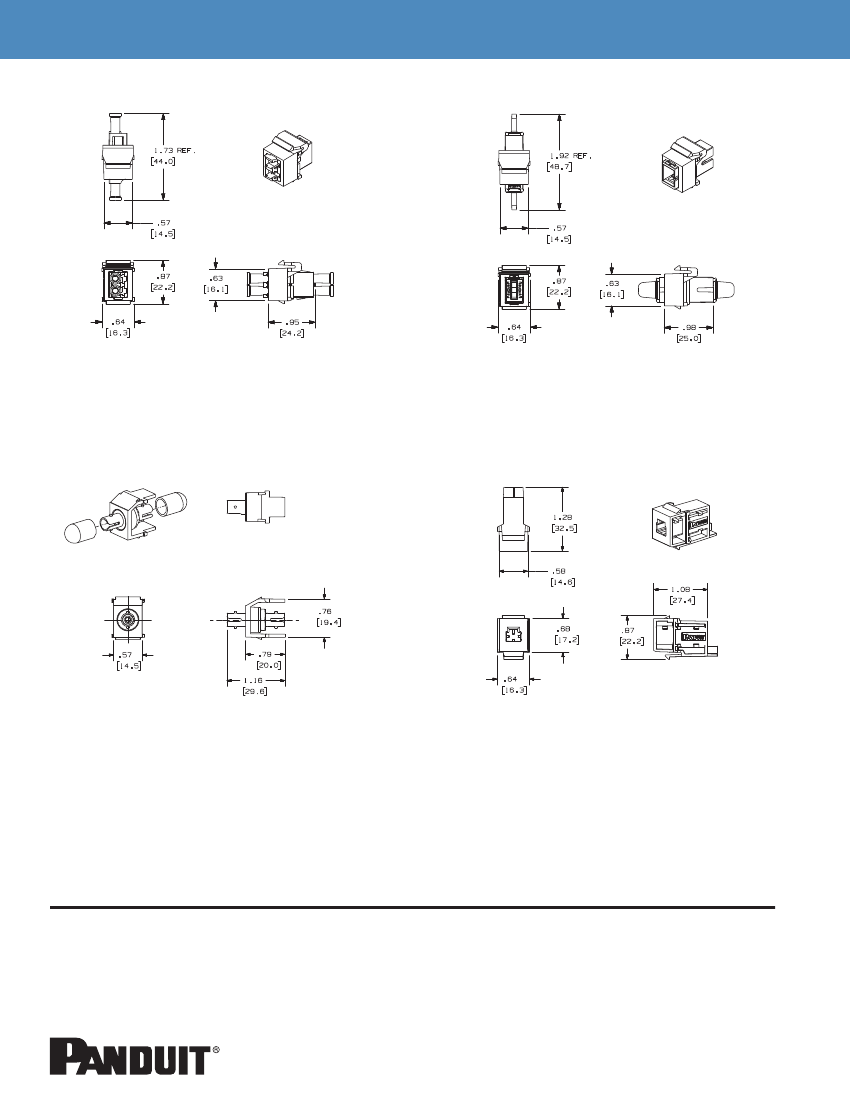

NKDLCM**
Shown without dust caps
NKSCM**
Shown without dust caps
NKSTM**
NKMJM**
** Substitute for module color
BL = Black
EI = Electric Ivory
IG = International Gray
IW = Off White
WH = White
