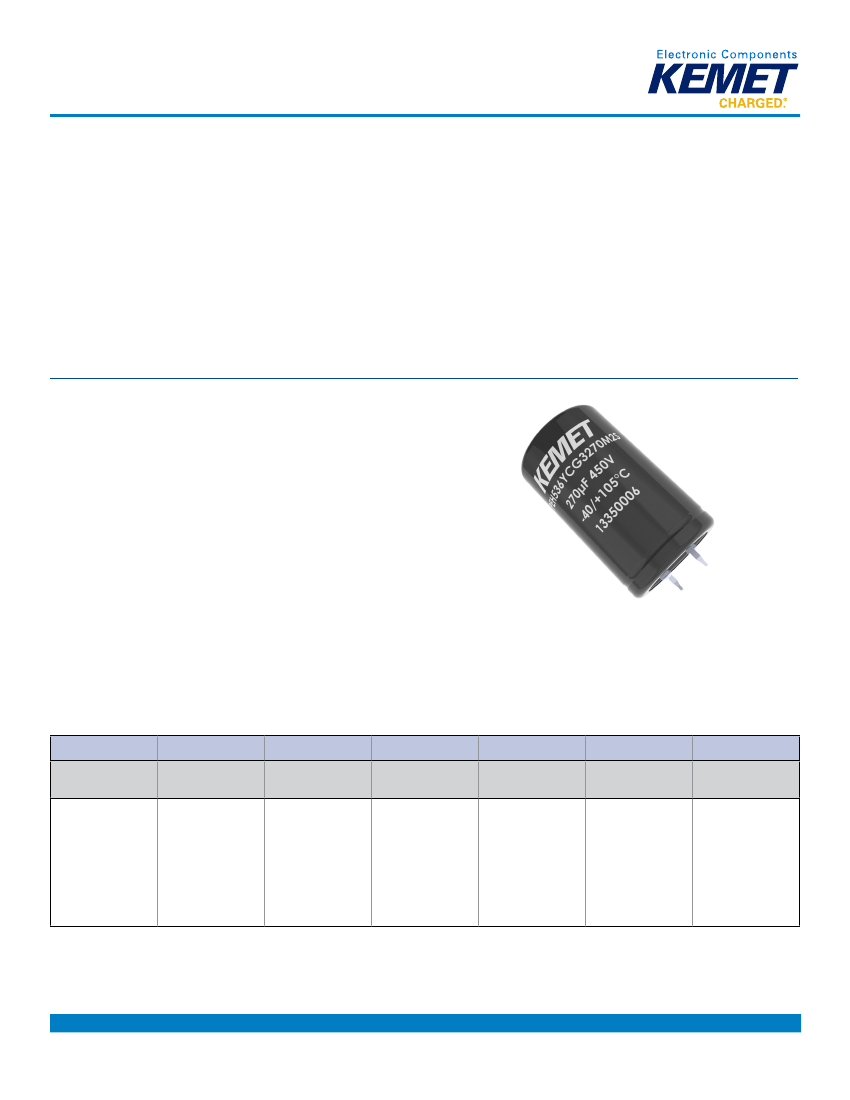

Snap-In Aluminum Electrolytic Capacitors
PEH536 Series, +105°C
Overview
Applications
Typical applications for KEMET's PEH536 capacitor include
switch mode power supplies (SMPS), drives, welding
equipment, uninterruptible power supplies (UPS), and other
power electronic applications where high current ratings
and compact size are important.
KEMET's PEH536 is a long-life electrolytic capacitor
designed to offer high ripple current capability and low
mounting cost. Low ESR is the result of a very low resistive
paper/electrolyte system. Low ESR, together with the TDC
thermal concept, gives the PEH536 a high ripple current
capability.
Benefits
•
•
•
•
•
Snap-In
4,600 hours at +105°C (V
R
, I
R
applied)
PCB mounting
Low ESR and ESL
High ripple current
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
PEH536
Series
Snap-In type
Aluminum
Electrolytic
J
Rated Voltage (VDC)
J = 35
M = 63
P = 100
R = 200
S = 250
U = 350
V = 400
Y = 450
AD
Size Code
See Dimension
Table
439
Capacitance Code
(µF)
The last two
digits represent
significant figures.
The first digit
indicates the total
number digits.
0
Version
0 = Standard
M
Capacitance
Tolerance
M = ±20%
2
Termination
See Termination
Table
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4025_PEH536 • 2/7/2017
1
Snap-In Aluminum Electrolytic Capacitors – PEH536, +105°C
Performance Characteristics
Item
Capacitance Range
Rated Voltage
Operating Temperature
Capacitance Tolerance
Operational Lifetime
Shelf Life
Leakage Current
47 – 18,000 µF
35 – 450 VDC
−40 to +105°C
±20% at 100 Hz/+20°C
D (mm)
22 – 40
4 years at +40°C 0 VDC
I = 0.003 CV (µA)
C = rated capacitance (µF), V = rated voltage (VDC). Voltage applied for 5 minutes at +20°C.
Procedure
Vibration Test Specifications
0.75 mm displacement amplitude
or 10 g maximum acceleration.
Vibration applied for three 2-hour
sessions at 10 – 500 Hz (Capacitor
clamped by body).
Requirements
No leakage of electrolyte or other visible damage. Deviations in
capacitance from initial measurements must not exceed: Δ C/C < 5%
Rated Voltage and Ripple Current at
+105°C (hours)
4,600
Rated Voltage at +105°C (hours)
6,000
Performance Characteristics
Standards
IEC 60384–4 long life grade 40/85/56, in accordance with CECC 30 301–809
Test Method & Performance
Endurance Life Test
Conditions
Temperature
Test Duration
Ripple Current
Voltage
+105°C
2,000 hours
Maximum ripple current specified in table
The sum of DC voltage and the peak AC voltage must not exceed the rated voltage of the capacitor
Performance
Performance
Capacitance Change
Equivalent Series Resistance
Leakage Current
The following specifications will be satisfied when the capacitor is tested at +20°C:
≤ 160 V
> 160 V
Does not exceed 200% of the initial value
Does not exceed leakage current limit
Within 15% of the initial value
Within 10% of the initial value
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4025_PEH536 • 2/7/2017
2
Snap-In Aluminum Electrolytic Capacitors – PEH536, +105°C
Dimensions – Millimeters
DXL
22 x 30
22 x 35
22 x 40
22 x 45
22 x 50
25 x 25
25 x 30
25 x 35
25 x 40
25 x 45
25 x 50
30 x 25
30 x 30
30 x 35
30 x 40
30 x 45
30 x 50
35 x 25
35 x 30
35 x 35
35 x 40
35 x 45
35 x 50
35 x 55
35 x 60
40 x 60
40 x 70
40 x 80
40 x 100
Size Code
AC
AD
AE
AF
AG
BB
BC
BD
BE
BF
BG
CB
CC
CD
CE
CF
CG
DB
DC
DD
DE
DF
DG
DH
DI
EI
EK
EM
EQ
Dimensions in mm
D1
L1
±0.5
22.5
22.5
22.5
22.5
22.5
25.5
25.5
25.5
25.5
25.5
25.5
30.5
30.5
30.5
30.5
30.5
30.5
35.5
35.5
35.5
35.5
35.5
35.5
35.5
35.5
40.5
40.5
40.5
40.5
±1.0
31
36
41
46
51
26
31
36
41
46
51
26
31
36
41
46
51
26
31
36
41
46
51
56
61
61
71
81
101
Approximate
Weight
Grams
14
15
17
19
21
19
21
24
27
30
33
24
29
34
39
45
51
32
40
48
56
64
72
85
88
115
135
155
175
Note: Add 0.5 mm to D and 1 mm to L for Sleeving
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4025_PEH536 • 2/7/2017
3
Snap-In Aluminum Electrolytic Capacitors – PEH536, +105°C

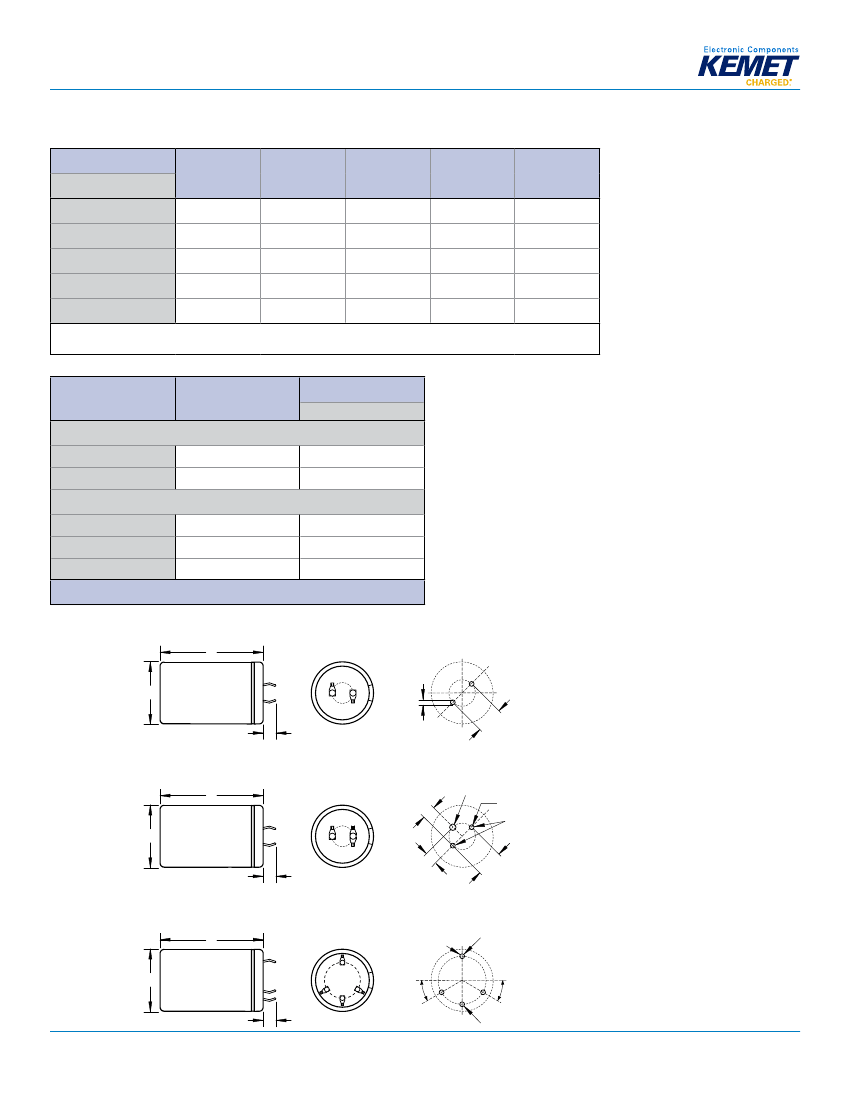

Termination Tables
Termination Code
Diameter (mm)
22
25
30
35
40
2
•
•
•
•
•
2S
•
•
•
•
•
3
•
•
•
•
•
4
4S
•
•
•
•
Mounting: These capacitors are designed to be mounted by their terminations alone and may be used in any
position. Dummy pins on 4-pin decks must be isolated.
Termination
Code
2
4 (D = 40)
2S
3
4S
Termination
Style
Standard Termination Option
2 Pin
4 Pin
Other Termination Options
2 Pin
3 Pin
4 Pin
LL
±1
6.3
6.3
4
4
4
Dimensions in mm
Style 2/2S
SIDE VIEW
L
D
LL
2 ±0.1
10 ±0.1
TERMINAL
END VIEW
PCB LAYOUT
Style 3
SIDE VIEW
L
D
5.8 ±1
TERMINAL
END VIEW
3.3 ±0.1
+
-
PCB LAYOUT
Ø2.5 Minimum
+ ve
Ø2 ±0.1 Typical
4.75 ±0.1
10 ±0.1
Style 4/4S
SIDE VIEW
L
D
TERMINAL
END VIEW
-
PCB LAYOUT
4 Holes Ø2 ±0.1
on a Ø22.5 PCD
- ve
+
30°
+ ve
30°
5.8 ±1
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4025_PEH536 • 2/7/2017
4
Snap-In Aluminum Electrolytic Capacitors – PEH536, +105°C
Shelf Life
The capacitance, ESR and impedance of a capacitor will not change significantly after extended storage periods, however
the leakage current will very slowly increase. KEMET products are particularly stable and allow a shelf life in excess of three
years at 40°C. See sectional specification under each product series for specific data.
Re-age (Reforming) Procedure
Apply the rated voltage to the capacitor at room temperature for a period of one hour, or until the leakage current has fallen
to a steady value below the specified limit. During re-aging a maximum charging current of twice the specified leakage
current or 5 mA (whichever is greater) is suggested.
Reliability
The reliability of a component can be defined as the probability that it will perform satisfactorily under a given set of
conditions for a given length of time.
In practice, it is impossible to predict with absolute certainty how any individual component will perform; thus, we must
utilize probability theory. It is also necessary to clearly define the level of stress involved (e.g. operating voltage, ripple
current, temperature and time). Finally, the meaning of satisfactory performance must be defined by specifying a set of
conditions which determine the end of life of the component.
Reliability as a function of time, R(t), is normally expressed as: R(t)=e-
λt
where R(t) is the probability that the component will perform satisfactorily for time t, and λ is the failure rate.
Failure Rate
The failure rate is the number of components failing per unit time. The failure rate of most electronic components follows
the characteristic pattern:
• Early failures are removed during the manufacturing process.
• The operational life is characterized by a constant failure rate.
• The wear out period is characterized by a rapidly increasing failure rate.
The failures in time (FIT) are given with a 60% confidence level for the various type codes. By convention, FIT is expressed as
1 x 10
-9
failures per hour. Failure rate is also expressed as a percentage of failures per 1,000 hours.
e.g., 100 FIT = 1 x 10
-7
failures per hour = 0.01%/1,000 hours
End of Life Definition
Catastrophic Failure: short circuit, open circuit or safety vent operation
Parametric Failure:
• Change in capacitance > ±10%
• Leakage current > specified limit
• ESR > 2 x initial ESR value
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4025_PEH536 • 2/7/2017
5
