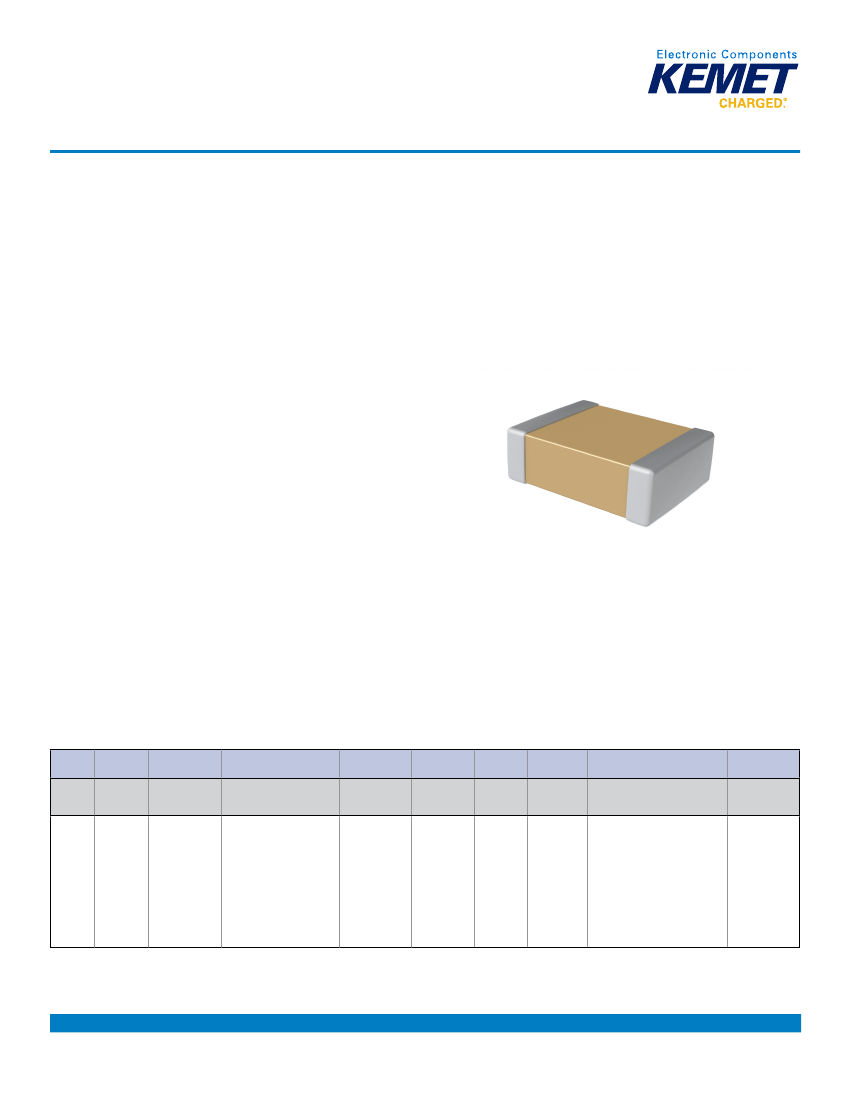

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
High Temperature (200°C), C0G Dielectric, 10 – 200 VDC (Industrial Grade)
Packaging C-Spec Ordering Options Table
Termination Finish Options
Packaging Type/Options
Standard Packaging – Unmarked
3
Bulk Bag
Waffle Tray
2
7" Tape & Reel
C = 100% Matte Sn
L = SnPb (5% Pb min.)
F = Gold (Au) 30 – 50 µin
G = Gold (Au) 100 µin minimum
13" Reel
7” Tape & Reel/2 mm pitch
4
7" Tape & Reel – 50 pieces
7" Tape & Reel – 100 pieces
7" Tape & Reel – 250 pieces
7" Tape & Reel – 500 pieces
7" Tape & Reel – 1,000 pieces
Blank
1
7292
TU
7411 (EIA 0603 and smaller case sizes)
7210 (EIA 0805 and larger case sizes)
7081
T050
T100
T250
T500
T1K0
7282
7130
Packaging
Ordering Code (C-Spec)
Moisture Sensitive Packaging
5
– Unmarked
3
Waffle Tray
2
7" Tape & Reel
7" Tape & Reel – 50 pieces
7" Tape & Reel – 100 pieces
7" Tape & Reel – 250 pieces
7" Tape & Reel – 500 pieces
7" Tape & Reel – 1,000 pieces
E = Gold (Au) 1.97 – 11.8 µin
F = Gold (Au) 30 – 50 µin
G = Gold (Au) 100 µin minimum
Contact KEMET
6
Default packaging is “Bulk Bag”. An ordering code C-Spec is not required for “Bulk Bag” packaging.
“Bulk Bag” packaging option is not available for Gold (Au) termination finish options and case sizes larger than 2225 (5664 Metric).
2
“Waffle Tray” packaging option is not available for case sizes larger than 2225 (5664 Metric).
3
The terms “Marked” and “Unmarked” pertain to laser marking option of components. All packaging options labeled as “Unmarked” will contain
capacitors that have not been laser marked. The option to laser mark is not available on these devices.
3
Reeling quantities are dependent upon chip size and thickness dimension. When ordering using the “T1K0” packaging option, 1812 through 2225 case
size devices with chip thickness of ≥ 1.9 mm (nominal) may be shipped on multiple 7” reels or a single 13” reel. Additional reeling or packaging options
may be available. Contact KEMET for details.
4
The 2 mm pitch option allows for double the packaging quantity of capacitors on a given reel size. This option is limited to EIA 0603 (1608 metric) case
size devices. For more information regarding 2 mm pitch option see “Tape & Reel Packaging Information”.
5
Moisture sensitive packaging is required for Gold (Au) termination option “E” (1.97 – 11.8 µin)
6
Additional reeling or packaging options may be available. Contact KEMET for details.
