Data Sheet
6.0 Amp
SINGLE PHASE SILICON BRIDGE
Mechanical Dimensions
KBPC600 . . . 610 Series
Description
Mechanical Data:
Weight - 0.3 Ounces. Mounting Torque -
5.1 lbs. Mounting Position - Any.
Features
n
COMPACT SIZE
n
LOW LEAKAGE CURRENT
n
150 AMP SURGE OVERLOAD RATING
n
MEETS UL SPECIFICATION 94V-0
Electrical Characteristics @ 25
o
C.
Maximum Ratings
Peak Repetitive Reverse Voltage...V
RRM
RMS Reverse Voltage...V
R(rms)
DC Blocking Voltage...V
DC
Average Forward Rectified Current...I
F(av)
T
C
= 50°C, Alum. Heat Sink
(5.5" x 6.0" x 0.11" Plate)
T
A
= 45°C, PCB Mounting
Non-Repetitive Peak Forward Surge Current...I
FSM
8.3 mS Single ½ Sine Wave Imposed on Rated Load
Point Rating for Fusing...(T < 8.3 mS)
Forward Voltage...V
F
Bridge Element @ 3.0 Amps
DC Reverse Current...I
R
@ Rated DC Blocking Voltage
T
A
= 25°C
T
A
=125°C
KBPC600...610 Series
KBPC600 KBPC601 KBPC602 KBPC604 KBPC606 KBPC608 KBPC610
50
35
50
100
70
100
200
140
200
400
280
400
600
420
600
800
560
800
1000
700
1000
Units
Volts
Volts
Volts
............................................. 6.0 ...............................................
............................................. 3.0 ...............................................
............................................. 175 ...............................................
............................................. 127 ...............................................
............................................. 1.0 ...............................................
Amps
Amps
Amps
A
2
S
Volts
............................................. 5.0 ...............................................
............................................. 500 ...............................................
< ................... 1 8 6 .................... > < ............. 9 0 ........... >
......................................... -55 to 150 ..........................................
µAmps
µAmps
pF
°C
Typical Thermal Resistance...R
θJC
(Alum Heat Sink)
Typical Junction Capacitance...C
J
Operating & Storage Temperature Range...T
J
, T
STRG
............................................. 8.0 ...............................................
°C
/ W / Leg
Page 3-21
Data Sheet
6.0 Amp
SINGLE PHASE SILICON BRIDGE

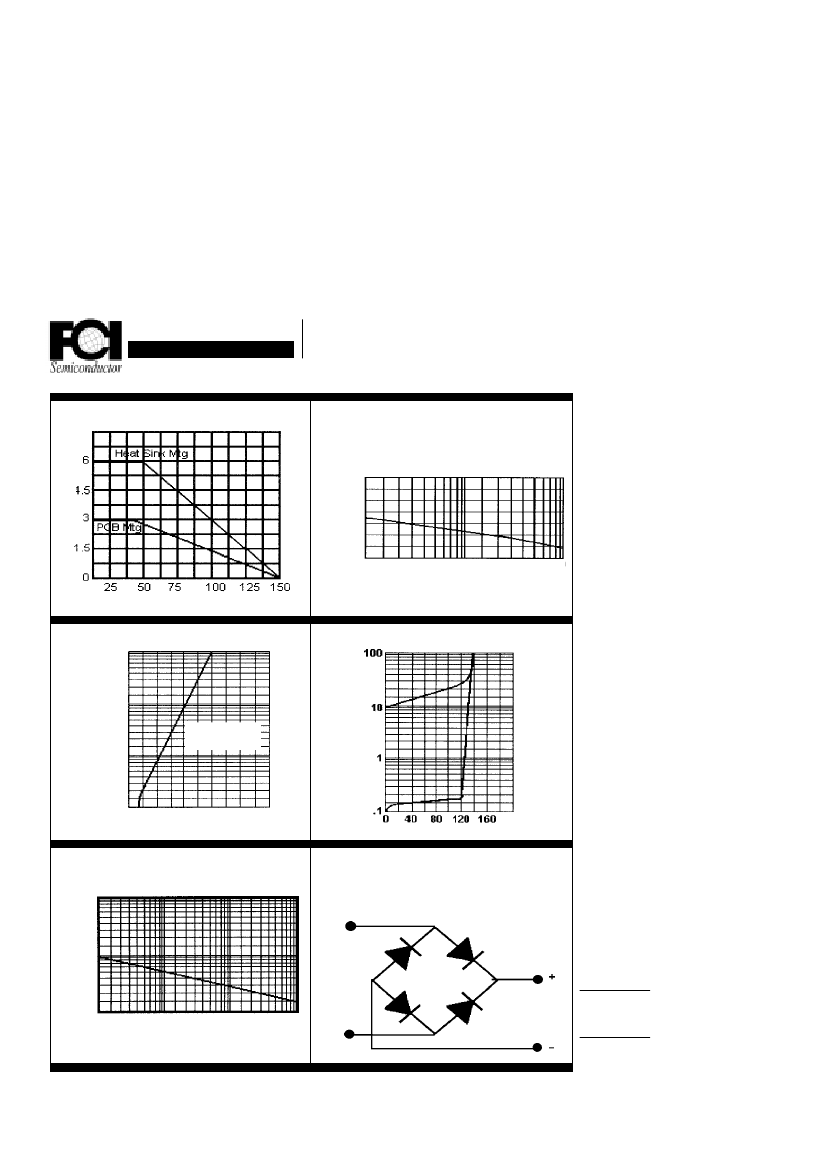

Forward Current Derating Curve
Non-Repetitive
Peak Forward Surge Current
Amps
300
Amps
200
100
1
Lead Temperature (°C)
°
10
Number of Cycles @ 60 HZ
100
Typical Instantaneous Forward Characteristics
100
Typical Reverse Characteristics
10
Amps
T
J
= 25°C
°
1
µ
Amps
0
.7
.9
1.1 1.3
Volts
1.5
Percent of Rated Peak Voltage
Typical Junction Capacitance
1000
Electrical Description
100
AC In
Ratings at
25 Deg. C ambient
temperature
unless otherwise
specified.
pF
10
.1
1.0
10
100
Reverse Voltage (Volts)
DC Out
Single Phase Half
Wave, 60 HZ
Resistive or
Inductive Load.
For Capacitive
Load, Derate
Current by 20%.
Page 3-22
KBPC600 . . . 610 Series
