DSF-18-0006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DSF-18-0006

DSF-18-0006: DescriptionFixed Inductors DSF Storage choke 4A; CategoryPassive components inductor; File Size236KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DSF-18-0006 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DSF-18-0006	-	-	View	Buy Now

DSF-18-0006 Overview

Fixed Inductors DSF Storage choke 4A

DSF-18-0006 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	7270
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
uppercase and lowercase codes	7270
structure	Sealed
DC Resistance	0.008 Ω
Nominal inductance(L)	11 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Lead length	3.5 mm
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	12.4 mm
Package length	18.2 mm
Package form	PCB Mount
Package width	17.8 mm
Maximum rated current	4 A
self resonant frequency	32 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	RADIAL
Terminal shape	WIRE
Tolerance	15%

Preview

Download Datasheet

View All

Suppression Chokes

https://www.schurter.com /PG81_82

DSF

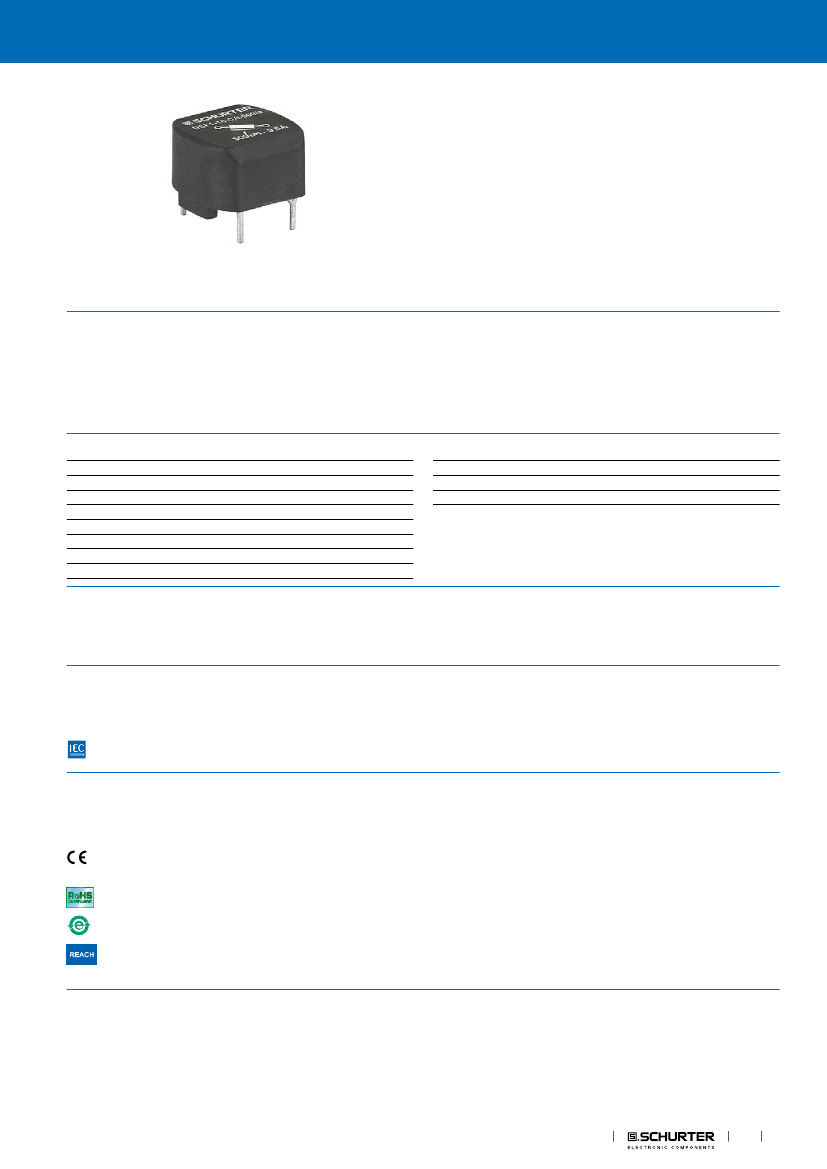

Storage Choke, flat design

Approvals and Compliances

Description

Storage choke

THT-terminals

Inductor horizontally positioned in housing

Constant inductance at high alternating field modulation and large DC

magnetization

- Reduced magnetic reversal

- SMD version on request

Applications

Storage of energy in switched power supplies

Switch-mode

Chopper amplifiers

DC drives and stepper motor controls

Weblinks

pdf datasheet, html-datasheet, General Product Information, Distributor-

Stock-Check, Detailed request for product, SPICE Library

Technical Data

Rated voltage

Rated Current

Rated inductance

Power Operating Frequency

Terminal Type

Weight

Material: Housing

Sealing Compound

up to 600 VDC

0.45 - 4.5 A @ Ta 70 °C

0.011 - 3.7 mH, Tol. ±15%

up to 1 MHz

THT

7 - 18 g

UL 94V-0

Isolation Voltage

Climatic Category

Allowable Operation Temp.

2 kV eff., winding to ambient

40/125/21 acc. to IEC 60068-1

-40 °C to 125 °C

Approvals and Compliances

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in

Details about

Approvals

Application standards

Application standards where the product can be used

Organization

Design

Designed for applications acc.

Standard

IEC/UL 60950

Description

IEC 60950-1 includes the basic requirements for the safety of information

technologyequipment.

Compliances

The product complies with following Guide Lines

Identification

Details

CE declaration of conformity

Initiator

SCHURTER AG

Description

The CE marking declares that the product complies with the applicable

requirements laid down in the harmonisation of Community legislation on

its affixing in accordance with EU Regulation 765/2008.

EU Directive RoHS 2011/65/EU

The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March

2007. It is similar to the EU directive RoHS.

On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,

Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as

"REACH") entered into force.

RoHS

China RoHS

REACH

SCHURTER AG

EMC Products

DSF-18-0006 Related Products

	DSF-18-0006	PCF1206-2-3R48CI	CHP2208100PPM1.1K1%WE4	DSF-28-0008	DSF-28-0005	DSF-28-0001
Description	Fixed Inductors DSF Storage choke 4A	Fixed Resistor, Metal Film, 0.125W, 3.48ohm, 150V, 0.25% +/-Tol, -50,50ppm/Cel, 1206,	Fixed Resistor, Metal Glaze/thick Film, 0.75W, 1100ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 2208,	Fixed Inductors DSF Storage choke 6.3A	Fixed Inductors DSL Storage choke 1.8A	Fixed Inductors DSF Storage choke 0.45A
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Sealed	Chip	Chip	Sealed	Sealed	Sealed
JESD-609 code	e3	e3	e4	e3	e3	e3
Number of terminals	4	2	2	4	4	4
Maximum operating temperature	125 °C	125 °C	155 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C
Package height	12.4 mm	0.65 mm	0.5 mm	16.5 mm	16.5 mm	16.5 mm
Package length	18.2 mm	3.2 mm	5.58 mm	28.3 mm	28.3 mm	28.3 mm
Package form	PCB Mount	SMT	SMT	PCB Mount	PCB Mount	PCB Mount
Package width	17.8 mm	1.6 mm	1.91 mm	27.4 mm	27.4 mm	27.4 mm
Terminal surface	Tin (Sn)	Matte Tin (Sn) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Tin (Sn)	Tin (Sn)	Tin (Sn)
Tolerance	15%	0.25%	1%	15%	15%	15%
DC Resistance	0.008 Ω	-	-	0.01 Ω	0.125 Ω	1.9 Ω
Nominal inductance(L)	11 µH	-	-	18 µH	230 µH	3700 µH
Inductor Applications	RF INDUCTOR	-	-	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Lead length	3.5 mm	-	-	3.5 mm	3.5 mm	3.5 mm
Number of functions	1	-	-	1	1	1
Maximum rated current	4 A	-	-	6.3 A	1.8 A	0.45 A
self resonant frequency	32 MHz	-	-	18 MHz	3.5 MHz	0.6 MHz
Shape/Size Description	RECTANGULAR PACKAGE	-	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	-	-	NO	NO	NO
surface mount	NO	-	-	NO	NO	NO
Terminal location	RADIAL	-	-	RADIAL	RADIAL	RADIAL
Terminal shape	WIRE	-	-	WIRE	WIRE	WIRE
