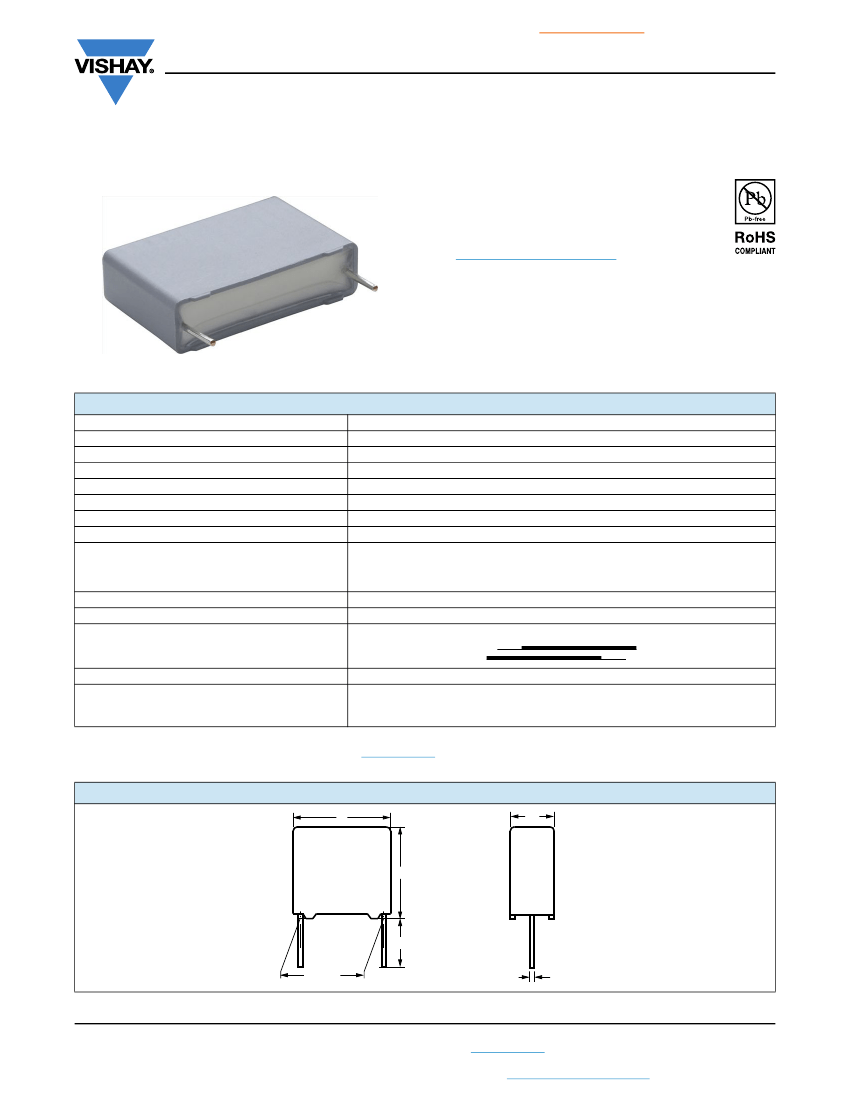

Not Recommended for New Designs, Use MKP338 1 X1
MKP336 1 X1
www.vishay.com
Vishay BCcomponents
Interference Suppression Film Capacitors
MKP Radial Potted Type
FEATURES
• 15 mm to 27.5 mm lead pitch.
Supplied in box, taped on ammopack or reel
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
X1 class
For X1 electromagnetic interference suppression in across
the line applications (50 Hz/60 Hz) with a maximum mains
voltage of 275 V
AC
.
For application limitations please refer to section
“Application Notes”.
QUICK REFERENCE DATA
Capacitance range (E12 series)
Capacitance tolerance
Rated AC voltage
Permissible DC voltage
Climatic testing class (according to EN 60068-1)
Maximum application temperature
Rated temperature
Leads
Reference standards
Dielectric
Electrodes
Construction
Encapsulation
Marking
Plastic case, epoxy resin sealed, flame retardant UL-class 94 V-0
C-value; tolerance; rated voltage; sub-class; manufacturer’s type;
code for dielectric material; manufacturer location, year and week;
manufacturer’s logo or name; safety approvals
0.01 μF to 1 μF (preferred values according to E6)
± 20 %; ± 10 %; ± 5 %
275 V
AC
; 50 Hz to 60 Hz
630 V
DC
55/105/56/B
105 °C
105 °C
Tinned wire
IEC 60384-14 ed-4 (2013) and EN 132400
IEC 60065, pass. flamm. class B
UL 60384-14
CSA E384-14
Polypropylene film
Metallized film
Mono construction
Note
• For more detailed data and test requirements, contact
rfi@vishay.com
DIMENSIONS
in millimeters
L
W
H
lt
P ± 0.4
Ø d
t
Revision: 21-Sep-16
Document Number: 28117
1
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Recommended for New Designs, Use MKP338 1 X1
MKP336 1 X1
www.vishay.com
COMPOSITION OF CATALOG NUMBER
TYPE AND PITCHES
15.0 mm
336 1 X1
22.5 mm
27.5 mm
CAPACITANCE
(numerically)
MULTIPLIER
(nF)
0.1
1
10
100
2
3
4
5
Vishay BCcomponents
Example:
104 = 10 x 10 = 100 nF
BFC2
2222(*)
(*) Old ordering code
336 1X XX X
336 1X XX X
TYPE
336 1
PACKAGING
Loose in box
LEAD CONFIGURATION
Lead length 3.5 mm ± 0.3 mm
Lead length 25.0 mm ± 2.0 mm
C-TOL.
± 20 %
PREFERRED TYPES
BFC2 336 10...
BFC2 336 16...
ON REQUEST
X1
336 1
X1
Loose in box
Taped on reel
Lead length 3.5 mm ± 0.3 mm
Lead length 25.0 mm ± 2.0 mm
H = 18.5 mm; P
0
=
12.7 mm;
reel diameter 500 mm
± 10 %
± 20 %
± 10 %
BFC2 336 11...
BFC2 336 17...
BFC2 336 13...
BFC2 336 14...
Note
(1)
For detailed tape specifications refer to packaging information:
www.vishay.com/doc?28139
SPECIFIC REFERENCE DATA
DESCRIPTION
Tangent of loss angle:
C
100 nF
100 nF < C
470 nF
C
470 nF
Rated voltage pulse slope (dU/d
t
)
R
at 385 V
DC
:
P = 15 mm
P = 22.5 mm
P = 27.5 mm
R between leads, for C
0.33 μF at 100 V; 1 min
RC between leads, for C > 0.33 μF at 100 V; 1 min
R between leads and case; 100 V; 1 min
Withstanding (DC) voltage (cut off current 10 mA)
(1)
; rise time
1000 V/s
Withstanding (AC) voltage between leads and case
Note
(1)
See “Voltage Proof Test for Metalized Film Capacitors”:
www.vishay.com/doc?28169
250 V/μs
150 V/μs
100 V/μs
> 15 000 M
> 5000 s
> 30 000 M
3400 V; 1 min
2050 V; 1 min
VALUE
at 10 kHz
10 x 10
-4
20
x 10
-4
70
x 10
-4
Revision: 21-Sep-16
Document Number: 28117
2
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Recommended for New Designs, Use MKP338 1 X1
MKP336 1 X1
www.vishay.com
Vishay BCcomponents
CATALOG NUMBER BFC2 336 1 ..... AND PACKAGING
LOOSE IN BOX
ELECTRICAL DATA AND ORDERING INFORMATION
REEL
500 mm
(1)(2)
H
½
18.5 mm;
P
0
½
12.7 mm
SPQ
U
RAC
(V)
CAP.
(μF)
DIMENSIONS
WxHxL
(mm)
MASS
(g)
(1)
l
t
=3.5
mm ± 0.3 mm
l
t
=25.0 mm ± 2.0 mm
0.010
0.015
0.022
0.033
0.047
0.068
0.100
0.10
0.15
0.22
0.22
0.33
0.47
0.68
1.00
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
275
LAST 5 DIGITS
LAST 5 DIGITS
LAST 5 DIGITS
OF CATALOG
SPQ
OF CATALOG
SPQ
OF CATALOG
NUMBER
NUMBER
NUMBER
PITCH = 15.0 mm ± 0.4 mm; d
t
= 0.6 mm ± 0.06 mm; U
RAC
= 275 V; C-TOL. = ± 20 %
19001
19007
19002
5.0 x 11.0 x 17.5
1
10153
16153
13153
1000
1000
10223
16223
13223
6.0 x 12.0 x 17.5
1.4
10333
16333
13333
PITCH = 15.0 mm ± 0.4 mm; d
t
= 0.8 mm ± 0.08 mm; U
RAC
= 275 V; C-TOL. = ± 20 %
7.0 x 13.5 x 17.5
1.8
10473
16473
13473
1000
8.5 x 15.0 x 17.5
2.4
10683
16683
500
13683
10.0 x 16.5 x 17.5
3
10104
500
16104
13104
PITCH = 22.5 mm ± 0.4 mm; d
t
= 0.8 mm ± 0.08 mm; U
RAC
= 275 V; C-TOL. = ± 20 %
7.0 x 16.5 x 26.0
2.9
19003
19008
19004
8.5 x 18.0 x 26.0
3.8
10154
200
16154
500
13154
10.0 x 19.5 x 26.0
6.8
10224
16224
13224
PITCH = 27.5 mm ± 0.4 mm; d
t
= 0.8 mm ± 0.08 mm; U
RAC
= 275 V; C-TOL. = ± 20 %
11.0 x 21.0 x 31.0
7.4
19005
19009
13.0 x 23.0 x 31.0
9.2
10334
16334
100
125
15.0 x 25.0 x 31.0
12.3
10474
16474
18.0 x 28.0 x 31.0
16.1
10684
16684
21.0 x 31.0 x 31.0
20.3
10105
50
16105
75
PITCH = 15.0 mm ± 0.4 mm; d
t
= 0.6 mm ± 0.06 mm; U
RAC
= 275 V; C-TOL. = ± 10 %
11103
17103
14103
11123
17123
14123
5.0 x 11.0 x 17.5
1
11153
17153
14153
1000
1000
11183
17183
14183
11223
17223
14223
6.0 x 12.0 x 17.5
1.4
11273
17273
14273
PITCH = 15.0 mm ± 0.4 mm; d
t
= 0.8 mm ± 0.08 mm; U
RAC
= 275 V; C-TOL. = ± 10 %
11333
17333
14333
7.0 x 13.5 x 17.5
1.8
11393
17393
14393
1000
11473
17473
14473
8.5 x 15.0 x 17.5
2.4
500
11563
17563
14563
11683
17683
14683
10.0 x 16.5 x 17.5
3
500
11823
17823
14823
PITCH = 22.5 mm ± 0.4 mm; d
t
= 0.8 mm ± 0.08 mm; U
RAC
= 275 V; C-TOL. = ± 10 %
7.0 x 16.5 x 26.0
2.9
11104
17104
500
14104
11124
17124
14124
200
8.5 x 18.0 x 26.0
3.8
250
11154
17154
14154
10.0 x 19.5 x 26.0
6.8
11184
17184
500
14184
PITCH = 27.5 mm ± 0.4 mm; d
t
= 0.8 mm ± 0.08 mm; U
RAC
= 275 V; C-TOL. = ± 10 %
11224
17224
11.0 x 21.0 x 31.0
7.4
11274
17274
13.0 x 23.0 x 31.0
9.2
11334
17334
11394
100
17394
125
15.0 x 25.0 x 31.0
12.3
11474
17474
11564
17564
18.0 x 28.0 x 31.0
16.1
11684
17684
21.0 x 31.0 x 31.0
20.3
11824
50
17824
75
1100
900
800
650
600
550
450
400
1100
900
800
650
600
550
450
400
Notes
• SPQ = Standard Packing Quantity
(1)
Reel diameter = 356 mm is available on request
(2)
H = In tape height; P = Sprocket hole distance; for detailed specifications refer to Packaging Information.
0
(3)
Weight for short lead product only
Revision: 21-Sep-16
Document Number: 28117
3
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Recommended for New Designs, Use MKP338 1 X1
MKP336 1 X1
www.vishay.com
Vishay BCcomponents
APPROVALS
SAFETY APPROVALS X1
EN 60384-14 (ENEC)
(= IEC 60384-14 ed-4 (2013))
UL 60384-14
CSA E384-14
CB-Test-Certificate
VOLTAGE
275 V
AC
275 V
AC
275 V
AC
275 V
AC
VALUE
10 nF to 1 μF
10 nF to 1 μF
10 nF to 1 μF
10 nF to 1 μF
FILE NUMBERS
FI 2016036
E354331
E354331
FI 9217
LINKS
www.vishay.com/doc?28197
www.vishay.com/doc?28188
www.vishay.com/doc?28198
The ENEC-approval together with the CB-Certificate replace all national marks of the following countries (they have already signed the
ENEC-Agreement): Austria; Belgium; Czech. Republic; Denmark; Finland; France; Germany; Greece; Hungary; Ireland; Italy; Luxembourg;
Netherlands; Norway; Portugal; Slovenian; Spain; Switzerland and United Kingdom.
MOUNTING
Normal Use
The capacitors are designed for mounting on printed-circuit boards. The capacitors packed in bandoliers are designed for
mounting in printed-circuit boards by means of automatic insertion machines.
For detailed tape specifications refer to “Packaging information”.
Specific Method of Mounting to Withstand Vibration and Shock
In order to withstand vibration and shock tests, it must be ensured that the stand-off pips are in good contact with the
printed-circuit board:
• For pitches
15 mm capacitors shall be mechanically fixed by the leads
• For longer pitches the capacitors shall be mounted in the same way and the body clamped
Space Requirements on Printed Circuit Board
The maximum length and width of film capacitors is shown in Figure:
• Eccentricity as in figure. The maximum eccentricity is smaller than or equal to the lead diameter of the product concerned
• Product height with seating plane as given by “IEC 60717” as reference: h
max.
h + 0.3 mm
b
max.
= b + 0.3 mm
Eccentricity
l
max.
= I + 0.3 mm
CBA116
SOLDERING CONDITIONS
For general soldering conditions and wave soldering profile, we refer to the application note:
“Soldering Guidelines for Film Capacitors”:
www.vishay.com/doc?28171
Storage Temperature
T
stg
= -25 °C to +35 °C with RH maximum 75 % without condensation
Ratings and Characteristics Reference Conditions
Unless otherwise specified, all electrical values apply to an ambient temperature of 23 °C ± 1 °C, an atmospheric pressure of
86 kPa to 106 kPa and a relative humidity of 50 % ± 2 %.
For reference testing, a conditioning period shall be applied over 96 h ± 4 h by heating the products in a circulating air oven at
the rated temperature and a relative humidity not exceeding 20 %.
Revision: 21-Sep-16
Document Number: 28117
4
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Recommended for New Designs, Use MKP338 1 X1
MKP336 1 X1
www.vishay.com

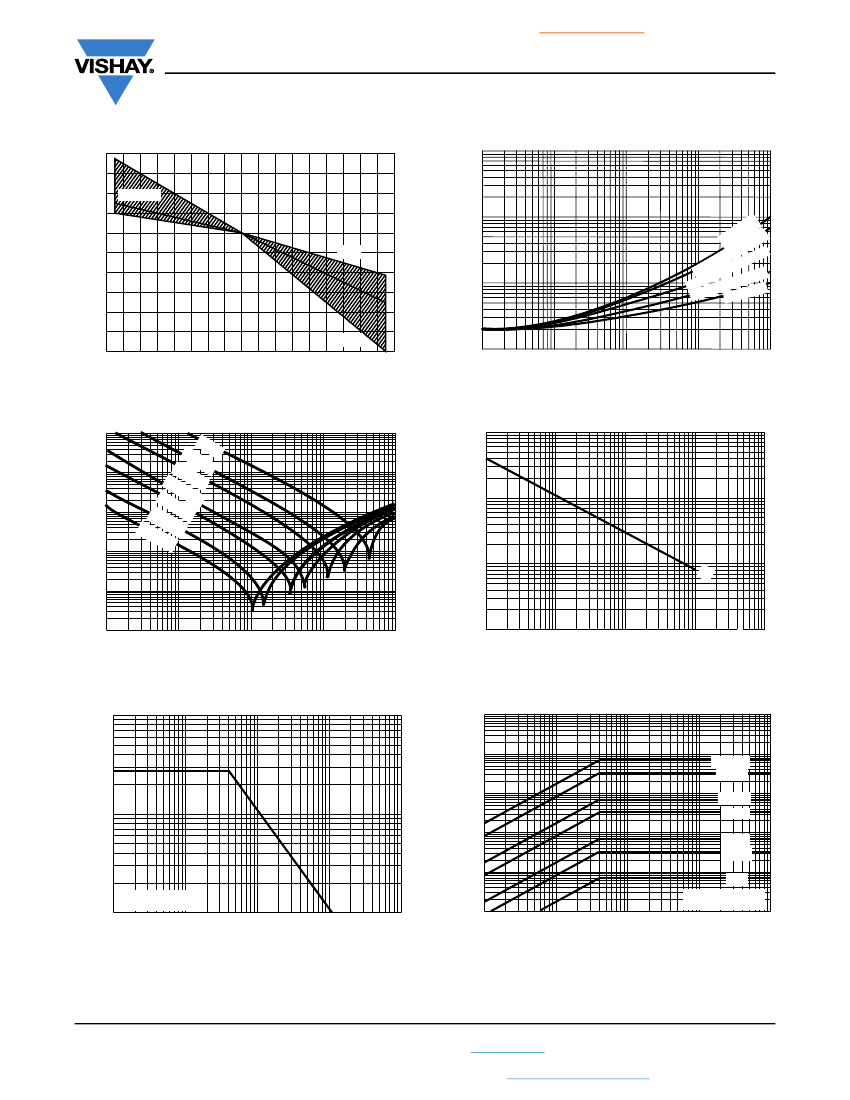

CHARACTERISTICS
ΔC/C
(%)
Dissipation
factor (x 10
-4
)
Vishay BCcomponents
4
10
3
2
typical
0
max.
-2
10
2
10
1
µF
= 1
µF
C
<1
nF
<C
nF
≤
220
0
C
22
<
7 nF
F
7n
<C
≤
4
F
4
F
10 n
10 n
C
≤
-4
min.
- 50
0
Capacitance
10
2
-6
50
T
amb
(°C)
100
10
0
10
1
10
2
10
3
10
4
f (Hz)
10
5
Tangent of loss angle
10
3
Impedance
(Ω)
4.7
n
47
F
nF
10
0n
F
47
0n
F
10
00
nF
10
nF
10
1
10
0
f (MHz)
10
1
10
0
1n
F
X1
10
-1
10
-2
10
-1
10
4
10
5
10
6
10
7
f (Hz)
10
8
1
10
100
1000
C (nF)
10 000
Impedance
Resonant frequency
10
3
10
4
AC voltage
(V)
AC current
(mA)
1000 nF
470 nF
100 nF
47 nF
10
10
2
2
10
1
10 nF
4.7 nF
1 nF
T
amb
≤
100 °C
10
1
10
T
amb
≤
105 °C
0
10
1
10
-1
10
1
10
2
10
3
10
4
f (Hz)
10
5
10
2
10
3
10
4
f (Hz)
10
5
Max. RMS voltage and AC current (sinewave)
Revision: 21-Sep-16
Document Number: 28117
5
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
