LFXTAL003003Cutt datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> LFXTAL003003Cutt

Preview

LFXTAL003003Cutt: DescriptionCrystals 32.7680kHz 10.4 x 4.0 x 3.56mm; CategoryPassive components; File Size139KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL003003Cutt Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL003003Cutt	-	-	View	Buy Now

LFXTAL003003Cutt Overview

Crystals 32.7680kHz 10.4 x 4.0 x 3.56mm

LFXTAL003003Cutt Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	IQD Frequency Products
Product Category	Crystals
RoHS	Details
Termination Style	SMD/SMT
Package / Case	10.41 mm x 4.06 mm
Load Capacitance	12.5 pF
Frequency	32.768 kHz
Tolerance	20 PPM
Frequency Stability	-
Drive Level	1 uW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	8.7 mm
Width	3.8 mm
Height	2.5 mm
Packaging	Cut Tape
Product	Crystals
Type	Quartz Crystal
ESR	50 kOhms
Mounting Style	SMD/SMT
Factory Pack Quantity	100

Preview

Download Datasheet

View All

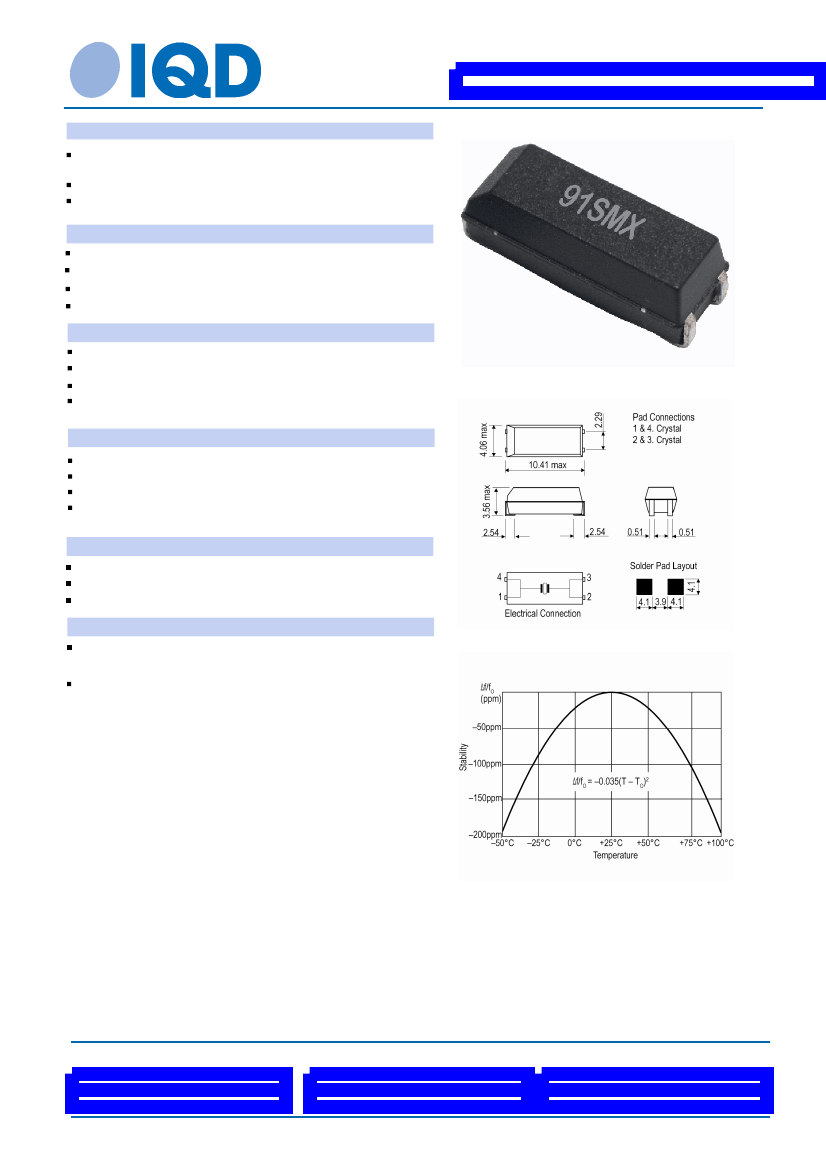

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL003003Cutt

Description

Industry standard package

Plastic encapsulated

Model

Model Issue number

Frequency Parameters

91SMX

11

Frequency

Frequency Tolerance

Overtone Order

Ageing

Electrical Parameters

32.7680kHz

±20.00ppm

Fundamental

±5ppm max per year @ 25°C

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

12.50pF

1pF typ

1.0µW max

50.00kΩ max

Outline (mm)

Operable Temperature Range: -40 to 85°C

Storage Temperature Range: -55 to 125°C

Drop: 75cm drop (3 times) onto hard wooden board

Vibration: 1.5mm amplitude, 10Hz-60Hz, 2-3mins in 3

mutually perpendicular planes, duration 2hrs each plane

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Typical Frequency Stability Characteristics

Pack Style: Cutt

Pack Size: 1

In tape, cut from a reel

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1
