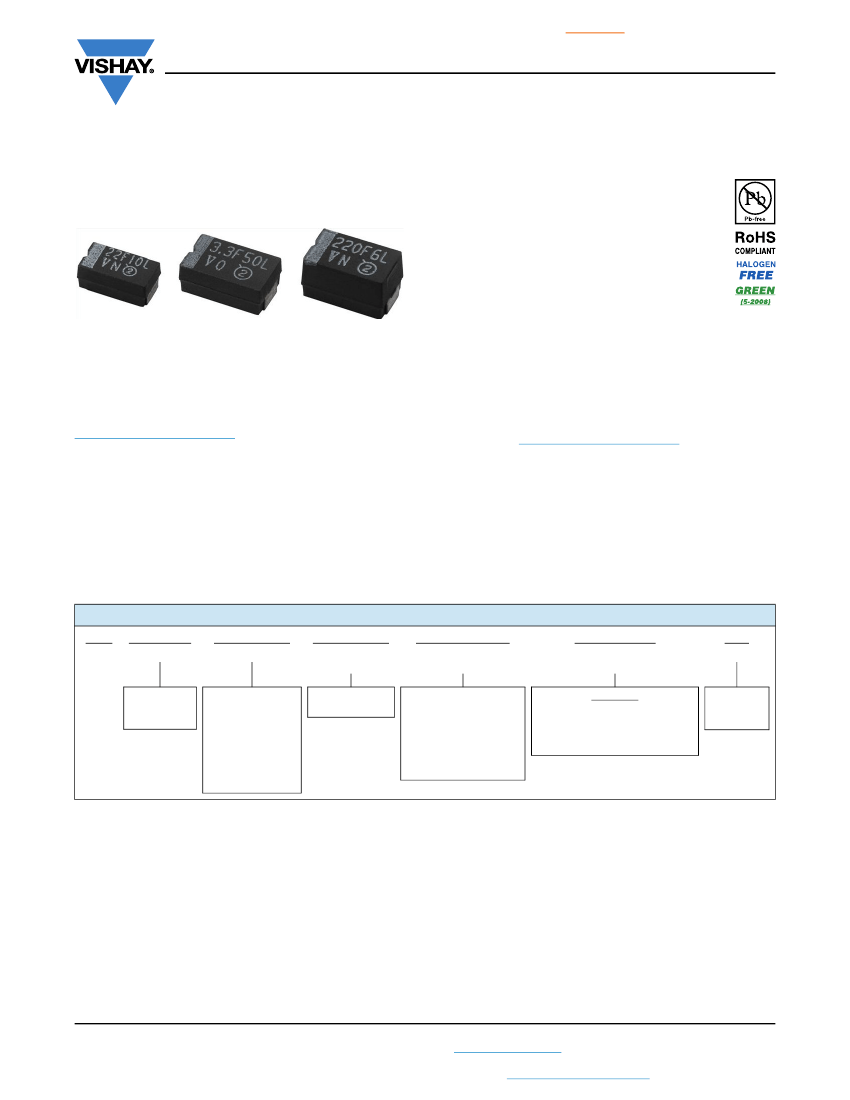

End of Life April 2018 – Alternative Device: TMCTX
TF3
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount Chip Capacitors
T
ANTAMOUNT
™, Molded Case, Built-In-Fuse
FEATURES
• Low ESR
• 100 % surge current tested
• High ripple current carrying capability
• Terminations: 100 % matte tin standard
• Molded case available in three case codes
• Compliant terminations
• Compatible with “high volume” automatic pick and place
equipment
• Meets EIA-535-BAAC mechanical and performance
requirements
PERFORMANCE / ELECTRICAL
CHARACTERISTICS
www.vishay.com/doc?40192
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
0.47 μF to 470 μF
Capacitance Tolerance:
± 10 %, ± 20 %
Voltage Rating:
4 V
DC
to 50 V
DC
• Moisture sensitivity level 1
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• Industrial
• Medical
• Computing
• Telecom infrastructure
• General purpose
ORDERING INFORMATION
TF3
TYPE
E
CASE CODE
477
CAPACITANCE
M
CAPACITANCE
TOLERANCE
K = ± 10 %
M = ± 20 %
004
DC VOLTAGE
RATING AT +85 °C
This is expressed in V.
To complete the
three-digit block, zeros
precede the voltage
rating. A decimal point
is indicated by an “R”
(6R3 = 6.3 V)
E
TERMINATION /
PACKAGING
Matte tin
C
= 7" (178 mm) reel
D
= 13" (330 mm) reel
V
= 7" (178 mm) reel, dry pack
U
= 13" (330 mm) reel, dry pack
0500
ESR
See Ratings
and Case
Codes table
This is expressed
in picofarads.
The first two
digits are the
significant figures.
The third is the
number of zeros
to follow
Maximum
100 kHz
ESR in m
Notes
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Voltage substitutions will be marked with the higher voltage rating.
Low ESR solid tantalum chip capacitors allow
ESR
of 1.25 times the datasheet limit after mounting
• Dry pack as specified in J-STD-033 for MSL3. Applicable for D and E cases only
Revision: 07-Nov-17
Document Number: 40113
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
End of Life April 2018 – Alternative Device: TMCTX
TF3
www.vishay.com
Vishay Sprague
DIMENSIONS
in inches [millimeters]
L
Glue
pad
H
W
T
W
P
T
H
(MIN.)
Glue
pad
CASE CODE
C
D
E
EIA SIZE
6032-28
7343-31
7343-43
L
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.126 ± 0.012
[3.2 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
H
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
0.157 ± 0.012
[4.0 ± 0.30]
P
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.087 ± 0.004
[2.2 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
T
H
(MIN.)
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
Note
• Glue pad (non-conductive, part of molded case) is dedicated for glue attachment (as user option)
RATINGS AND CASE CODES
μF
0.47
0.68
1.0
1.5
C (4.50, 3.80,
2.60, 1.90)
C (3.50, 2.80)
C (3.50, 2.90)
4V
6.3 V
10 V
16 V
20 V
25 V
35 V
50 V
C (8.00, 6.70,
1.90)
C (7.00, 5.90,
1.70)
C (5.50, 4.40,
2.70, 2.20)
C (5.00, 3.20,
2.00, 1.60)
C (2.80, 1.40),
D (2.50, 2.10,
0.90)
C (2.40, 1.60,
1.20),
D (2.00, 1.60)
2.2
3.3
C (2.50, 2.30,
2.10, 1.20)
C (2.50, 1.90,
1.30, 1.00)
C (2.00, 1.60,
0.60)
C (2.50, 2.00,
0.90)
4.7
C (2.00, 1.00)
C (2.00, 1.90,
0.60)
C (2.00, 1.60,
0.80)
C (1.80, 0.90), D (1.10, 0.50),
D (1.50, 1.20, E (1.50, 1.10,
0.50)
0.70, 0.60)
D (1.30, 1.00,
0.75, 0.50)
D (0.90, 0.45),
E (0.90, 0.45)
6.8
C (2.00, 0.60)
10
C (2.00, 1.80,
0.60)
C (2.00, 1.80,
0.70, 0.60)
D (0.80, 0.50,
C (1.40, 0.60),
0.40),
D (1.20, 1.00,
E (1.00, 0.80,
0.60, 0.50)
0.50, 0.40)
D (0.80, 0.50,
0.40),
E (0.90, 0.70,
0.50)
15
C (2.00, 1.80,
0.60)
C (2.00, 1.80,
0.60)
C (2.00, 1.40,
0.60)
C (1.60, 1.30,
1.00, 0.70),
D (1.00, 0.90,
0.50, 0.45)
C (1.40, 0.50),
D (1.00, 0.80,
D (1.00, 0.90,
0.50, 0.40)
0.50, 0.45)
D (0.80, 0.70,
0.40, 0.35),
E (0.90, 0.70,
0.40, 0.35)
22
C (2.00, 1.80,
0.60)
C (2.00, 1.40,
0.50)
D (1.00, 0.70,
0.50, 0.35)
E (0.60, 0.40)
33
C (2.00, 1.40,
0.60)
C (1.60, 1.30,
D (0.70, 0.40,
C (1.00, 0.50),
0.40),
0.35),
D (1.00, 0.70,
D (1.00, 0.90,
E (0.90, 0.70,
0.40, 0.35)
0.40)
0.40, 0.35)
E (0.60, 0.30)
Revision: 07-Nov-17
Document Number: 40113
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
End of Life April 2018 – Alternative Device: TMCTX
TF3
www.vishay.com
Vishay Sprague
10 V
C (1.20, 1.00,
0.40),
D (1.00, 0.70,
0.40, 0.35)
D (0.80, 0.70,
0.40, 0.35),
E (0.90, 0.70,
0.35)
D (0.70, 0.60,
0.40, 0.30),
E (0.60, 0.40,
0.30)
D (0.70, 0.60,
0.40, 0.30),
E (0.70, 0.50,
0.40, 0.25)
E (0.50, 0.30,
0.25)
16 V
D (0.80, 0.70,
0.40, 0.35),
E (0.90, 0.70,
0.40, 0.35)
20 V
D (0.60, 0.30),
E (0.60, 0.30)
25 V
35 V
50 V
RATINGS AND CASE CODES
μF
4V
6.3 V
C (1.60, 1.30,
0.60),
D (1.00, 0.90,
0.45)
C (1.60, 1.40,
0.40)
C (1.20, 0.80,
0.40),
D (1.00, 0.70,
0.35)
C (0.70, 0.40,
0.35),
D (0.80, 0.70,
0.40, 0.35),
E (0.90, 0.70,
0.30)
D (0.70, 0.60,
0.30),
E (0.60, 0.30)
D (0.70, 0.60,
0.30),
E (0.70, 0.50,
0.30, 0.25)
47
68
D (0.60, 0.30)
E (0.60, 0.30)
100
C (1.20, 0.80,
0.40)
E (0.70, 0.60,
0.30)
150
C (1.20, 0.80,
0.40),
D (0.80, 0.60,
0.30)
D (0.70, 0.60,
0.40, 0.30)
D (0.70, 0.60,
0.40, 0.30),
E (0.70, 0.50,
0.25)
E (0.50, 0.25)
E (0.40)
220
330
E (0.50, 0.30)
470

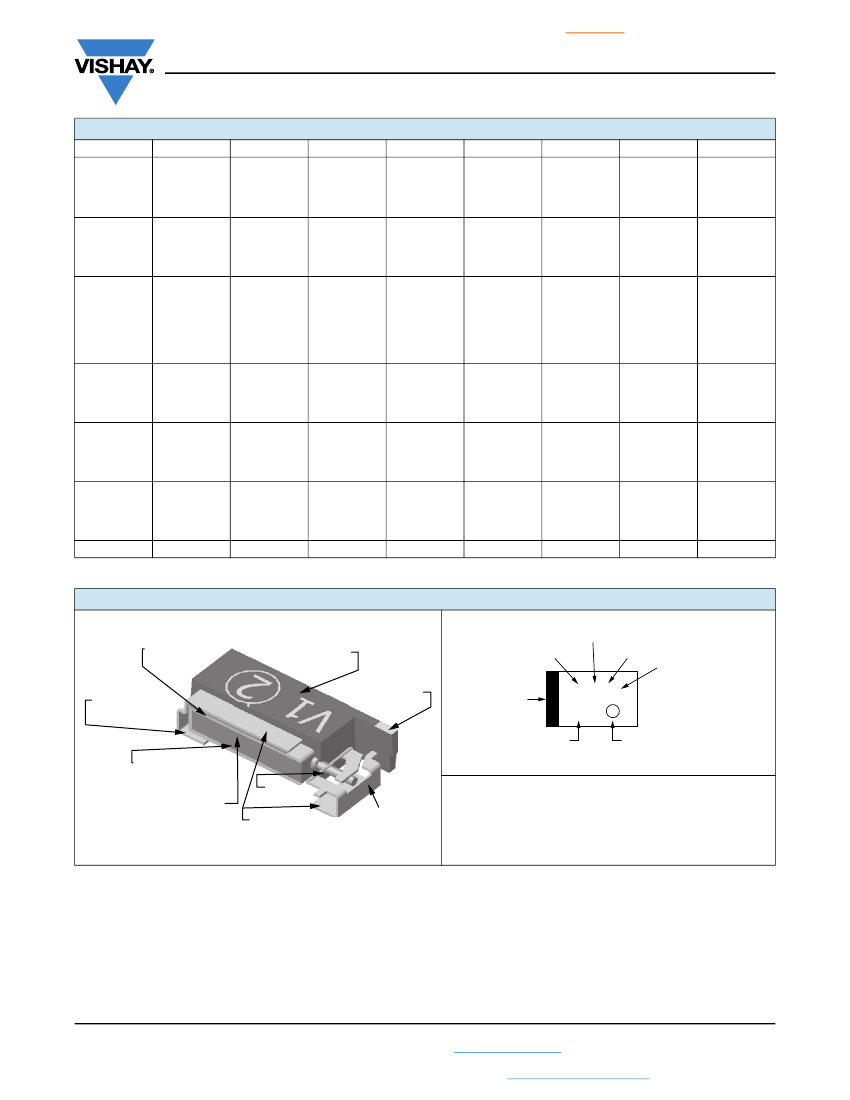

CONSTRUCTION AND MARKING
Indicates
fused product
Silver
adhesive
Epoxy encapsulation
Capacitance
μF
Polarity
band
Voltage
Indicates
lead (Pb)-free
Solderable
cathode
termination
Anode polarity bar
22F10L
2
XX
Vishay marking
Date code
MnO
2
/ carbon /
silver
coating
Sintered
tantalum pellet
Fusible
wire
Lead frame
Solderable
anode
termination
C, D, E Cases
Marking
Capacitor marking includes an anode (+) polarity band,
capacitance in microfarads and the voltage rating.
The Vishay identification is included if space permits. Capacitors
rated at 6.3 V are marked 6 V.
A manufacturing date code is marked on all capacitors.
Revision: 07-Nov-17
Document Number: 40113
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
End of Life April 2018 – Alternative Device: TMCTX
TF3
www.vishay.com
Vishay Sprague
FUSE ACTIVATION
TYPICAL CURVE
10
+
1
TIME (s)
0.1
+
+
0.01
+
+
+
+
+
+
+
+
0.001
+
+
+
+
+
2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9 9.5 10
CURRENT (A)
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
6
6
6
8
8
8
8
8
8
8
8
8
8
8
8
8
15
15
15
15
8
8
8
8
8
MAX. ESR
AT +25 °C
100 kHz
()
1.600
1.400
0.400
1.200
0.800
0.400
1.200
0.800
0.400
0.800
0.600
0.300
0.700
0.600
0.400
0.300
0.700
0.600
0.400
0.300
0.700
0.500
0.250
0.500
0.250
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.26
0.28
0.52
0.30
0.37
0.52
0.30
0.37
0.52
0.43
0.50
0.71
0.46
0.50
0.61
0.71
0.46
0.50
0.61
0.71
0.49
0.57
0.81
0.57
0.81
68
68
68
100
100
100
150
150
150
150
150
150
220
220
220
220
330
330
330
330
330
330
330
470
470
C
C
C
C
C
C
C
C
C
D
D
D
D
D
D
D
D
D
D
D
E
E
E
(1)
E
E
4 V
DC
AT +85 °C; 2.7 V
DC
AT +125 °C
TF3C686(1)004(2)1600
2.7
TF3C686(1)004(2)1400
2.7
TF3C686(1)004(2)0400
2.7
TF3C107(1)004(2)1200
4.0
TF3C107(1)004(2)0800
4.0
TF3C107(1)004(2)0400
4.0
TF3C157(1)004(2)1200
6.0
TF3C157(1)004(2)0800
6.0
TF3C157(1)004(2)0400
6.0
TF3D157(1)004(3)0800
6.0
TF3D157(1)004(3)0600
6.0
TF3D157(1)004(3)0300
6.0
TF3D227(1)004(3)0700
8.8
TF3D227(1)004(3)0600
8.8
TF3D227(1)004(3)0400
8.8
TF3D227(1)004(3)0300
8.8
TF3D337(1)004(3)0700
13.2
TF3D337(1)004(3)0600
13.2
TF3D337(1)004(3)0400
13.2
TF3D337(1)004(3)0300
13.2
TF3E337(1)004(3)0700
13.2
TF3E337(1)004(3)0500
13.2
TF3E337(1)004(3)0250
13.2
TF3E477(1)004(3)0500
18.8
TF3E477(1)004(3)0250
18.8
Notes
• Part number definitions:
(1) Capacitance tolerance codes: K, M
(2) Terminations and packaging codes: C, D
(3) Terminations and packaging codes: C, D, U, V
(1)
Preliminary values, contact factory for availability
Revision: 07-Nov-17
Document Number: 40113
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
End of Life April 2018 – Alternative Device: TMCTX
TF3
www.vishay.com
Vishay Sprague
MAX. DF
AT +25 °C
120 Hz
(%)
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
MAX. ESR
AT +25 °C
100 kHz
()
2.000
1.800
0.600
2.000
1.800
0.600
2.000
1.400
0.600
1.600
1.300
0.600
1.000
0.900
0.450
1.200
0.800
0.400
1.000
0.700
0.350
0.700
0.400
0.350
0.800
0.700
0.400
0.350
0.900
0.700
0.300
0.700
0.600
0.300
0.600
0.300
0.700
0.600
0.300
0.700
0.500
0.300
0.250
0.500
0.300
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.23
0.25
0.43
0.23
0.25
0.43
0.23
0.28
0.43
0.26
0.29
0.43
0.39
0.41
0.58
0.30
0.37
0.52
0.39
0.46
0.65
0.40
0.52
0.56
0.43
0.46
0.61
0.65
0.43
0.49
0.74
0.46
0.50
0.71
0.52
0.74
0.46
0.50
0.71
0.49
0.57
0.74
0.81
0.57
0.74
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
6.3 V
DC
AT +85 °C; 4 V
DC
AT +125 °C
15
15
15
22
22
22
33
33
33
47
47
47
47
47
47
68
68
68
68
68
68
100
100
100
100
100
100
100
100
100
100
150
150
150
150
150
220
220
220
220
220
220
220
330
330
C
C
C
C
C
C
C
C
C
C
C
C
D
D
D
C
C
C
(1)
D
D
D
C
C
C
(1)
D
D
D
D
E
E
E
D
D
D
E
E
D
D
D
E
E
E
E
(1)
E
E
TF3C156(1)6R3(2)2000
TF3C156(1)6R3(2)1800
TF3C156(1)6R3(2)0600
TF3C226(1)6R3(2)2000
TF3C226(1)6R3(2)1800
TF3C226(1)6R3(2)0600
TF3C336(1)6R3(2)2000
TF3C336(1)6R3(2)1400
TF3C336(1)6R3(2)0600
TF3C476(1)6R3(2)1600
TF3C476(1)6R3(2)1300
TF3C476(1)6R3(2)0600
TF3D476(1)6R3(3)1000
TF3D476(1)6R3(3)0900
TF3D476(1)6R3(3)0450
TF3C686(1)6R3(2)1200
TF3C686(1)6R3(2)0800
TF3C686(1)6R3(2)0400
TF3D686(1)6R3(3)1000
TF3D686(1)6R3(3)0700
TF3D686(1)6R3(3)0350
TF3C107(1)6R3(2)0700
TF3C107(1)6R3(2)0400
TF3C107(1)6R3(2)0350
TF3D107(1)6R3(3)0800
TF3D107(1)6R3(3)0700
TF3D107(1)6R3(3)0400
TF3D107(1)6R3(3)0350
TF3E107(1)6R3(3)0900
TF3E107(1)6R3(3)0700
TF3E107(1)6R3(3)0300
TF3D157(1)6R3(3)0700
TF3D157(1)6R3(3)0600
TF3D157(1)6R3(3)0300
TF3E157(1)6R3(3)0600
TF3E157(1)6R3(3)0300
TF3D227(1)6R3(3)0700
TF3D227(1)6R3(3)0600
TF3D227(1)6R3(3)0300
TF3E227(1)6R3(3)0700
TF3E227(1)6R3(3)0500
TF3E227(1)6R3(3)0300
TF3E227(1)6R3(3)0250
TF3E337(1)6R3(3)0500
TF3E337(1)6R3(3)0300
0.9
0.9
0.9
1.1
1.1
1.1
1.6
1.6
1.6
2.3
2.3
2.3
2.3
2.3
2.3
3.3
3.3
3.3
3.3
3.3
3.3
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
9.0
9.0
9.0
9.0
9.0
13.2
13.2
13.2
13.2
13.2
13.2
13.2
19.8
19.8
Notes
• Part number definitions:
(1) Capacitance tolerance codes: K, M
(2) Terminations and packaging codes: C, D
(3) Terminations and packaging codes: C, D, U, V
(1)
Preliminary values, contact factory for availability
Revision: 07-Nov-17
Document Number: 40113
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
