3mm (T1) Package Discrete LED
3mm (T1) Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, UltraCurrent
GREEN, 12V Ultra Bright
AMBER, Low Current Extended Profile
AMBER Low Current Extended Profile
Low Bright
Super
5V
GREEN, Ultra Bright
B
3GDL-201-X
♦
♦
♦
♦
♦
♦
♦
Industry Standard 3mm (T1) Package
RoHS Compliant
Diffused Lens
Extended Body Profile
Available in Standard (Blank) and Shouldered (S) Lead
Frame styles
2 mA Low Operating Current
Ideal for Status Indication and Display
Bivar 3mm T1 Package Low Current Extended Profile LED is special binned at 2 mA and is ideal for
those applications where lower power budget is required such as solar panel or battery-powered port-
able devices and provides additional protrusion for thicker faceplates. Bivar offers diffused LED lens
for uniform light output. The Standard Lead frame LED is ideal for vertical spacer assemblies without
lead bends and the Shouldered Lead frame LED has a built in strain relief feature which is ideal for
Right Angle Holder assemblies that require lead bends. A long lead version is also available with a “-
LL” suffix added to the part numbers.
Part Number
3GDL-201
3GDL-201-S
Material
Emitted Color
Peak. Wavelength
λp(nm)
TYP.
568nm
Lens Appearance
Viewing Angle
GaP/GaP
GREEN
Green Diffused
35°
Part Number Designation
3 X X L -2 0 1-X
LED Body, mm
Emitted Color
Lens Appearance
Low Current
Lead Frame & Body Style
i.e. -S, Blank for Standard
Extended Profile
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 04/09
Page 1 of 5
3mm (T1) Package Discrete LEDs
3mm (T1) Package Discrete LED
LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, UltraCurrent Bright
GREEN, 12V UltraProfile
AMBER, Low Current
AMBER Low Current Extended Profile
Low Bright
Extended Profile
Ultra Bright
Super
5V
GREEN, Extended

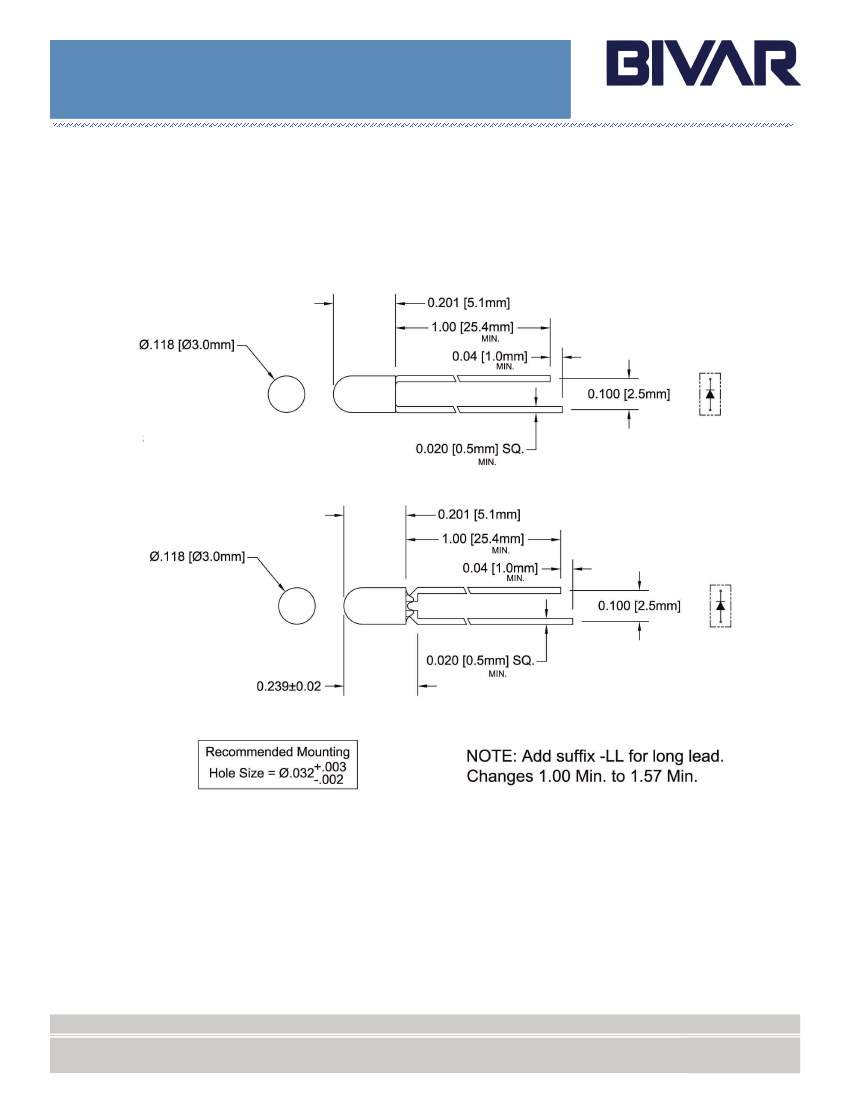

Outline Dimensions
Standard “3XXL-201”
Shouldered Lead “3XXL-201-S” LED
Standard Lead Only
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 04/09
Page 2 of 5
3mm (T1) Package Discrete LEDs
3mm (T1) Package Discrete LED
LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, UltraCurrent Bright
GREEN, 12V UltraProfile
AMBER, Low Current
AMBER Low Current Extended Profile
Low Bright
Extended Profile
Ultra Bright
Super
5V
GREEN, Extended
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
10 mW
7 mA
/ mA
5V
-25 ~ +85°C
-30 ~ +100°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & I
F
= 2 mA unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
100
MIN
/
/
TYP
/
/
MAX
/
/
Luminous
Intensity Iv (mcd)
MIN
/
/
TYP
2
MAX
/
/
Viewing
Angle
2
Ө
½
(deg)
TYP
35
Part Number
MIN TYP MAX MIN TYP MAX
3GDL-201
3GDL-201-S
/
2.1
2.8
/
2
/
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 04/09
Page 3 of 5
3mm (T1) Package Discrete LEDs
3mm (T1) Package Discrete LED
LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, UltraCurrent Bright
GREEN, 12V UltraProfile
AMBER, Low Current
AMBER Low Current Extended Profile
Low Bright
Extended Profile
Ultra Bright
Super
5V
GREEN, Extended
Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
0°
Iv
10°
20°
30°
40°
1.0
35°
0.5
50°
60°
70°
80°
0.0
500
λ(nm)
90°
0.5
0.3
0.1
0.2
0.4
0.6
Fig. 2 Directivity Radiation Diagram
550
600
650
Fig. 1 Relative Luminous Intensity vs. Wavelength
Vf (V)
Iv
1.2
1.1
1.0
3.0
2.0
1.0
0.9
0.8
-40
0
40
80
T (°C)
0.0
-40
0
40
80
T (°C)
Fig. 3 Forward Voltage vs. Temperature
Fig. 4 Relative Luminous Intensity vs. Temperature
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision B 04/09
Page 4 of 5
3mm (T1) Package Discrete LEDs
3mm (T1) Package Discrete LED
LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, UltraCurrent Bright
GREEN, 12V UltraProfile
AMBER, Low Current
AMBER Low Current Extended Profile
Low Bright
Extended Profile
Ultra Bright
Super
5V
GREEN, Extended
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
AntiStatic Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision B 04/09
Page 4 of 4
Page 5 of 5
