ZFS-8500-WW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> ZFS-8500-WW

ZFS-8500-WW: DescriptionLED Lighting Bars and Strips Warm White 5 Meters LED Flex Ribbon; CategoryLED optoelectronic/LED; File Size253KB，2 Pages; ManufacturerJKL Components; Environmental Compliance

Download Datasheet Parametric Compare View All

ZFS-8500-WW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZFS-8500-WW	-	-	View	Buy Now

ZFS-8500-WW Overview

LED Lighting Bars and Strips Warm White 5 Meters LED Flex Ribbon

ZFS-8500-WW Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	JKL Components
Product Category	LED Lighting Bars and Strips
RoHS	Details
Product	LED Flexible Strips
Illumination Color	White (Warm White)
Wavelength/Color Temperature	3560 K
Number of LEDs	30 LED
Length	500 mm
Width	8 mm
Power Rating	2.4 W
Packaging	Spool
Luminous Flux	70 lm
Mounting Style	SMD/SMT
If - Forward Current	200 mA
Factory Pack Quantity	1
Vf - Forward Voltage	12 V

Preview

Download Datasheet

View All

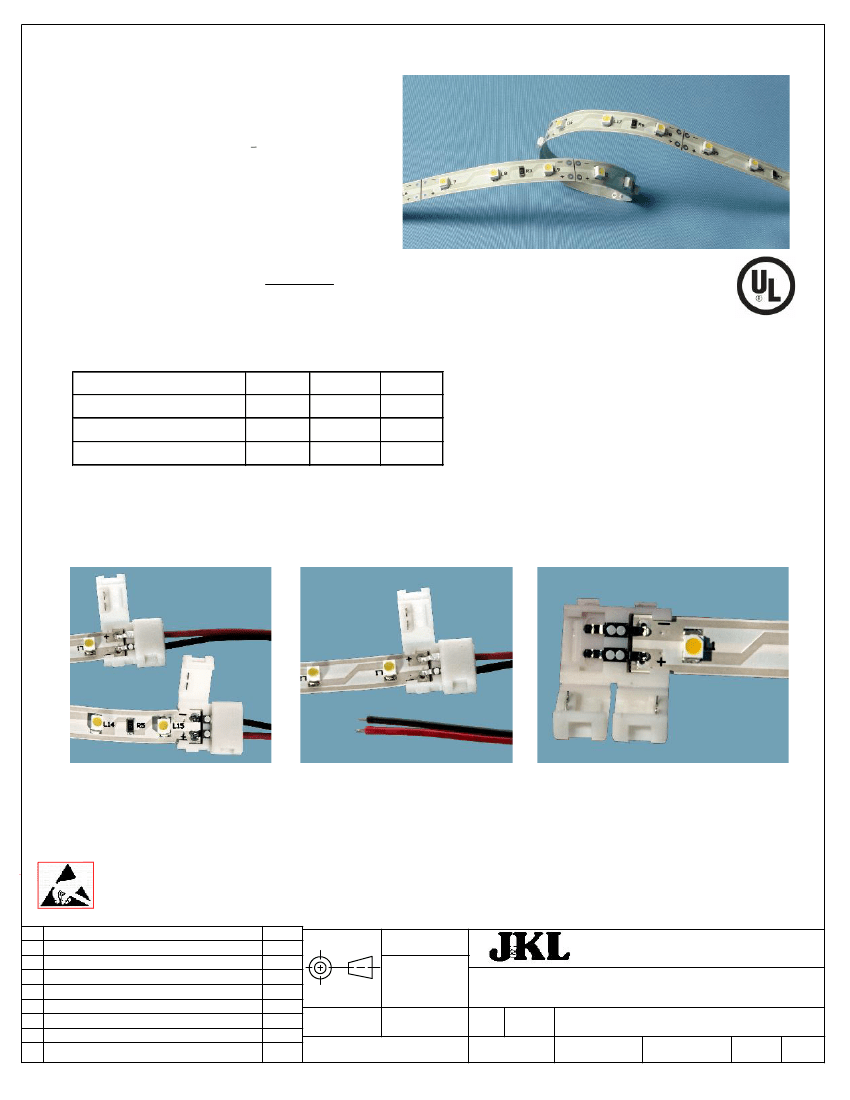

Features

VOLTAGE: 12V DC

CURRENT: 1800mA

LED VIEWING ANGLE (2 0 1/2): 120°

STANDARD PACKAGING:

5 Meter Reel (300 LED's)

OPTIONAL PACKAGING:

Individual 500mm Sections (30 LED's)

Order as ZFS-8500-XX/SEC

Note: Individual Sections ARE NOT supplied

with insulated wire connection.

LED FLEX RIBBON

E365522

Maximum Ratings

Parameter

Electrostatic Discharge

Operating Temperature

Storage Temperature

Symbol

ESD

Topr

Tstg

Rating

800

-30~+85

-40~+100

Unit

ºC

Accessories

ZPS-1220

ZPS-1225

ZPS-1235

ZPS-1260

ZDM-01

12V, 20 Watt Power Supply

12V, 25 Watt Power Supply

12V, 35 Watt Power Supply

12V, 60 Watt Power Supply

PWM LED Dimmer

Note: ZPS-1235 and ZPS-1260 require

use of wire nuts for connections.

Mating Components

ZFS-CH138-8J:

Solderless Joiner Connector

ZFS-CH140-8

Solderless Input Connector

ZFS-CHO-8J:

Solderless Connector

ATTENTION

OBSERVE PRECAUTION FOR

HANDLING ELECTROSTATIC

DISCHARGE SENSITIVE DEVICES

Note

Please refer to JKL Application Sheet JKL-AS-ZFS-LED FLEX for

Installation and Power Recommendations.

6/13/14

METRIC

12/9/13

5/1713

8/16/11

THIRD ANGLE

6/27/11

PROJECTION

2/15/11

DRAWN BY

12/28/10

L. WENGSTROM

8/18/10

APPV'D

DATE

REV.

NO.

DELETE PART NO. ZFS-8500-Y

ADD UL SYMBOL

CHANGE MATING COMPONENTS

ADD ACCESSORIES NOTES

ADD WIRE TYPE AND SIZE

SHOW WIRES ON BOTH ENDS

ADD ZFS-8500-Y PART NO & ASSESSORIES

RELEASED

DESCRIPTION/ECO

NUMBER

DIMENSIONS ARE

IN mm (INCHES)

TOLERANCE UNLESS

OTHERWISE SPECIFIED

COMPONENTS CORPORATION

TITLE

1 PL +/-

2 PL +/-

ANGLE +/-

APPV'D BY

REF.

DATE

LED FLEX RIBBON, 12V

SIZE

S.C.

6/13/14

MANUAL REVISIONS NOT PERMITTED

- CAD DRAWING -

SCALE

55335

NONE

FSCM NO.

DRAWING

NO.

RELEASED

DATE

ZFS-8500 MULTI

8/18/10

REVISION

DATE

6/13/14

REV.

NO.

SHEET

ZFS-8500-WW Related Products

	ZFS-8500-WW	ZFS-8500-WW-SEC
Description	LED Lighting Bars and Strips Warm White 5 Meters LED Flex Ribbon	LED Lighting Bars and Strips Warm White 500mm LED Flex Ribbon
Product Attribute	Attribute Value	Attribute Value
Manufacturer	JKL Components	JKL Components
Product Category	LED Lighting Bars and Strips	LED Lighting Bars and Strips
RoHS	Details	Details
Product	LED Flexible Strips	LED Flexible Strips
Illumination Color	White (Warm White)	White (Warm White)
Wavelength/Color Temperature	3560 K	3560 K
Number of LEDs	30 LED	30 LED
Length	500 mm	500 mm
Width	8 mm	8 mm
Power Rating	2.4 W	2.4 W
Packaging	Spool	Bulk
Luminous Flux	70 lm	70 lm
Mounting Style	SMD/SMT	SMD/SMT
If - Forward Current	200 mA	200 mA
Factory Pack Quantity	1	10
Vf - Forward Voltage	12 V	12 V
