NOTES:
1) Standoff length selection per Order Table below
2) U.S. & Foreign Pat. Issued & Pend.
7
6
5
4
3
ECN #
REV
N/A
001
2
REVISIONS
DESCRIPTION
INITIAL RELEASE
REVISED PER ECR111009AZ01
1
DATE
9/01/92
2/25/10
INITIALS
JS
KH
D
.050 4PLS
(1.270mm)
.20
(5.08mm)
.100
(2.540m)
.047 4PLS
(1.194mm)
.036 2PLS
(.914mm)
.20
(5.08mm)
.160
(4.064mm)
.127
(3.226mm)
D
A
C

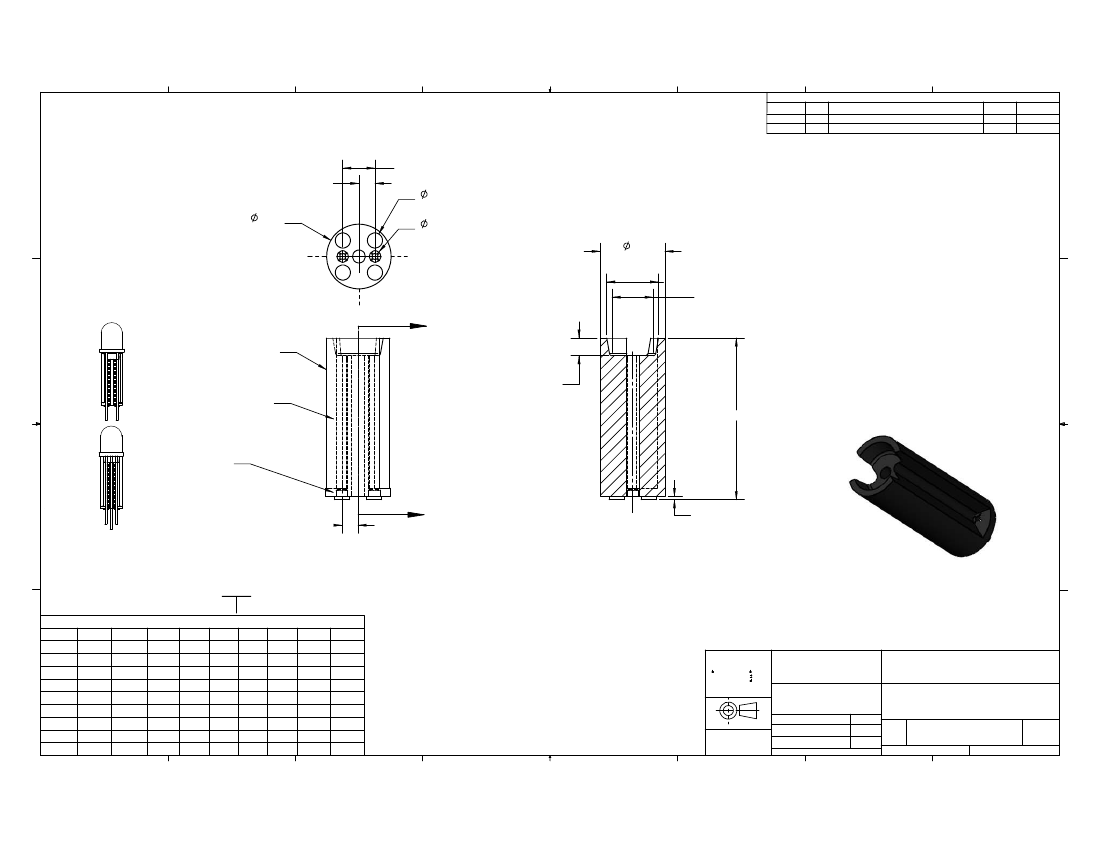

The plastic body maintains
the LED in a vertcal position
eliminating LED tilting
C
Bi-lead LED
assembly
The barrier seperate the leads
to prevent shorting
.055
(1.397mm)
XXX
Retention tabs hold LED leads
in position prior to final PC board
assembly
B
Tri-lead LED
assembly
.050
(1.270mm)
A
.010
(.254mm)
B
SECTION A-A
ODERING CODES:
STD XXX BLK
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
8
ISOMETRIC VIEW
900
910
920
930
940
950
960
970
980
990
1000
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES:
A
XXX = LENGTH (.100 to 1.0)
300 400 500 600 700 800
310 410 510 610 710 810
320 420 520 620 720 820
330 430 530 630 730 830
340 440 540 640 740 840
350 450 550 650 750 850
360 460 560 660 760 860
370 470 570 670 770 870
380 480 580 680 780 880
390 490 590 690 790 890
7
MATERIAL
VISUAL COMMUNICATIONS COMPANY, INC.
190 Bosstick Boulevard, Suite101 San Marcos, CA 92069 USA
Phone (760) 560-1300 Fax (760) 560-1301 email vccsales@vcclite.com
ANGLES
1'
FINISH
DECIMALS
.X
.020
.010
.XX
.XXX .005
VALOX 310 SEO (BLACK)
U.L. 94 V0
FINISH
A
BREAK ALL CORNERS AND SHARP
EDGES .030 MAX
TITLE:
SEE NOTES
APPROVAL
DATE
STDxxxBLK
2/25/10
3/1/10
THIRD ANGLE PROJECTION
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
VISUAL COMMUNICATIONS COMPANY, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
VISUAL COMMUNICATIONS COMPANY, INC IS
PROHIBITED.
DRAWN
CHECKED
K.Howard
DPZ
SIZE
DWG. NO.
REV
B
SCALE: 5:1
STDxxxBLK_A
1
001
DO NOT SCALE DRAWING
SHEET 1 OF 1
6
5
4
3
2
